Model no.FZ81024C40
8 inch 1024x768 XGA IPS LVDS TFT-LCD — FZ81024C40 (40-pin, CABC, L/R U/D Mirror)
FZ81024C40 — 8 inch 1024x768 XGA IPS LVDS TFT-LCD, 40-pin, Normally Black, CABC dimming, L/R U/D mirror. Ideal for industrial HMI, medical display, test instrument. Factory price, OEM/ODM.
- a-Si TFT active matrix
- LVDS Interface
- No touch (no-touch screen per datasheet)
- 8 inch a-Si TFT active matrix, 1024x768 XGA landscape (4:3), 16.7M colors
- Standard LVDS interface — robust high-speed differential signaling, low EMI
- IPS panel with Full View (all-direction) — consistent image from any angle
- Normally Black display mode — superior contrast and true black level
- CABC (Content Adaptive Brightness Control) — adaptive dimming for power savings
- Screen Size
- 8 inch
- Resolution
- 1024 × 768
- Display Mode
- Normally black
- Interface
- LVDS
- Touch
- No touch panel
- Viewing Angle
- IPS, full viewing angle
Product Overview
The FZ81024C40 is an 8″ landscape-format (XGA 4:3) IPS TFT-LCD module with 1024x768 resolution in a compact 174 (W) x 136 (H) x 2.45 (D) mm — no-touch thickness outline. It uses a standard LVDS interface on a 40-pin plug-in FPC and supports 16.7M (RGB 8-bit) colors with a Normally Black display mode for excellent contrast and image depth. The integrated CABC (Content Adaptive Brightness Control) circuit and DIMO output enable adaptive backlight dimming for power savings. L/R and U/D pins support horizontal and vertical image inversion for flexible mounting orientations. With an 80-85° all-direction viewing angle and an industrial-grade operating range, it is ideal for industrial HMI, medical equipment, test & measurement, vehicle infotainment rear-screen and digital signage.
Key Features
- 8 inch a-Si TFT active matrix, 1024x768 XGA landscape (4:3), 16.7M colors
- Standard LVDS interface — robust high-speed differential signaling, low EMI
- IPS panel with Full View (all-direction) — consistent image from any angle
- Normally Black display mode — superior contrast and true black level
- CABC (Content Adaptive Brightness Control) — adaptive dimming for power savings
- L/R and U/D mirror pins — flexible mounting orientation without software rotation
- 6-bit / 8-bit mode selectable via SELB (Pin 28) — compatible with older hosts
- Hard coating surface treatment (AG/AR options available on request)
- Operating temperature -20 ~ +50 °C

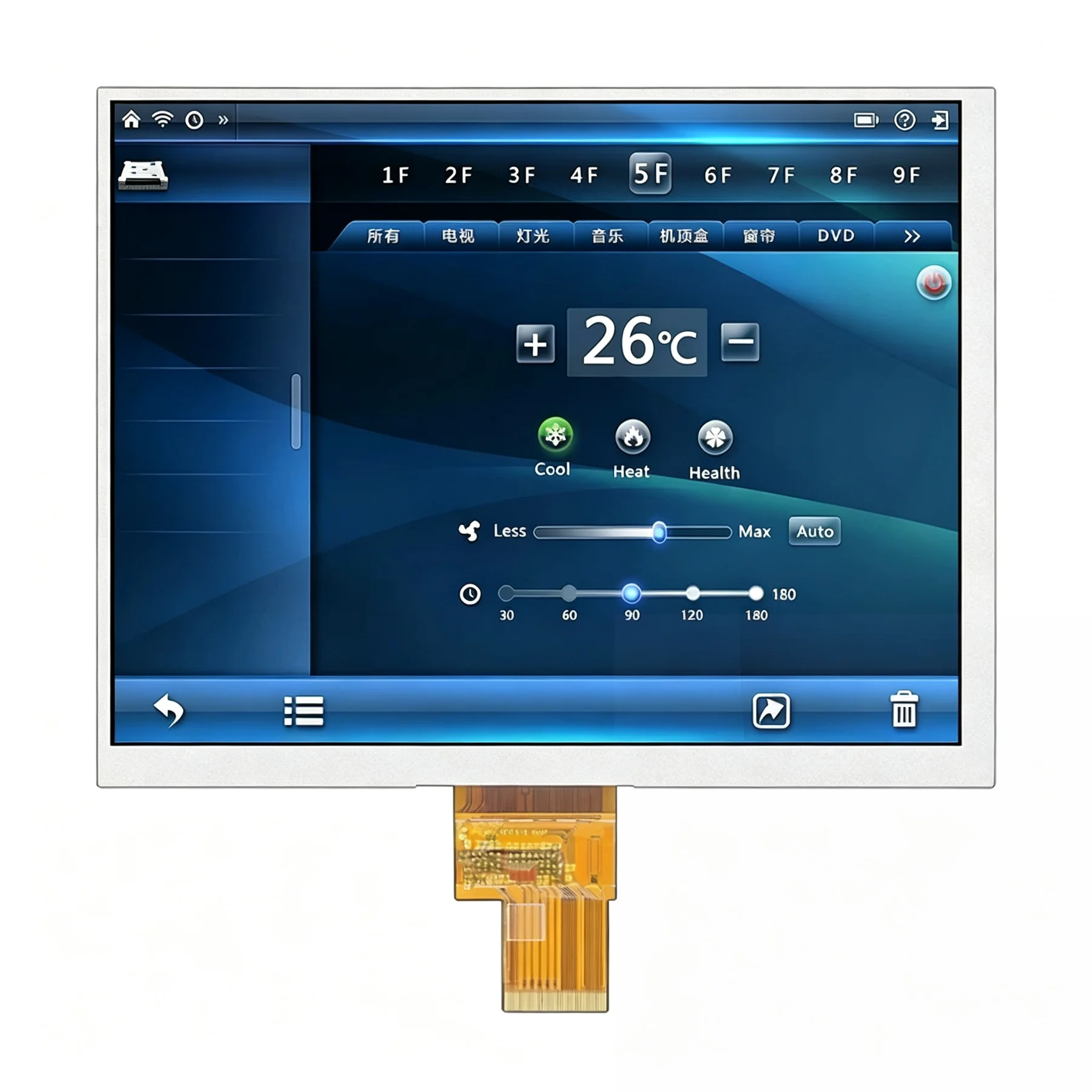

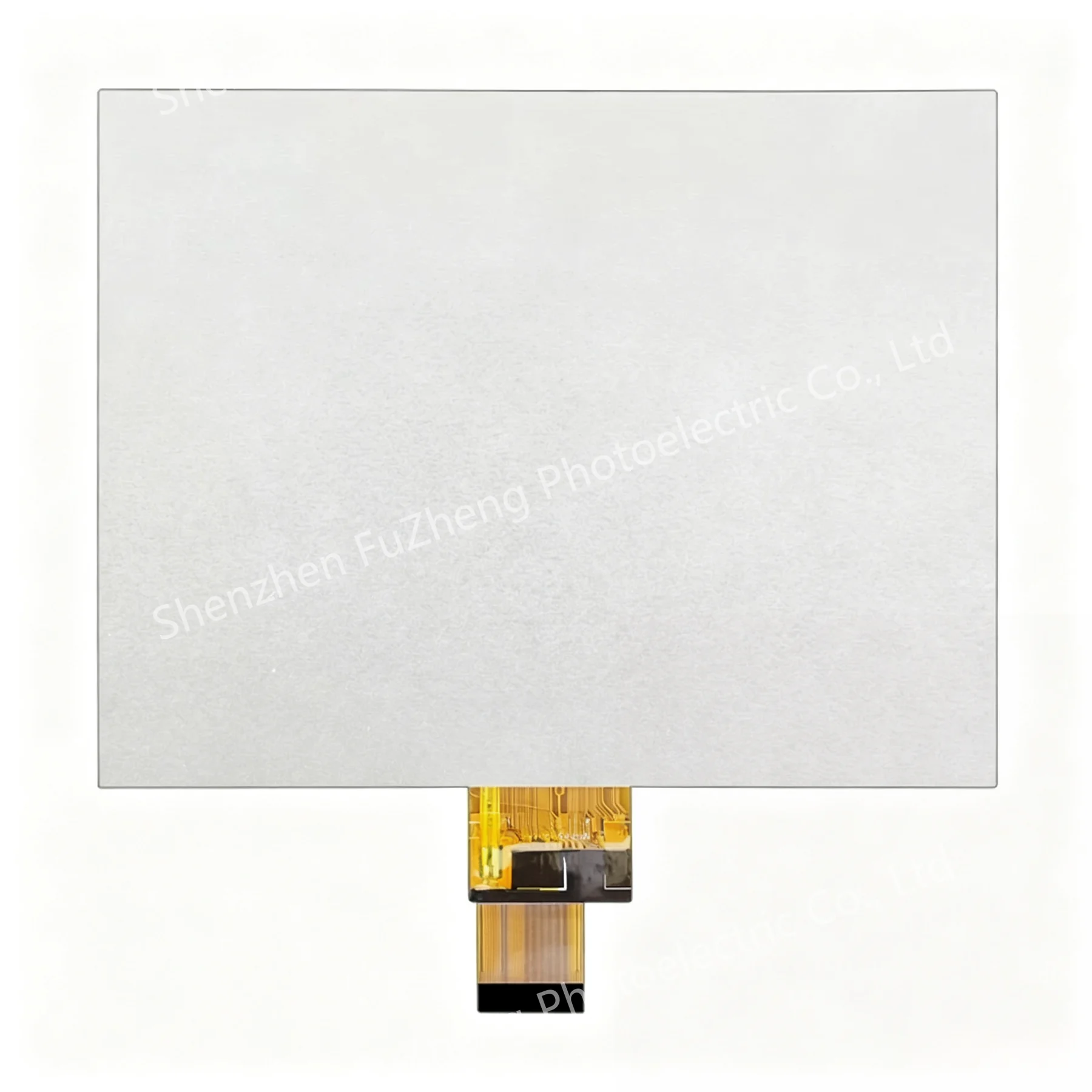

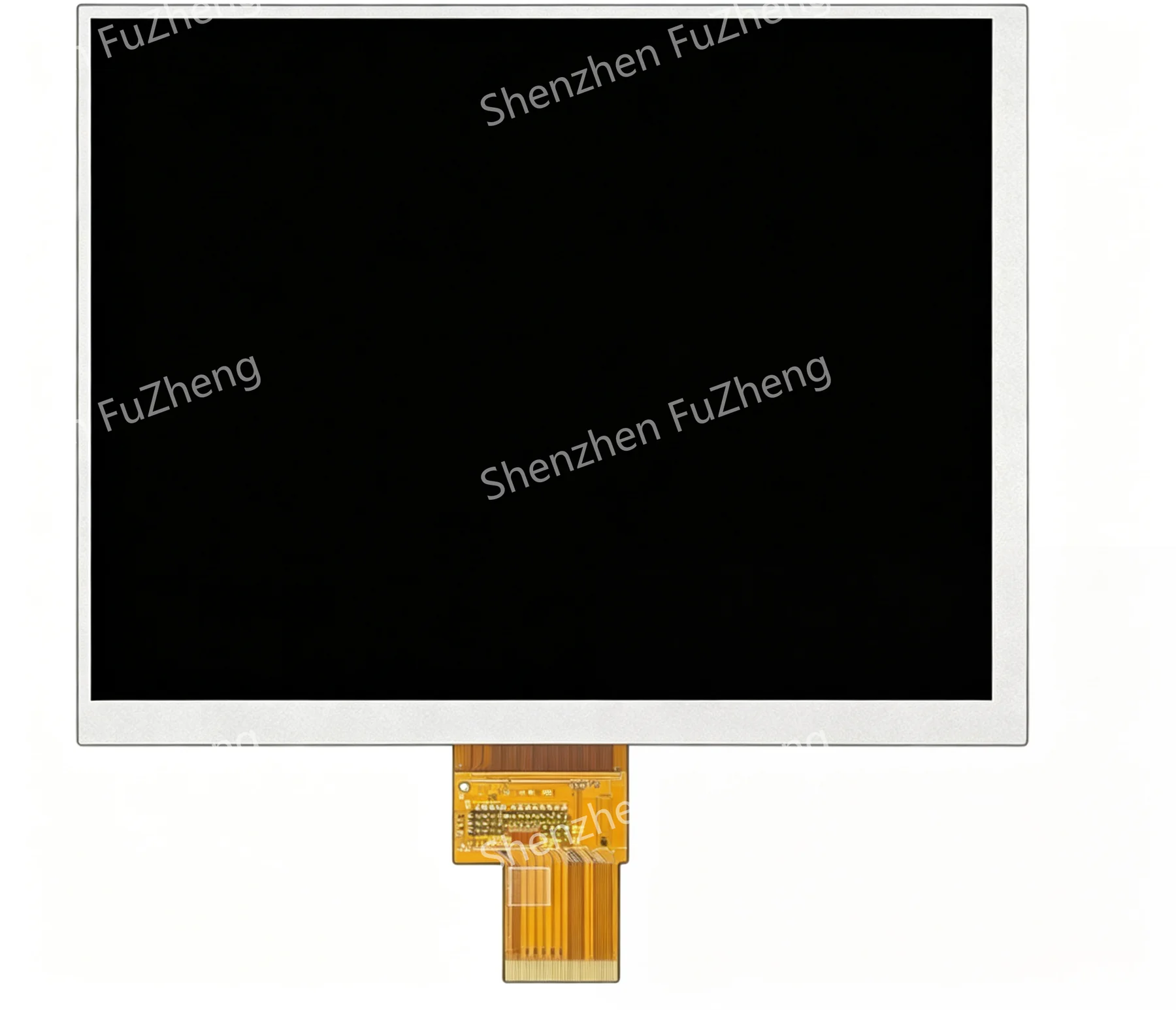

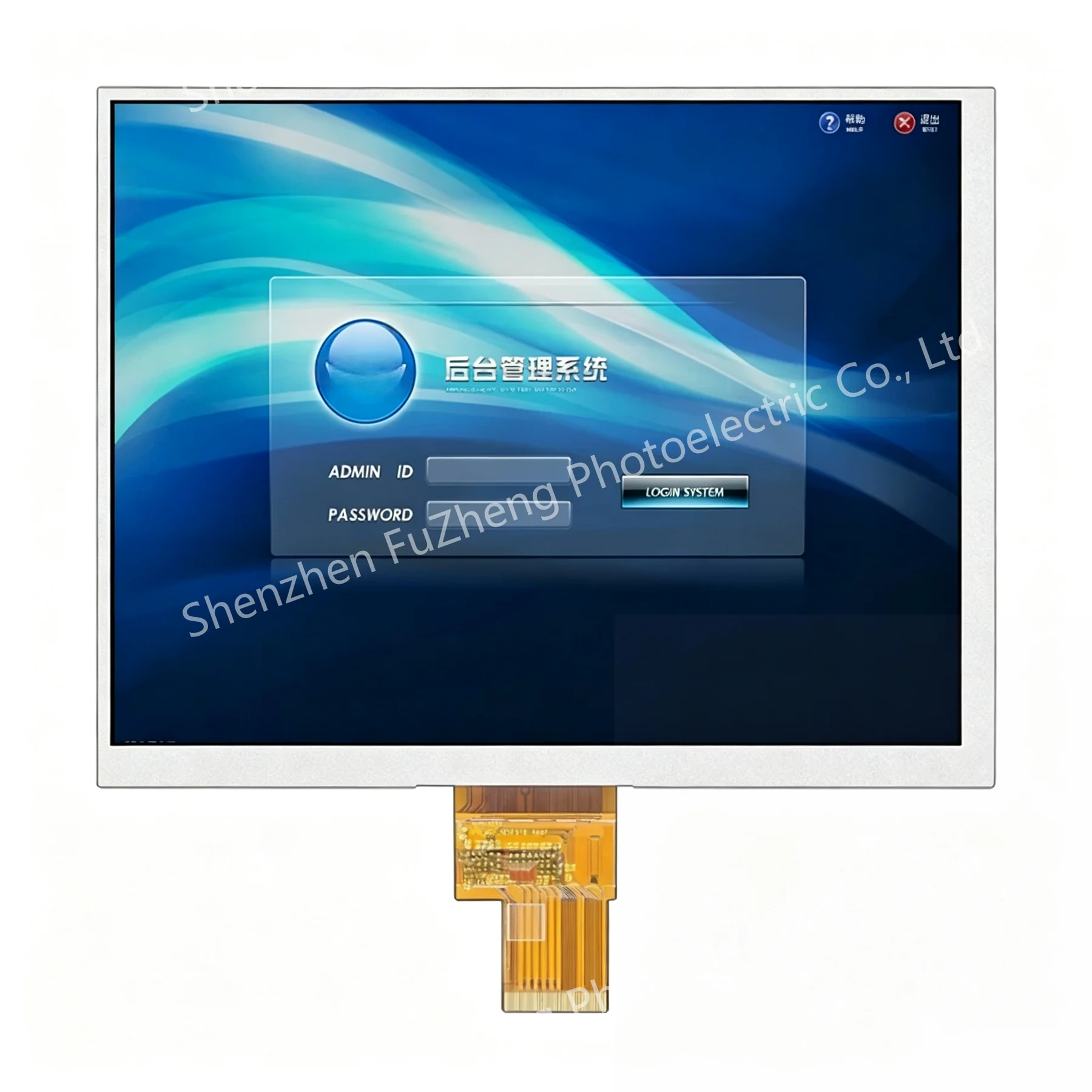

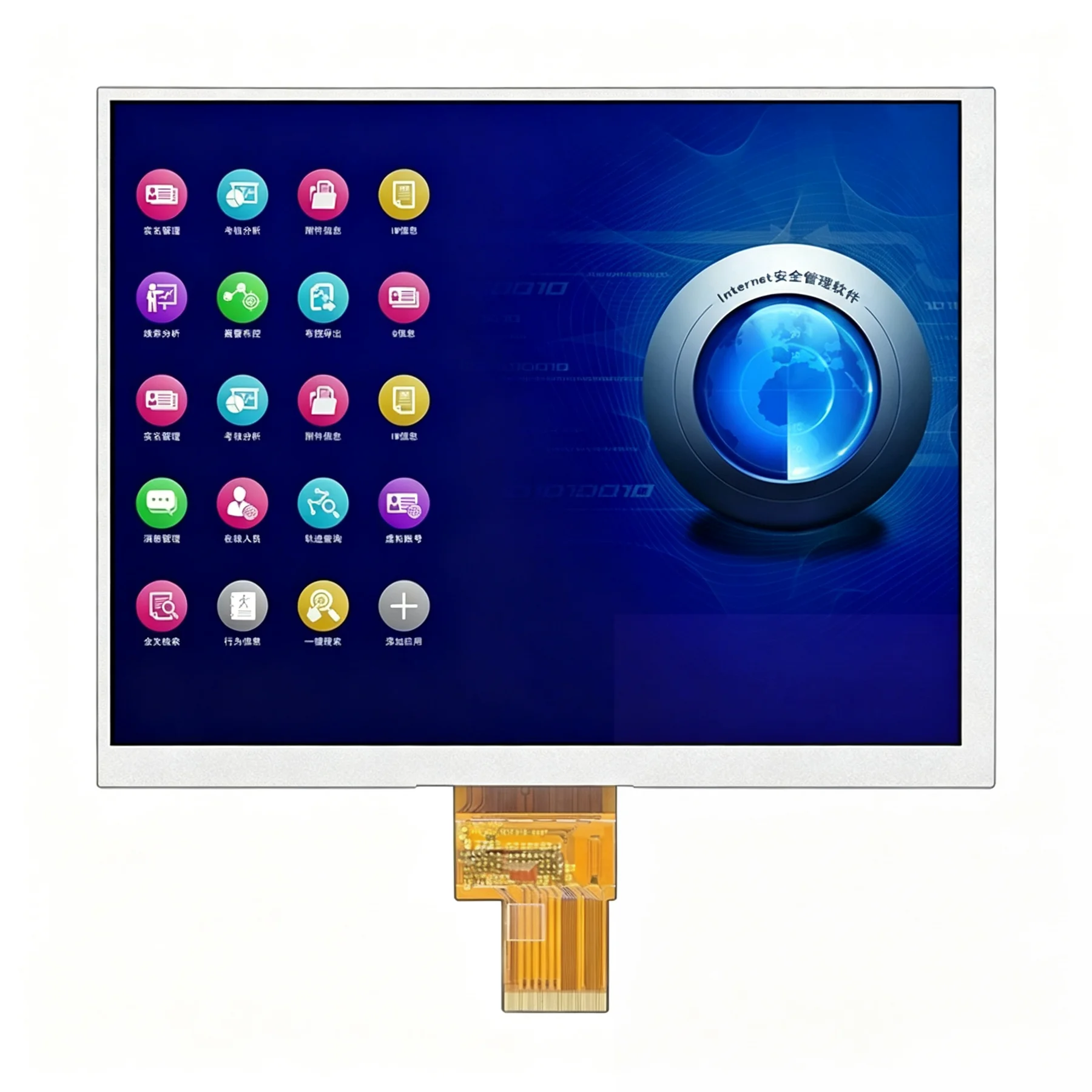

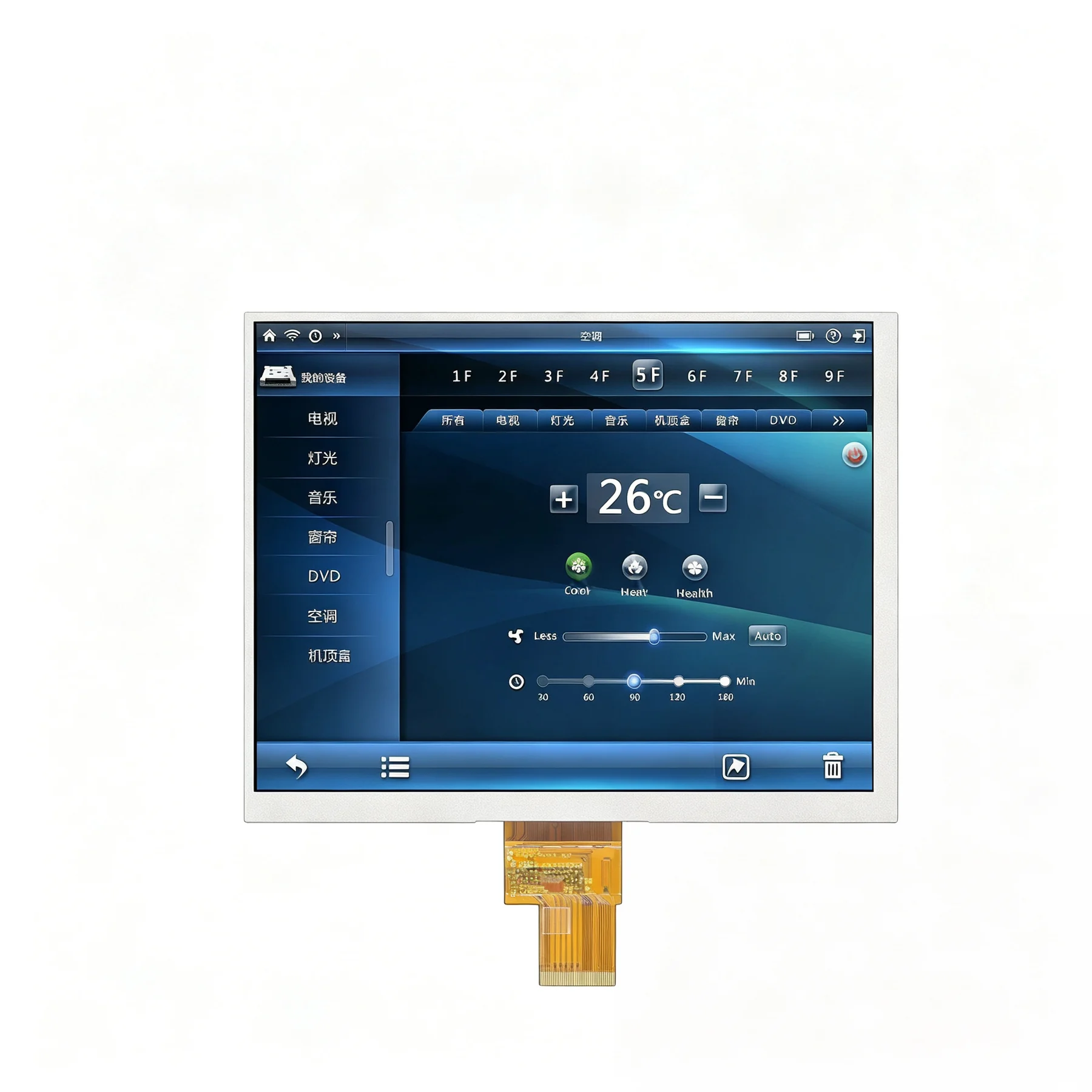

Product Images
Basic Parameters
| Display Type | a-Si TFT active matrix |
|---|---|
| Display Mode | Normally Black (常黑) |
| Model Number | FZ81024C40 |
| Screen Size | 8 inch (diagonal, XGA 4:3 landscape) |
| Resolution | 1024x768 (1024 RGB x 768 Dots) |
| Dot Pitch (per datasheet) | 0.05275 (W) x 0.15825 (H) mm — note: H/V appear swapped, true pitch ≈ 0.1583 mm |
| Display Colors | 16.7M (RGB stripe, 8-bit / 6-bit selectable via Pin 28 SELB) |
| Viewing Direction | IPS — Full View (all-direction) |
| Active Area | 162.05 (W) x 121.54 (H) mm |
| LCM Outline Size | 174 (W) x 136 (H) x 2.45 (D) mm — no-touch thickness |
| Surface Treatment | Hard coating (AG/AR option) |
| Data Interface | LVDS Interface |
| Pin Count | 40 (plug-in FPC) |
| Controller / Driver IC | TBD (LVDS standard controller — see driver datasheet) |
| Brightness Control | Yes — Content Adaptive Brightness Control (CABCEN0 / CABCEN1 + DIMO, 4 levels) |
| Image Mirror | Yes — L/R horizontal inversion (Pin 33), U/D vertical inversion (Pin 34) |
| Power Supply — VDD (Pin 2-3, digital) | VDD 3.3 V (Pin 2-3, digital circuit) |
| Power Supply — AVDD (Pin 29, analog) | AVDD — analog circuit power (Pin 29) |
| Power Supply — VCOM (Pin 1, common) | VCOM — common voltage (Pin 1) |
| Power Supply — VGH (Pin 38, gate ON) | VGH — Gate ON voltage (Pin 38) |
| Power Supply — VGL (Pin 35, gate OFF) | VGL — Gate OFF voltage (Pin 35) |
| Touch Panel | No touch (no-touch screen per datasheet) |
| Operating Temperature | -20 ~ +50 °C |
| Storage Temperature | -30 ~ +60 °C |
| Manufacturer | Shenzhen FuZheng Photoelectric Co., Ltd |

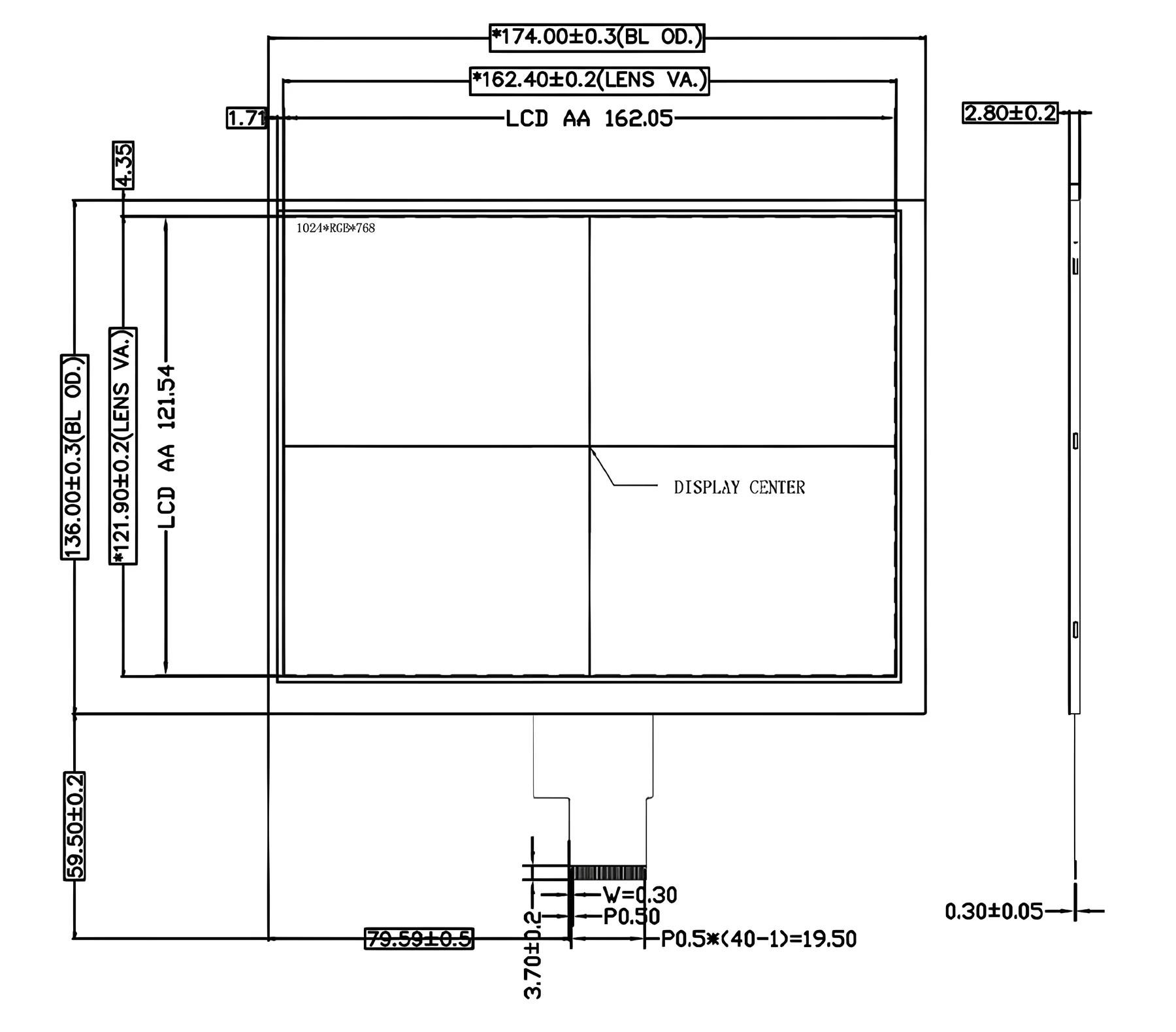

Mechanical Drawings
Pin Definition (40-pin FPC)
40-pin plug-in FPC tail. Pin 1 is VCOM (common voltage). Pins 2-3 are VDD (3.3 V digital circuit power). Pin 4 is NC. Pin 5 is active-low global Reset. Pin 6 is STBYB (standby, normally pulled high). Pin 7 is GND. Pins 8-9 are LVDS Lane 0 differential pair (RXIN0-/+). Pin 10 is GND. Pins 11-12 are Lane 1 (RXIN1-/+). Pin 13 is GND. Pins 14-15 are Lane 2 (RXIN2-/+). Pin 16 is GND. Pins 17-18 are LVDS clock pair (RXCLKIN-/+). Pin 19 is GND. Pins 20-21 are Lane 3 (RXIN3-/+). Pin 22 is GND. Pins 23-24 are NC. Pin 25 is GND. Pin 26 is NC. Pin 27 is DIMO (CABC backlight dimming output). Pin 28 is SELB (6/8 bit mode select). Pin 29 is AVDD (analog power). Pin 30 is GND. Pins 31-32 are LED- (cathode). Pin 33 is L/R (horizontal mirror). Pin 34 is U/D (vertical mirror). Pin 35 is VGL (gate OFF). Pin 36 is CABCEN1. Pin 37 is CABCEN0. Pin 38 is VGH (gate ON). Pins 39-40 are LED+ (anode). Each LVDS differential pair is GND-shielded to minimize EMI.
| Pin No. | Symbol | I/O | Function |
|---|---|---|---|
| 1 | VCOM | P | Common Voltage |
| 2 | VDD | P | Power Voltage for digital circuit (3.3 V) |
| 3 | VDD | P | Power Voltage for digital circuit (3.3 V) |
| 4 | NC | --- | No connection |
| 5 | Reset | I | Global reset pin |
| 6 | STBYB | I | Standby mode, normally pulled high. STBYB="1" normal operation, STBYB="0" timing controller, source driver will turn off, all output are High-Z |
| 7 | GND | P | Ground |
| 8 | RXIN0- | I | - LVDS differential data input (Lane 0-) |
| 9 | RXIN0+ | I | + LVDS differential data input (Lane 0+) |
| 10 | GND | P | Ground |
| 11 | RXIN1- | I | - LVDS differential data input (Lane 1-) |
| 12 | RXIN1+ | I | + LVDS differential data input (Lane 1+) |
| 13 | GND | P | Ground |
| 14 | RXIN2- | I | - LVDS differential data input (Lane 2-) |
| 15 | RXIN2+ | I | + LVDS differential data input (Lane 2+) |
| 16 | GND | P | Ground |
| 17 | RXCLKIN- | I | - LVDS differential clock input |
| 18 | RXCLKIN+ | I | + LVDS differential clock input |
| 19 | GND | P | Ground |
| 20 | RXIN3- | I | - LVDS differential data input (Lane 3-) |
| 21 | RXIN3+ | I | + LVDS differential data input (Lane 3+) |
| 22 | GND | P | Ground |
| 23 | NC | --- | No connection |
| 24 | NC | --- | No connection |
| 25 | GND | P | Ground |
| 26 | NC | --- | No connection |
| 27 | DIMO | O | Backlight CABC controller signal output (Note: drives external backlight driver — Note1) |
| 28 | SELB | I | 6bit/8bit mode select (Note1: see datasheet) |
| 29 | AVDD | P | Power for Analog Circuit |
| 30 | GND | P | Ground |
| 31 | LED- | P | LED Cathode (backlight) |
| 32 | LED- | P | LED Cathode (backlight) |
| 33 | L/R | I | Horizontal inversion — left/right mirror (Note3) |
| 34 | U/D | I | Vertical inversion — up/down mirror (Note3) |
| 35 | VGL | P | Gate OFF Voltage |
| 36 | CABCEN1 | I | CABC H/W enable bit 1 (Note2) |
| 37 | CABCEN0 | I | CABC H/W enable bit 0 (Note2) |
| 38 | VGH | P | Gate ON Voltage |
| 39 | LED+ | P | LED Anode (backlight) |
| 40 | LED+ | P | LED Anode (backlight) |
CABC — Content Adaptive Brightness Control
CABC (Content Adaptive Brightness Control) is supported. CABCEN0 and CABCEN1 select one of four CABC modes (Off / User / Still Picture / Moving Picture) — see Note2 in the datasheet for the exact mapping. The DIMO pin outputs a PWM-like control signal to an external LED driver to dim the backlight adaptively based on image content. For applications where CABC is not desired, pull CABCEN0 and CABCEN1 to '0' (CABC Off).
L/R and U/D Image Mirror
L/R (Pin 33) and U/D (Pin 34) control horizontal and vertical image inversion, allowing flexible image mirroring for different mounting orientations (e.g. landscape vs. portrait installations or rear-seat displays).
Typical Applications
- Industrial HMI, machine control and instrumentation panel
- Medical equipment display (patient monitor, ultrasound, diagnostic device)
- Test & measurement equipment front-panel display
- Vehicle infotainment and rear-seat entertainment display
- POS terminal, self-service kiosk and information display
- Digital signage and advertising display (4:3 format)
- Smart home control panel and intercom
- Avionics and marine instrument display
Frequently Asked Questions
What are the size and resolution of FZ81024C40?
FZ81024C40 is a 8 inch (diagonal, XGA 4:3 landscape) display with 1024x768 (1024 RGB x 768 Dots).
Which interface and connector does FZ81024C40 use?
The supplied product brief specifies LVDS Interface with 40 (plug-in FPC). Confirm the quoted connector revision before design-in.
Which controller or driver is used on FZ81024C40?
The supplied record identifies TBD (LVDS standard controller — see driver datasheet). Initialization and timing data should be confirmed against the approved revision.
What are the outline and viewing characteristics of FZ81024C40?
The published module outline is 174 (W) x 136 (H) x 2.45 (D) mm — no-touch thickness, and the viewing specification is IPS — Full View (all-direction).
What operating temperature is specified for FZ81024C40?
The supplied product brief lists an operating temperature of -20 ~ +50 °C. OEM/ODM options should be confirmed during quotation.
