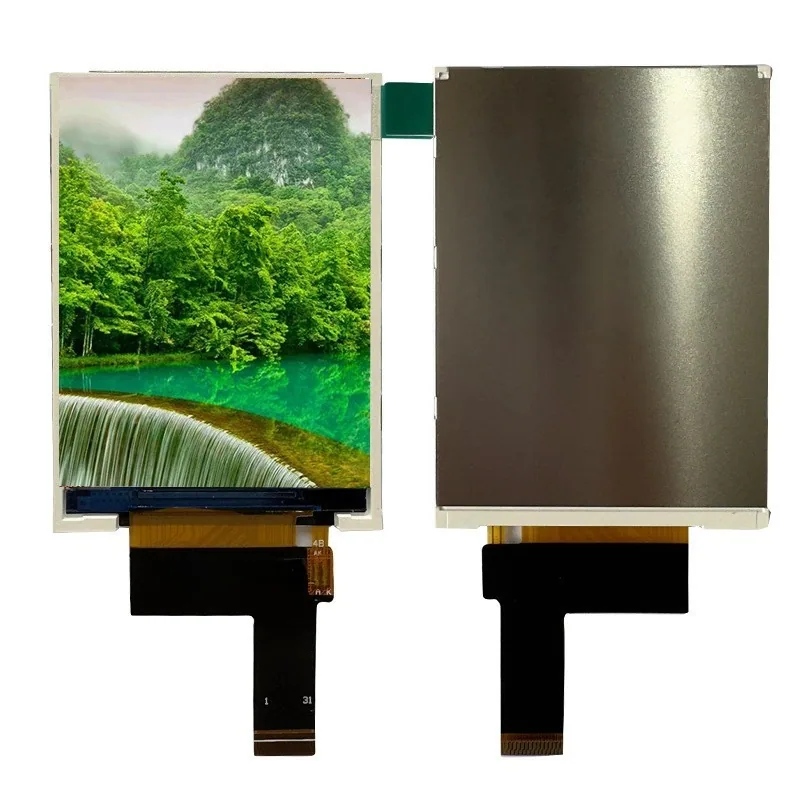

2.8 Inch TFT-LCD Module IPS Display
The current record identifies 480*640 resolution, RGB interface, 230cd/m2 brightness. Use these values to narrow the shortlist, then confirm the electrical, optical and mechanical requirements against the host product.
- RGB
- Screen Size
- 2.8 Inch
- Resolution
- 480*640
- Display Mode
- Transmissive
- Interface
- RGB
- Brightness
- 230cd/m2
- Viewing Angle
- Full Viewing Angle,Full View / ALL O’clock
Technical specifications
Values are normalized from the current product record; no missing parameter is estimated.
| Specification | Published value |
|---|---|
| Screen Size | 2.8 Inch |
| Resolution | 480*640 |
| Display Mode | Transmissive |
| Interface | RGB |
| Brightness | 230cd/m2 |
| Viewing Angle | Full Viewing Angle,Full View / ALL O’clockMultiple source entries — confirm the selected value. |
| Driver IC | ST7701S |
| Backlight | 4LEDS |
| Module Dimensions | 50.00(H)*69.20(V)*2.35(T) |
| Active Area | 43.20(H) X57.60 (V) |
| Input Voltage | 2.5V-3.3V |
| Operating Temperature | -10℃~60℃ |
| Storage Temperature | -20℃~70℃ |
| Display Color | 262K |
| 5-9 | R4-R0 |
| 10-15 | D5-G0 |
| 16-20 | B4-B0 |
| Weight | TBD |
Mechanical fit
- Screen Size
- 2.8 Inch
- Module Dimensions
- 50.00(H)*69.20(V)*2.35(T)
- Active Area
- 43.20(H) X57.60 (V)
Allow space for the FPC, connector, cover lens and mounting. Use an approved, version-matched drawing before fixing the enclosure.
Review drawing availability →Some parameters contain multiple source entries. They may describe different configurations or conflicting records; do not treat them as interchangeable specifications.
Published technical data
| NO. | Symbol | Function |
|---|---|---|
| 1 | GND | Ground |
| 2 | VCC | Power setting |
| 3 | IOVCC | Power setting |
| 4 | GND | Ground |
| 5-9 | R4-R0 | Data bus. |
| 10-15 | D5-G0 | Data bus. |
| 16-20 | B4-B0 | Data bus. |
| 21 | SDA | Serial in/out signal. |
| 22 | DCLK | Dot clock signal for RGB. |
| 23 | DE | DE |
| 24 | HS | Line synchronizing signal for RGB. |
| 25 | VS | Frame synchronizing signal for RGB. |
| 26 | SCL | Serial interface clock. |
| 27 | CS | Chip selection. |
| 28 | RESET | RESET |
| 29 | LEDA | LED power anode |
| 30 | LEDK | LED power cathode |
| 31 | GND | Ground |
Interface & integration
| Parameter | Source value |
|---|---|
| Interface | RGB |
| Driver IC | ST7701S |
| Backlight | 4LEDS |
| Input Voltage | 2.5V-3.3V |
Confirm pin numbering, supply levels, controller revision and initialization before connecting power. Source tables are references, not a substitute for an approved electrical specification.
Format and image area
Published screen size: 2.8 Inch. Resolution: 480*640. Module dimensions: 50.00(H)*69.20(V)*2.35(T). Active area: 43.20(H) X57.60 (V).
Electrical connection
Published interface: RGB. Driver IC: ST7701S. Backlight: 4LEDS.
Optical and front assembly
Brightness: 230cd/m2. Viewing angle: Full Viewing Angle,Full View / ALL O’clock. Operating temperature: -10℃~60℃.
Drawings & technical documents
Reference files from this product record, retained at their available source resolution.
Request the matching mechanical drawing
No separate mechanical drawing is verified in this record. Send your enclosure limits and the selected product reference; request the approved outline and FPC drawing before tooling.
Request drawing & datasheetMatch the module to your application
Use the published values as a starting point, then document the host electronics, enclosure, user interface and operating environment before requesting a sample.
Send product requirements- Review interface, connector and FPC alignment against the host electronics.
- Discuss touch panel and cover lens requirements where the product design needs a front assembly.
- Confirm outline, active area, mounting constraints and environmental requirements before sample approval.
Product questions
Specifications, documents and sample planning for 2.8 Inch TFT-LCD Module IPS Display.
What are the published specifications for 2.8 Inch TFT-LCD Module IPS Display?
2.8 Inch TFT-LCD Module IPS Display currently publishes Screen Size: 2.8 Inch; Resolution: 480*640; Display Mode: Transmissive; Interface: RGB; Brightness: 230cd/m2; Viewing Angle: Full Viewing Angle,Full View / ALL O’clock. Confirm the final drawing and pin assignment against the supplied sample before design-in.
What should I include in an inquiry for this display?
Include the product name or model, target size and resolution, host interface, touch and cover-lens requirements, brightness and environment, quantity and current project stage.
Can I request a sample for evaluation?
Use the sample request action and share the intended electrical and mechanical integration requirements so the evaluation scope can be discussed around this exact record.
Can interface, touch or mechanical requirements be discussed?
Yes. Send the host interface, connector or FPC constraints, touch and cover-lens needs, outline limits and environmental targets for an engineering review. No unpublished capability is assumed on this page.
