Model no.FZ1001R50-TP

10-Inch 1024x600 LVDS TFT-LCD Display

FZ1001R50-TP is a color active matrix LCD module incorporating amorphous silicon TFT (Thin Film Transistor). It is composed of a color TFT-LCD panel, driver IC, FPC and a back light unit. The module display area contains 1024x 600pixels. This product accords with RoHS environmental criterion.

  • TFT TRANSMISSIVE
  • LVDS
Technology
TFT TRANSMISSIVE
Interface
LVDS
Viewing Direction
ALL
Module Dimensions
235x143x3.5
Active Area
222.72x125.28
Discuss this module with our team

Review the listed module configuration and confirm the matching specification and drawing revision with your inquiry.

Specification confirmation. The source model name contains R50 while this record is listed as an LVDS display. Confirm the complete model suffix, interface and assembly revision before design-in.

Product overview

FZ1001R50-TP is a color active matrix LCD module incorporating amorphous silicon TFT (Thin Film Transistor). It is composed of a color TFT-LCD panel, driver IC, FPC and a back light unit. The module display area contains 1024x 600pixels. This product accords with RoHS environmental criterion.

Note1:If users use the product out off the environmemtal operation range(temperature and humidity),it will have visual quality concerns.

Note3:DVDD setting should match the signals output voltage(refer to Note4)of customer's system board.

Note5:Typical VCOM is only a reference value,it must be optimized according to each LCM. Please ues VR and base on below application circuit.

Confirm the FZ1001R50-TP assembly against the latest specification and drawing revision before design-in.

Product highlights

    Technical specifications

    Values are normalized from the current product record; no missing parameter is estimated.

    Published specifications for 10-Inch 1024x600 LVDS TFT-LCD Display
    SpecificationPublished value
    Technology TFT TRANSMISSIVE
    Interface LVDS
    Viewing Direction ALL
    Driver IC /
    Backlight 6*7chips white LED
    Module Dimensions 235x143x3.5
    Active Area 222.72x125.28
    Input Voltage 3.3
    Number of Dots 1024 x600
    Power Voltage DVDD
    AVDD 10.65
    VGH 20
    VGL -
    -8 -
    Input signal voltage VCOM

    Mechanical fit

    Module Dimensions
    235x143x3.5
    Active Area
    222.72x125.28

    Allow space for the FPC, connector, cover lens and mounting. Use an approved, version-matched drawing before fixing the enclosure.

    Review drawing availability →

    The source model name contains R50 while this record is listed as an LVDS display. Confirm the complete model suffix, interface and assembly revision before design-in.

    Published technical data

    Published technical data for 10-Inch 1024x600 LVDS TFT-LCD Display
    ItemContentsUnit
    LCD TypeTFT TRANSMISSIVE/
    Viewing directionALLO' Clock
    Module outline (W x HxD)235x143x3.5mm
    Active area (WxH)222.72x125.28mm
    Number of Dots1024 x600/
    Driver IC—/
    Backlight Type6*7chips white LED/
    Interface TypeLVDS/
    Input voltage3.3V

    Published technical data

    Published technical data for 10-Inch 1024x600 LVDS TFT-LCD Display
    ItemSymbolValuesUnitRemarkColumn 6
    Min.Typ.Max.———
    Power VoltageDVDD3.03.33.6V
    AVDD10.6510.8511.05V—
    VGH202122V—
    VGL--8-V—
    Input signal voltageVCOM3.63.84.2V
    Input logic high voltageVIH0.9VDD-DVDDV
    Input logic low voltageVIL0-0.1DVDDV

    Published technical data

    Published technical data for 10-Inch 1024x600 LVDS TFT-LCD Display
    ItemSymbolValuesUnitRemarkColumn 6Column 7
    Min.Typ.Max.————
    Current for DriverIGH-0.501mAVGH=18.0V
    IGL-0.501mAVGL=-6.0V—
    IVDD-815mAVDD=3.3V—
    IAVDD-3040mAAVDD=9.6V—

    Published technical data

    Published technical data for 10-Inch 1024x600 LVDS TFT-LCD Display
    ItemSymbolMinTypMaxUnitCondition
    Forward voltageVf-9.0-VIf= 14 0 mA
    LuminanceLv-400-cd/m2If= 140 mA
    Number of LED--42Piece--——
    Connection modeP6chips serial *7----——

    Interface & integration

    Connection information for FZ1001R50-TP
    ParameterSource value
    InterfaceLVDS
    Driver IC/
    Backlight6*7chips white LED
    Input Voltage3.3

    Confirm pin numbering, supply levels, controller revision and initialization before connecting power. Source tables are references, not a substitute for an approved electrical specification.

    Format and image area

    Module dimensions: 235x143x3.5. Active area: 222.72x125.28.

    Electrical connection

    Published interface: LVDS. Driver IC: /. Backlight: 6*7chips white LED.

    Optical and front assembly

    Viewing direction: ALL.

    Drawings & technical documents

    Reference files from this product record, retained at their available source resolution.

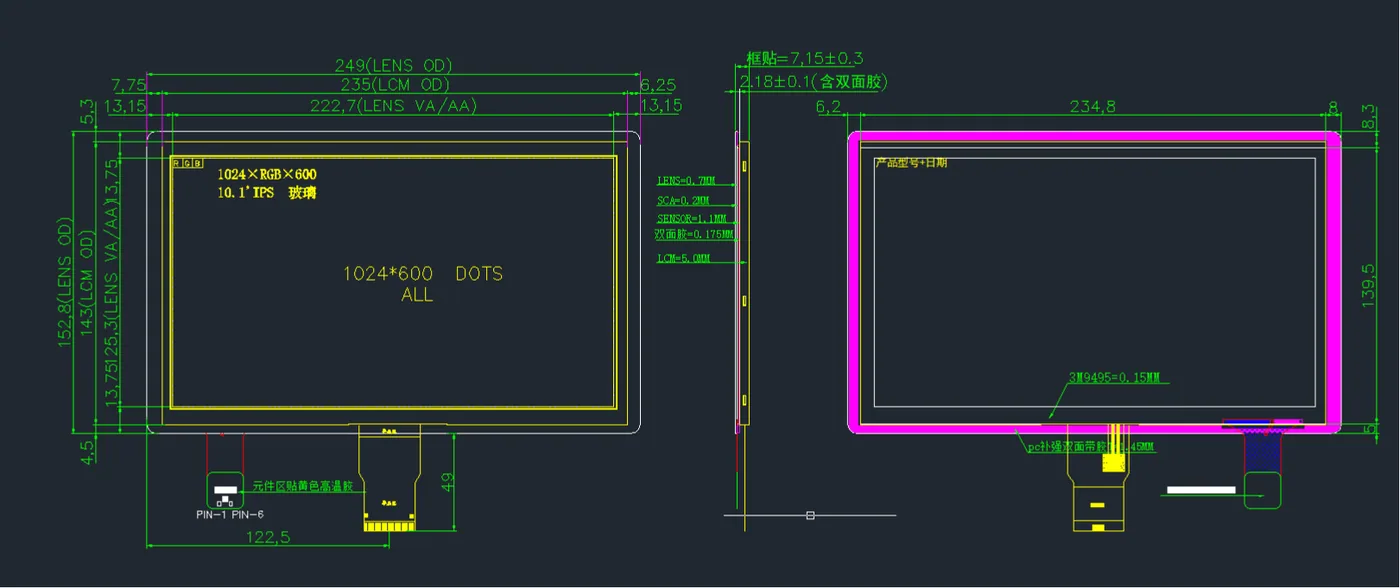

    FZ1001R50-TP reference drawing 1Inspect drawing 1 ↗

    Reference drawing 1

    Confirm the model suffix, dimensional tolerances and assembly revision with the quoted sample.

    Download source drawing ↓

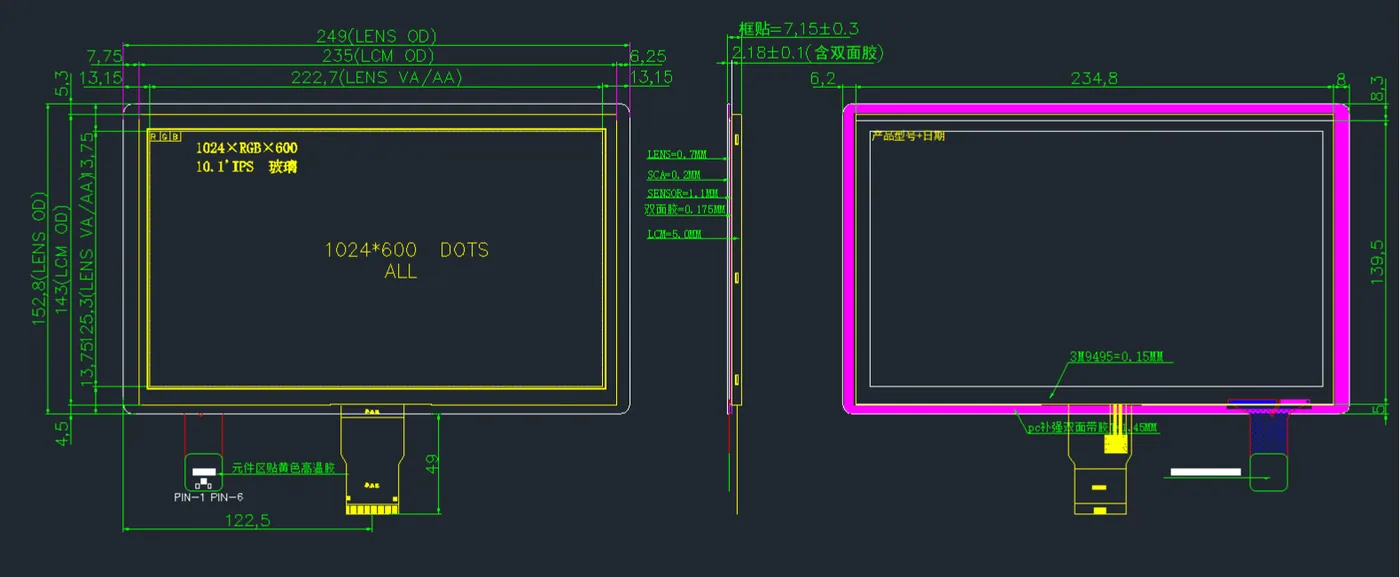

    FZ1001R50-TP reference drawing 2Inspect drawing 2 ↗

    Reference drawing 2

    Confirm the model suffix, dimensional tolerances and assembly revision with the quoted sample.

    Download source drawing ↓

    Additional electrical references

    Match the module to your application

    Use the published values as a starting point, then document the host electronics, enclosure, user interface and operating environment before requesting a sample.

    Send product requirements
    • Review interface, connector and FPC alignment against the host electronics.

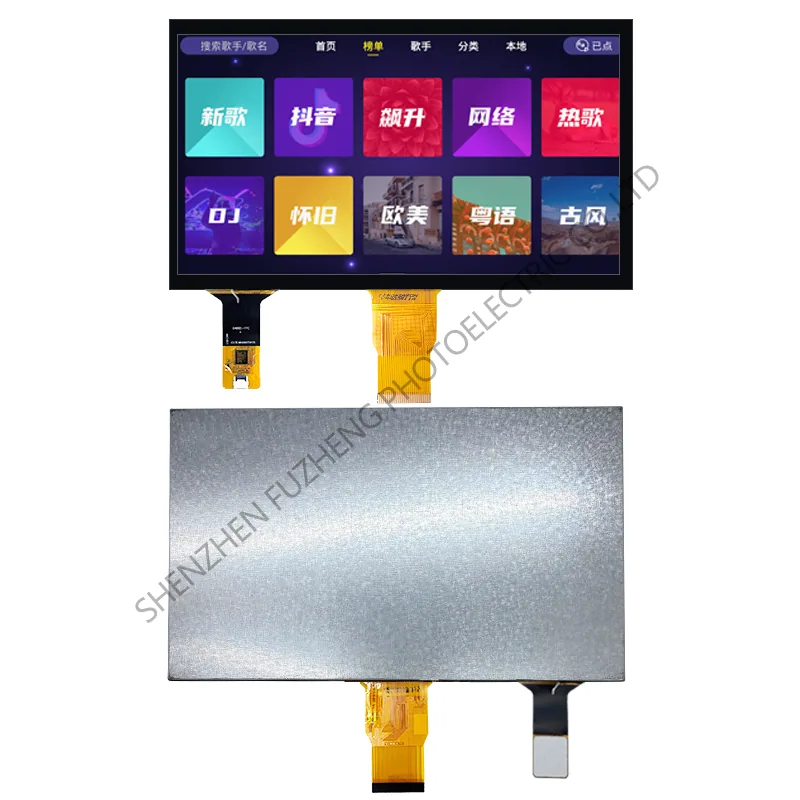

    • Discuss touch panel and cover lens requirements where the product design needs a front assembly.
    • Confirm outline, active area, mounting constraints and environmental requirements before sample approval.

    Product questions

    Specifications, documents and sample planning for FZ1001R50-TP.

    What are the published specifications for FZ1001R50-TP?

    FZ1001R50-TP currently publishes Technology: TFT TRANSMISSIVE; Interface: LVDS; Viewing Direction: ALL; Module Dimensions: 235x143x3.5; Active Area: 222.72x125.28. Confirm the final drawing and pin assignment against the supplied sample before design-in.

    What should I include in an inquiry for this display?

    Include the product name or model, target size and resolution, host interface, touch and cover-lens requirements, brightness and environment, quantity and current project stage.

    Can I request a sample for evaluation?

    Use the sample request action and share the intended electrical and mechanical integration requirements so the evaluation scope can be discussed around this exact record.

    Can interface, touch or mechanical requirements be discussed?

    Yes. Send the host interface, connector or FPC constraints, touch and cover-lens needs, outline limits and environmental targets for an engineering review. No unpublished capability is assumed on this page.

    Discuss this display with our team

    FZ1001R50-TP

    Share the required interface, assembly, quantity and project timing. Request the matching specification and drawing revision with your quote.

    Shenzhen FuZheng Photoelectric Co., Ltd. · Company information
    Victory.Wang@szfuzheng.com · WhatsApp +86 159 8944 5783

    Start a product inquiry →

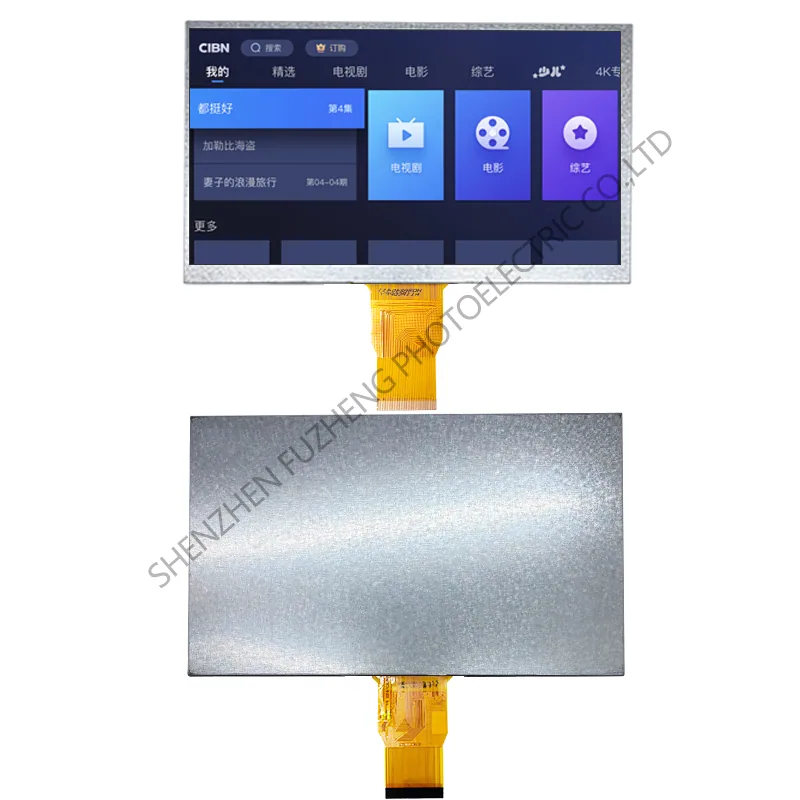

    10 inch Landscape LVDS TFT display resolution 1024(RGB) x600 product image
