Model no.FZ177-128160
FZ177-128160 1.77-Inch 128x160 SPI TFT-LCD Display
FZ177-128160 is a compact 1.77-inch transmissive TFT-LCD with 128×160 resolution, ST7735S controller, 4-wire SPI interface and a 14-pin FPC. A supplied host-breakout reference exposes an 8-pin connection.
- a-Si TFT-LCD, transmissive
- Portrait
- 4-wire SPI
- No touch panel in supplied configuration
- 128 × 160 portrait resolution
- ST7735S controller
- 14-pin FPC
- Optional 8-pin host-breakout reference
- Screen Size
- 1.77 inch
- Resolution
- 128 × 160 pixels
- Technology
- a-Si TFT-LCD, transmissive
- Shape
- Portrait
- Interface
- 4-wire SPI
- Touch
- No touch panel in supplied configuration
Product Overview
The FZ177-128160 is an industrial-grade 1.77 inch Thin-Film-Transistor Liquid Crystal Display module with a 128x160 portrait resolution (28.03 (W) x 35.04 (H) mm active area inside a 34.0 (W) x 45.8 (H) x 2.4 (T) mm outline). The panel uses a transmissive TFT cell with a wide 12:00 viewing direction and a pixel pitch of 0.219 x 0.219 mm, which together deliver 262K (RGB) vivid color reproduction and crisp text rendering. The module is built around the widely-adopted Sitronix ST7735S controller, exposed to the host through a SPI 4W (4-wire serial) bus that requires only four MCU GPIO pins. The FPC is a 14-pin (FPC) plug-in tail, and the breakout board ships a friendly 8-pin (host breakout) host connector for direct hook-up to 3.3 V microcontrollers such as ESP32, STM32, Arduino Mega, RP2040 and nRF52. Backed by Shenzhen FuZheng Photoelectric's more-than-a-decade display manufacturing experience, every FZ177-128160 unit ships with stable production quality, competitive factory pricing, and full OEM/ODM customization (FPC length, pin-out, touch-panel integration, polarizer treatment).
Key Features
- 1.77 inch a-Si TFT-LCD module, 128 RGB x 160 portrait resolution, 262K colors
- Transmissive cell with wide 12:00 viewing direction — clear image from typical hand-held angles
- Sitronix ST7735S driver IC — well supported by Arduino, ESP32, STM32, RP2040, nRF52
- 4-wire SPI (SPI4W) interface — only 4 GPIO pins required (SCK, SDA, CS, DC) + RESET
- Compact outline 34 x 45.8 x 2.4 mm — easy to embed in small handheld devices
- Two connector options: 14-pin FPC tail (LCM side) + 8-pin 2.54 mm breakout (host side)
- Wide logic supply: VCC 2.8 ~ 3.3 V and IOVCC 1.8 ~ 3.3 V — directly compatible with 1.8 V and 3.3 V MCUs
- LED backlight with positive 3.0 ~ 3.4 V anode supply — easy PWM dimming via MCU GPIO
- Wide operating temperature -20 ~ +70 °C for indoor consumer and industrial use
- Compatible with TFT_eSPI / Adafruit_ST7735 / U8g2 graphics libraries
- RoHS compliant; long-term stable supply for production runs
- Factory price, in stock, ODM/OEM customization supported (FPC length, pin order, brightness, touch integration)

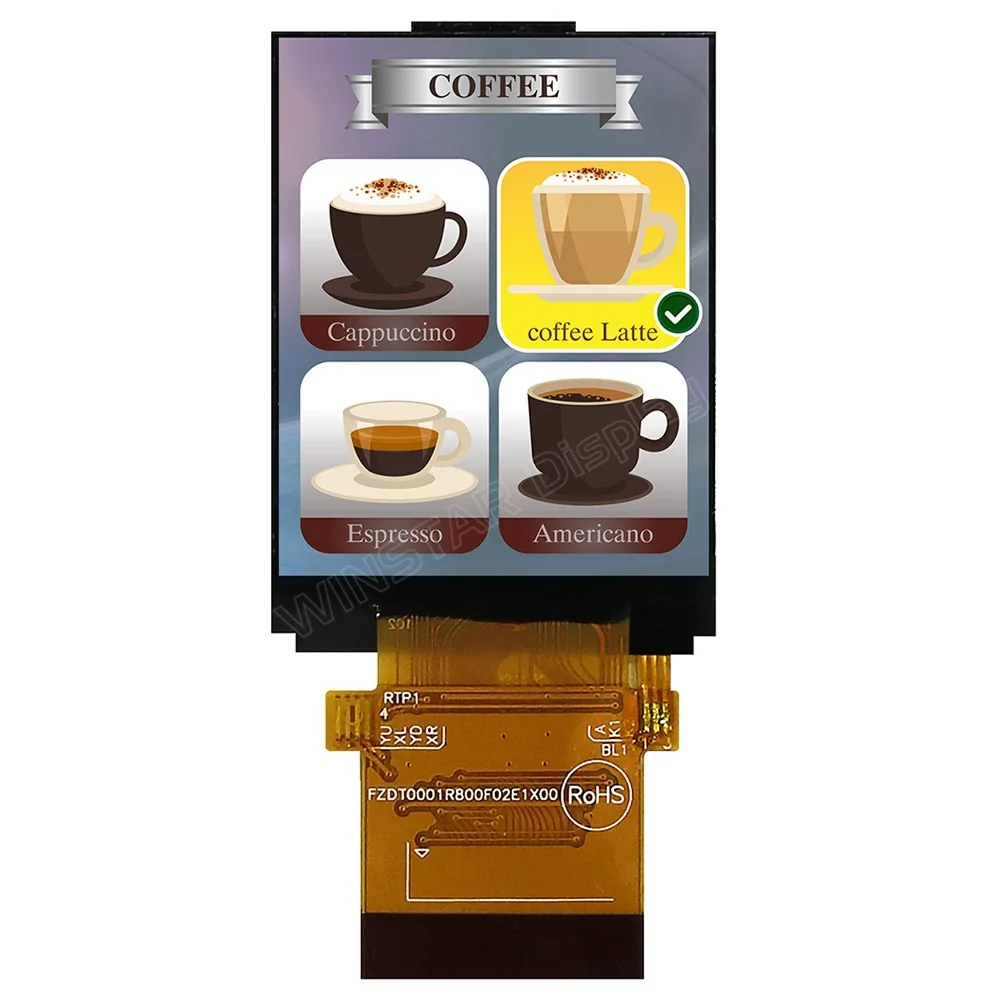

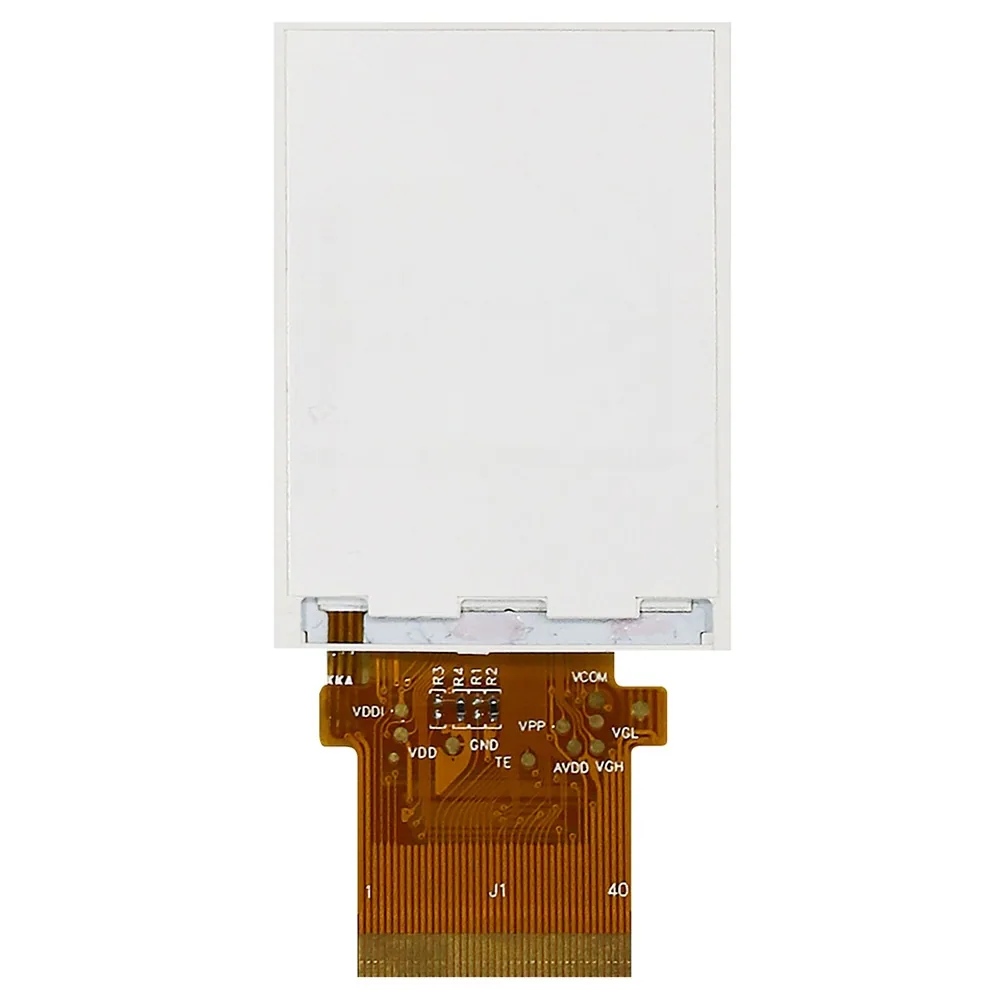

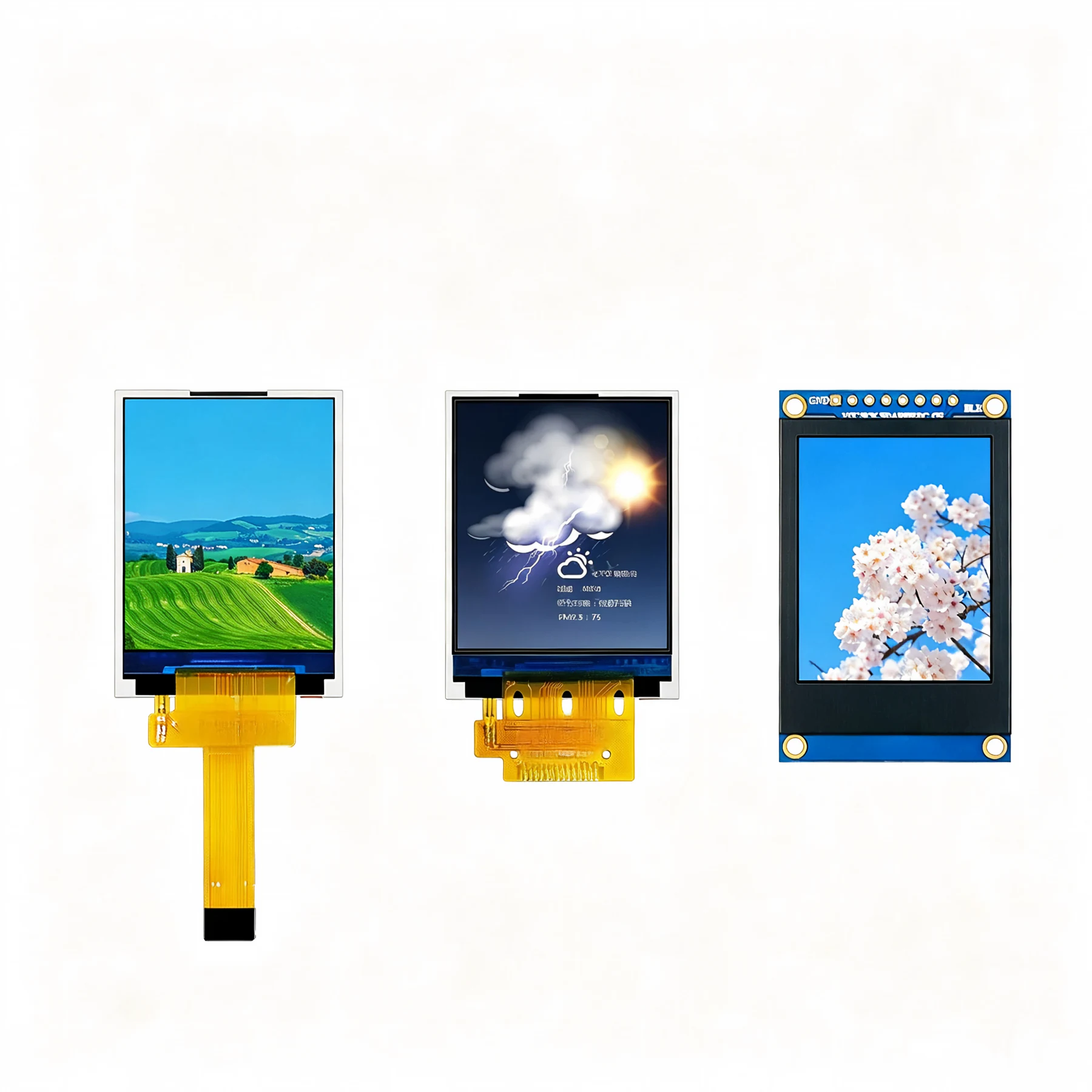

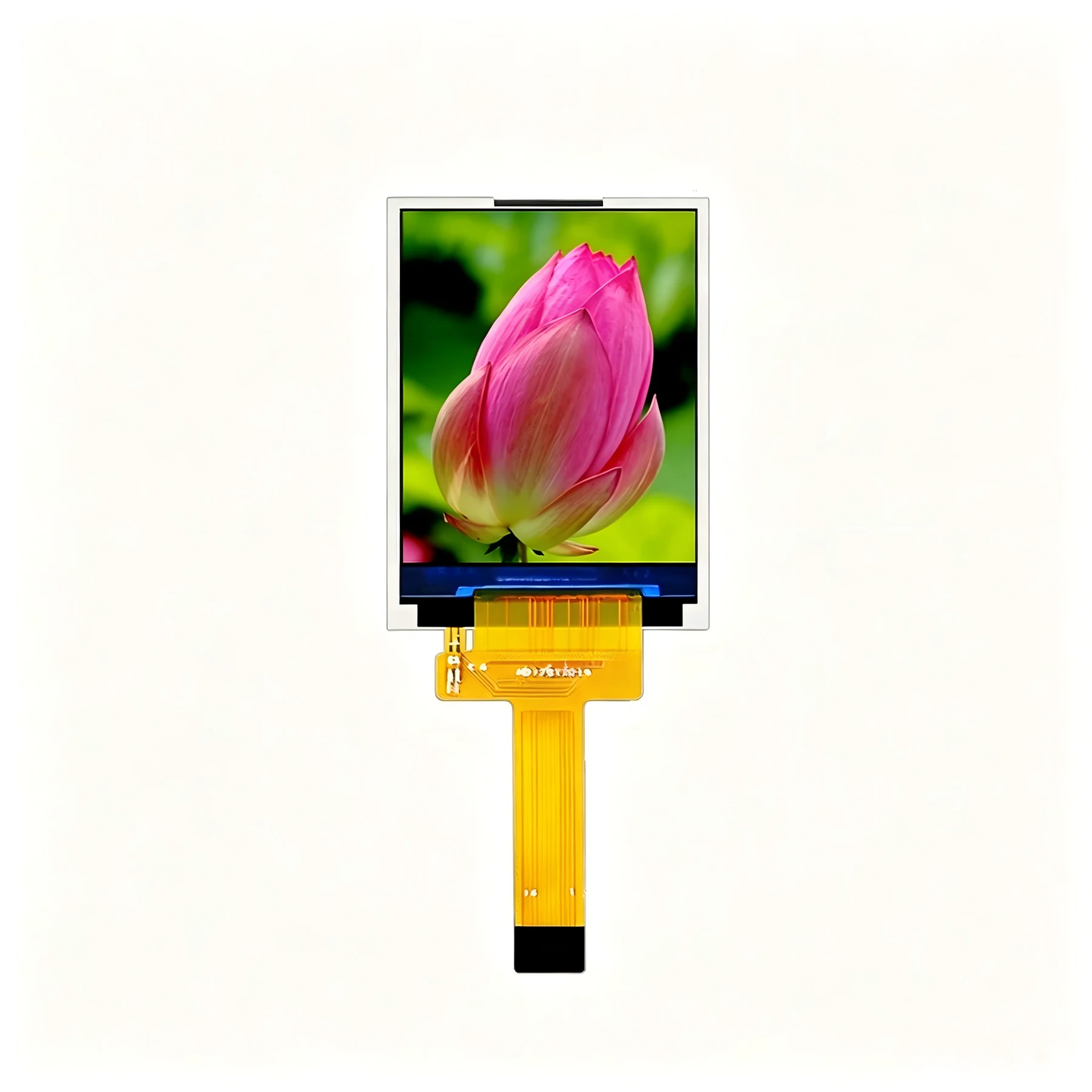

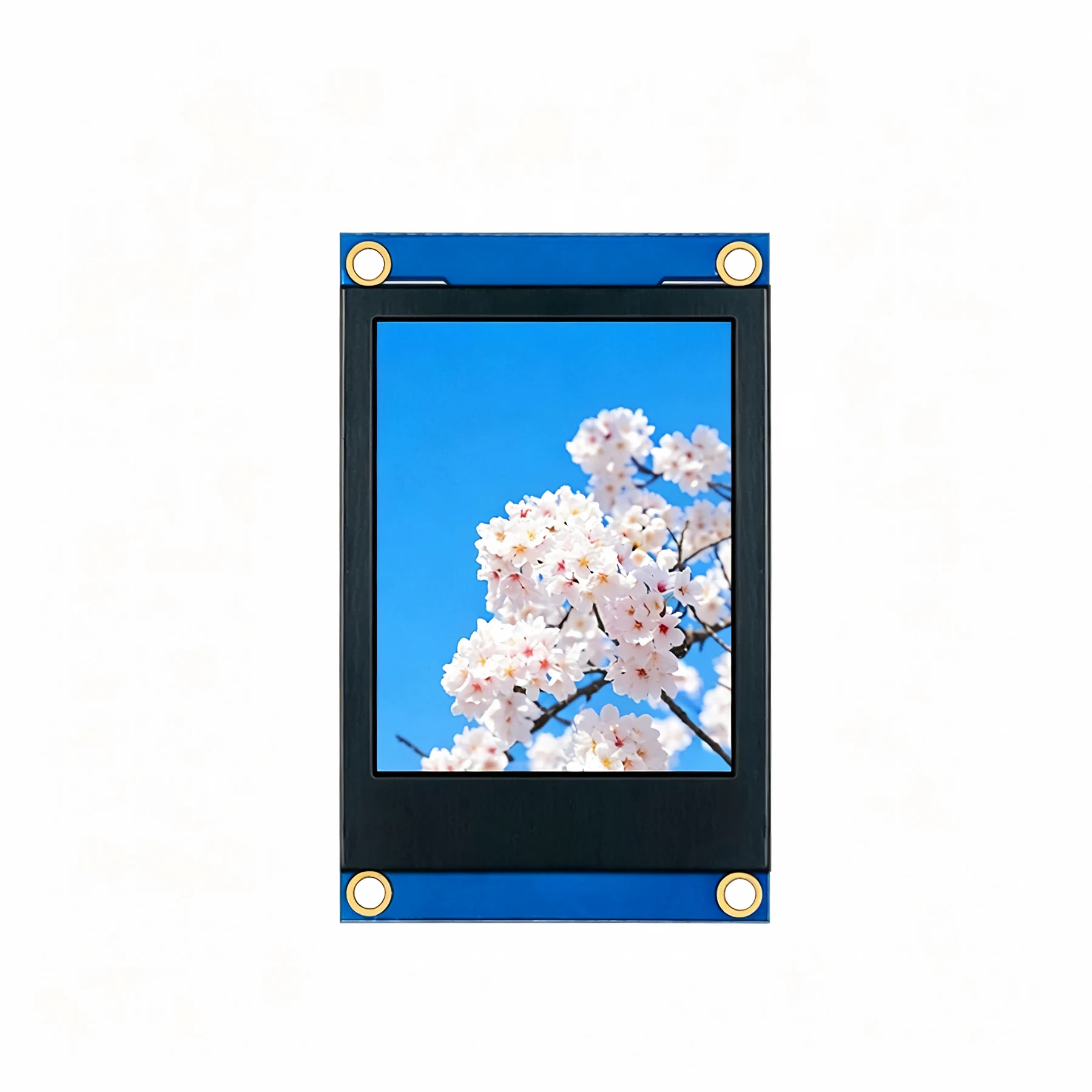

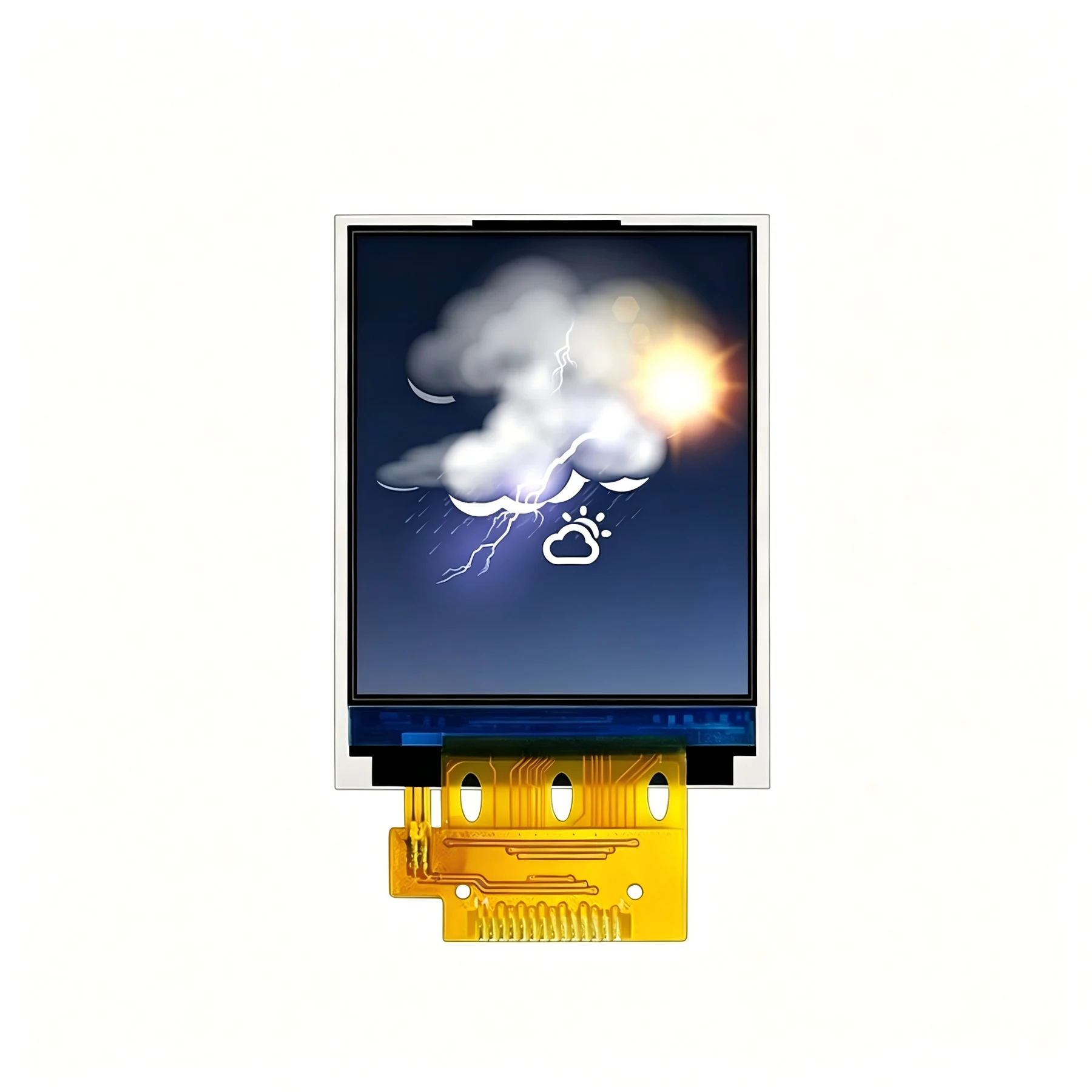

Product Images
Technical Specifications
| Display Type | TFT / Transmissive |
|---|---|
| Model Number | FZ177-128160 |
| Screen Size | 1.77 inch (diagonal) |
| Resolution | 128x160 (128 RGB x 160 Dots) |
| Pixel Pitch | 0.219 x 0.219 mm |
| Display Colors | 262K (RGB) |
| Viewing Direction | 12:00 |
| Active Area | 28.03 (W) x 35.04 (H) mm |
| Viewing Area | 29.03 x 36.24 mm |
| LCM Outline Size | 34.0 (W) x 45.8 (H) x 2.4 (T) mm |
| Module Outline (brief) | 34 x 45.8 x 2.25 mm |
| Backlight Type | LED (positive drive, 3.0-3.4V anode) |
| Controller / Driver IC | ST7735S (Sitronix) |
| Data Interface | SPI 4W (4-wire serial) |
| Pin Count (FPC) | 14-pin (FPC) |
| Pin Count (Host breakout) | 8-pin (host breakout) |
| Input Voltage — VCC (Analog) | VCC 2.8 ~ 3.3V |
| Input Voltage — IOVCC (Logic) | IOVCC 1.8 ~ 3.3V |
| Input Voltage — LED Anode | LED+ 3.0 ~ 3.4V (backlight anode) |
| Module Power Consumption | TBD mW (typical, contact sales for measured value) |
| Operating Temperature | -20 ~ +70 °C |
| Storage Temperature | -30 ~ +80 °C |
| Weight | TBD g |
| Manufacturer | Shenzhen FuZheng Photoelectric Co., Ltd |

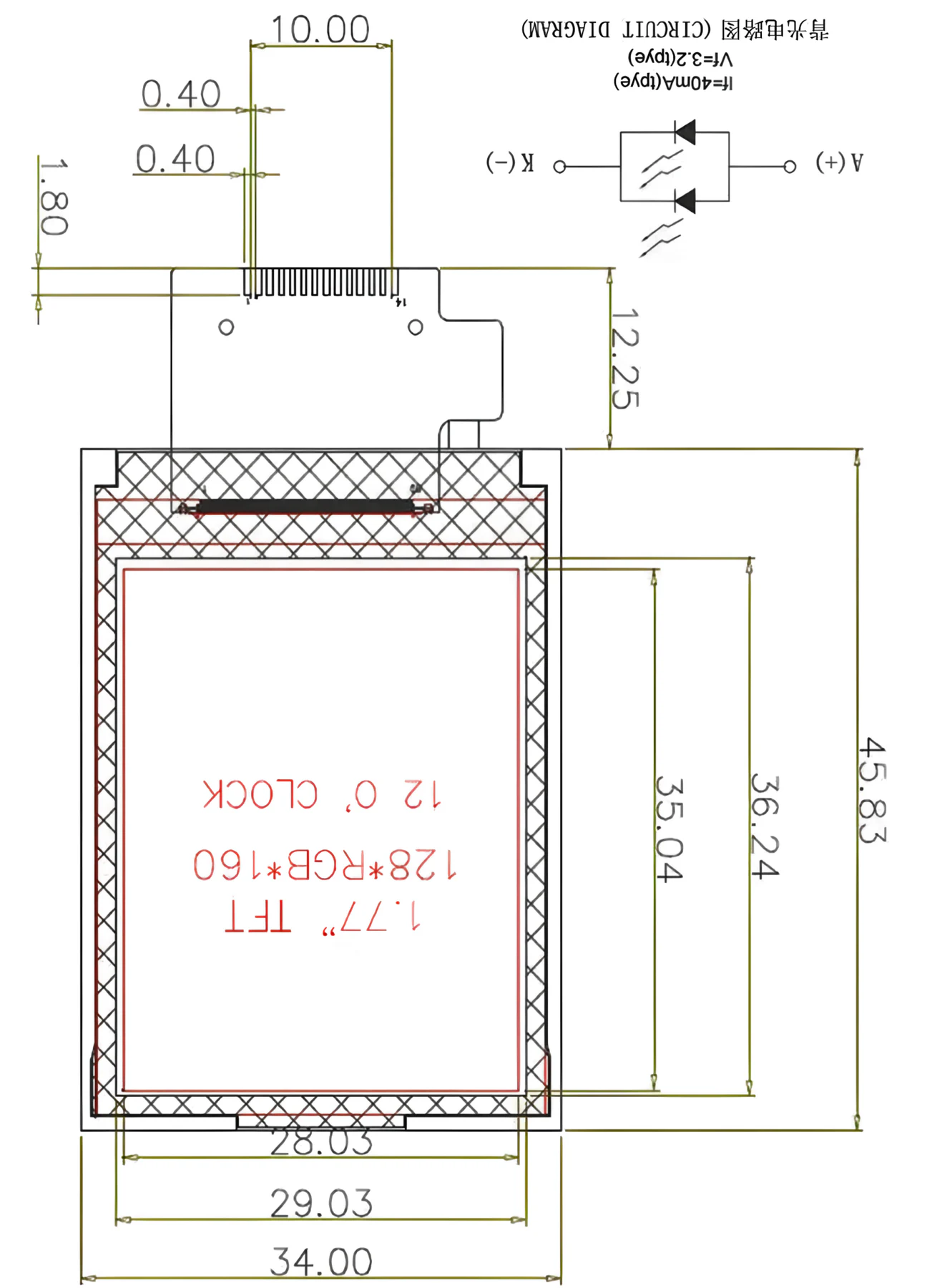

Mechanical Drawing & Notes
The FZ177-128160 uses a transmissive a-Si TFT active-matrix structure. The LCM outline is 34.0 (W) x 45.8 (H) x 2.4 (T) mm (engineering datasheet) / 34 x 45.8 x 2.25 mm (product brief). The active area is 28.03 (W) x 35.04 (H) mm with a viewing area of 29.03 x 36.24 mm, leaving a slim bezel of ~0.5 mm on the short sides and ~5.2 mm on the long sides. The polarizer is anti-glare (AG) treated and the backlight is a single white LED with positive-drive (LED+) and negative (LED-) pads on the FPC. The 14-pin FPC tail is plug-in type on a 0.5 mm-pitch ZIF-friendly connector. The optional 8-pin breakout PCB is supplied separately for host-side wiring.
- Outline (engineering): 34.0 (W) x 45.8 (H) x 2.4 (T) mm
- Outline (product brief): 34 x 45.8 x 2.25 mm
- Active area: 28.03 (W) x 35.04 (H) mm
- Viewing area: 29.03 x 36.24 mm
- Backlight: single white LED, 3.0 ~ 3.4 V positive drive
- FPC: 14-pin plug-in, 0.5 mm pitch
- Host breakout: 8-pin 2.54 mm header (optional, ships with sample orders)

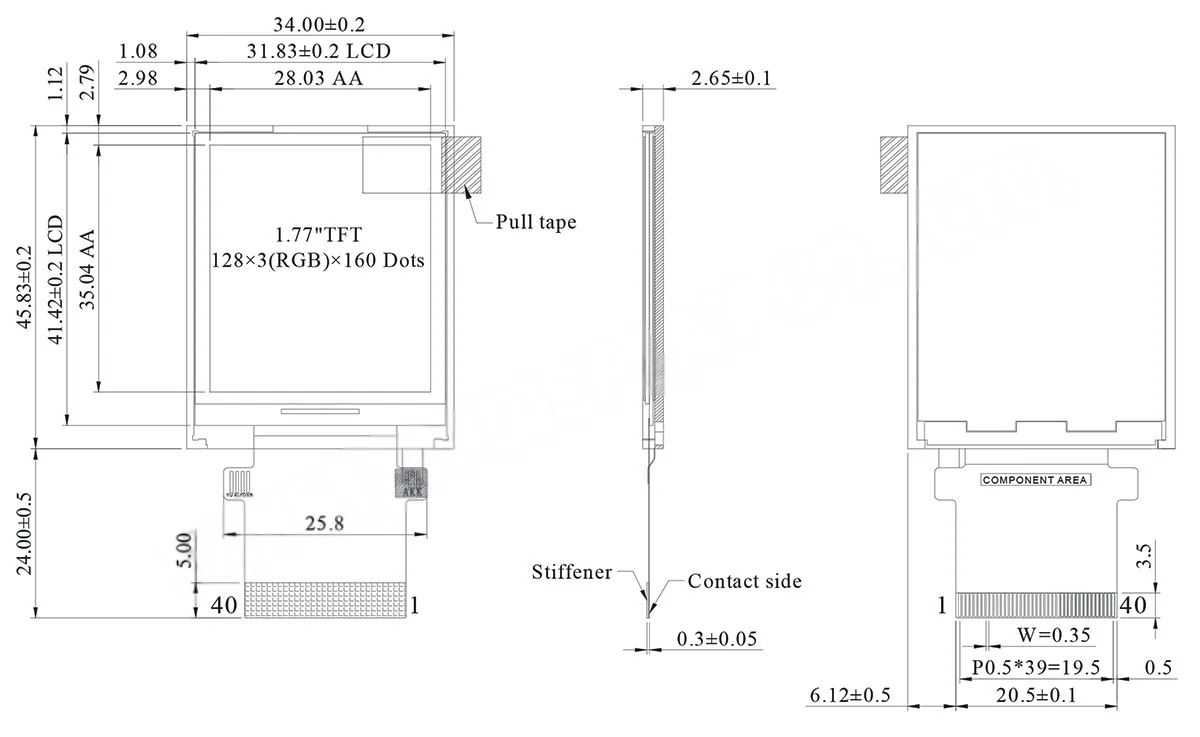

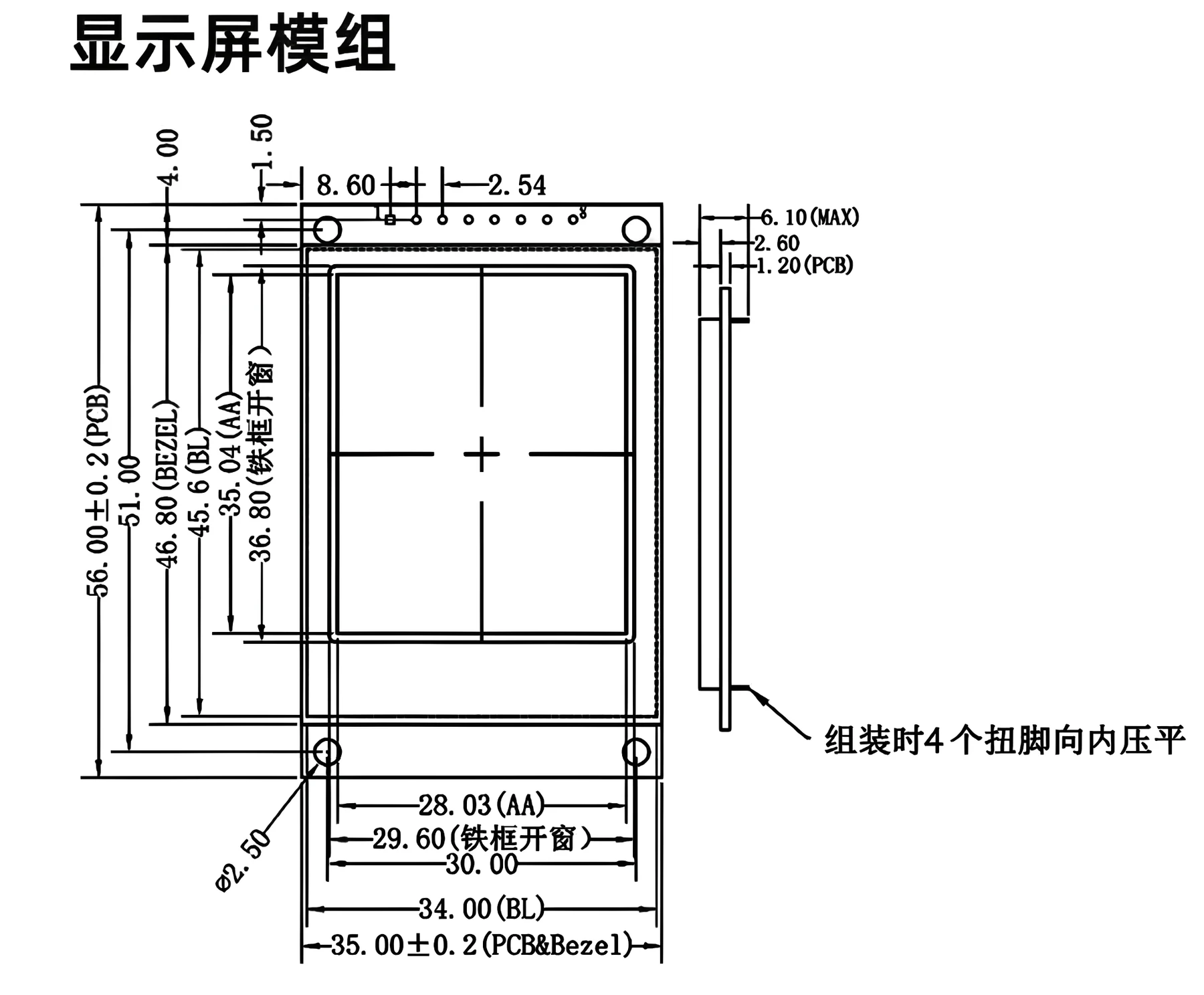

Mechanical Drawings
Pin Definition
The FZ177-128160 ships with two connector pin maps. The 14-pin (FPC) is the LCM-side FPC tail that carries display signals, power and backlight; the 8-pin (host breakout) is the host-side breakout that exposes only the SPI signals plus a backlight control pin for quick integration with a 3.3 V MCU.
Variant A — 14-pin FPC (LCM-side, 14-pin plug-in)
| Pin No. | Symbol | Description |
|---|---|---|
| 1 | NC | No connection |
| 2 | GND | Ground |
| 3 | LED- | Cathode of Backlight |
| 4 | LED+ | Anode of Backlight (3.0 ~ 3.4 V supply) |
| 5 | GND | Ground |
| 6 | /RESET | LCM Reset pin. Signal is active low. |
| 7 | A0 | Register select pin. RS=0: Command register; RS=1: Data register. |
| 8 | SDA | Serial data input / output |
| 9 | SCK | Serial clock pin |
| 10 | VCC | Power supply for LCM (2.8 ~ 3.3 V) |
| 11 | IOVCC | Power supply for LCM (1.8 ~ 3.3 V, logic I/O) |
| 12 | CS | Chip select pin (Low active) |
| 13 | GND | Ground |
| 14 | NC | No connection |
Variant B — 8-pin Module / Host breakout
| Pin No. | Symbol | Description |
|---|---|---|
| 1 | GND | Power Ground |
| 2 | VCC | Power positive (2.8 ~ 3.3 V) |
| 3 | SCL | SPI clock input SPI |
| 4 | SDA | SPI data input / output (SPI) |
| 5 | RES | Reset ( active low) |
| 6 | DC | Data / Command select ( RS=A0) |
| 7 | CS | SPI chip-select input (SPI, active low) |
| 8 | BL | Backlight control input |
Typical Applications
With its compact 1.77″ form factor, 4-wire SPI interface and ST7735S controller that is natively supported by every popular open-source graphics library, the FZ177-128160 is a versatile small TFT-LCD module widely deployed in the following application scenarios:
- Arduino / ESP32 / STM32 DIY electronics and maker projects
- IoT sensor HMI display (temperature, humidity, air-quality monitor)
- Smart home thermostat and HVAC controller display
- Doorbell, intercom and access-control indoor unit display
- Wearable device screen (entry-level smartwatch, fitness band, smart ring)
- Health monitor (blood-pressure, blood-oxygen, glucose meter) display
- Industrial handheld scanner and barcode terminal HMI
- Test & measurement equipment front-panel display
- Educational electronic kits and STEM learning boards
- Audio equipment front panel (MP3 player, speaker controller, guitar tuner)
- Smart appliance secondary display (rice cooker, microwave, coffee machine)
- POS terminal customer-side display and receipt preview
FAQ — Frequently Asked Questions
Q1: Which microcontroller platforms does the FZ177-128160 support?
The FZ177-128160 uses the Sitronix ST7735S controller, which is natively supported by every popular open-source graphics library: Adafruit_ST7735 (Arduino), TFT_eSPI (ESP32 / ESP8266 / RP2040), U8g2 (Arduino / STM32 / ESP32), lv_port_st7735 (LVGL 8.x), and the ST Microelectronics ST7735 BSP. Reference schematics and initialization code are provided with every sample order.
Q2: How many GPIO pins are required to drive the display?
Only 4 GPIO pins are required for data: SCK (serial clock), SDA (serial data), CS (chip select), and DC (data/command select, also called A0 or RS). A 5th pin is recommended for /RESET, and an optional 6th pin (BL) is used for backlight PWM dimming. This makes the FZ177-128160 ideal for low-pin-count MCUs such as ESP32-C3, nRF52810, RP2040 and ATmega328P.
Q3: What is the difference between the 14-pin FPC and the 8-pin breakout?
The 14-pin FPC is the LCM-side flexible printed circuit that carries all display signals plus the backlight power pins (LED+, LED-) and several NC/GND pins. The 8-pin breakout is the host-side connector that exposes only the signals an external MCU needs: VCC, GND, SCL, SDA, RES, DC, CS, BL. Most users wire the host MCU to the 8-pin breakout with a standard 2.54 mm dupont cable.
Q4: What is the recommended backlight driving condition?
The backlight is a single LED string with LED+ at 3.0 ~ 3.4 V and LED- as the cathode. A typical drive current of 15 ~ 30 mA produces a luminance of 250 ~ 350 cd/m². For PWM dimming, drive the LED- pin through an N-channel MOSFET (such as 2N7002) with a 1 kHz ~ 10 kHz PWM signal from the BL pin.
Q5: What is the operating temperature range? Is it suitable for outdoor use?
The standard operating temperature is -20 ~ +70 °C and storage temperature is -30 ~ +80 °C, which covers most indoor consumer, industrial and portable scenarios. For outdoor or direct-sunlight deployments we recommend a customized high-brightness variant (>800 cd/m² backlight) and a UV-resistant polarizer. Contact our sales team for outdoor-grade customization.
Q6: Do you provide initialization code, datasheet, and reference schematics?
Yes. With every sample order we provide the full datasheet (PDF), the ST7735S initialization code, recommended reference schematic for the 8-pin breakout, and the SPI porting guide for popular MCU platforms. Our engineering team can assist with bring-up questions during your evaluation.
Q7: What is the lead time and minimum order quantity (MOQ)?
Standard FZ177-128160 variants (no-touch, 14-pin FPC + 8-pin breakout) are kept in stock for sample orders. Mass-production MOQ is typically 500 ~ 1,000 pcs depending on configuration. Lead time is 10 ~ 15 working days for stocked variants and 20 ~ 30 working days for custom variants. Contact our sales team for an exact quote.
Ordering Information & Contact
To order the FZ177-128160 or request an OEM/ODM quotation, please contact Shenzhen FuZheng Photoelectric Co., Ltd via email or WhatsApp. We accept sample orders, small-batch trial orders, and mass production. Lead time, FOB price, and shipping options are available on request.
Contact: Victory.Wang | Shenzhen FuZheng Photoelectric Co., Ltd | Email: Victory.Wang@szfuzheng.com | WhatsApp: +86 15989445783 | Website: https://fzlcddisplay.com
