Model no.FZ035DIC01

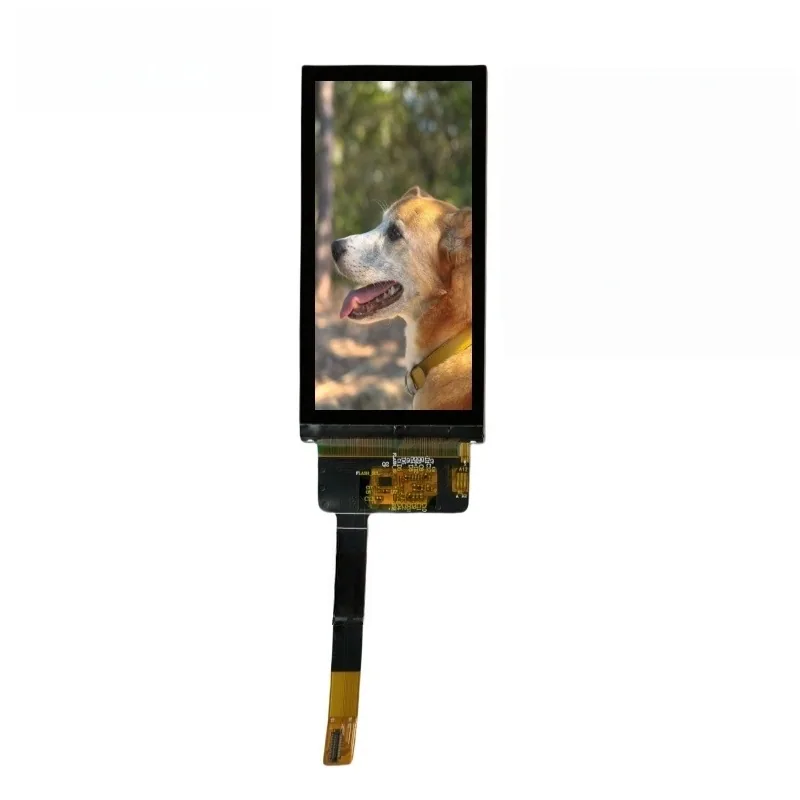

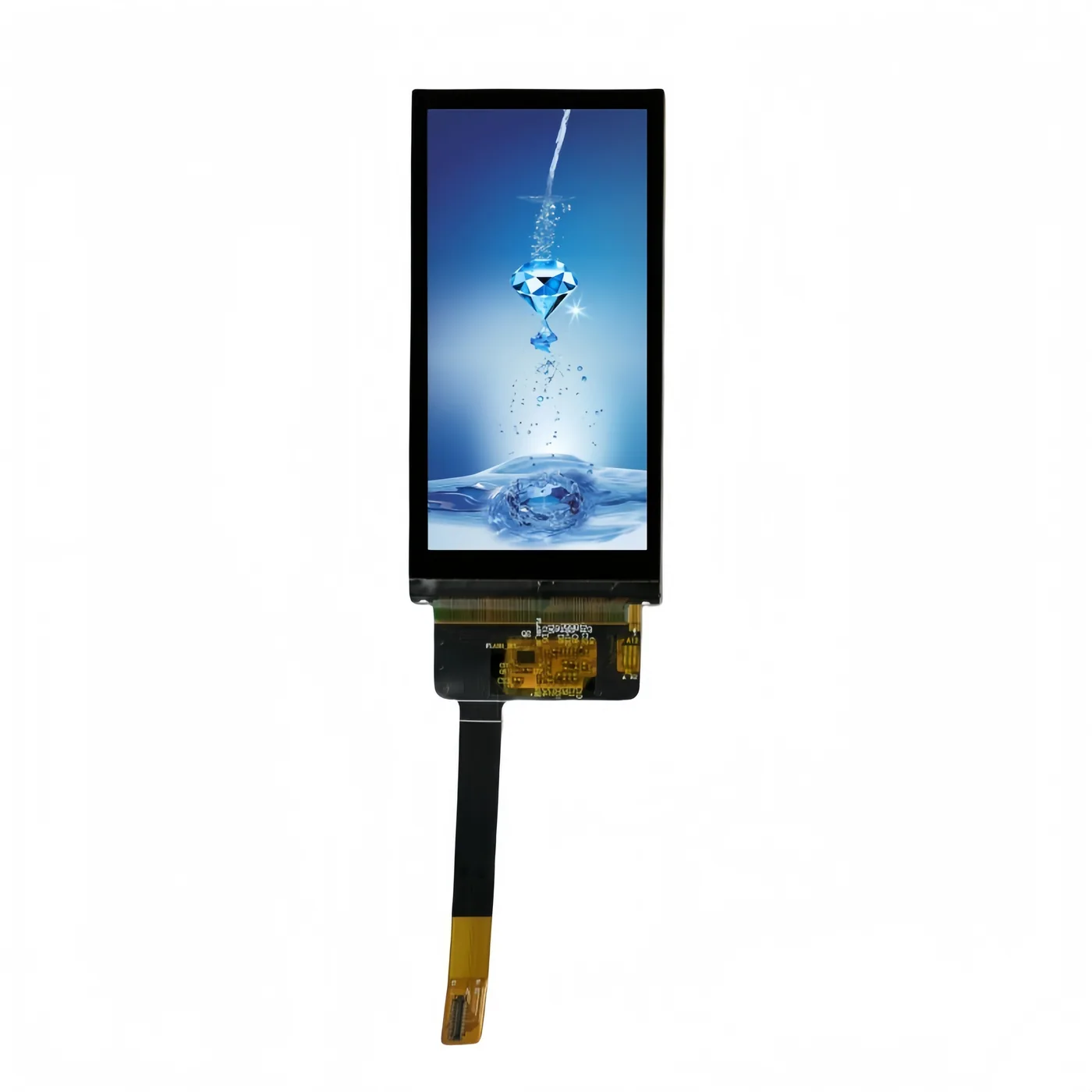

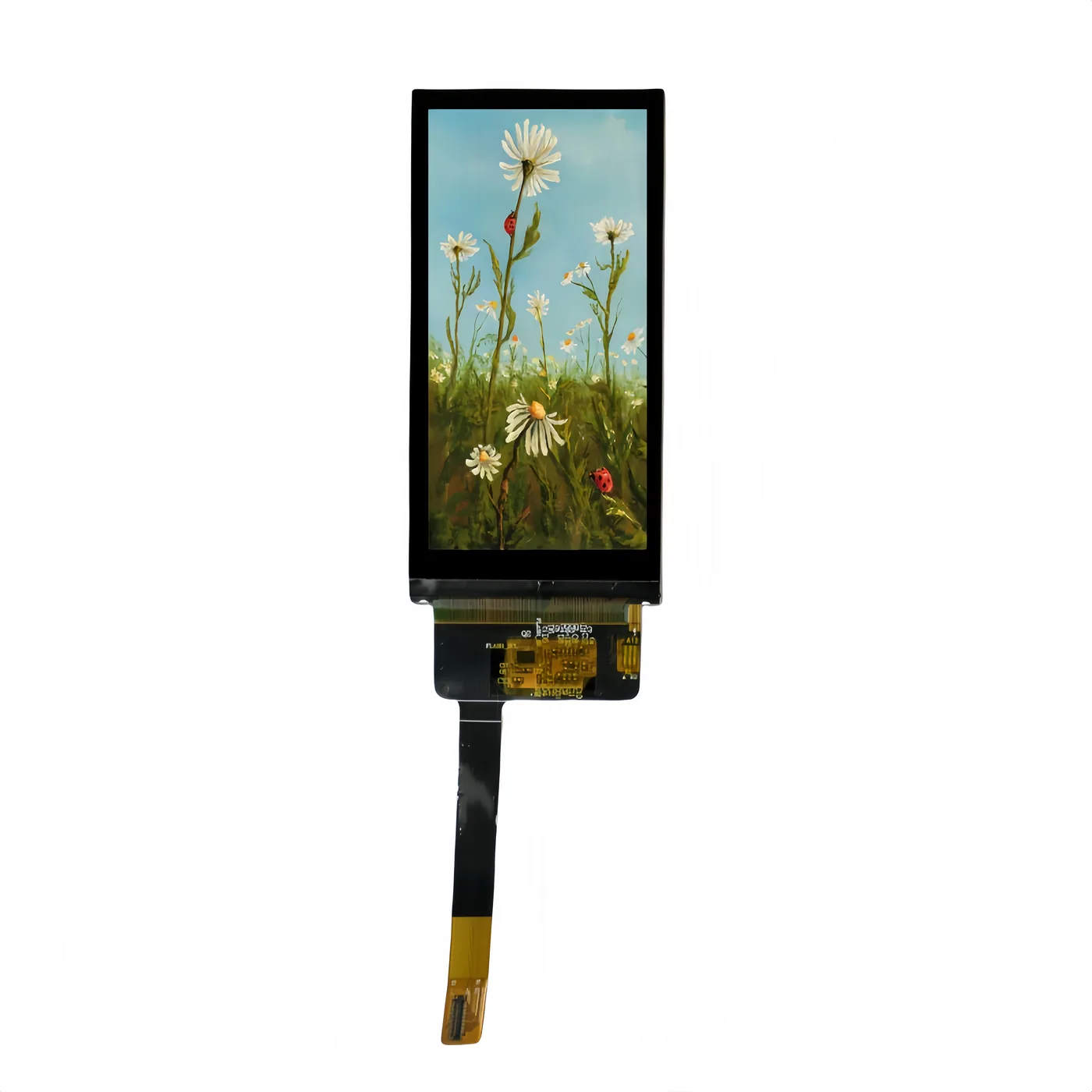

FZ035DIC01 3.5 Inch In-cell TFT-LCD Screen Display
● High-definition display: 720*1440 resolution, 18:9 widescreen ratio, delicate and clear picture, adapted to the visual needs of modern smart devices.
- Normal Black
- MIPI
- INCELL
- Screen Size
- 3.5 Inch
- Resolution
- 720*1440
- Technology
- Normal Black
- Interface
- MIPI
- Touch
- INCELL
- Viewing Angle
- U/D/L/R: 80/80/80/80
Product overview
● High-definition display: 720*1440 resolution, 18:9 widescreen ratio, delicate and clear picture, adapted to the visual needs of modern smart devices.
● INCELL technology: integrated design of touch and display, thinner screen, more sensitive response, improving the user experience of terminal products.
● Strong environmental adaptability: working temperature range -20℃~+70℃, storage temperature -30℃~80℃, suitable for harsh industrial and outdoor scenes.
● High brightness and wide viewing angle: 550cd/m² brightness (minimum), 80° full viewing angle (U/D/L/R), excellent visibility under strong light.
● Compact design: display area size 39.75×79.49mm, LCM appearance 42.15×85.39×1.49mm, saving internal space of the device.
● Customization support: supports flexible customization of parameters such as interface (MIPI) and display type (Normal Black) to meet diverse needs.
Operating context: The published temperature range can support evaluation for vehicle-mounted equipment, medical instruments and industrial control terminals. Final qualification belongs to the complete host product.
Energy consumption optimization: TFT (LIPS) technology combined with INCELL touch reduces power consumption and extends battery life.
Plug-and-play compatibility: standard MIPI interface design, rapid adaptation to mainstream main control solutions, shortening the customer development cycle.
Cost-effectiveness: cost-effective solution, that supports small batch customization, and helps small and medium-sized customers achieve product differentiation competition.
◇ Smart terminals: smartphones, POS machines, portable code scanning devices, to enhance interactive experience and portability.
◇ Industrial control: HMI human-machine interface, instrumentation, stable display of operating data in a strong light environment.
◇ Medical equipment: handheld detectors and monitor screens, subject to project-specific safety and reliability qualification.
◇ IoT hardware: smart home central control screen, wearable devices, lightweight design to adapt to compact structure requirements.
For integration review, provide the target interface, mechanical envelope, operating conditions and touch requirements. Sample scope and engineering support are confirmed in the quotation.
Confirm the FZ035DIC01 assembly against the latest specification and drawing revision before design-in.
Product highlights
Technical specifications
Values are normalized from the current product record; no missing parameter is estimated.
| Specification | Published value |
|---|---|
| Screen Size | 3.5 Inch |
| Resolution | 720*1440 |
| Technology | Normal Black |
| Interface | MIPI |
| Touch | INCELL |
| Brightness | 550cd/m²(MIN) |
| Viewing Angle | U/D/L/R: 80/80/80/80 / 550cd/m² brightness (minimum), 80° full viewing angle (U/D/L/R), excellent visibility under strong light.Multiple source entries — confirm the selected value. |
| Module Dimensions | 42.15*85.39*1.49(mm) |
| Active Area | 39.75*79.49 (mm) |
| Operating Temperature | -20℃~+70℃ |
| Storage Temperature | -30℃~+80℃ |
| Aspect Ratio | 18:9 |
| Product Type | TFT(LIPS) |
| INCELL technology | integrated design of touch and display, thinner screen, more sensitive response, improving the user experience of terminal products. |
Mechanical fit
- Screen Size
- 3.5 Inch
- Module Dimensions
- 42.15*85.39*1.49(mm)
- Active Area
- 39.75*79.49 (mm)
Allow space for the FPC, connector, cover lens and mounting. Use an approved, version-matched drawing before fixing the enclosure.
Review drawing availability →Some parameters contain multiple source entries. They may describe different configurations or conflicting records; do not treat them as interchangeable specifications.
Interface & integration
| Parameter | Source value |
|---|---|
| Interface | MIPI |
| Touch | INCELL |
Confirm pin numbering, supply levels, controller revision and initialization before connecting power. Source tables are references, not a substitute for an approved electrical specification.
Format and image area
Published screen size: 3.5 Inch. Resolution: 720*1440. Module dimensions: 42.15*85.39*1.49(mm). Active area: 39.75*79.49 (mm).
Electrical connection
Published interface: MIPI.
Optical and front assembly
Published touch information: INCELL. Brightness: 550cd/m²(MIN). Viewing angle: U/D/L/R: 80/80/80/80 / 550cd/m² brightness (minimum), 80° full viewing angle (U/D/L/R), excellent visibility under strong light.. Operating temperature: -20℃~+70℃.
Drawings & technical documents
Reference files from this product record, retained at their available source resolution.

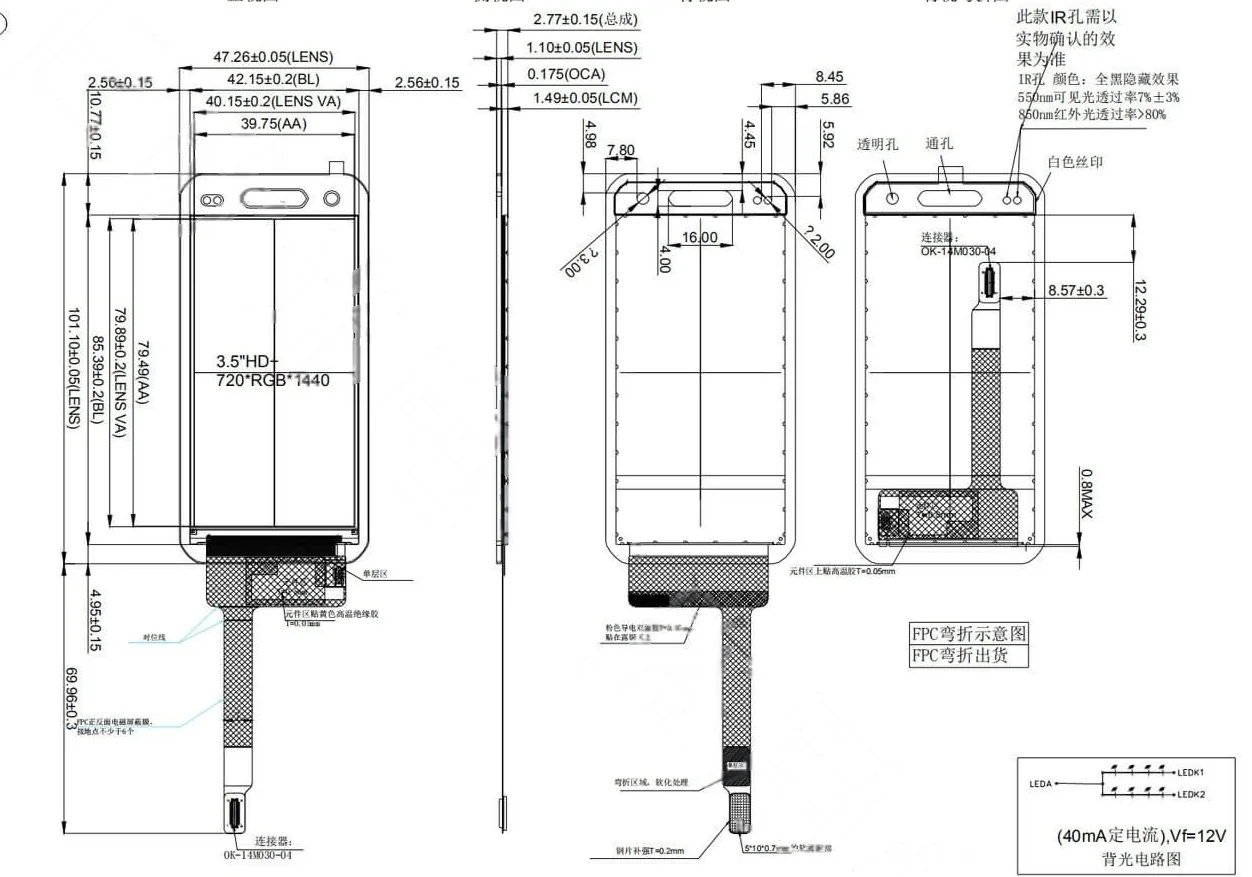

Inspect drawing 1 ↗Reference drawing 1
Confirm the model suffix, dimensional tolerances and assembly revision with the quoted sample.
Download source drawing ↓Match the module to your application
Use the published values as a starting point, then document the host electronics, enclosure, user interface and operating environment before requesting a sample.
Send product requirements- Review interface, connector and FPC alignment against the host electronics.
- Discuss touch panel and cover lens requirements where the product design needs a front assembly.
- Confirm outline, active area, mounting constraints and environmental requirements before sample approval.
Product questions
Specifications, documents and sample planning for FZ035DIC01.
What are the published specifications for FZ035DIC01?
FZ035DIC01 currently publishes Screen Size: 3.5 Inch; Resolution: 720*1440; Technology: Normal Black; Interface: MIPI; Touch: INCELL; Viewing Angle: U/D/L/R: 80/80/80/80. Confirm the final drawing and pin assignment against the supplied sample before design-in.
What should I include in an inquiry for this display?
Include the product name or model, target size and resolution, host interface, touch and cover-lens requirements, brightness and environment, quantity and current project stage.
Can I request a sample for evaluation?
Use the sample request action and share the intended electrical and mechanical integration requirements so the evaluation scope can be discussed around this exact record.
Can interface, touch or mechanical requirements be discussed?
Yes. Send the host interface, connector or FPC constraints, touch and cover-lens needs, outline limits and environmental targets for an engineering review. No unpublished capability is assumed on this page.
