Model no.FZ800X600C50
8 inch 800x600 SVGA RGB TFT-LCD — FZ800X600C50 (50-pin, DE/SYNC Mode, L/R U/D Mirror)
FZ800X600C50 — 8 inch 800x600 SVGA RGB TFT-LCD, 50-pin, 6 O'Clock viewing, DE/SYNC mode, L/R U/D mirror. Ideal for industrial HMI, medical display, test instrument, POS. Factory price, OEM/ODM.
- a-Si TFT
- RGB 24-bit parallel (8-bit R/G/B, TTL CMOS)
- No touch
- 8 inch a-Si TFT, 800x600 SVGA landscape (4:3), 16.7M colors
- Standard RGB 24-bit parallel interface (8-bit R/G/B) — direct connection to common MCUs
- 6 O'Clock viewing direction — optimized for top-mount installations
- DE / SYNC mode selectable (Pin 8) — DE only, or HS+VS sync
- L/R and U/D mirror pins — hardware image inversion without software rotation
- Screen Size
- 8 inch
- Resolution
- 800 × 600
- Technology
- a-Si TFT
- Interface
- RGB 24-bit parallel
- Touch
- No touch panel
- Viewing Angle
- 6 O'Clock
Product Overview
The FZ800X600C50 is an 8″ landscape-format (SVGA 4:3) a-Si TFT-LCD module with 800x600 resolution in a compact 183 (W) x 141 (H) x 3.5 (D) mm outline. It uses a standard RGB 24-bit parallel interface (8-bit per R/G/B channel) on a 50-pin plug-in FPC, with TTL CMOS logic levels — ideal for direct connection to common embedded video controllers (e.g. STM32F4/F7 LTDC, NXP i.MX RT1060, ESP32-S3 with LCD peripheral, Allwinner/Rockchip SoCs). The 6 O'Clock viewing direction (preferred for top-of-device mounting) and DE/SYNC mode selection provide flexible integration. L/R and U/D mirror pins allow simple hardware image inversion without software rotation. Dithering function (DITHB) recovers color depth when paired with 6-bit hosts. With 16.7M colors and an industrial operating range, this panel is ideal for industrial HMI, medical equipment, test & measurement, POS terminals and digital signage.
Key Features
- 8 inch a-Si TFT, 800x600 SVGA landscape (4:3), 16.7M colors
- Standard RGB 24-bit parallel interface (8-bit R/G/B) — direct connection to common MCUs
- 6 O'Clock viewing direction — optimized for top-mount installations
- DE / SYNC mode selectable (Pin 8) — DE only, or HS+VS sync
- L/R and U/D mirror pins — hardware image inversion without software rotation
- DITHB dithering function — color depth recovery on 6-bit hosts
- Wide signal-set with VCOM/VGH/VGL/AVDD rails — fully self-contained timing controller
- Operating temperature -20 ~ +70 °C, storage -30 ~ +80 °C

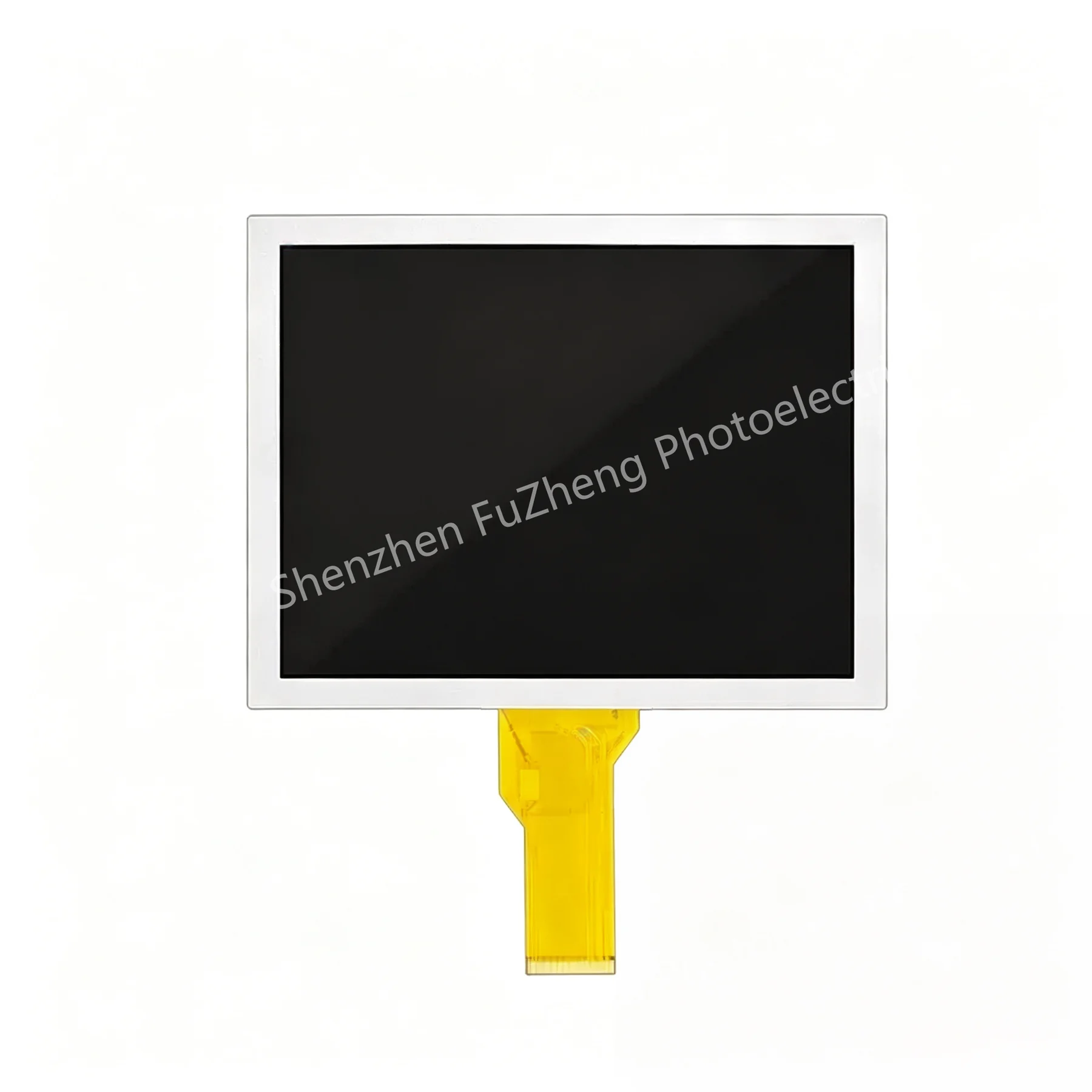

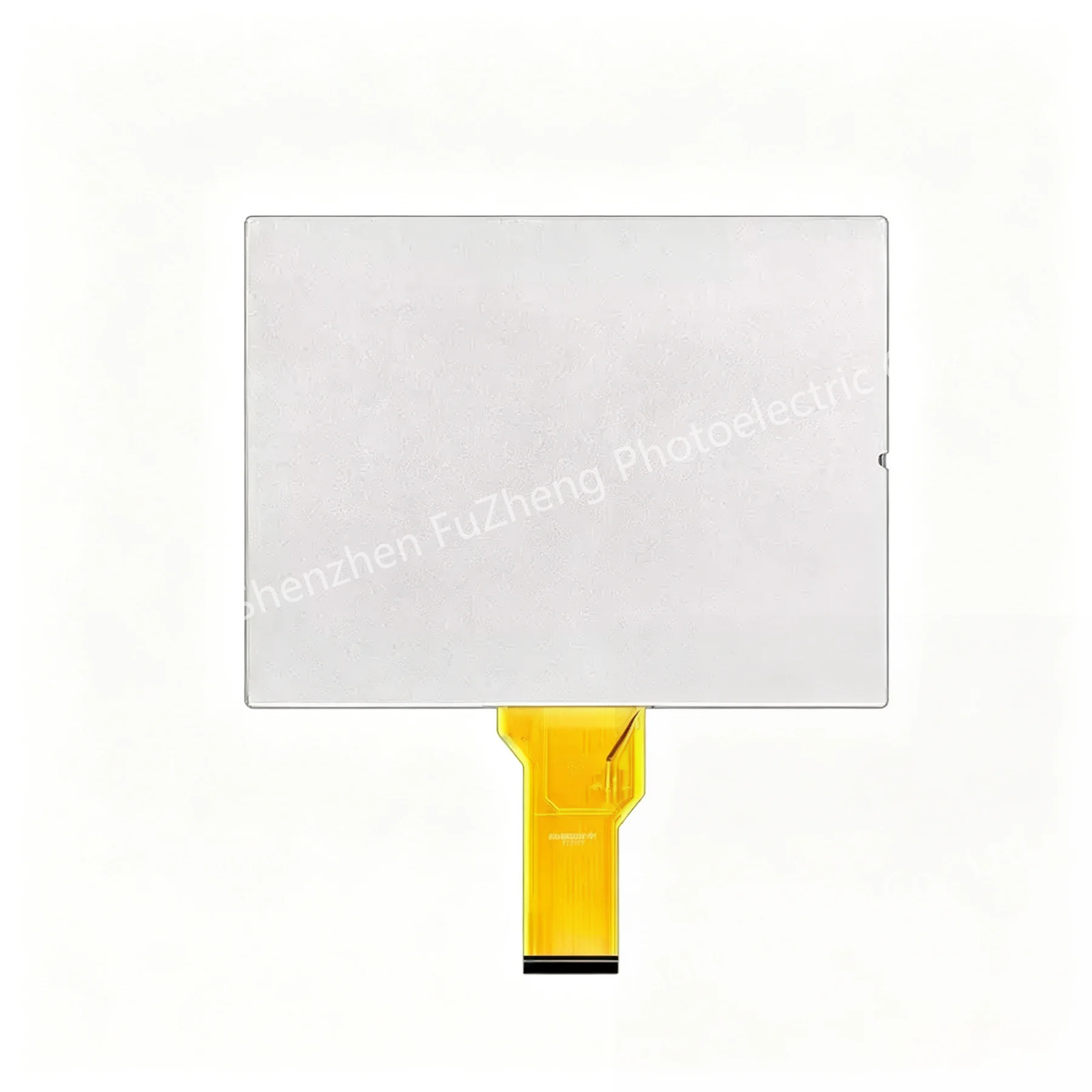

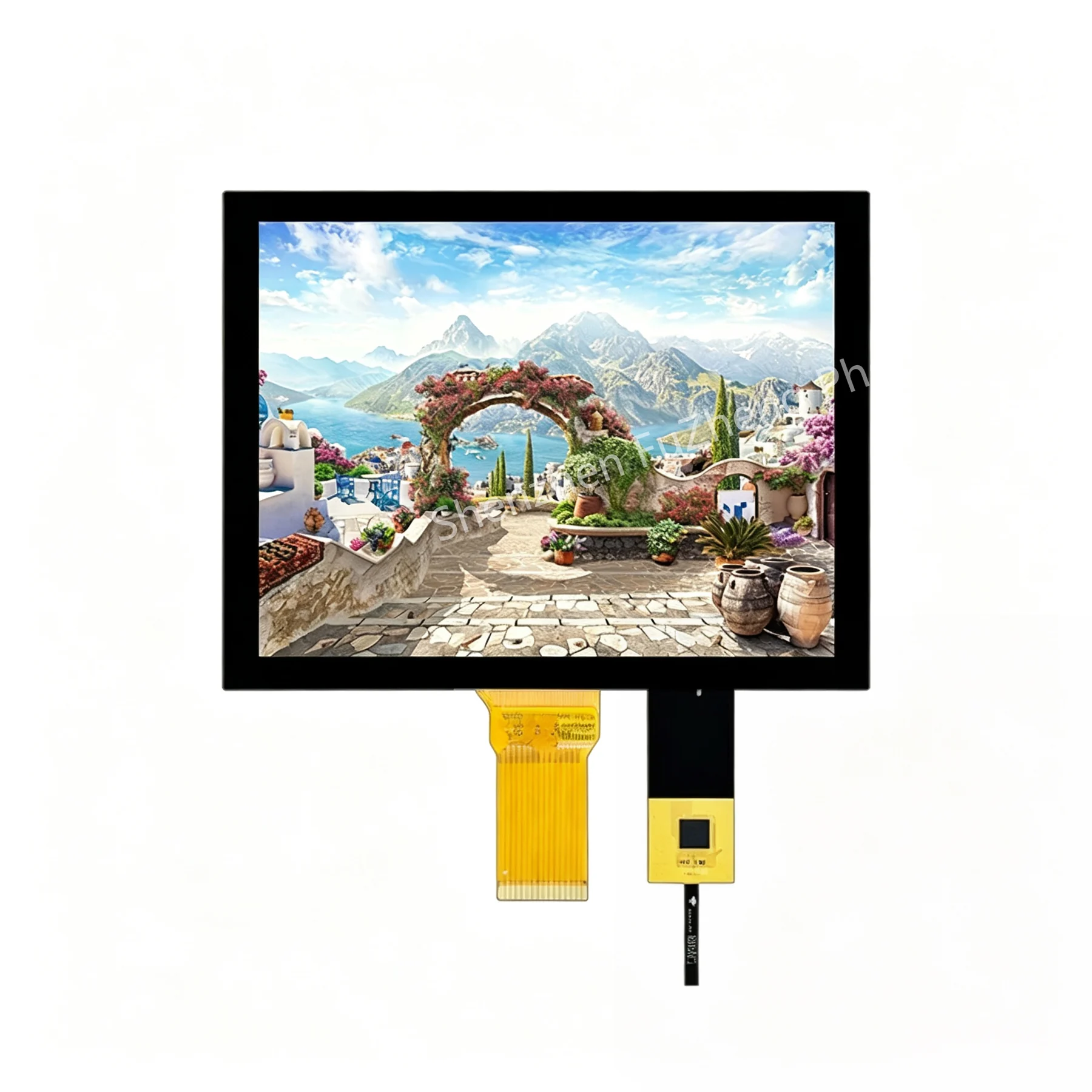

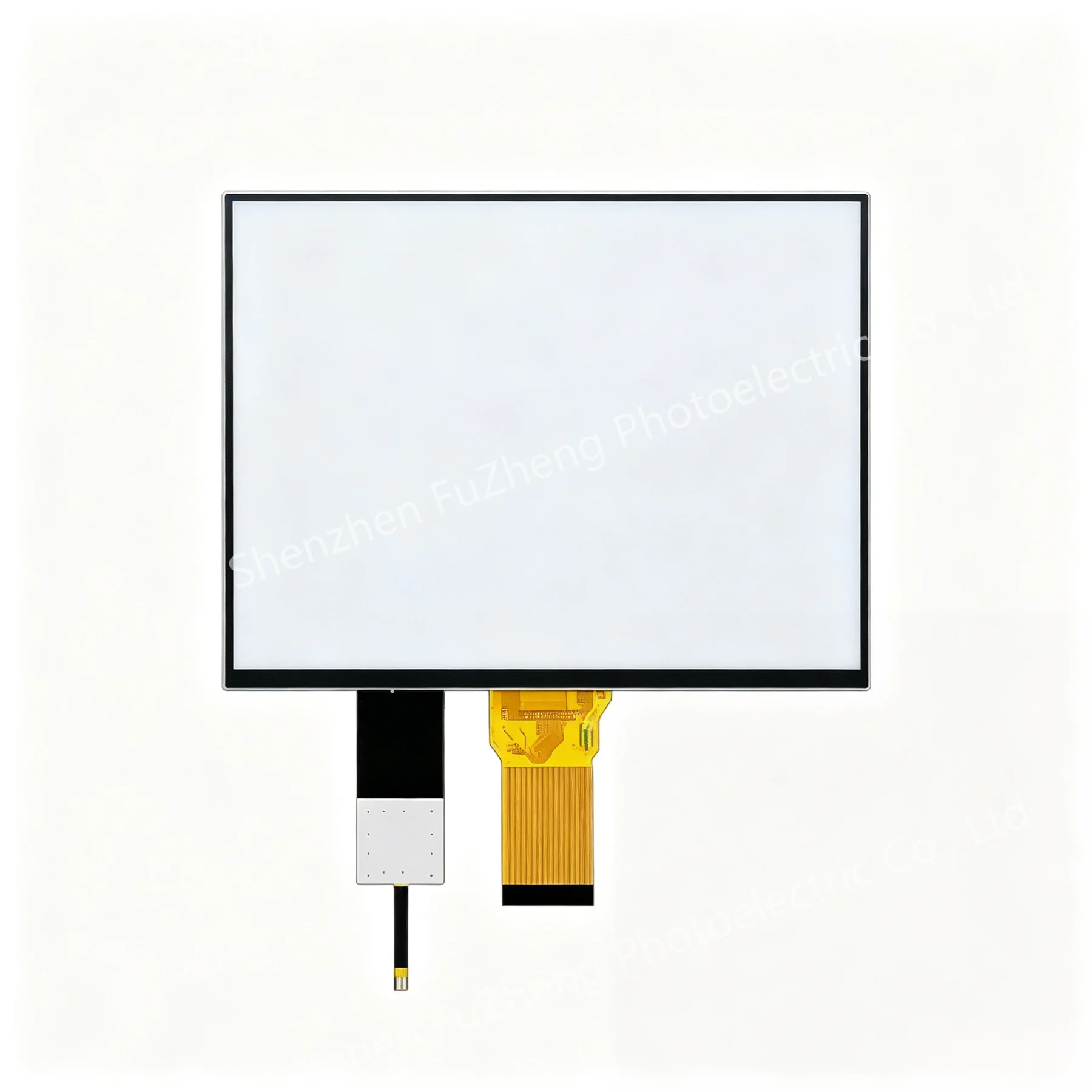

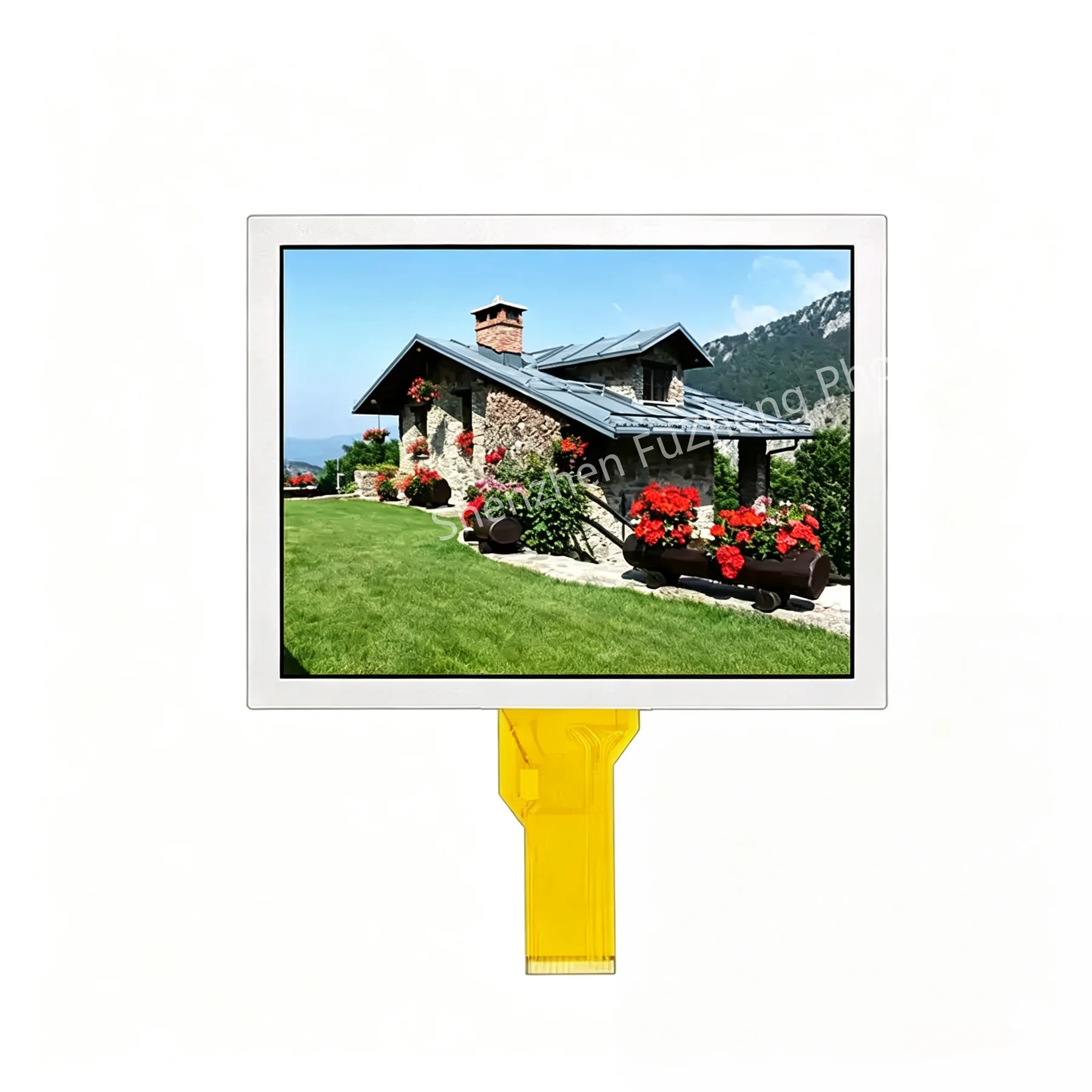

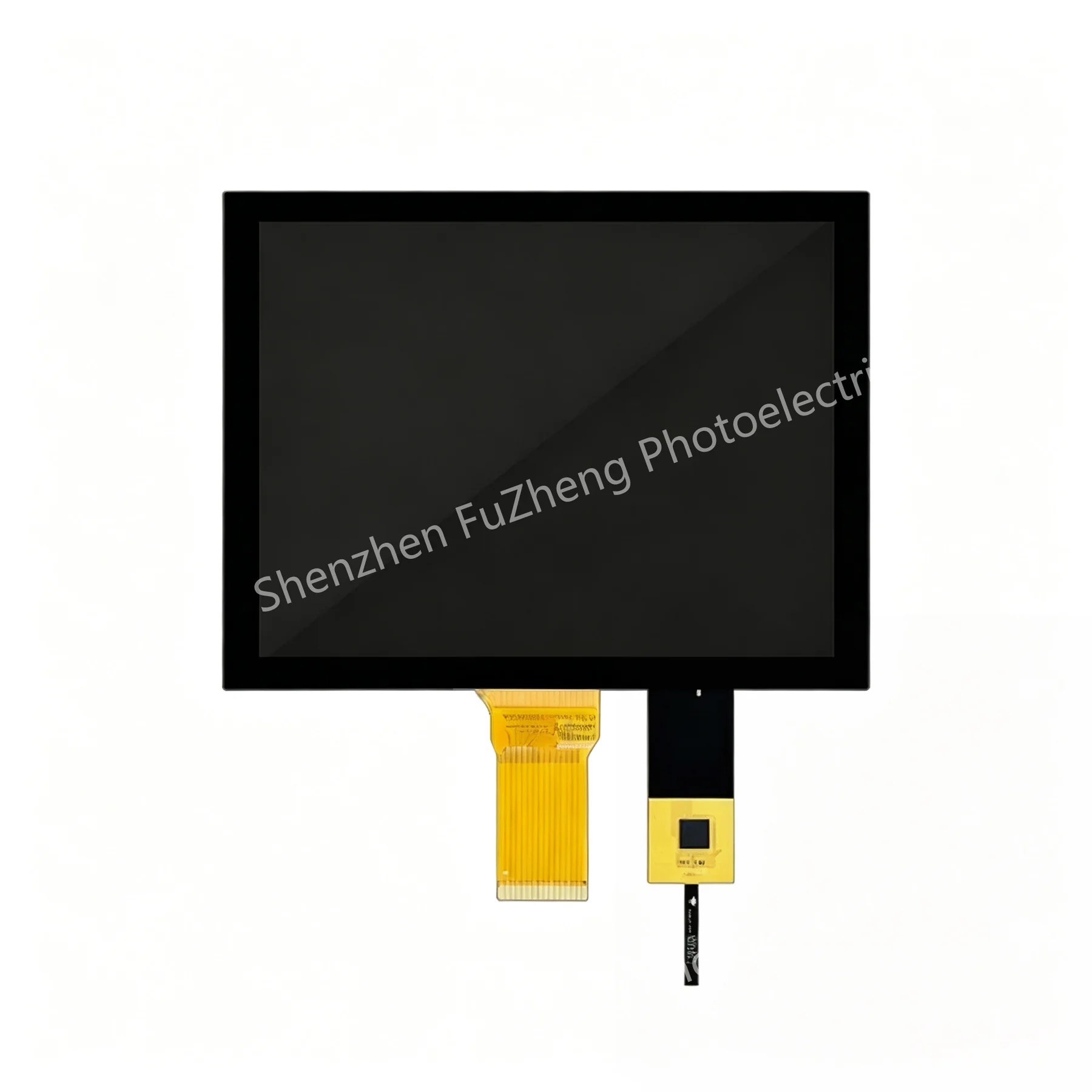

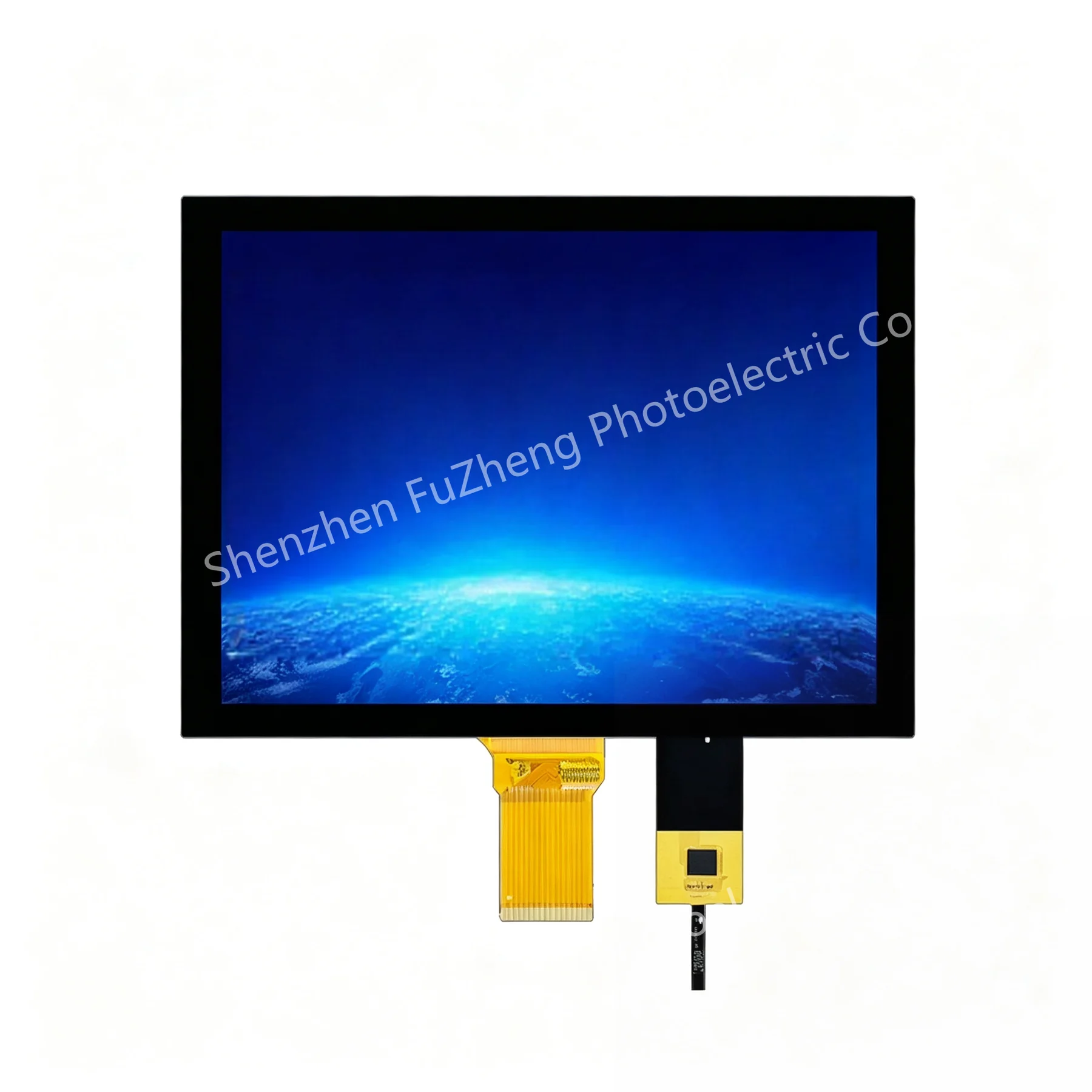

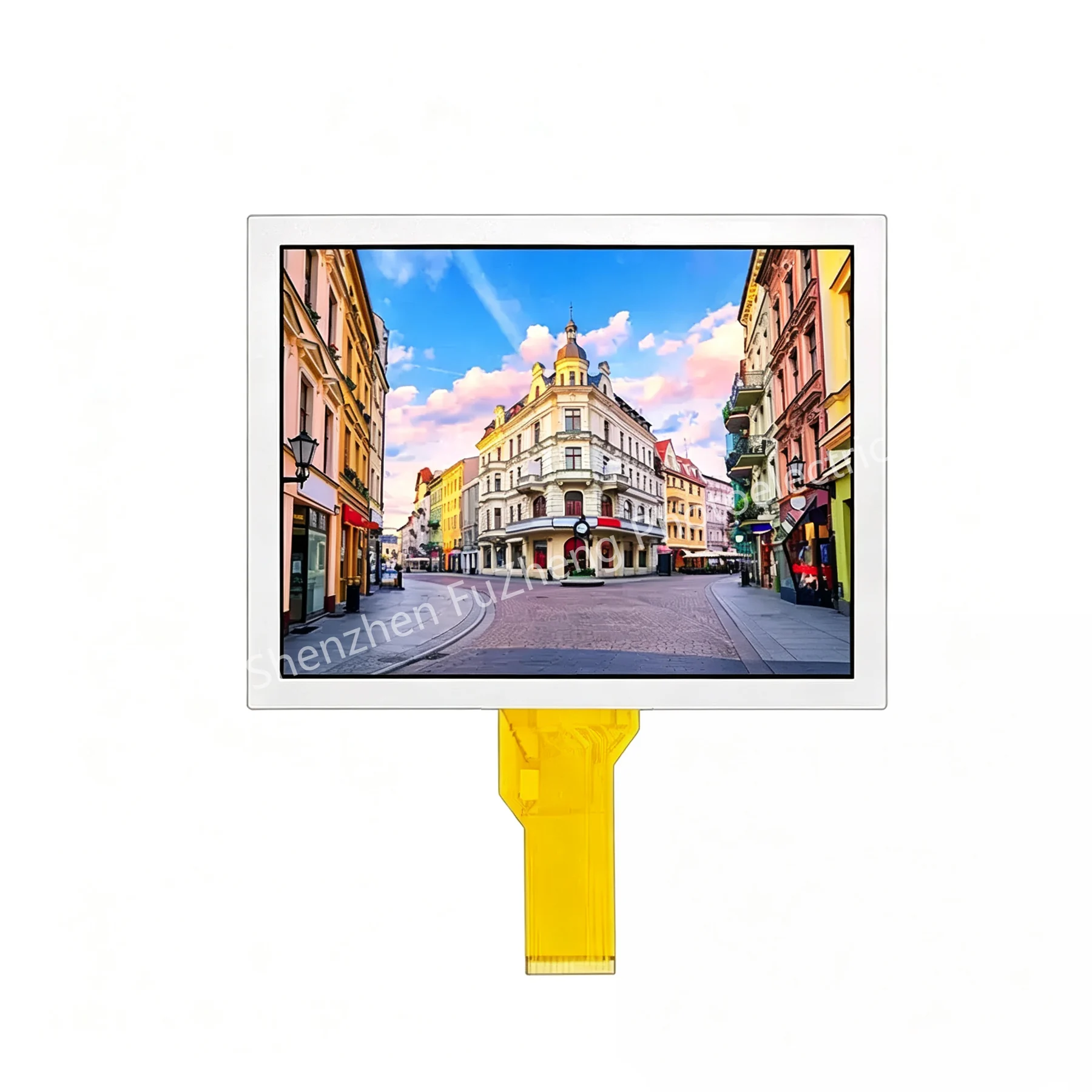

Product Images
Basic Parameters
| Display Type | a-Si TFT |
|---|---|
| Model Number | FZ800X600C50 |
| Screen Size | 8 inch (diagonal, SVGA 4:3 landscape) |
| Resolution | 800x600 (800 RGB x 600 Dots) |
| Dot Pitch (true) | 0.2025 (W) x 0.2025 (H) mm (162/800 = 121.5/600 = 0.2025 mm) |
| Display Colors | 16.7M (RGB 8-bit / 24-bit color depth) |
| Viewing Direction | 6 O'Clock (下视角) |
| Active Area | 162 (W) x 121.5 (H) mm |
| LCM Outline Size | 183 (W) x 141 (H) x 3.5 (D) mm |
| Data Interface | RGB 24-bit parallel (8-bit R/G/B, TTL CMOS) |
| Pin Count | 50 (plug-in FPC) |
| Controller / Driver IC | TBD (RGB TTL standard controller — see driver datasheet) |
| Timing Mode | DE/SYNC mode selectable via Pin 8 (MODE) — DE mode (Data Enable) or SYNC mode (HS+VS) both supported |
| Image Mirror | Yes — L/R horizontal mirror (Pin 39), U/D vertical mirror (Pin 40) |
| Dithering | Yes — DITHB dithering function (Pin 47) for improved color depth on 6-bit hosts |
| Power Supply — DVDD (Pin 7, digital) | DVDD 3.0 ~ 3.5 V (Pin 7, digital circuit) |
| Power Supply — AVDD (Pin 43, analog) | AVDD — analog circuit power (Pin 43) |
| Power Supply — VCOM (Pin 6/46, common) | VCOM — common voltage (Pin 6/46) |
| Power Supply — VGH (Pin 41, gate ON) | VGH — Gate ON voltage (Pin 41) |
| Power Supply — VGL (Pin 42, gate OFF) | VGL — Gate OFF voltage (Pin 42) |
| Touch Panel | No touch |
| Operating Temperature | -20 ~ +70 °C |
| Storage Temperature | -30 ~ +80 °C |
| Manufacturer | Shenzhen FuZheng Photoelectric Co., Ltd |

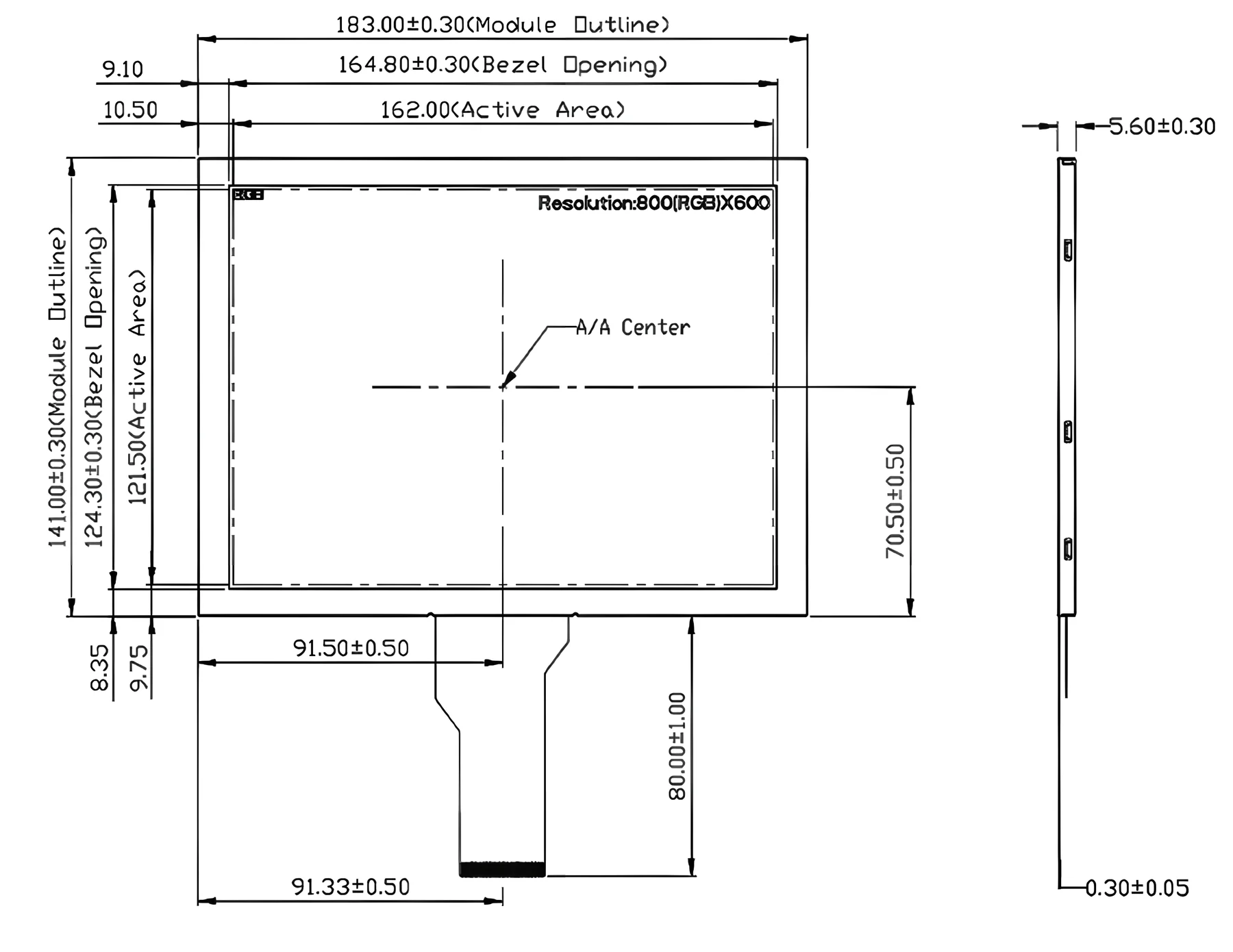

Mechanical Drawings
Pin Definition (50-pin FPC)
50-pin plug-in FPC tail. Pins 1-2 are LED+ (backlight anode). Pins 3-4 are LED- (cathode). Pin 5 is GND. Pin 6 is VCOM. Pin 7 is DVDD (3.0-3.5 V digital). Pin 8 is MODE (DE/SYNC select). Pin 9 is DE (data enable). Pin 10 is VS (vertical sync). Pin 11 is HS (horizontal sync). Pins 12-19 are B7-B0 (blue data, 8-bit). Pins 20-27 are G7-G0 (green data, 8-bit). Pins 28-35 are R7-R0 (red data, 8-bit). Pin 36 is GND. Pin 37 is DCLK (pixel sample clock). Pin 38 is GND. Pin 39 is L/R (horizontal mirror). Pin 40 is U/D (vertical mirror). Pin 41 is VGH (gate ON). Pin 42 is VGL (gate OFF). Pin 43 is AVDD (analog supply). Pin 44 is active-low RESET. Pin 45 is NC. Pin 46 is VCOM (second common-voltage pin). Pin 47 is DITHB (dithering). Pin 48 is GND. Pins 49-50 are NC.
| Pin No. | Symbol | Description |
|---|---|---|
| 1 | LED+ | Power for LED backlight (Anode) |
| 2 | LED+ | Power for LED backlight (Anode) |
| 3 | LED- | Power for LED backlight (Cathode) |
| 4 | LED- | Power for LED backlight (Cathode) |
| 5 | GND | Power ground |
| 6 | VCOM | Common voltage |
| 7 | DVDD | Power for Digital Circuit (3.0 ~ 3.5 V) |
| 8 | MODE | DE / SYNC mode select |
| 9 | DE | Data Input Enable (DE mode) |
| 10 | VS | Vertical Sync Input (SYNC mode) |
| 11 | HS | Horizontal Sync Input (SYNC mode) |
| 12-19 | B7-B0 | Blue data (8 bits, parallel RGB) |
| 20-27 | G7-G0 | Green data (8 bits, parallel RGB) |
| 28-35 | R7-R0 | Red data (8 bits, parallel RGB) |
| 36 | GND | Power ground |
| 37 | DCLK | Sample clock (pixel clock) |
| 38 | GND | Power ground |
| 39 | L/R | Left/right selection (horizontal mirror) |
| 40 | U/D | Up/down selection (vertical mirror) |
| 41 | VGH | Gate ON Voltage |
| 42 | VGL | Gate OFF Voltage |
| 43 | AVDD | Power for Analog Circuit |
| 44 | RESET | Global reset pin (active low) |
| 45 | NC | Not connect |
| 46 | VCOM | Common Voltage (second VCOM pin) |
| 47 | DITHB | Dithering function enable |
| 48 | GND | Power ground |
| 49 | NC | Not connect |
| 50 | NC | Not connect |
DE / SYNC Mode & Dithering
MODE (Pin 8) selects between two timing modes: DE mode (Data Enable, with only the DE signal carrying timing) and SYNC mode (using both HS and VS sync signals). The host MCU can choose whichever matches its video controller capability. In DE mode, Pin 9 (DE) carries the data-valid signal. In SYNC mode, Pin 10 (VS) and Pin 11 (HS) carry the frame and line sync respectively. DITHB (Pin 47) enables dithering to recover color depth when interfacing a 6-bit host to this 8-bit-per-channel panel.
Typical Applications
- Industrial HMI, machine control and instrumentation panel
- Medical equipment display (patient monitor, ultrasound, diagnostic device)
- Test & measurement equipment front-panel display
- POS terminal, self-service kiosk and information display
- Digital signage and advertising display (4:3 format)
- Vehicle infotainment and dashcam rear-screen
- Smart home control panel and intercom
- Embedded Linux / RTOS single-board computer display (Raspberry Pi, STM32, ESP32)
Frequently Asked Questions
What are the size and resolution of FZ800X600C50?
FZ800X600C50 is a 8 inch (diagonal, SVGA 4:3 landscape) display with 800x600 (800 RGB x 600 Dots).
Which interface and connector does FZ800X600C50 use?
The supplied product brief specifies RGB 24-bit parallel (8-bit R/G/B, TTL CMOS) with 50 (plug-in FPC). Confirm the quoted connector revision before design-in.
Which controller or driver is used on FZ800X600C50?
The supplied record identifies TBD (RGB TTL standard controller — see driver datasheet). Initialization and timing data should be confirmed against the approved revision.
What are the outline and viewing characteristics of FZ800X600C50?
The published module outline is 183 (W) x 141 (H) x 3.5 (D) mm, and the viewing specification is 6 O'Clock (下视角).
What operating temperature is specified for FZ800X600C50?
The supplied product brief lists an operating temperature of -20 ~ +70 °C. OEM/ODM options should be confirmed during quotation.
Ordering & Contact
Sample orders and OEM/ODM quotations are available. Please contact Shenzhen FuZheng Photoelectric Co., Ltd by email or WhatsApp.
Contact: Victory.Wang | Shenzhen FuZheng Photoelectric Co., Ltd | Email: Victory.Wang@szfuzheng.com | WhatsApp: +86 15989445783 | Website: https://fzlcddisplay.com
