Model no.FZ430-1024768
FZ430-1024768 4.3-Inch 1024x768 IPS RGB TFT-LCD Display
FZ430-1024768 is a 4.3-inch landscape IPS TFT-LCD with 1024×768 resolution, JD9165BA driver, 18-bit RGB interface and a 40-pin plug-in FPC. The published connector also reserves pins for an optional capacitive-touch panel.
- a-Si IPS TFT-LCD, transmissive
- Landscape
- 18-bit parallel RGB
- Optional capacitive panel via pins 35–39
- 1024 × 768 XGA resolution
- IPS all-direction viewing
- JD9165BA driver
- 18-bit parallel RGB interface
- Screen Size
- 4.3 inch
- Resolution
- 1024 × 768 pixels
- Technology
- a-Si IPS TFT-LCD, transmissive
- Shape
- Landscape
- Interface
- 18-bit parallel RGB
- Touch
- Optional capacitive panel via pins 35–39
Product Overview
The FZ430-1024768 is a 4.3″ IPS TFT-LCD module with XGA 1024x768 resolution and a 87.244 x 65.433 mm active area. It uses the JD9165BA controller with an RGB 18-bit parallel interface on a 40-pin plug-in FPC, making it a high-density display for industrial HMI, medical, kiosk and smart-home control panels. Optional capacitive touch is available on dedicated TP pins (35-39).
Key Features
- 4.3 inch IPS TFT-LCD, 1024x768 XGA portrait/landscape, 16.7M colors
- JD9165BA controller with RGB 18-bit parallel interface — high frame rate for video & HMI
- 85.2 x 85.2 μm pixel pitch — sharp text and graphics at 4.3 inch
- 12 white-LED backlight — uniform high brightness across the panel
- Optional capacitive touch (I2C interface on dedicated TP pins 35-39)
- Wide operating temperature -20 ~ +70 °C for industrial use

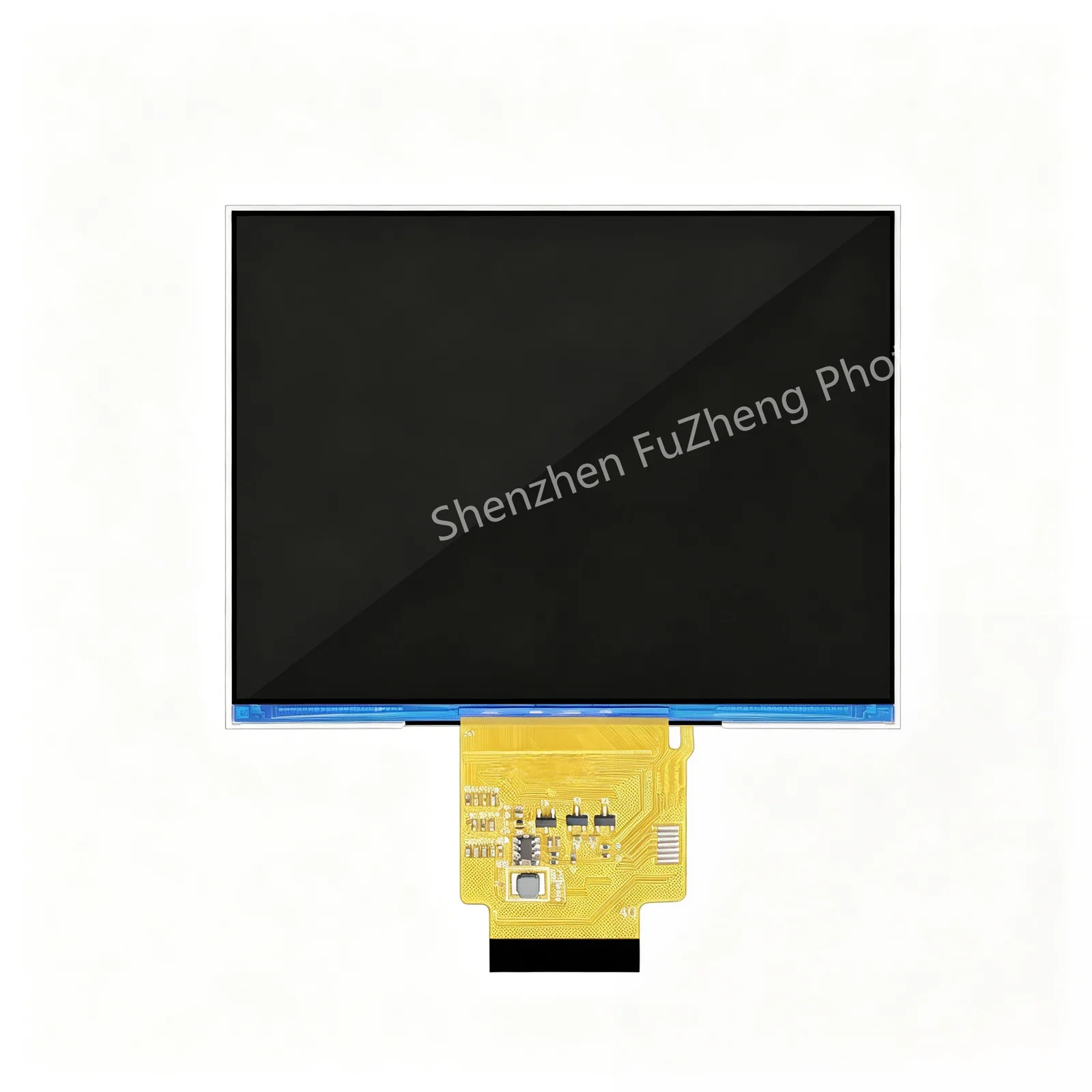

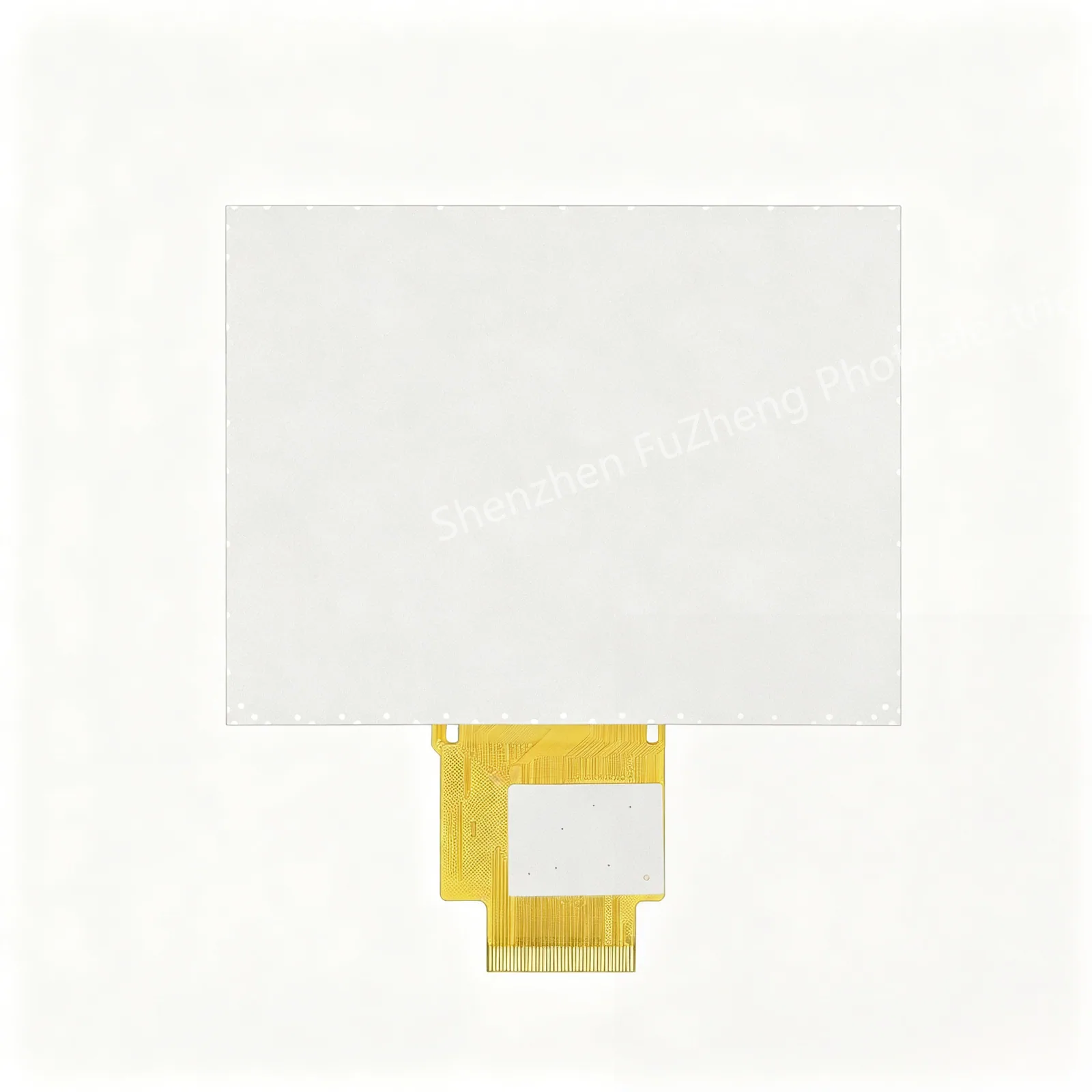

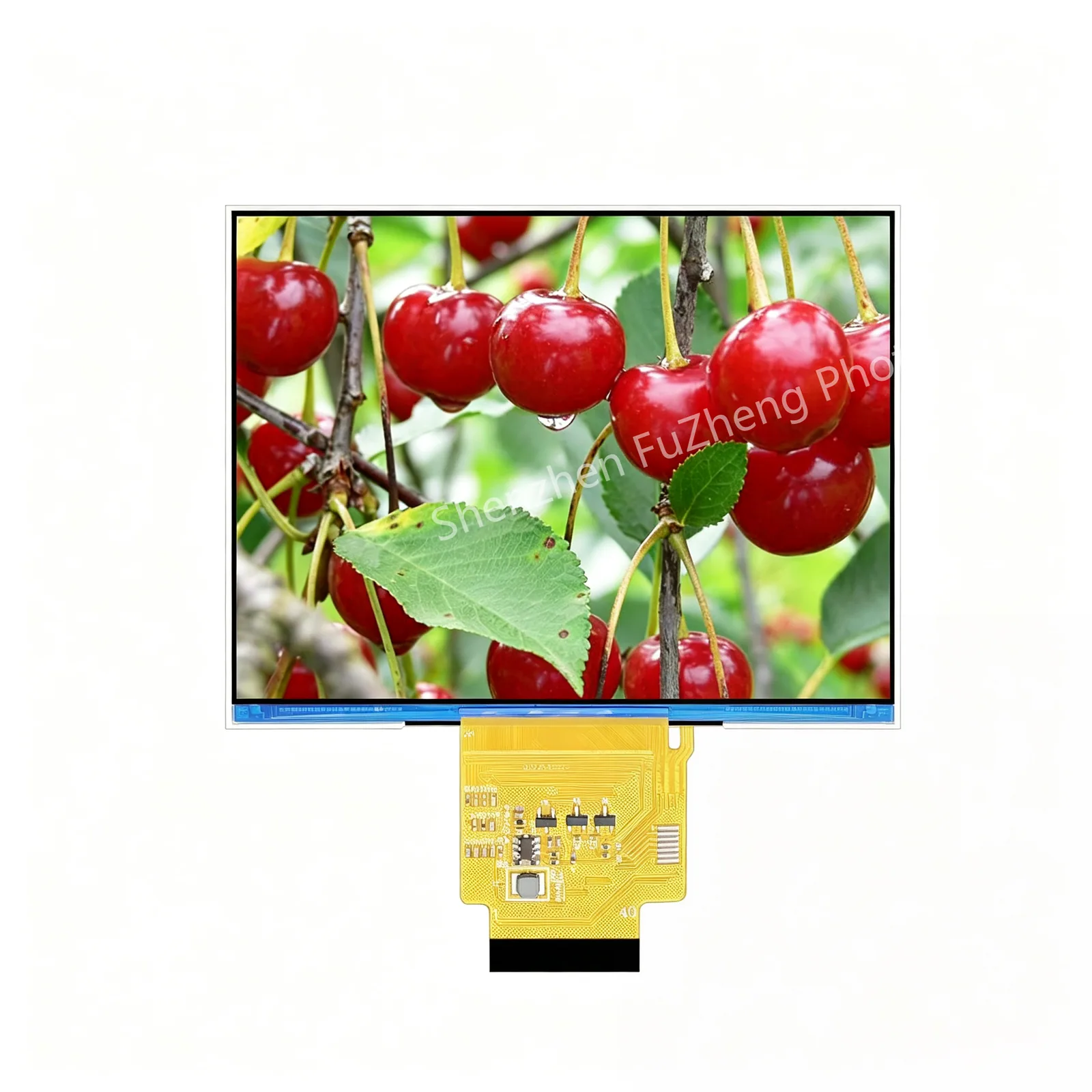

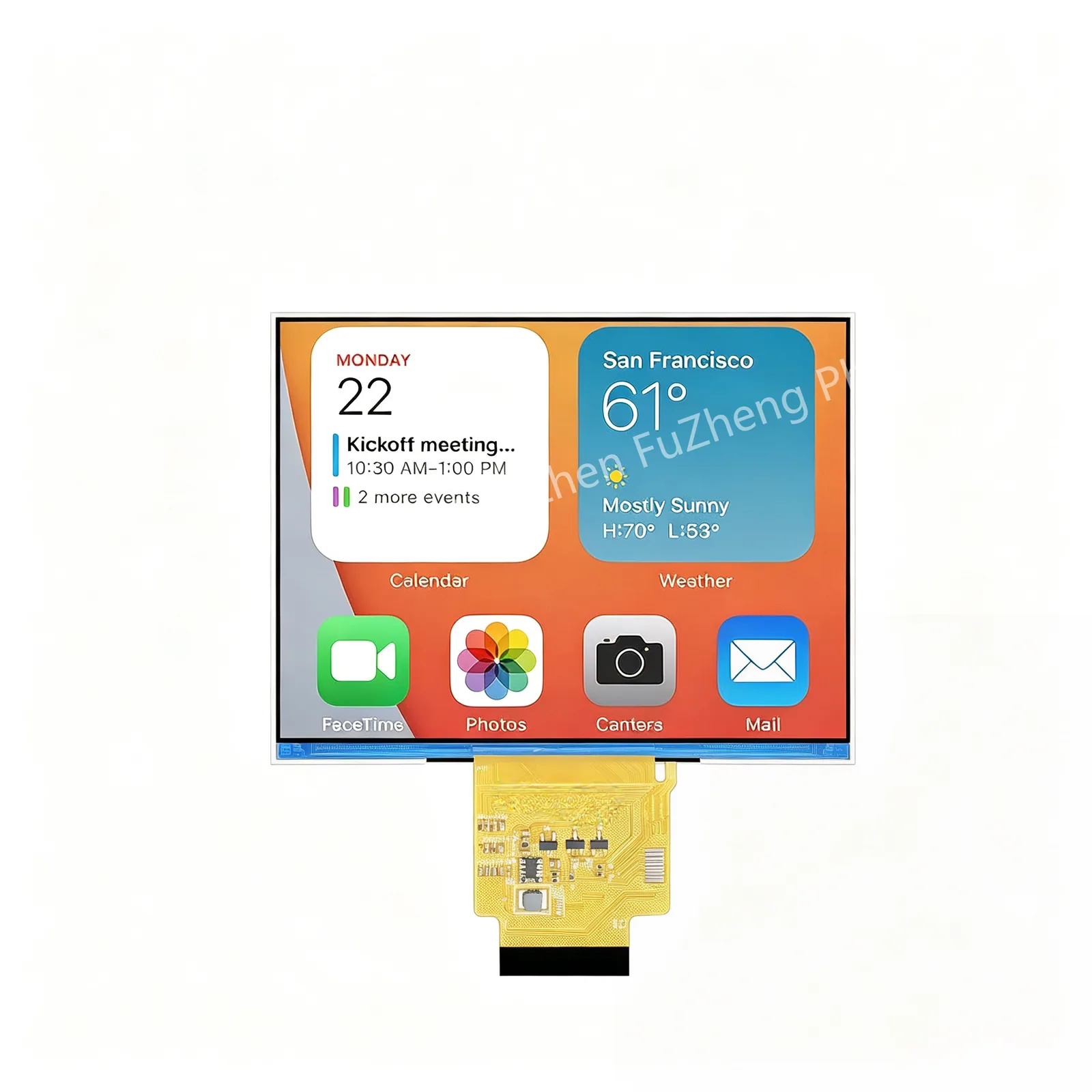

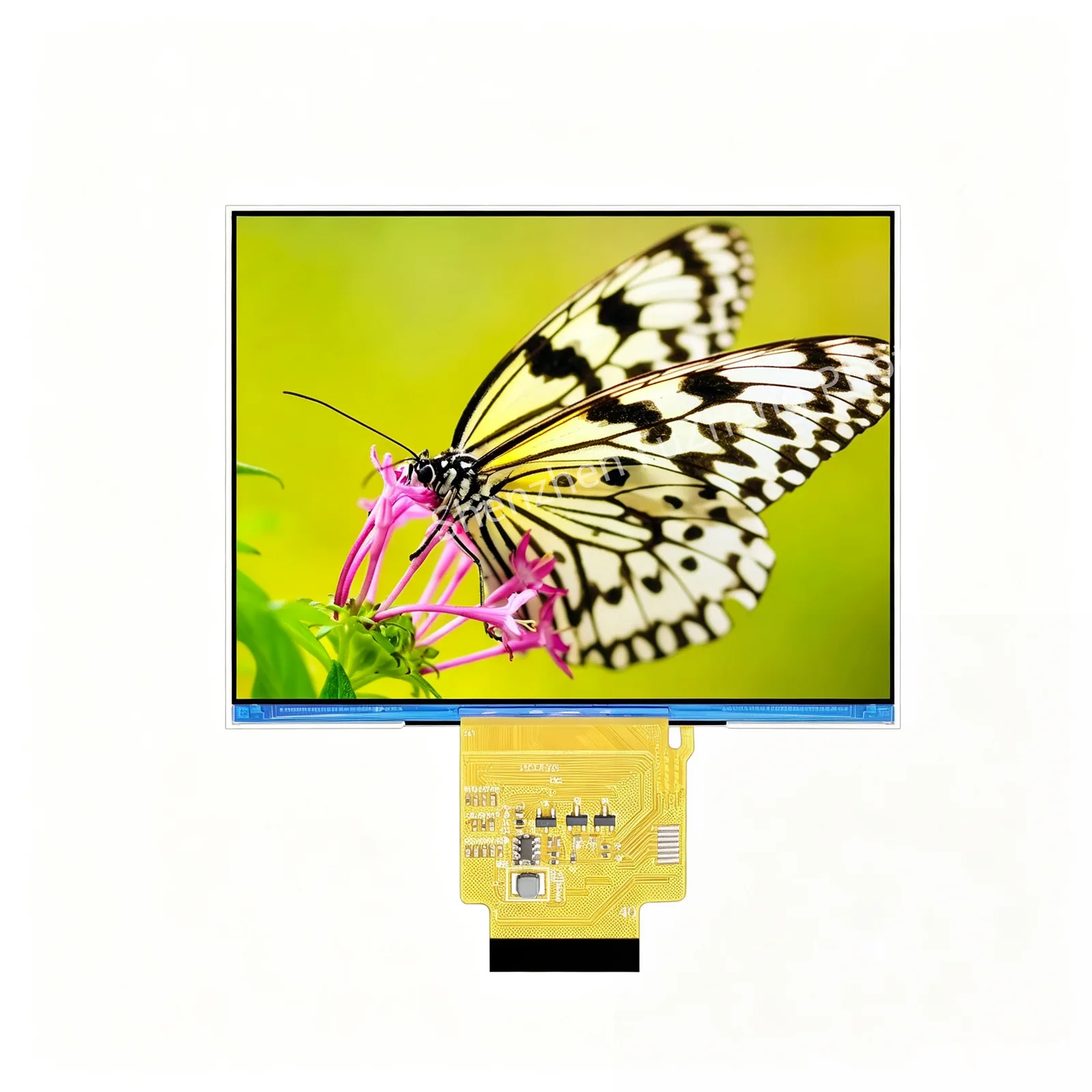

Product Images
Basic Parameters
| Display Type | a-Si TFT IPS (TFT / Transmissive) |
|---|---|
| Model Number | FZ430-1024768 |
| Screen Size | 4.3 inch (diagonal) |
| Resolution | 1024x768 (1024 RGB x 768 Dots) |
| Pixel Pitch | 85.2 (H) x 85.2 (V) μm |
| Display Colors | 16.7M (RGB stripe) |
| Viewing Direction | ALL (IPS full viewing angle) |
| Active Area (engineering) | 87.2448 (H) x 65.4336 (V) mm |
| Active Area (product brief) | 87.244 x 65.433 mm |
| LCM Outline Size | 91.45 (H) x 72.9 (V) x 2.5 (D) mm |
| Backlight | 12 white LEDs |
| Controller / Driver IC | JD9165BA (JD Technology) |
| Data Interface | RGB 18-bit parallel |
| Pin Count | 40 (plug-in FPC) |
| Power Supply — VCC (Pin 5, logic) | VCC 2.8 ~ 3.2 V (Pin 5, interface logic) |
| Touch Panel Option | Optional capacitive touch (TP signals on pins 35-39) |
| Operating Temperature | -20 ~ +70 °C |
| Storage Temperature | -30 ~ +80 °C |
| Weight | TBD g |
| Manufacturer | Shenzhen FuZheng Photoelectric Co., Ltd |

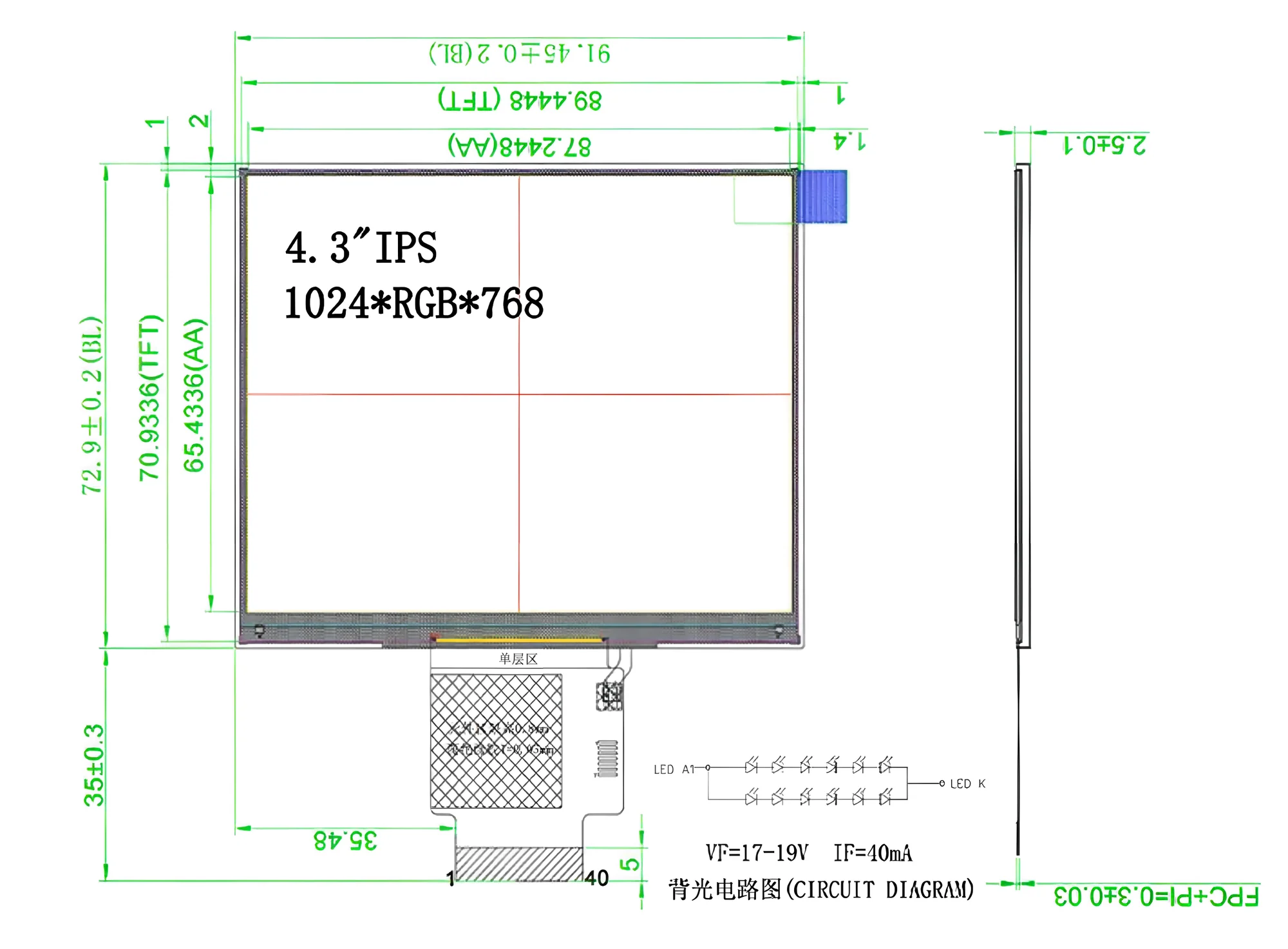

Mechanical Drawings
Pin Definition (40-pin FPC)
40-pin plug-in FPC tail. Pin 1-3 are backlight (LEDA / LEDK / LEDK), Pin 4 is GND, Pin 5 is VCC (2.8-3.2 V), Pin 6 is active-low RESET. Pins 7-8 are reserved (NC). Pins 9-11 are the SPI control interface (SDA / SCL / CS). Pins 12-15 are the RGB timing signals (PCLK / DE / VS / HS). Pins 16-33 are the 18-bit RGB data bus (DB0-DB17). Pin 34 is GND. Pins 35-39 are reserved for the optional capacitive touch panel (TP-INT / TP-SDA / TP-SCL / TP-RST / TP-VCI). Pin 40 is GND.
| Pin No. | Symbol | Description |
|---|---|---|
| 1 | LEDA | Back-light Anode |
| 2 | LEDK | Back-light Cathode |
| 3 | LEDK | Back-light Cathode |
| 4 | GND | Power Ground |
| 5 | VCC | Power supply for interface logic circuits (2.8 V ~ 3.2 V) |
| 6 | REST | Reset input pin |
| 7 | NC | No connection |
| 8 | NC | No connection |
| 9 | SDA | Serial interface address and data input/output for SPI interface |
| 10 | SCL | Serial interface clock input for SPI interface |
| 11 | CS | Serial Interface chip enable signal for SPI interface |
| 12 | PCLK | TTL clock input pin. Select by "IFSEL" pin. If not used, fix at VSS level. |
| 13 | DE | DE signal when DE mode. Internally pulled low. |
| 14 | VS | Vertical sync input. Internally pulled high. |
| 15 | HS | Horizontal sync input. Internally pulled high. |
| 16-33 | DB0-DB17 | TTL data input (RGB 18-bit parallel data bus) |
| 34 | GND | Power Ground |
| 35 | TP-INT | Touch panel interrupt (CTP option) |
| 36 | TP-SDA | Touch panel I2C data (CTP option) |
| 37 | TP-SCL | Touch panel I2C clock (CTP option) |
| 38 | TP-RST | Touch panel reset (CTP option) |
| 39 | TP-VCI | Touch panel power supply (CTP option) |
| 40 | GND | Power Ground |
Typical Applications
- Industrial HMI and SCADA station display
- Medical equipment display (patient monitor, ultrasound, diagnostic device)
- Self-service kiosk and POS terminal display
- Smart home control panel and access-control terminal
- Test & measurement equipment and laboratory instrument display
- Automotive aftermarket and EV charging station display
Frequently Asked Questions
What are the resolution and module dimensions of FZ430-1024768?
FZ430-1024768 is a 4.3-inch IPS TFT-LCD with 1024 × 768 pixels. The supplied drawing lists a 91.45 ± 0.2 × 72.9 ± 0.2 × 2.5 ± 0.1 mm module outline.
Which driver and host interface are used?
The supplied record identifies the JD9165BA driver and an 18-bit parallel RGB host interface on a 40-pin FPC.
Does the connector include optional touch signals?
Yes. Pins 35–39 are allocated to optional capacitive-touch interrupt, I²C, reset and supply signals. Confirm the selected touch configuration before quotation.
What backlight information is published?
The drawing identifies a 12-white-LED backlight circuit and lists a 17–19 V forward-voltage range at 40 mA. Validate the driver against the approved revision and sample.
Which active-area value should enclosure design use?
Use the approved drawing value of 87.2448 × 65.4336 mm for the quoted revision; the supplied brief contains a rounded value.
