Model no.FZ320-240320
FZ320-240320 3.2-Inch 240x320 IPS SPI TFT-LCD Display
FZ320-240320 is a 3.2-inch portrait IPS TFT-LCD with 240×320 resolution, ST7789P3 controller, 4-wire SPI and an 8-pin FPC. A separate CST328 capacitive-touch configuration is available for engineering review.
- a-Si IPS TFT-LCD, transmissive
- Portrait
- 4-wire SPI
- Optional CST328 capacitive panel
- 240 × 320 portrait resolution
- IPS all-direction viewing
- ST7789P3 controller
- 4-wire SPI with 8-pin FPC
- Screen Size
- 3.2 inch
- Resolution
- 240 × 320 pixels
- Technology
- a-Si IPS TFT-LCD, transmissive
- Shape
- Portrait
- Interface
- 4-wire SPI
- Touch
- Optional CST328 capacitive panel
Product Overview
The FZ320-240320 is a 3.2″ IPS TFT-LCD module with 240x320 resolution and a 48.66 (H) x 64.8 (V) mm active area. It uses the Sitronix ST7789P3 controller over a 4-wire SPI bus (8-pin FPC) and is widely used in 3D printer displays, DIY electronics, and industrial HMI applications. Optional CST328 capacitive touch is available on a separate FPC.
Key Features
- 3.2 inch IPS TFT-LCD, 240x320 portrait, 262K colors
- ST7789P3 controller with 4-wire SPI interface — only 4 GPIO pins needed
- Wide power window: VCI 2.4 ~ 3.3 V and IOVCC 1.65 ~ 3.3 V
- White-LED backlight with single-anode drive (LEDA)

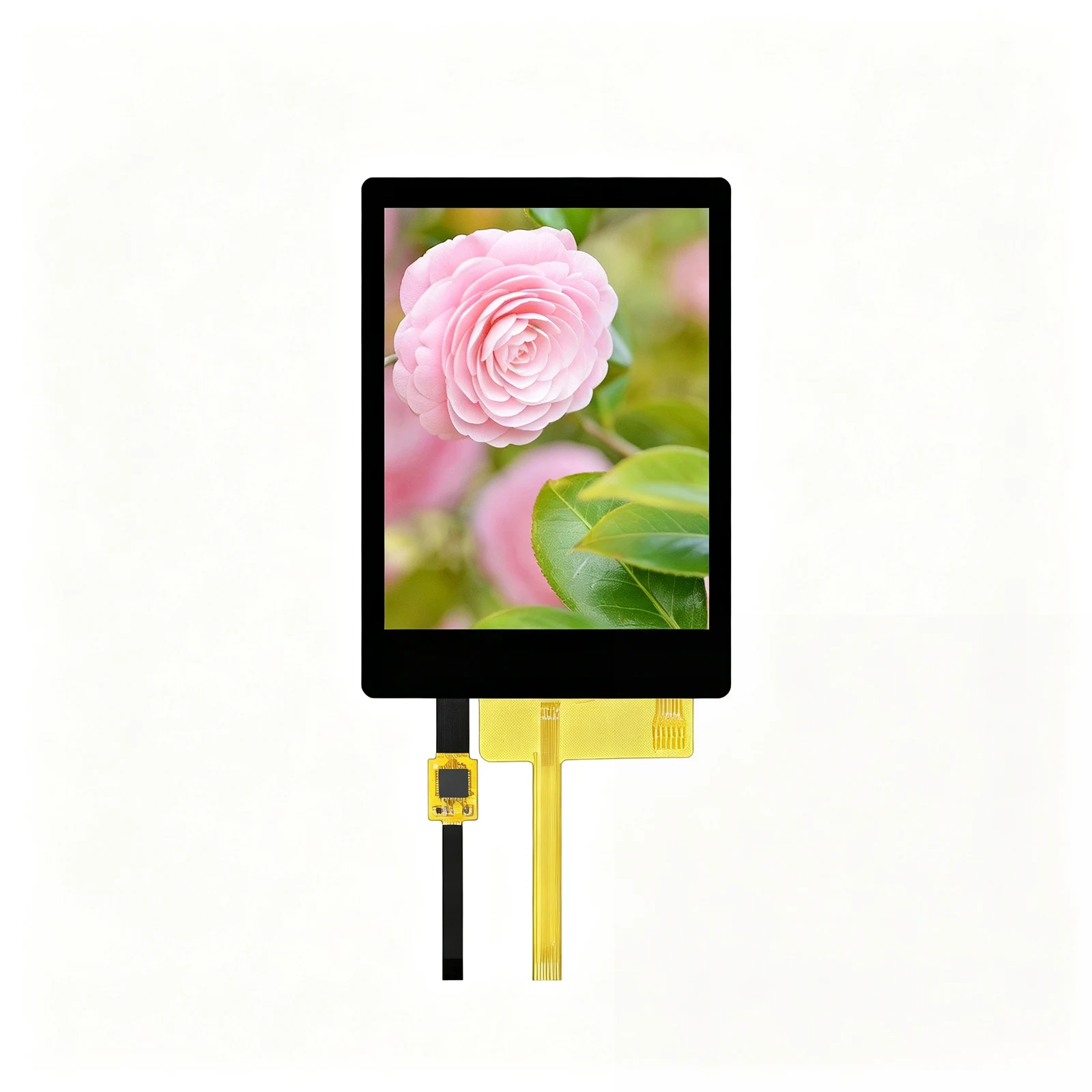

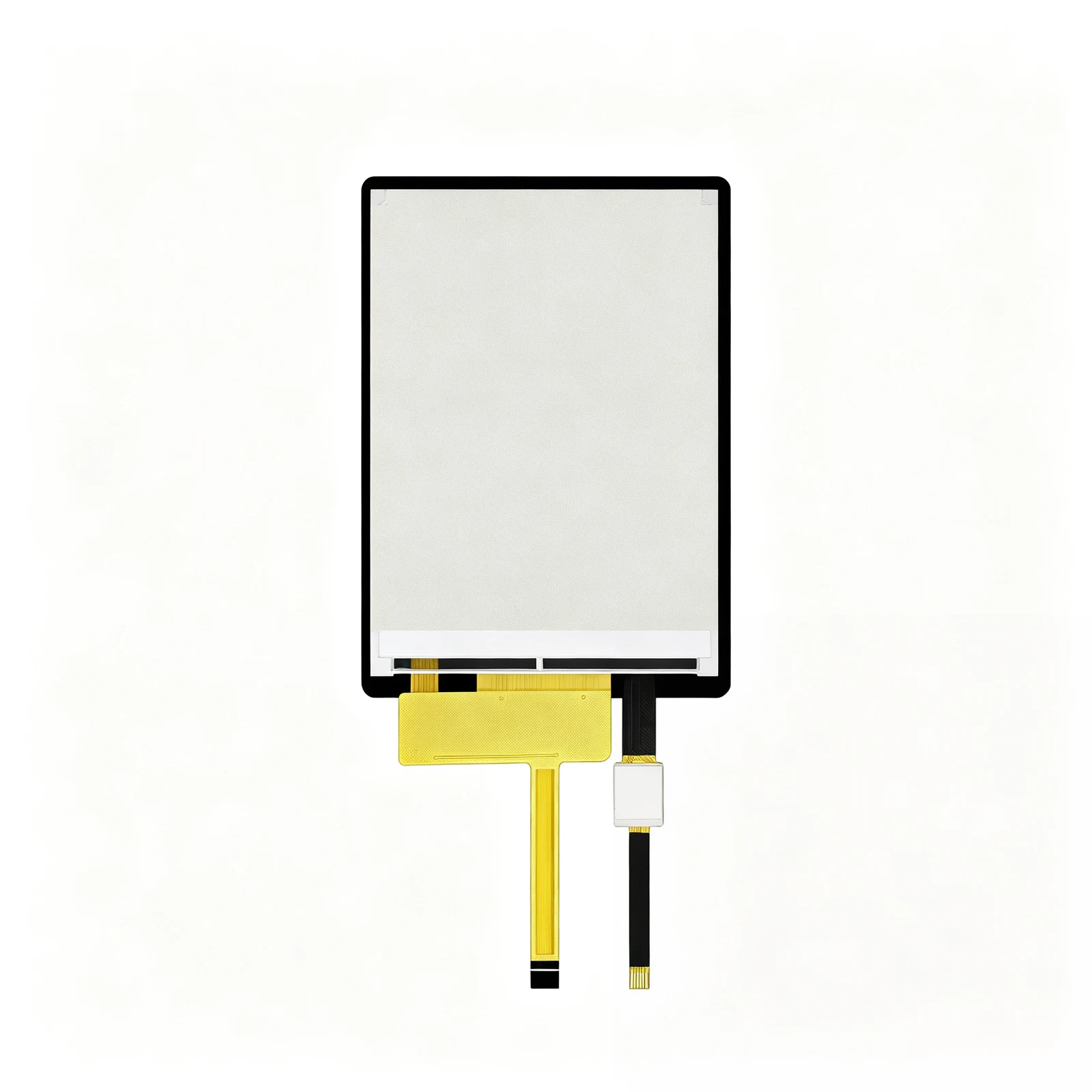

- Optional CST328 capacitive touch (separate FPC)

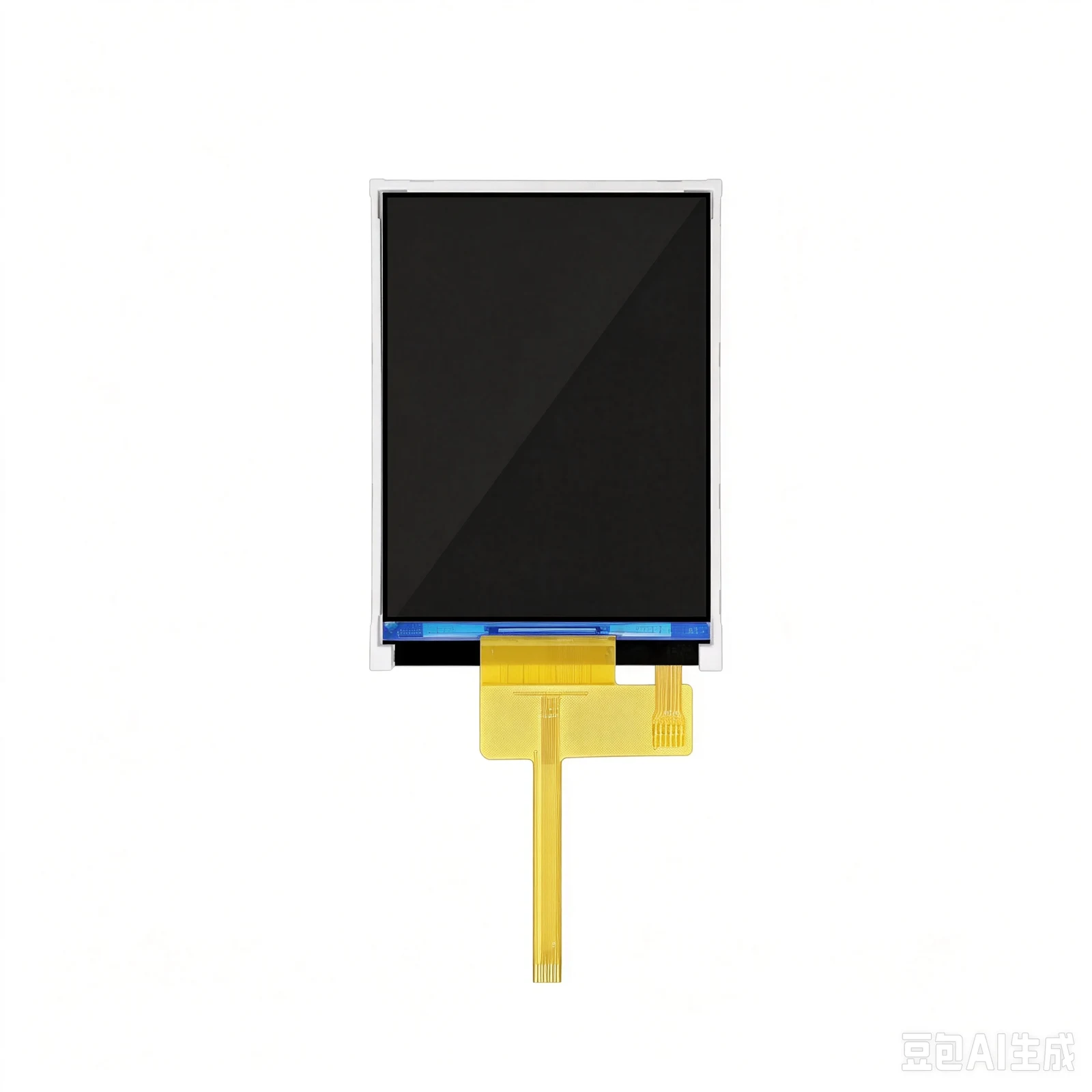

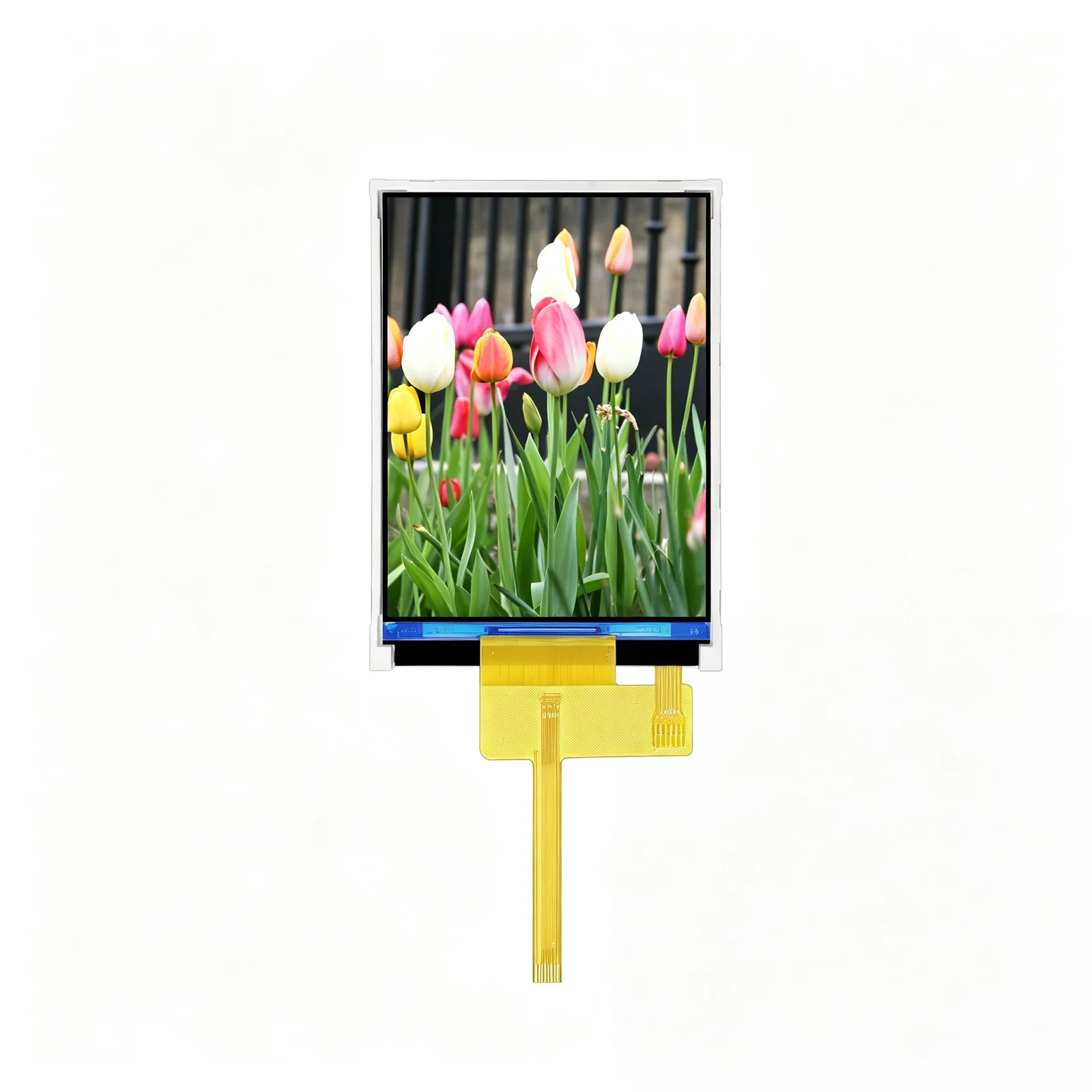

Product Images
Basic Parameters
| Display Type | a-Si TFT IPS (TFT / Transmissive) |
|---|---|
| Model Number | FZ320-240320 |
| Screen Size | 3.2 inch (diagonal) |
| Resolution | 240x320 (240 RGB x 320 Dots) |
| Pixel Pitch | 0.2025 x 0.2025 mm (calculated from active area / resolution) |
| Display Colors | 262K (RGB) |
| Viewing Direction | ALL (IPS full viewing angle) |
| Active Area | 48.66 (H) x 64.8 (V) mm |
| LCM Outline Size | 55.04 (H) x 77.5 (V) x 2.4 (D) mm |
| Backlight | 4-6 white LEDs (typical) |
| Controller / Driver IC | ST7789P3 (Sitronix) |
| Touch Driver (CTP option) | CST328 (capacitive touch option, separate FPC) |
| Data Interface | 4-wire SPI (SPI 4W) |
| Pin Count | 8 (plug-in FPC) |
| Power Supply — VCI (Analog) | VCI 2.4 ~ 3.3 V (typ. 2.75 V) |
| Power Supply — IOVCC (Logic) | IOVCC 1.65 ~ 3.3 V (typ. 1.8 V) |
| Power Supply — VDD (Pin 7, logic) | VDD 2.8 ~ 3.2 V (Pin 7, interface logic) |
| Operating Temperature | -20 ~ +70 °C |
| Storage Temperature | -30 ~ +80 °C |
| Manufacturer | Shenzhen FuZheng Photoelectric Co., Ltd |

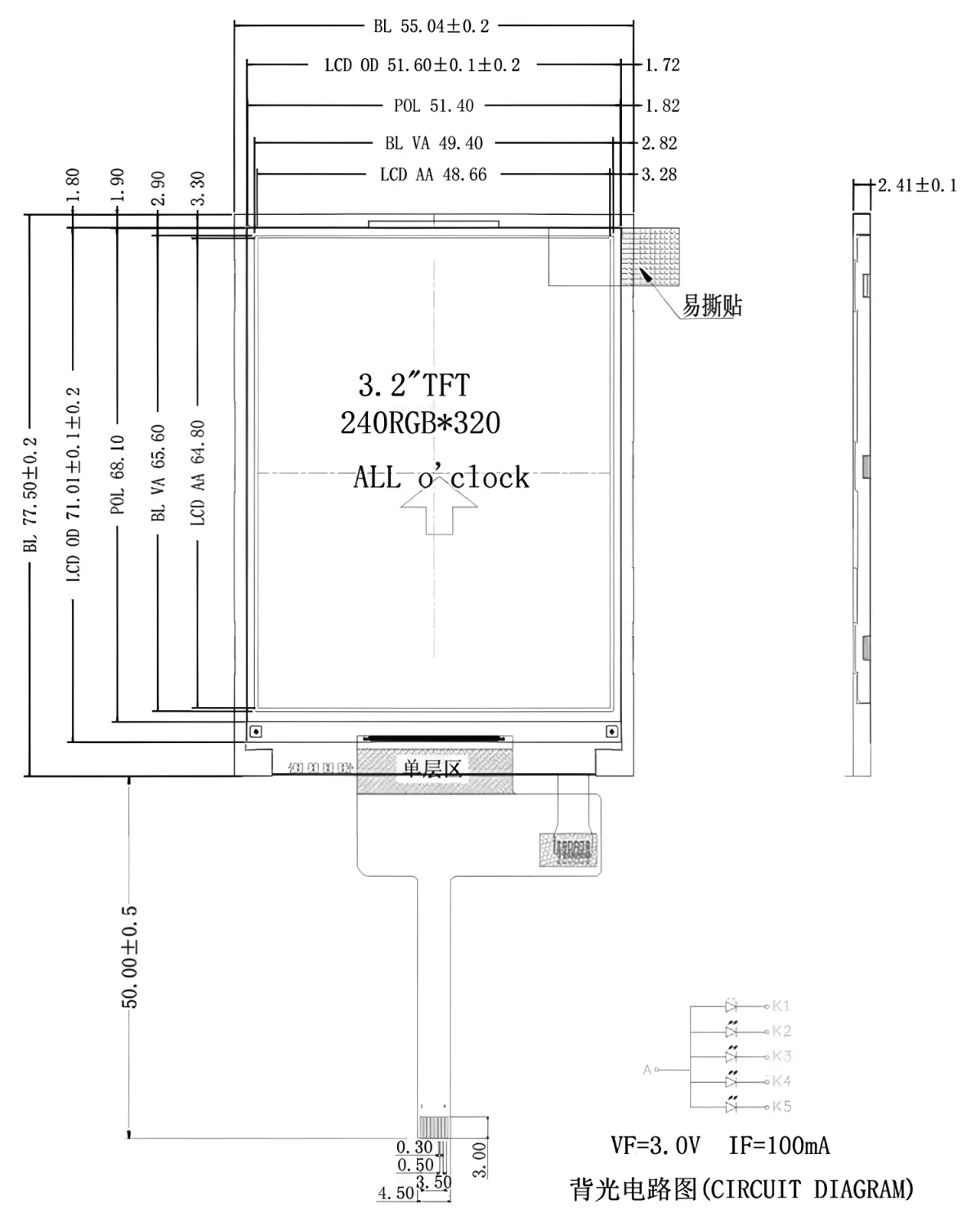

Mechanical Drawings
Pin Definition (8-pin FPC)
8-pin plug-in FPC tail, 0.5 mm pitch. Pin 1 = backlight anode (LEDA), Pin 2 = GND / backlight cathode. The 4-wire SPI bus uses pins 5/6/4/8 (SDA/SCL/RS/CS). Pin 7 supplies logic power (VDD 2.8-3.2 V), Pin 3 is the active-low RESET.
| Pin No. | Symbol | Description |
|---|---|---|
| 1 | LEDA | Back-light Anode |
| 2 | GND | Power Ground / Back-light Cathode |
| 3 | RESET | Reset input pin |
| 4 | RS | Register select signal pin. L: Command H: Data |
| 5 | SDA | Serial signal input / output |
| 6 | SCL | Serial clock signal input pin |
| 7 | VDD | Power supply for interface logic circuits (2.8 V ~ 3.2 V) |
| 8 | CS | Chip select input pin |
Typical Applications
- 3D printer control screen (Creality, Prusa, Voron, Ender series)
- Arduino / ESP32 / STM32 DIY electronics and maker projects
- Industrial handheld scanner, POS and measurement HMI
- Smart home panel, thermostat and access-control display
- Smart appliance secondary display (rice cooker, air fryer, coffee machine)
Frequently Asked Questions
What are the size and resolution of FZ320-240320?
FZ320-240320 is a 3.2-inch portrait IPS TFT-LCD with 240 × 320 pixels. The base-module active area is published as 48.60 × 64.80 mm.
Which controller and interface are used?
The supplied product record identifies an ST7789P3 controller and a 4-wire SPI host interface on an 8-pin FPC.

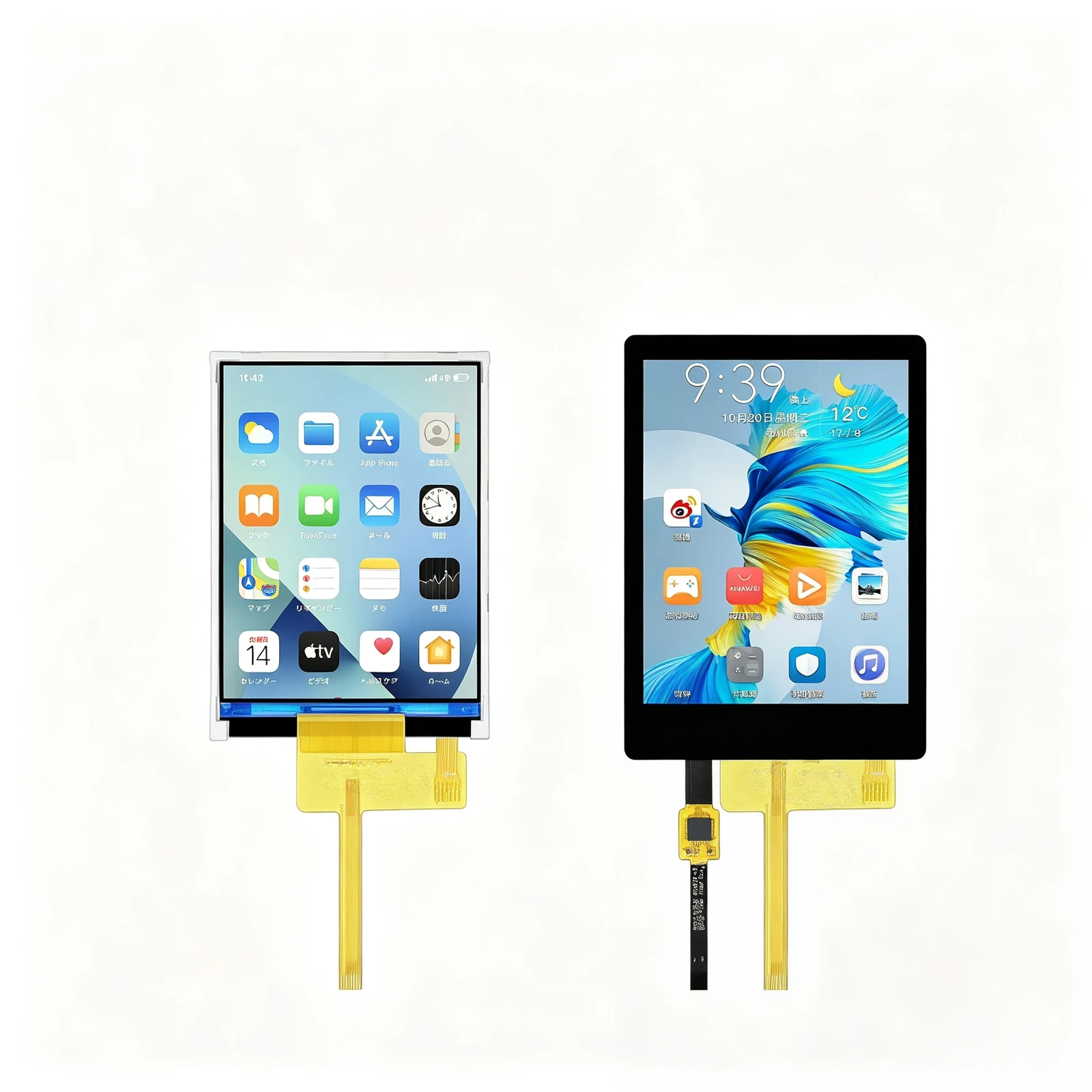

Is capacitive touch included with every FZ320-240320 module?
No. The supplied materials show a separate capacitive-touch assembly. Confirm whether the quotation covers the base display or the touch configuration and request the matching drawing.
Do the base display and touch assembly use the same outline?
They are documented as separate configurations. Use the approved outline, FPC geometry and connector orientation for the exact quoted assembly before releasing the enclosure.
What should be verified before connecting the host?
Verify the ST7789P3 initialization sequence, voltage rails, SPI timing, pin numbering and backlight drive against the approved electrical specification.
Ordering & Contact
Sample orders and OEM/ODM quotations are available. Please contact Shenzhen FuZheng Photoelectric Co., Ltd by email or WhatsApp.
Contact: Victory.Wang | Shenzhen FuZheng Photoelectric Co., Ltd | Email: Victory.Wang@szfuzheng.com | WhatsApp: +86 15989445783 | Website: https://fzlcddisplay.com
