Model no.FZ169-240280
1.69-Inch 240×280 IPS TFT-LCD Display
A compact 240×280 IPS TFT-LCD module with SPI or MCU interface options and optional CST816T capacitive touch. Review photos, specifications and mechanical drawings before design-in.
- 4-wire SPI or 8/16-bit MCU; version-dependent
- Optional CST816T capacitive touch
- Compact IPS display with 240×280 resolution
- SPI and MCU interface versions
- Optional capacitive touch integration
- Screen Size
- 1.69 inch
- Resolution
- 240 × 280 pixels (RGB)
- Interface
- 4-wire SPI or 8/16-bit MCU; version-dependent
- Touch
- Optional CST816T capacitive touch
- Brightness
- 350 cd/m² typical
- Viewing Angle
- All viewing directions
Product Overview
The FZ169-240280 is an industrial-grade 1.69 inch Thin-Film-Transistor Liquid Crystal Display module with a 240x280 portrait resolution and an in-plane-switching panel that delivers true ALL viewing-angle color consistency. With a compact 27.97 (H) x 32.63 (V) mm active area inside a 30.07 (H) x 37.43 (V) x 1.6 (D) mm outline, this a-Si TFT-LCD is engineered for space-constrained smart wearable products, including smart watches, fitness bands, health monitors and portable HMI panels. The module is available with an optional CST816T capacitive touch panel (CTP) in both rounded-corner (smartwatch style) and right-angle (industrial style) mechanical options, and supports two interface families — SPI 4W (18-pin) for low-pin-count microcontrollers, and MCU 8/16-bit parallel (30-pin) for higher throughput. Backed by Shenzhen FuZheng Photoelectric Technology's more than a decade of display manufacturing experience, every FZ169-240280 unit ships with stable production quality, competitive factory pricing, and full OEM/ODM customization.
Key Features
- 1.69 inch a-Si TFT-LCD module with 240x280 portrait resolution and 262K color depth
- IPS (in-plane switching) panel with ALL viewing direction — consistent image from any angle
- Compact 30.07 x 37.43 x 1.6 mm outline, only 1.6 mm thin — ideal for slim wearable housings
- Driver IC options: ST7789T3 (18-pin SPI) or ST7789H2 (30-pin MCU) — flexible host integration
- Optional CST816T capacitive touch panel with I2C interface — supports gestures and multi-touch
- Two CTP mechanical options: rounded-corner (smartwatch / fitness band) and right-angle (industrial HMI)
- Wide operating temperature -20 ~ +70 °C for indoor and outdoor use
- Low power consumption with built-in 3 white LED backlight (VF=3.0V, IF=60mA)
- Wide IOVCC range 1.65 ~ 3.3V — directly compatible with 1.8V and 3.3V MCUs
- Factory price, in stock, ODM/OEM customization supported (FPC length, pin order, brightness tuning)
- RoHS compliant; vibration and impact tested for portable and wearable applications

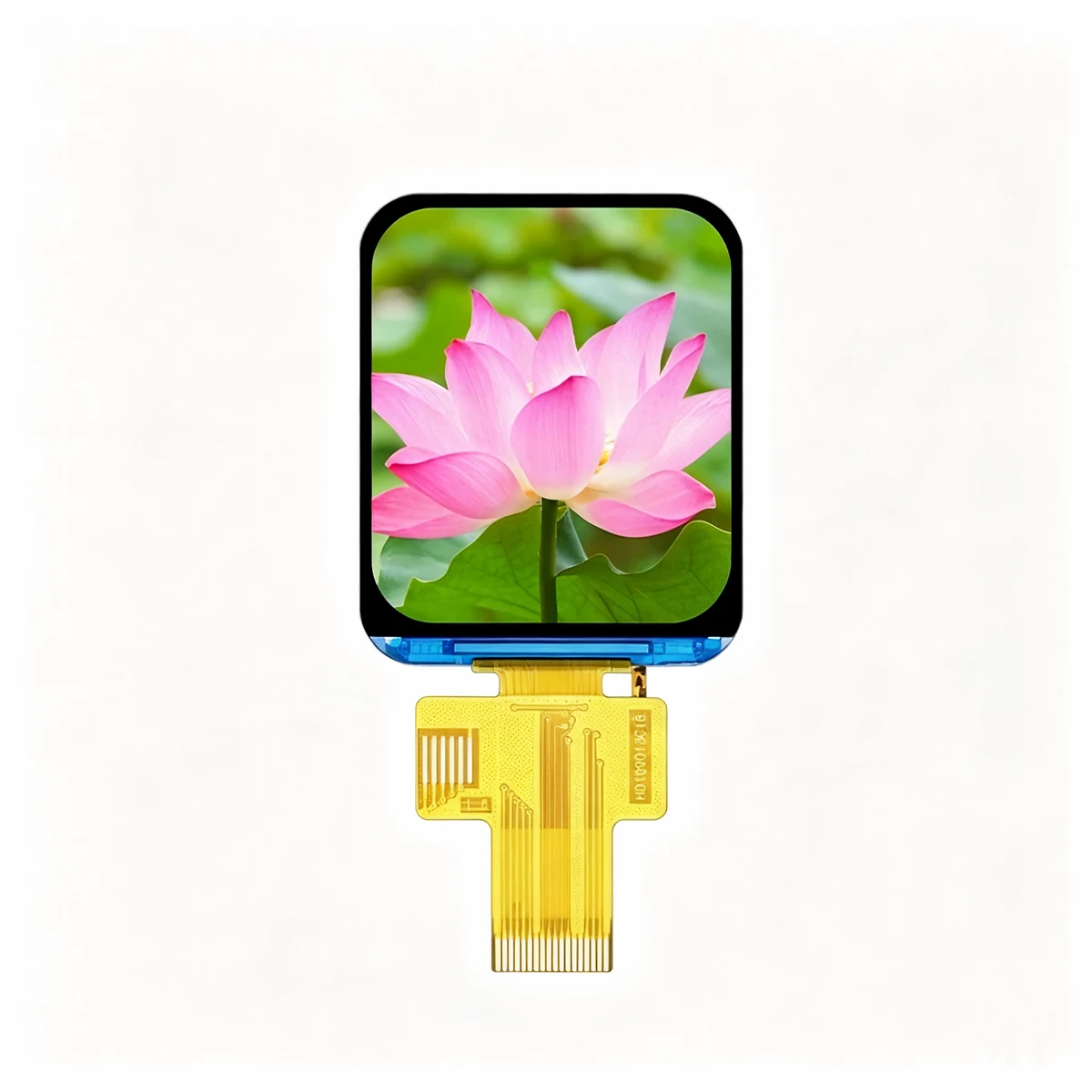

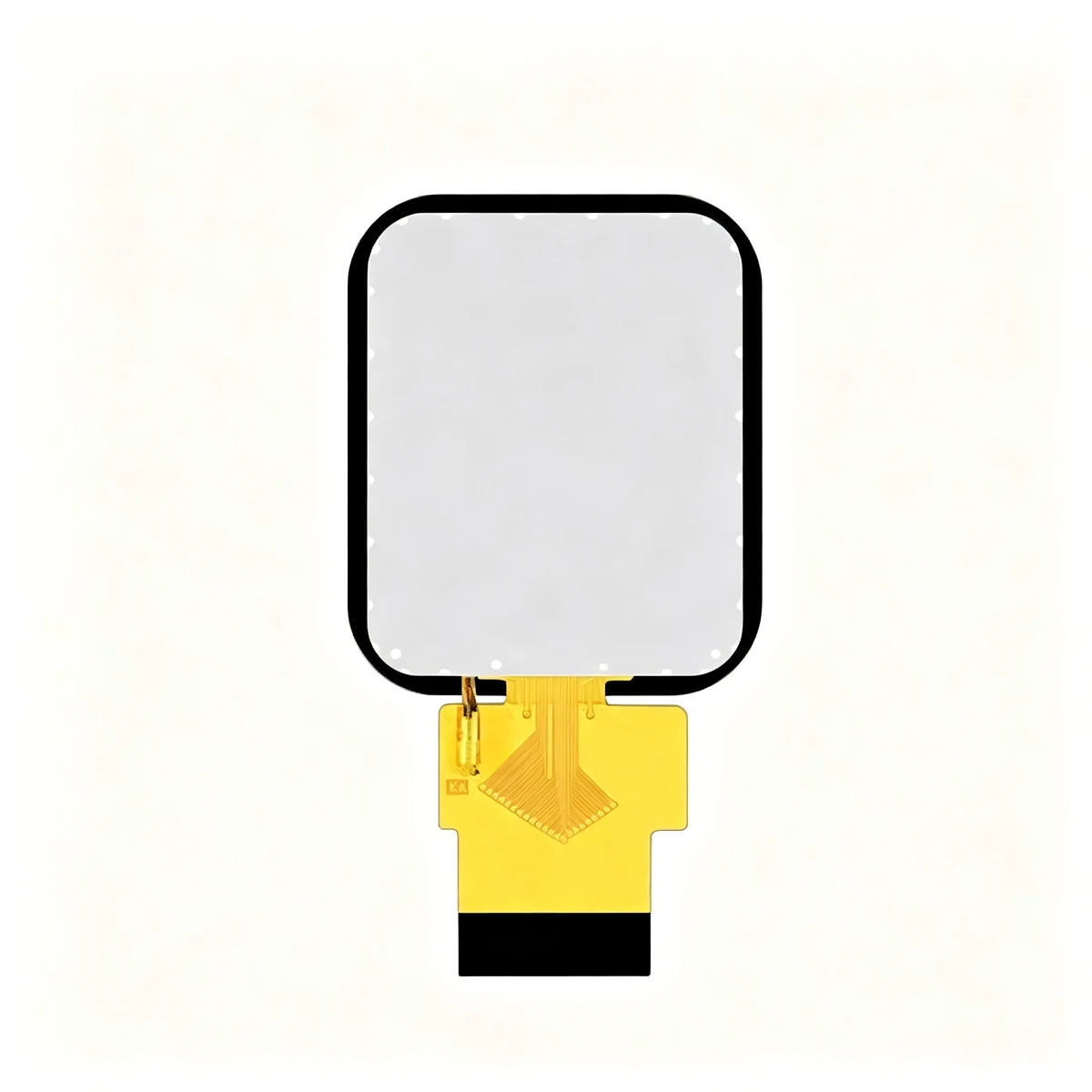

Product Images
Technical Specifications
| Display Type | TFT-LCD (IPS) |
|---|---|
| Model Number | FZ169-240280 |
| Screen Size | 1.69 inch (diagonal) |
| Resolution | 240x280 (240 RGB x 280 pixels) |
| Pixel Arrangement | RGB stripe |
| Pixel Pitch | 0.11655 x 0.11655 mm |
| Display Colors | 262K (RGB stripe) |
| Viewing Direction | ALL |
| Active Area | 27.97 (H) x 32.63 (V) mm |
| Module Outline (LCM) | 30.07 (H) x 37.43 (V) x 1.6 (D) mm |
| Backlight | 3 White LEDs in parallel, VF=3.0V, IF=60mA |
| Driving IC (Controller) | ST7789T3 / ST7789H2 |
| Interface | SPI 4W (18-pin) / MCU 8/16-bit (30-pin) |
| Pin Count | 18 / 30 |
| Touch Driver (CTP) | CST816T (touch variants) |
| CTP Option | Optional (rounded or right angle CTP) |
| Touch Panel Pinout (6-pin FPC) | TP_SCL, TP_SDA, TP_RST, TP_INT, TP_VCC, GND |
| IOVCC (Logic) | IOVCC 1.65 ~ 3.3V (typ. 1.8V) |
| VCI (Analog) | VCI 2.4 ~ 3.3V (typ. 2.75V) |
| Brightness (typ.) | 350 (typ.) cd/m² (customizable higher brightness on request) |
| Operating Temperature | -20 ~ +70 °C |
| Storage Temperature | -30 ~ +80 °C |
| Manufacturer | Shenzhen FuZheng Photoelectric Co., Ltd |
Mechanical & Interface Details
The FZ169-240280 module is supplied with a ZIF-friendly flexible printed circuit (FPC) tail that carries the 18 / 30 display signals (18-pin SPI 4W or 30-pin MCU 8/16-bit interface) and, on touch variants, an additional 6-pin FPC for the CST816T capacitive touch controller. Two mechanical outlines are available:

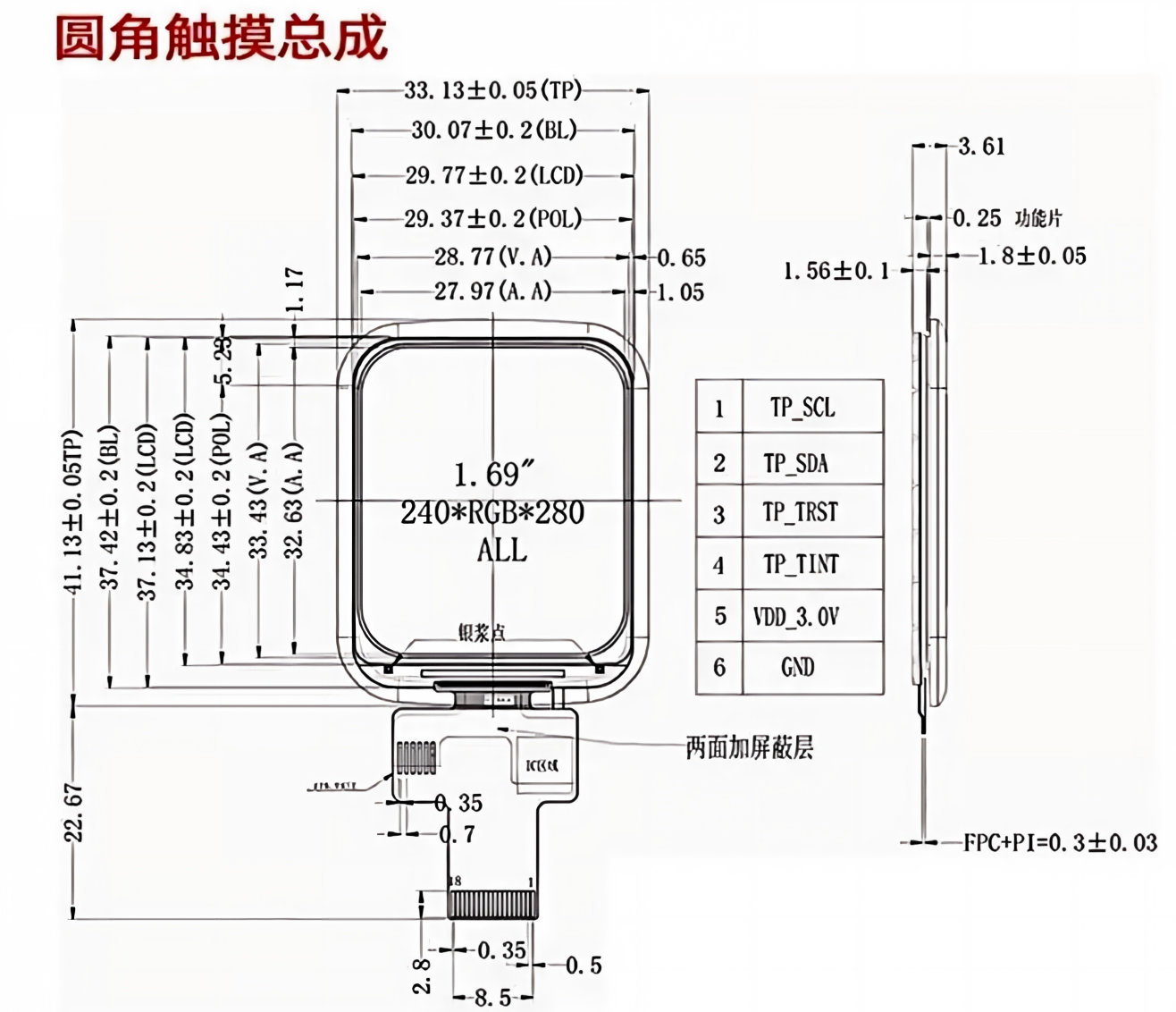

- Rounded-corner outline (圆角触摸总成): designed for smartwatch, fitness band and other curved-housing wearables; overall outline 33.13 x 41.13 mm with CTP, 1.6 mm LCM + 0.25 mm touch glass.
- Right-angle outline (直角触摸总成): designed for industrial HMI, instrument panel and portable terminal housings; overall outline 35.13 x 43.68 mm with CTP, 1.6 mm LCM + 0.25 mm touch glass.

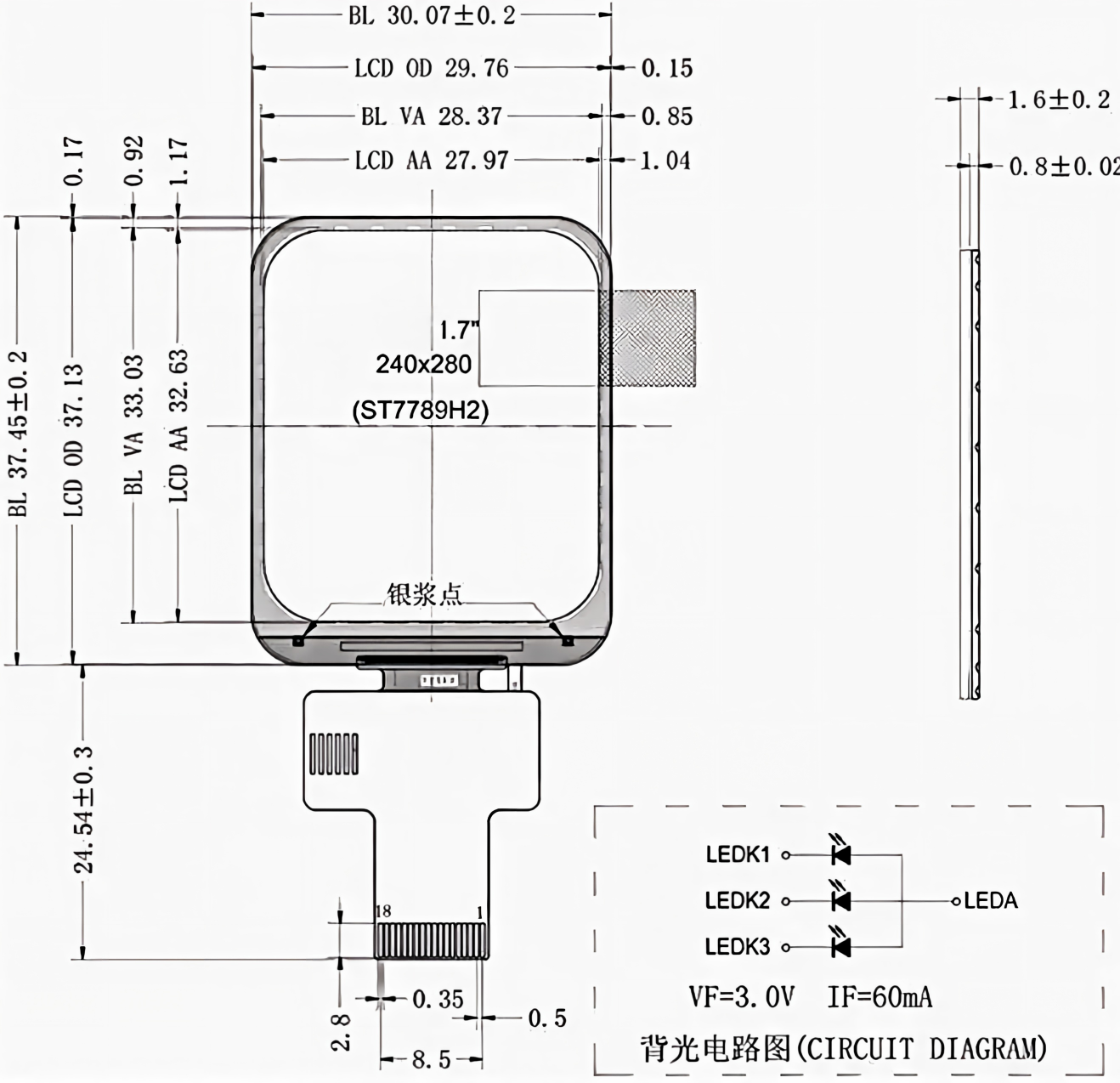

- Backlight circuit (背光电路图): 3 white LEDs in parallel, VF=3.0V, IF=60mA, with a single LEDA anode and three LEDK1/2/3 cathodes for balanced current distribution.
Mechanical Drawings
Pin Definition
The FZ169-240280 ships in two pin configurations. Pin numbering counts from the FPC tail end.
Variant A — 18-pin SPI 4W (with CTP signals combined on the same FPC)
| Pin No. | Symbol | Description |
|---|---|---|
| 1 | GND | Power Ground |
| 2 | K | Back-light Cathode |
| 3 | VCC | Power supply for interface logic circuits (2.8V-3.2V) / Back-light Anode |
| 4 | IOVCC | Power supply for interface logic circuits (1.8V-2.8V) |
| 5 | GND | Power Ground |
| 6 | GND | Power Ground |
| 7 | DC | Register select signal pin. L: Command H: Data |
| 8 | CS | Chip select input pin |
| 9 | SCL | Serial clock signal input pin |
| 10 | SDA | Serial signal input/output pin |
| 11 | REST | Reset input pin |
| 12 | GND | Power Ground |
| 13 | TP_SCL | TP I2C clock |
| 14 | TP_SDA | TP I2C data |
| 15 | TP_RST | TP reset |
| 16 | TP_INT | TP interrupt |
| 17 | TP_VCC | TP power supply |
| 18 | GND | Power Ground |
Variant B — 30-pin MCU 8/16-bit parallel (with CTP signals)
| Pin No. | Symbol | Description |
|---|---|---|
| 1 | GND | Power Ground / Back-light Cathode |
| 2 | A | Back-light Anode |
| 3 | VCC | Power supply for interface logic circuits (2.8V-3.2V) |
| 4 | IM0 | Select the MCU interface mode |
| 5 | REST | Reset input pin |
| 6 | CS | Chip selection pin. Low-active. |
| 7 | RS | This pin is used as serial interface clock |
| 8 | WR | Write signal input pin |
| 9 | RD | Read enable in MCU parallel interface |
| 10-25 | DB0-DB15 | 16-bit parallel bi-directional data bus for MCU system |
| 26 | TP_VCC | TP power supply |
| 27 | TP_INT | TP interrupt |
| 28 | TP_RST | TP reset |
| 29 | TP_SDA | TP I2C data |
| 30 | TP_SCL | TP I2C clock |
Typical Applications
With its compact 1.69″ form factor, IPS wide viewing angle, and optional capacitive touch, the FZ169-240280 is a versatile TFT-LCD module widely deployed in the following application scenarios:
- Smart watch and wearable display module
- Fitness band / activity tracker screen
- Health monitor (blood oxygen, blood pressure, heart rate) display
- Portable medical device HMI panel
- Handheld consumer electronics (MP3, e-cigarettes, smart ring controller)
- Smart home control panel and IoT gateway display
- Industrial handheld terminal and barcode scanner screen
- Automotive aftermarket gauge and instrument display
- Children's educational toy and learning machine screen
- POS / payment terminal secondary display
- Wireless earbuds charging case status display
- Doorbell and intercom indoor unit display
FAQ — Frequently Asked Questions
Q1: What is the difference between the 18-pin and 30-pin versions of the FZ169-240280?
The 18-pin version uses the ST7789T3 controller with an SPI 4W serial interface, ideal for low-pin-count MCUs (such as ESP32, nRF52, STM32 with limited GPIO). The 30-pin version uses the ST7789T3 or ST7789H2 controller with an MCU 8/16-bit parallel interface, which delivers higher refresh rates for video or animation-heavy UIs. Both share the same 240x280 resolution, active area and mechanical outline.
Q2: Does the FZ169-240280 support capacitive touch?
Yes. An optional CST816T-based capacitive touch panel is available in two mechanical styles — rounded corner (ideal for smartwatch / fitness band housings) and right angle (ideal for industrial HMI and instrument panels). The CTP uses an I2C interface over a 6-pin FPC (TP_SCL, TP_SDA, TP_TRST, TP_TINT, VDD_3.0V, GND).
Q3: Can I customize the FPC length, pin order or backlight brightness?
Yes. As a factory-direct manufacturer, Shenzhen FuZheng Photoelectric supports full OEM/ODM customization including FPC length, pin-out re-mapping, higher-brightness backlight (up to 1000 cd/m² for outdoor sunlight-readable applications), anti-glare / anti-reflective surface treatment, and touch-panel cover-glass integration. MOQ and lead time depend on the customization scope.
Q4: What is the operating voltage range? Is the module 3.3V or 1.8V logic?
The module supports a wide IOVCC logic supply of 1.65 ~ 3.3V (typical 1.8V), so it is directly compatible with both 1.8V and 3.3V microcontrollers without level shifters. The analog VCI supply operates at 2.4 ~ 3.3V (typical 2.75V). The integrated backlight uses VF=3.0V at IF=60mA total current.
Q5: What is the operating temperature range? Is it suitable for outdoor use?
The standard operating temperature is -20 ~ +70 °C and storage temperature is -30 ~ +80 °C, which covers most consumer, industrial and outdoor-bay portable scenarios. For higher temperature or direct-sunlight deployments, we recommend a customized high-brightness (>800 cd/m²) backlight variant.
Q6: Do you provide initialization code, datasheet, and reference schematics?
Yes. With every sample order we provide the full datasheet (PDF), the ST7789T3 / ST7789H2 initialization code, recommended reference schematic, and the CST816T touch driver porting guide for popular MCU platforms. Our engineering team can assist with bring-up questions during your evaluation.
Q7: What is the lead time and minimum order quantity (MOQ)?
Standard FZ169-240280 variants (no-touch or touch) are kept in stock for sample orders. Mass-production MOQ is typically 500 ~ 1,000 pcs depending on configuration. Lead time is 10 ~ 15 working days for stocked variants and 20 ~ 30 working days for custom variants. Contact our sales team for an exact quote.
Ordering Information & Contact
To order the FZ169-240280 or request an OEM/ODM quotation, please contact Shenzhen FuZheng Photoelectric Co., Ltd via email or WhatsApp. We accept sample orders, small-batch trial orders, and mass production. Lead time, FOB price, and shipping options are available on request.
Contact: Victory.Wang | Shenzhen FuZheng Photoelectric Co., Ltd | Email: Victory.Wang@szfuzheng.com | WhatsApp: +86 15989445783 | Website: https://fzlcddisplay.com
