Model no.FZ147008C8
1.47 inch 172x320 SPI TFT-LCD Display Module — FZ147008C8 (ST7789P3, 8-pin FPC)
FZ147008C8 — 1.47 inch 172x320 portrait SPI TFT-LCD display module. ST7789P3 driver, 262K colors, 4-wire SPI, 8-pin FPC. 600 cd/m² brightness, 1000:1 contrast, ALL viewing angle. 19.39x36.28 mm slim portrait outline. Ideal for smart wearable, IoT sensor, MP3 player. Factory price, OEM/ODM.
- a-Si TFT (TFT / Transmissive)
- 4-wire SPI (4W SPI)
- No touch
- 1.47 inch a-Si TFT-LCD, 172x320 portrait, 262K colors, RGB stripe pixel arrangement
- ST7789P3 controller with 4-wire SPI — only 4 GPIO pins from host MCU needed (SDA/SCL/CS/RS) + RESET
- Slim portrait outline 19.39 (H) x 36.28 (V) mm — only 19.39 mm wide, fits narrow wearable bands
- ALL viewing direction (ALL (full viewing angle, 80-85° H / 80-85° V)), remarkable 1000:1 contrast ratio (max 1500:1)
- 600 cd/m² typical brightness, 25,000 hr LED lifetime
- Screen Size
- 1.47 inch diagonal
- Resolution
- 172 × 320
- Technology
- a-Si TFT
- Interface
- 4-wire SPI
- Touch
- No touch panel
- Viewing Angle
- Full viewing angle
Product Overview
The FZ147008C8 is a 1.47″ portrait-format a-Si TFT-LCD module with 172x320 resolution in a compact 19.39 (H) x 36.28 (V) mm outline (only 19.39 mm wide). It uses the Sitronix ST7789P3 controller — a widely supported, feature-rich driver IC shared with many popular 1.3" and 1.54" square displays — over a 4-wire SPI bus on a compact 8-pin plug-in FPC. The ALL-viewing-direction panel (80-85° all sides) delivers consistent, vivid image quality from any angle, with a remarkable 1000:1 typical contrast ratio (up to 1500:1) and 600 cd/m² typical brightness. The portrait aspect ratio and 19.39 mm narrow width make it ideal for smart wearables, MP3 players, IoT sensor displays and compact handheld devices.
Key Features
- 1.47 inch a-Si TFT-LCD, 172x320 portrait, 262K colors, RGB stripe pixel arrangement
- ST7789P3 controller with 4-wire SPI — only 4 GPIO pins from host MCU needed (SDA/SCL/CS/RS) + RESET
- Slim portrait outline 19.39 (H) x 36.28 (V) mm — only 19.39 mm wide, fits narrow wearable bands
- ALL viewing direction (ALL (full viewing angle, 80-85° H / 80-85° V)), remarkable 1000:1 contrast ratio (max 1500:1)
- 600 cd/m² typical brightness, 25,000 hr LED lifetime
- Wide supply range: VCI 2.4-3.3 V (typ. 2.75 V), VDD logic 2.8-3.2 V
- Compatible with TFT_eSPI / Adafruit_GFX / U8g2 / LVGL on Arduino, ESP32, STM32
- Operating temperature -20 ~ +70 °C, storage -30 ~ +80 °C

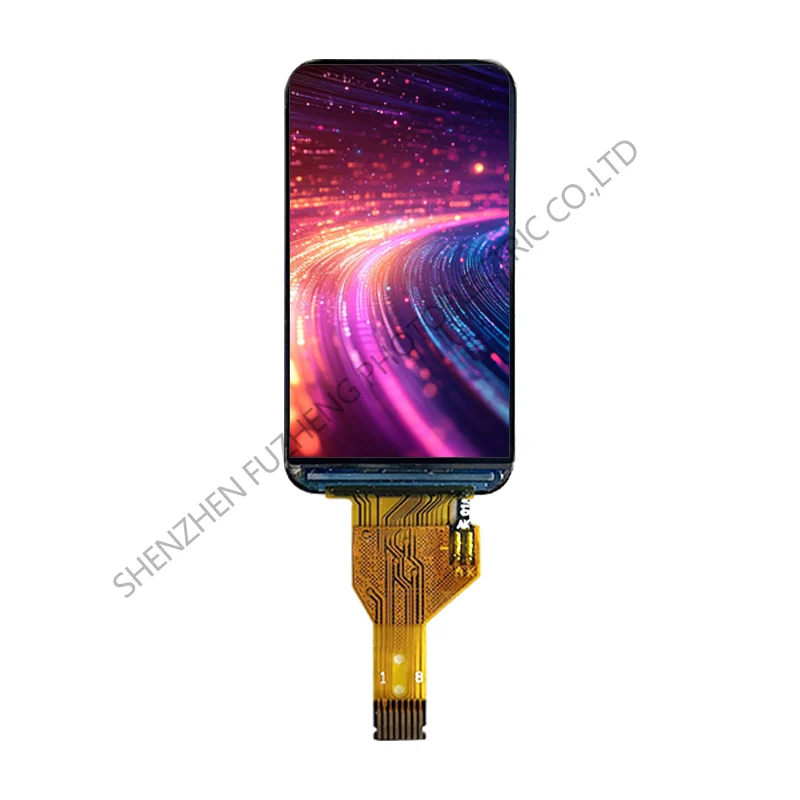

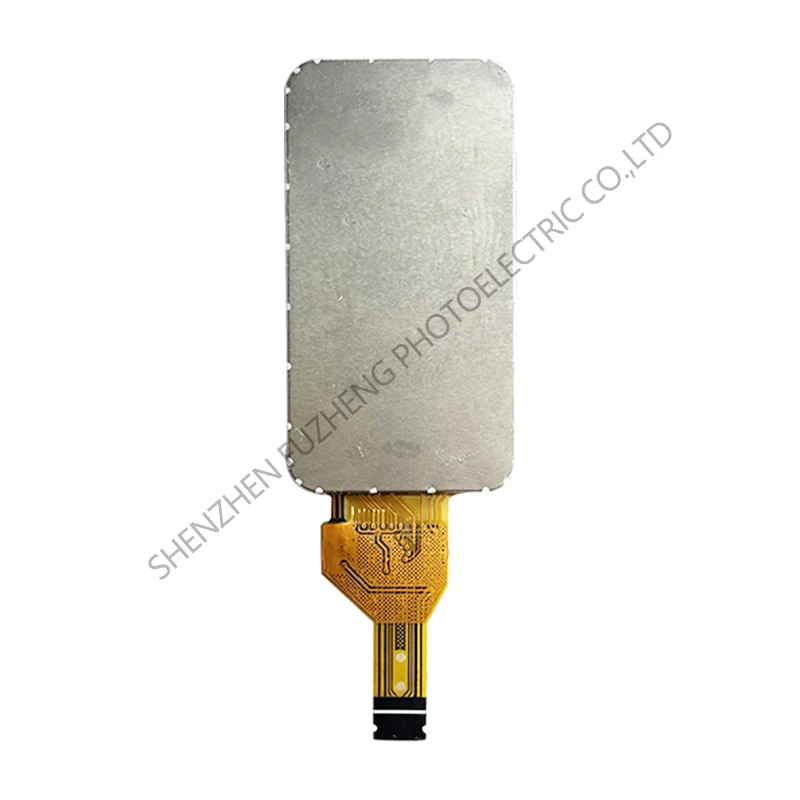

Product Images
Basic Parameters
| Display Type | a-Si TFT (TFT / Transmissive) |
|---|---|
| Model Number | FZ147008C8 |
| Screen Size | 1.47 inch diagonal (spec: 1.45 inch (spec sheet product name), portrait) |
| Resolution | 172x320 (172 RGB x 320 Dots) |
| Pixel Pitch | 33.7 x 101.1 μm |
| Display Colors | 262K (RGB stripe) |
| Viewing Direction | ALL (full viewing angle, 80-85° H / 80-85° V) |
| Active Area | 17.39 (H) x 32.35 (V) mm |
| LCM Outline Size | 19.39 (H) x 36.28 (V) mm |
| Backlight | 3 white LEDs |
| Brightness (typ.) | 600 cd/m² (typ.) |
| LED Forward Voltage (Vf) | 3.0 V (typ., IL=60 mA) |
| LED Driving Current (IL) | 60 mA (driving current) |
| LED Lifetime (typ.) | 25,000 hours (typ., to 50% brightness at IL=80 mA) |
| Contrast Ratio (typ.) | 1000 : 1 (typ., max 1500:1) |
| Response Time (typ.) | 30 ms (typ., Tr+Tf) |
| White Chromaticity (typ.) | Wx 0.297 / Wy 0.335 (typ., CIE 1931) |
| Controller / Driver IC | ST7789P3 (Sitronix) |
| Data Interface | 4-wire SPI (4W SPI) |
| Pin Count | 8 (plug-in FPC) |
| Power Supply — IOVCC | IOVCC 1.65 ~ 3.3 V (typ. 1.8 V) |
| Power Supply — VCI | VCI 2.4 ~ 3.3 V (typ. 2.75 V) |
| Power Supply — VDD (Pin 7, logic) | VDD 2.8 ~ 3.2 V (Pin 7, interface logic) |
| Touch Panel Option | No touch |
| Operating Temperature | -20 ~ +70 °C |
| Storage Temperature | -30 ~ +80 °C |
| Weight | TBD g |
| Manufacturer | Shenzhen FuZheng Photoelectric Co., Ltd |
Mechanical Drawing
The approved, revision-matched mechanical drawing is available with the quotation. Confirm the exact module suffix and connector orientation before enclosure release.
Pin Definition (8-pin FPC)
8-pin plug-in FPC tail. Pin 1 is A (back-light Anode). Pin 2 is GND (back-light Cathode / Power Ground). Pin 3 is active-low RESET. Pin 4 is RS (register select: L=Command, H=Data). Pins 5-6 are SDA (SPI data I/O) and SCL (SPI clock). Pin 7 is VDD (2.8-3.2 V interface logic supply). Pin 8 is CS (chip select). The 4-wire SPI bus (SDA/SCL/CS/RS) requires only 4 GPIO pins from the host MCU.
| Pin No. | Symbol | Description |
|---|---|---|
| 1 | A | Back-light Anode |
| 2 | GND | Back-light Cathode / Power Ground |
| 3 | RESET | Reset input pin (active low) |
| 4 | RS | Register select signal pin (L: Command, H: Data) |
| 5 | SDA | Serial data input / output bidirectional pin (SPI) |
| 6 | SCL | Serial clock input pin (SPI) |
| 7 | VDD | Power supply for interface logic circuits (2.8 V ~ 3.2 V) |
| 8 | CS | Chip select input pin (SPI) |
Typical Applications
- Smart wearable device display (smartwatch, fitness tracker, smart ring)
- MP3 player and portable audio player screen
- IoT sensor HMI and environmental monitoring display
- Health monitor and blood oxygen meter screen
- Electronic cigarette and vape device display
- Small handheld instruments and digital multimeter
- Electronic toy and educational kit screen
- POS barcode scanner and handheld terminal secondary display
Frequently Asked Questions
What are the size and resolution of FZ147008C8?
FZ147008C8 is a 1.47 inch diagonal (spec: 1.45 inch (spec sheet product name), portrait) display with 172x320 (172 RGB x 320 Dots).
Which interface and connector does FZ147008C8 use?
The supplied product brief specifies 4-wire SPI (4W SPI) with 8 (plug-in FPC). Confirm the quoted connector revision before design-in.
Which controller or driver is used on FZ147008C8?
The supplied record identifies ST7789P3 (Sitronix). Initialization and timing data should be confirmed against the approved revision.
What are the outline and viewing characteristics of FZ147008C8?
The published module outline is 19.39 (H) x 36.28 (V) mm, and the viewing specification is ALL (full viewing angle, 80-85° H / 80-85° V).
What operating temperature is specified for FZ147008C8?
The supplied product brief lists an operating temperature of -20 ~ +70 °C. OEM/ODM options should be confirmed during quotation.
