Model no.FZ10007C15
1.0 inch 128x96 TN SPI TFT-LCD Display Module — FZ10007C15 (ST7735S, 15-pin FPC)
1.0 inch 128x96 TN SPI TFT-LCD display module. ST7735S driver, 262K colors, 4-wire SPI, 15-pin FPC, 450 cd/m² typical brightness. Ultra-compact 23.75x22.06 mm. Ideal for smart wearable, MP3 player, IoT sensor, health monitor. Factory price, OEM/ODM.
- a-Si TFT TN (TFT / Transmissive)
- 4-wire SPI (4W SPI)
- No touch
- 1.0 inch a-Si TFT-LCD, 128x96 portrait, 262K colors, RGB stripe
- ST7735S controller with 4-wire SPI interface — only 4 GPIO pins needed (SDA/SCL/CS/RS) + RESET
- Ultra-compact outline 23.75 x 22.06 mm — ideal for slim wearable enclosures
- Integrated LED driver IC (VHTLED_IB) on FPC — simplifies backlight power design
- 450 cd/m² typical brightness, 25,000 hr LED lifetime
- Screen Size
- 1.0 inch
- Resolution
- 128 × 96
- Technology
- TN TFT
- Interface
- 4-wire SPI
- Touch
- No touch panel
- Viewing Angle
- TN — 12 o'clock
Product Overview
The FZ10007C15 is a 1.0″ TN TFT-LCD module with 128x96 portrait resolution and a 20.35 (H) x 15.26 (V) mm active area in a remarkably compact 23.75 (H) x 22.06 (V) mm outline. It uses the Sitronix ST7735S controller over a 4-wire SPI bus (15-pin plug-in FPC). The module integrates a dedicated LED driver IC (VHTLED_IB) on the FPC to regulate the single white LED backlight, simplifying host-side power design. The 12 o'clock viewing direction (top view) makes it ideal for wearables and compact portrait-format devices. With 450 cd/m² typical brightness and a 25,000 hr LED lifetime, it is designed for smart wearables, MP3 players, IoT sensor displays, health monitors and handheld instrumentation.
Key Features
- 1.0 inch a-Si TFT-LCD, 128x96 portrait, 262K colors, RGB stripe
- ST7735S controller with 4-wire SPI interface — only 4 GPIO pins needed (SDA/SCL/CS/RS) + RESET
- Ultra-compact outline 23.75 x 22.06 mm — ideal for slim wearable enclosures
- Integrated LED driver IC (VHTLED_IB) on FPC — simplifies backlight power design
- 450 cd/m² typical brightness, 25,000 hr LED lifetime
- Wide power supply: VCI 2.5-4.8 V (typ. 2.75 V) and VDD 2.8-3.2 V
- Compatible with TFT_eSPI / Adafruit_ST7735 / U8g2 / LVGL
- Operating temperature -20 ~ +70 °C

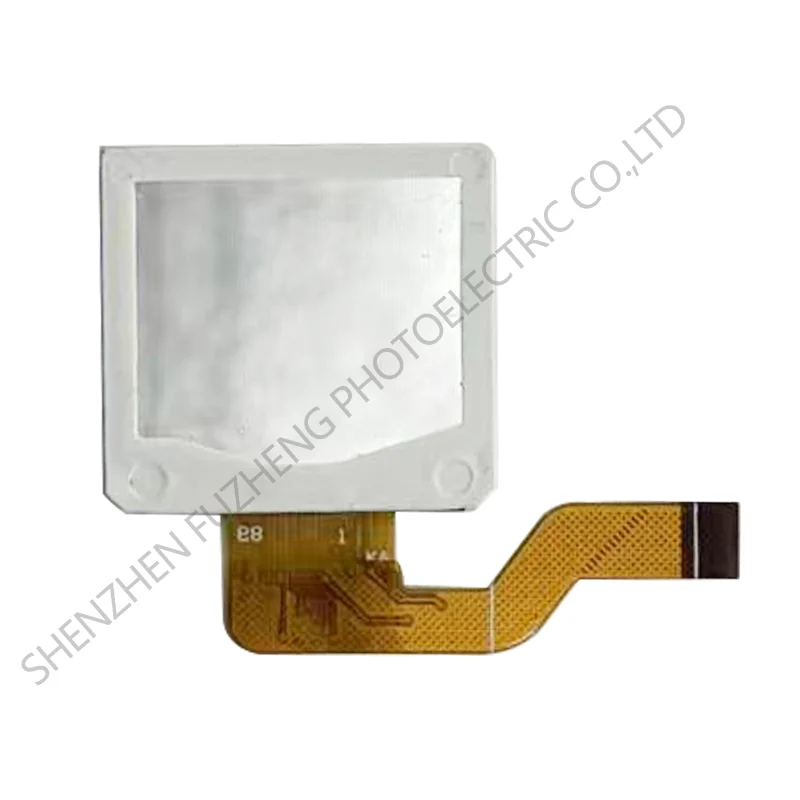

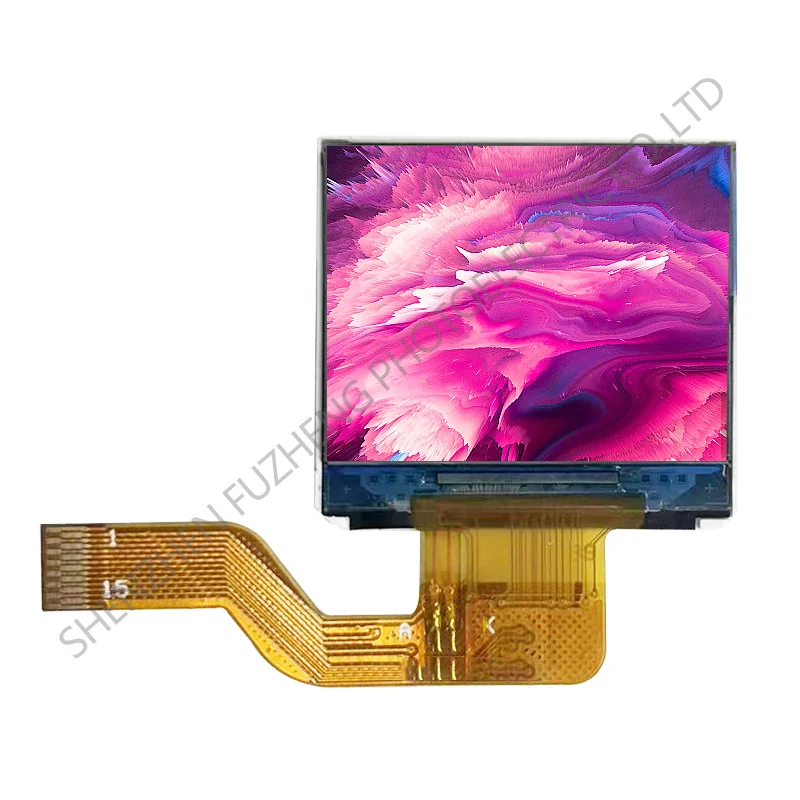

Product Images
Basic Parameters
| Display Type | a-Si TFT TN (TFT / Transmissive) |
|---|---|
| Model Number | FZ10007C15 |
| Screen Size | 1.0 inch (diagonal, portrait) |
| Resolution | 128x96 (128 RGB x 96 Dots) |
| Pixel Pitch | 159 x 159 μm |
| Display Colors | 262K (RGB stripe) |
| Viewing Direction | TN — 12 o'clock (top viewing, 35-40° H / 40-45° V) |
| Active Area | 20.35 (H) x 15.26 (V) mm |
| LCM Outline Size | 23.75 (H) x 22.06 (V) mm |
| Backlight | 1 white LED (with integrated LED driver IC VHTLED_IB) |
| Brightness (typ.) | 450 cd/m² (typ.) |
| LED Forward Voltage (Vf) | 3.0 V (typ., IL=20 mA) |
| LED Lifetime (typ.) | 25,000 hours (typ., to 50% brightness) |
| Contrast Ratio (typ.) | 200 : 1 (typ.) |
| Response Time (typ.) | 30 ms (typ., Tr+Tf) |
| White Chromaticity (typ.) | Wx 0.295 / Wy 0.326 (typ., CIE 1931) |
| Controller / Driver IC | ST7735S (Sitronix) |
| Data Interface | 4-wire SPI (4W SPI) |
| Pin Count | 15 (plug-in FPC) |
| Power Supply — IOVCC | IOVCC 1.65 ~ 3.7 V (typ. 1.8 V) |
| Power Supply — VCI | VCI 2.5 ~ 4.8 V (typ. 2.75 V) |
| Power Supply — VDD (Pin 6, logic) | VDD 2.8 ~ 3.2 V (Pin 6, interface logic) |
| Touch Panel Option | No touch |
| Operating Temperature | -20 ~ +70 °C |
| Storage Temperature | -30 ~ +80 °C |
| Weight | TBD g |
| Manufacturer | Shenzhen FuZheng Photoelectric Co., Ltd |
Mechanical Drawing
The approved, revision-matched mechanical drawing is available with the quotation. Confirm the exact module suffix and connector orientation before enclosure release.
Pin Definition (15-pin FPC)
15-pin plug-in FPC tail. Pin 1 is NC. Pin 2 is VBAT (LED driver / battery power input). Pins 3/5/7/14 are GND (power ground). Pin 4 is VHTLED_IB (integrated LED driver current output — drives the backlight LED from VBAT). Pin 6 is VDD (2.8-3.2 V interface logic supply). Pin 8 is active-low RESET. Pin 9 is FMARK (frame start signal — used for display synchronization, optional depending on host MCU). Pins 10-13 are the 4W SPI interface: CS (chip select), DIO (data I/O), RS (register/command select), and CLK (clock). Pin 15 is NC.
| Pin No. | Symbol | Description |
|---|---|---|
| 1 | NC | No connection |
| 2 | VBAT | Battery / LED driver power supply input |
| 3 | GND | Power Ground |
| 4 | VHTLED_IB | LED driver current output (drives backlight LED, integrated in module) |
| 5 | GND | Power Ground |
| 6 | VDD | Power supply for interface logic circuits (2.8 V ~ 3.2 V) |
| 7 | GND | Power Ground |
| 8 | RESET | Reset input pin (active low) |
| 9 | FMARK | Frame start signal (or display timing marker, see spec for usage) |
| 10 | CS | Chip select input pin (SPI) |
| 11 | DIO | Serial data input / output bidirectional pin (SPI) |
| 12 | RS | Register / command select pin in 4-line serial interface |
| 13 | CLK | Serial clock input pin (SPI) |
| 14 | GND | Power Ground |
| 15 | NC | No connection |
Typical Applications
- Smart wearable device display (smartwatch, fitness tracker, smart ring)
- MP3 player and portable audio player screen
- IoT sensor HMI and environmental monitoring display
- Health monitor display (blood oxygen, heart rate, glucose meter)
- Electronic cigarette and vape device screen
- Small handheld instruments and digital multimeter display
- Electronic toy and educational kit screen
- POS barcode scanner and handheld terminal secondary display
Frequently Asked Questions
What are the size and resolution of FZ10007C15?
FZ10007C15 is a 1.0 inch (diagonal, portrait) display with 128x96 (128 RGB x 96 Dots).
Which interface and connector does FZ10007C15 use?
The supplied product brief specifies 4-wire SPI (4W SPI) with 15 (plug-in FPC). Confirm the quoted connector revision before design-in.
Which controller or driver is used on FZ10007C15?
The supplied record identifies ST7735S (Sitronix). Initialization and timing data should be confirmed against the approved revision.
What are the outline and viewing characteristics of FZ10007C15?
The published module outline is 23.75 (H) x 22.06 (V) mm, and the viewing specification is TN — 12 o'clock (top viewing, 35-40° H / 40-45° V).
What operating temperature is specified for FZ10007C15?
The supplied product brief lists an operating temperature of -20 ~ +70 °C. OEM/ODM options should be confirmed during quotation.
