Model no.FZ096001C8
0.96 inch 80x160 SPI TFT-LCD Display Module — FZ096001C8 (ST7735P3, 8-pin FPC)
0.96 inch 80x160 SPI TFT-LCD display module. ST7735P3 driver, 262K colors, 4-wire SPI, 8-pin FPC, 640:1 contrast, 450 cd/m² brightness. Ultra-compact 13.30x27.95 mm portrait outline. Ideal for smart wearable, IoT sensor, MP3 player, health monitor. Factory price, OEM/ODM.
- a-Si TFT (TFT / Transmissive)
- 4-wire SPI (4W SPI)
- No touch
- 0.96 inch a-Si TFT-LCD, 80x160 portrait, 262K colors, RGB stripe pixel arrangement
- ST7735P3 controller with 4-wire SPI interface — only 4 GPIO pins from host MCU needed (SDA/SCL/CS/DC) + RESET
- Ultra-compact slim outline: 13.30 mm wide × 27.95 mm tall — fits narrow wearable bands
- ALL viewing direction (full-angle IPS-like), 640:1 contrast ratio for vivid color
- 450 cd/m² typical brightness, 25,000 hr LED lifetime
- Screen Size
- 0.96 inch
- Resolution
- 80 × 160
- Technology
- a-Si TFT
- Interface
- 4-wire SPI
- Touch
- No touch panel
- Viewing Angle
- Full viewing angle
Product Overview
The FZ096001C8 is a 0.96″ portrait-format a-Si TFT-LCD module with 80x160 resolution in a remarkably slim 13.30 (H) x 27.95 (V) mm outline (only 13.30 mm wide). It uses the Sitronix ST7735P3 controller over a 4-wire SPI bus on a compact 8-pin plug-in FPC. The full-ALL (full viewing angle, 70-80° H / 70-80° V) panel delivers excellent visual consistency from any angle, with a high contrast ratio of 640:1 and 450 cd/m² typical brightness. The 1:2 portrait aspect ratio makes it ideal for narrow-form-factor wearable and IoT device designs — smart watches, fitness trackers, MP3 players, IoT sensor displays, health monitors and handheld instrumentation.
Key Features
- 0.96 inch a-Si TFT-LCD, 80x160 portrait, 262K colors, RGB stripe pixel arrangement
- ST7735P3 controller with 4-wire SPI interface — only 4 GPIO pins from host MCU needed (SDA/SCL/CS/DC) + RESET
- Ultra-compact slim outline: 13.30 mm wide × 27.95 mm tall — fits narrow wearable bands
- ALL viewing direction (full-angle IPS-like), 640:1 contrast ratio for vivid color
- 450 cd/m² typical brightness, 25,000 hr LED lifetime
- Wide supply range: VCI 2.5-4.8 V (typ. 2.75 V), VCC logic 2.8-3.2 V
- Compatible with TFT_eSPI / Adafruit_ST7735 / U8g2 / LVGL on Arduino, ESP32, STM32
- Operating temperature -20 ~ +70 °C

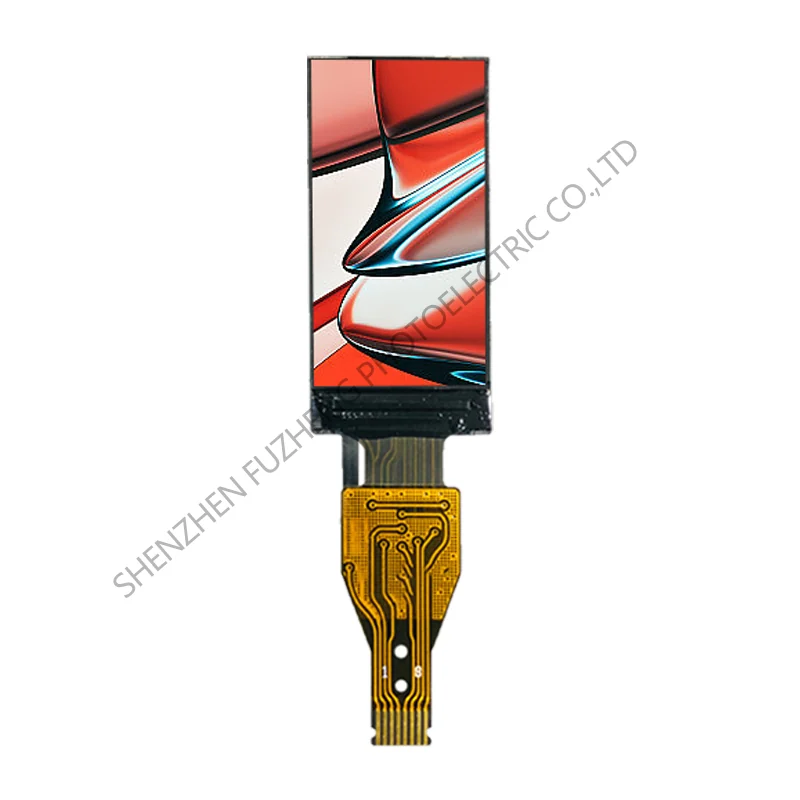

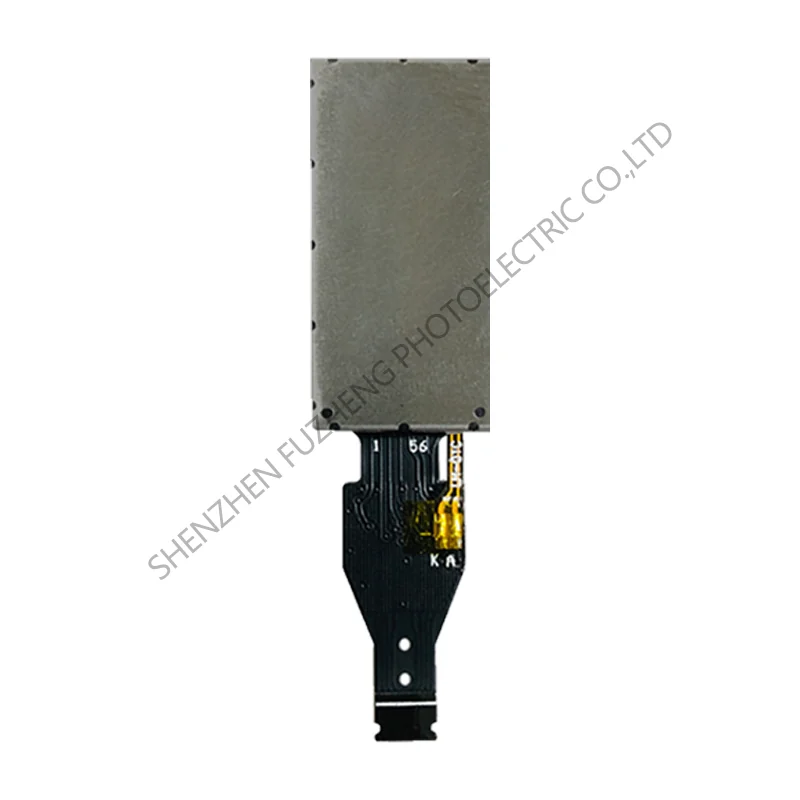

Product Images
Basic Parameters
| Display Type | a-Si TFT (TFT / Transmissive) |
|---|---|
| Model Number | FZ096001C8 |
| Screen Size | 0.96 inch (diagonal, portrait, 1:2 aspect) |
| Resolution | 80x160 (80 RGB x 160 Dots) |
| Pixel Pitch | 0.135 x 0.1356 mm |
| Display Colors | 262K (RGB stripe) |
| Viewing Direction | ALL (full viewing angle, 70-80° H / 70-80° V) |
| Active Area | 10.80 (H) x 21.70 (V) mm |
| LCM Outline Size | 13.30 (H) x 27.95 (V) mm |
| Backlight | 1 white LED |
| Brightness (typ.) | 450 cd/m² (typ.) |
| LED Forward Voltage (Vf) | 3.0 V (typ., IL=40 mA) |
| LED Driving Current (IL) | 40 mA (driving current) |
| LED Lifetime (typ.) | 25,000 hours (typ., to 50% brightness at IL=80 mA) |
| Contrast Ratio (typ.) | 640 : 1 (typ.) |
| Response Time (typ.) | 30 ms (typ., Tr+Tf) |
| White Chromaticity (typ.) | Wx 0.306 / Wy 0.326 (typ., CIE 1931) |
| Controller / Driver IC | ST7735P3 (Sitronix) |
| Data Interface | 4-wire SPI (4W SPI) |
| Pin Count | 8 (plug-in FPC) |
| Power Supply — IOVCC | IOVCC 1.65 ~ 3.7 V (typ. 1.8 V) |
| Power Supply — VCI | VCI 2.5 ~ 4.8 V (typ. 2.75 V) |
| Power Supply — VCC (Pin 7, logic) | VCC 2.8 ~ 3.2 V (Pin 7, interface logic) |
| Touch Panel Option | No touch |
| Operating Temperature | -20 ~ +70 °C |
| Storage Temperature | -30 ~ +80 °C |
| Weight | TBD g |
| Manufacturer | Shenzhen FuZheng Photoelectric Co., Ltd |
Mechanical Drawing
The approved, revision-matched mechanical drawing is available with the quotation. Confirm the exact module suffix and connector orientation before enclosure release.
Pin Definition (8-pin FPC)
8-pin plug-in FPC tail. Pin 1 is LEDA (back-light anode). Pin 2 is GND (power ground and back-light cathode). Pin 3 is active-low RESET. Pin 4 is DC (data/command select, equivalent to RS). Pins 5-6 are SDA (SPI data I/O) and SCL (SPI clock). Pin 7 is VCC (2.8-3.2 V interface logic supply). Pin 8 is CS (chip select). The 4-wire SPI bus (SDA/SCL/CS/DC) requires only 4 GPIO pins from the host MCU.
| Pin No. | Symbol | Description |
|---|---|---|
| 1 | LEDA | Back-light Anode |
| 2 | GND | Power Ground / Back-light Cathode |
| 3 | RESET | Reset input pin (active low) |
| 4 | DC | Data / Command select pin (RS in standard naming) |
| 5 | SDA | Serial data input / output pin (SPI) |
| 6 | SCL | Serial clock input pin (SPI) |
| 7 | VCC | Power supply for interface logic circuits (2.8 V ~ 3.2 V) |
| 8 | CS | Chip select input pin (SPI) |
Typical Applications
- Smart wearable device display (smartwatch, fitness tracker, smart ring)
- MP3 player and portable audio player screen
- IoT sensor HMI and environmental monitoring display
- Health monitor and blood oxygen meter screen
- Electronic cigarette and vape device display
- Small handheld instruments and digital multimeter
- Electronic toy and educational kit screen
- POS barcode scanner and handheld terminal secondary display
Frequently Asked Questions
What are the size and resolution of FZ096001C8?
FZ096001C8 is a 0.96 inch (diagonal, portrait, 1:2 aspect) display with 80x160 (80 RGB x 160 Dots).
Which interface and connector does FZ096001C8 use?
The supplied product brief specifies 4-wire SPI (4W SPI) with 8 (plug-in FPC). Confirm the quoted connector revision before design-in.
Which controller or driver is used on FZ096001C8?
The supplied record identifies ST7735P3 (Sitronix). Initialization and timing data should be confirmed against the approved revision.
What are the outline and viewing characteristics of FZ096001C8?
The published module outline is 13.30 (H) x 27.95 (V) mm, and the viewing specification is ALL (full viewing angle, 70-80° H / 70-80° V).
What operating temperature is specified for FZ096001C8?
The supplied product brief lists an operating temperature of -20 ~ +70 °C. OEM/ODM options should be confirmed during quotation.
