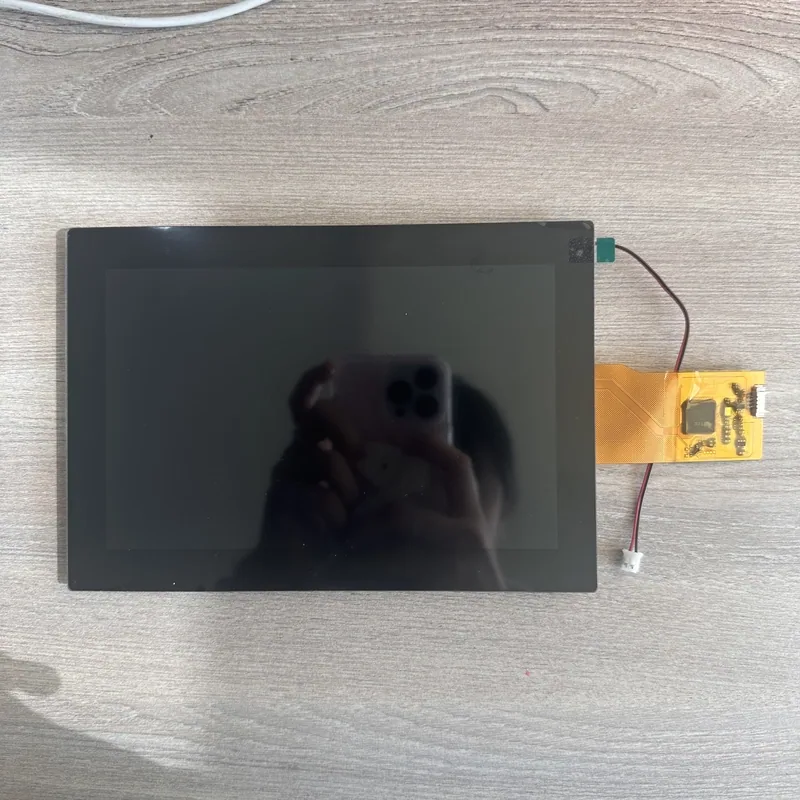

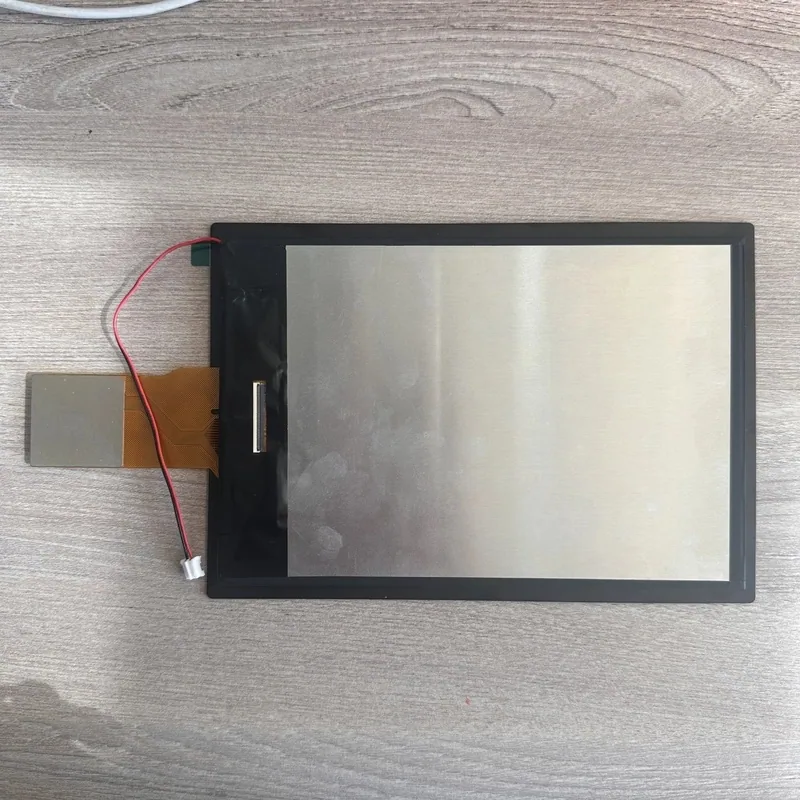

Model no.FZ007HBC03

7-Inch High-Brightness TFT-LCD Module

This 7.0-inch TFT LCD display offers exceptional visual clarity with a resolution of 1024x600 pixels, making it ideal for embedded systems, industrial equipment, and medical devices. With its high brightness of 1000 nits and wide 170° viewing angle, the display ensures clear visibility even under direct sunlight.

  • MIPI / RGB/HDMI/LVDS optional
Screen Size
7.0inch
Resolution
1200*3(RGB)*1920
Display Mode
A-Si TFT/transmissive
Interface
MIPI
Viewing Direction
80/80/80/80
Module Dimensions
111.0(H) *166.0(V) *3.29(T) Mm
Discuss this module with our team

Review the listed module configuration and confirm the matching specification and drawing revision with your inquiry.

Product overview

This 7.0-inch TFT LCD display offers exceptional visual clarity with a resolution of 1024x600 pixels, making it ideal for embedded systems, industrial equipment, and medical devices. With its high brightness of 1000 nits and wide 170° viewing angle, the display ensures clear visibility even under direct sunlight.

Confirm the FZ007HBC03 assembly against the latest specification and drawing revision before design-in.

Product highlights

    Technical specifications

    Values are normalized from the current product record; no missing parameter is estimated.

    Published specifications for 7-Inch High-Brightness TFT-LCD Module
    SpecificationPublished value
    Screen Size 7.0inch / 7.0 inchesMultiple source entries — confirm the selected value.
    Resolution 1200*3(RGB)*1920 / 1024 x 600Multiple source entries — confirm the selected value.
    Display Mode A-Si TFT/transmissive / Normally BlackMultiple source entries — confirm the selected value.
    Interface MIPI / RGB/HDMI/LVDS optionalMultiple source entries — confirm the selected value.
    Brightness 1000 cd/m²
    Viewing Direction 80/80/80/80
    Contrast Ratio 800:1
    Module Dimensions 111.0(H) *166.0(V) *3.29(T) Mm
    Active Area 94.5*(H) * 151.2(V) Mm
    Response Time 30ms
    Operating Temperature -20°C to +70°C
    IC Package Type COG
    Surface Treatment Hard Coating

    Mechanical fit

    Screen Size
    7.0inch / 7.0 inches
    Module Dimensions
    111.0(H) *166.0(V) *3.29(T) Mm
    Active Area
    94.5*(H) * 151.2(V) Mm

    Allow space for the FPC, connector, cover lens and mounting. Use an approved, version-matched drawing before fixing the enclosure.

    Review drawing availability →

    Some parameters contain multiple source entries. They may describe different configurations or conflicting records; do not treat them as interchangeable specifications.

    Interface & integration

    Connection information for FZ007HBC03
    ParameterSource value
    InterfaceMIPI / RGB/HDMI/LVDS optional

    Confirm pin numbering, supply levels, controller revision and initialization before connecting power. Source tables are references, not a substitute for an approved electrical specification.

    Format and image area

    Published screen size: 7.0inch / 7.0 inches. Resolution: 1200*3(RGB)*1920 / 1024 x 600. Module dimensions: 111.0(H) *166.0(V) *3.29(T) Mm. Active area: 94.5*(H) * 151.2(V) Mm.

    Electrical connection

    Published interface: MIPI / RGB/HDMI/LVDS optional.

    Optical and front assembly

    Brightness: 1000 cd/m². Viewing direction: 80/80/80/80. Operating temperature: -20°C to +70°C.

    Drawings & technical documents

    Reference files from this product record, retained at their available source resolution.

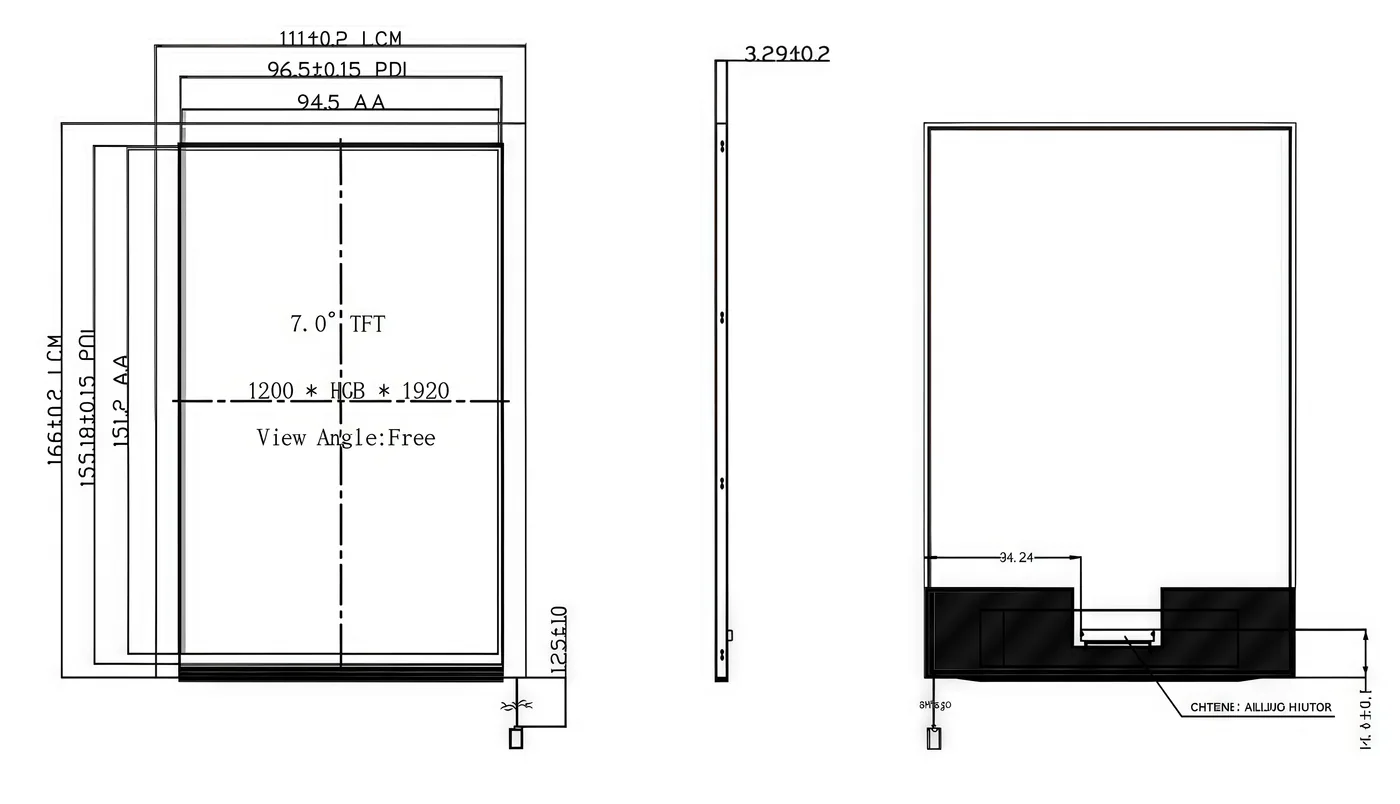

    FZ007HBC03 reference drawing 1Inspect drawing 1 ↗

    Reference drawing 1

    Confirm the model suffix, dimensional tolerances and assembly revision with the quoted sample.

    Download source drawing ↓

    Match the module to your application

    Use the published values as a starting point, then document the host electronics, enclosure, user interface and operating environment before requesting a sample.

    Send product requirements
    • Review interface, connector and FPC alignment against the host electronics.
    • Discuss touch panel and cover lens requirements where the product design needs a front assembly.
    • Confirm outline, active area, mounting constraints and environmental requirements before sample approval.

    Product questions

    Specifications, documents and sample planning for FZ007HBC03.

    What are the published specifications for FZ007HBC03?

    FZ007HBC03 currently publishes Screen Size: 7.0inch; Resolution: 1200*3(RGB)*1920; Display Mode: A-Si TFT/transmissive; Interface: MIPI; Viewing Direction: 80/80/80/80; Module Dimensions: 111.0(H) *166.0(V) *3.29(T) Mm. Confirm the final drawing and pin assignment against the supplied sample before design-in.

    What should I include in an inquiry for this display?

    Include the product name or model, target size and resolution, host interface, touch and cover-lens requirements, brightness and environment, quantity and current project stage.

    Can I request a sample for evaluation?

    Use the sample request action and share the intended electrical and mechanical integration requirements so the evaluation scope can be discussed around this exact record.

    Can interface, touch or mechanical requirements be discussed?

    Yes. Send the host interface, connector or FPC constraints, touch and cover-lens needs, outline limits and environmental targets for an engineering review. No unpublished capability is assumed on this page.

    Discuss this display with our team

    FZ007HBC03

    Share the required interface, assembly, quantity and project timing. Request the matching specification and drawing revision with your quote.

    Shenzhen FuZheng Photoelectric Co., Ltd. · Company information
    Victory.Wang@szfuzheng.com · WhatsApp +86 159 8944 5783

    Start a product inquiry →

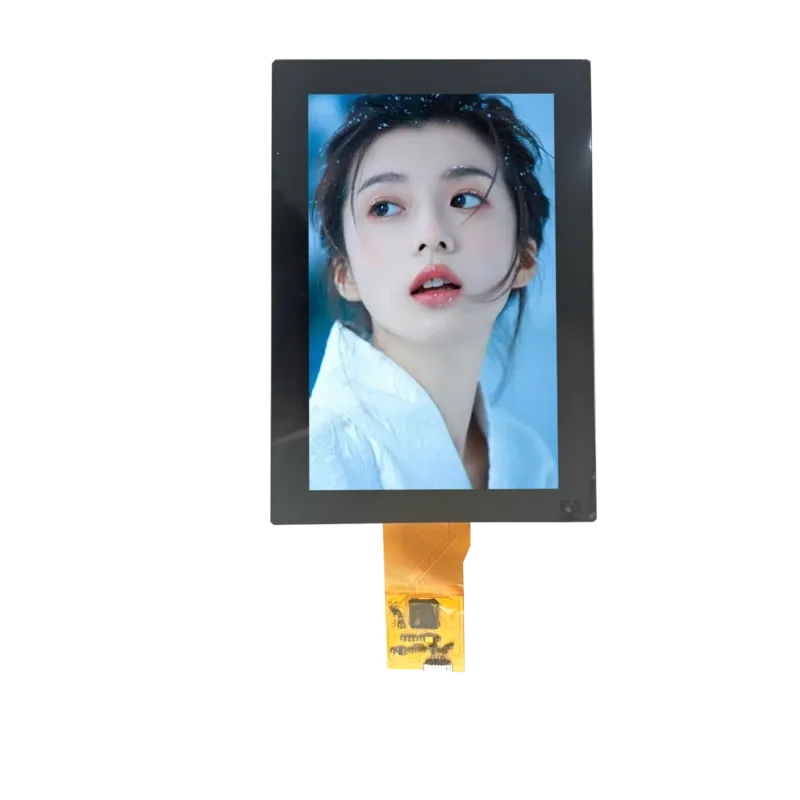

    7.0 Inch TFT LCD Display Module – High Brightness, Wide Viewing Angle product image
