Model no.FZ007MIC02

7-Inch 1200x1920 MIPI TFT-LCD Module

Product DetailsSize:7.0inchDisplay Resolution:1200*3(RGB)*1920LCD Mode:A-Si TFT/

  • MIPI
Screen Size
7.0inch
Resolution
1200*3(RGB)*1920
Display Mode
A-Si TFT/transmissive
Interface
MIPI
Viewing Direction
80/80/80/80
Module Dimensions
111.0(H) *166.0(V) *3.29(T) Mm
Discuss this module with our team

Review the listed module configuration and confirm the matching specification and drawing revision with your inquiry.

Technical specifications

Values are normalized from the current product record; no missing parameter is estimated.

Published specifications for 7-Inch 1200x1920 MIPI TFT-LCD Module
SpecificationPublished value
Screen Size 7.0inch
Resolution 1200*3(RGB)*1920
Display Mode A-Si TFT/transmissive / Normally BlackMultiple source entries — confirm the selected value.
Interface MIPI
Viewing Direction 80/80/80/80
Module Dimensions 111.0(H) *166.0(V) *3.29(T) Mm
Active Area 94.5*(H) * 151.2(V) Mm
Response Time 30ms
IC Package Type COG
Surface Treatment Hard Coating

Mechanical fit

Screen Size
7.0inch
Module Dimensions
111.0(H) *166.0(V) *3.29(T) Mm
Active Area
94.5*(H) * 151.2(V) Mm

Allow space for the FPC, connector, cover lens and mounting. Use an approved, version-matched drawing before fixing the enclosure.

Review drawing availability →

Some parameters contain multiple source entries. They may describe different configurations or conflicting records; do not treat them as interchangeable specifications.

Interface & integration

Connection information for FZ007MIC02
ParameterSource value
InterfaceMIPI

Confirm pin numbering, supply levels, controller revision and initialization before connecting power. Source tables are references, not a substitute for an approved electrical specification.

Format and image area

Published screen size: 7.0inch. Resolution: 1200*3(RGB)*1920. Module dimensions: 111.0(H) *166.0(V) *3.29(T) Mm. Active area: 94.5*(H) * 151.2(V) Mm.

Electrical connection

Published interface: MIPI.

Optical and front assembly

Viewing direction: 80/80/80/80.

Drawings & technical documents

Reference files from this product record, retained at their available source resolution.

Request the matching mechanical drawing

No separate mechanical drawing is verified in this record. Send your enclosure limits and the selected product reference; request the approved outline and FPC drawing before tooling.

Request drawing & datasheet

Match the module to your application

Use the published values as a starting point, then document the host electronics, enclosure, user interface and operating environment before requesting a sample.

Send product requirements
  • Review interface, connector and FPC alignment against the host electronics.
  • Discuss touch panel and cover lens requirements where the product design needs a front assembly.
  • Confirm outline, active area, mounting constraints and environmental requirements before sample approval.

Product questions

Specifications, documents and sample planning for FZ007MIC02.

What are the published specifications for FZ007MIC02?

FZ007MIC02 currently publishes Screen Size: 7.0inch; Resolution: 1200*3(RGB)*1920; Display Mode: A-Si TFT/transmissive; Interface: MIPI; Viewing Direction: 80/80/80/80; Module Dimensions: 111.0(H) *166.0(V) *3.29(T) Mm. Confirm the final drawing and pin assignment against the supplied sample before design-in.

What should I include in an inquiry for this display?

Include the product name or model, target size and resolution, host interface, touch and cover-lens requirements, brightness and environment, quantity and current project stage.

Can I request a sample for evaluation?

Use the sample request action and share the intended electrical and mechanical integration requirements so the evaluation scope can be discussed around this exact record.

Can interface, touch or mechanical requirements be discussed?

Yes. Send the host interface, connector or FPC constraints, touch and cover-lens needs, outline limits and environmental targets for an engineering review. No unpublished capability is assumed on this page.

Discuss this display with our team

FZ007MIC02

Share the required interface, assembly, quantity and project timing. Request the matching specification and drawing revision with your quote.

Shenzhen FuZheng Photoelectric Co., Ltd. · Company information
Victory.Wang@szfuzheng.com · WhatsApp +86 159 8944 5783

Start a product inquiry →

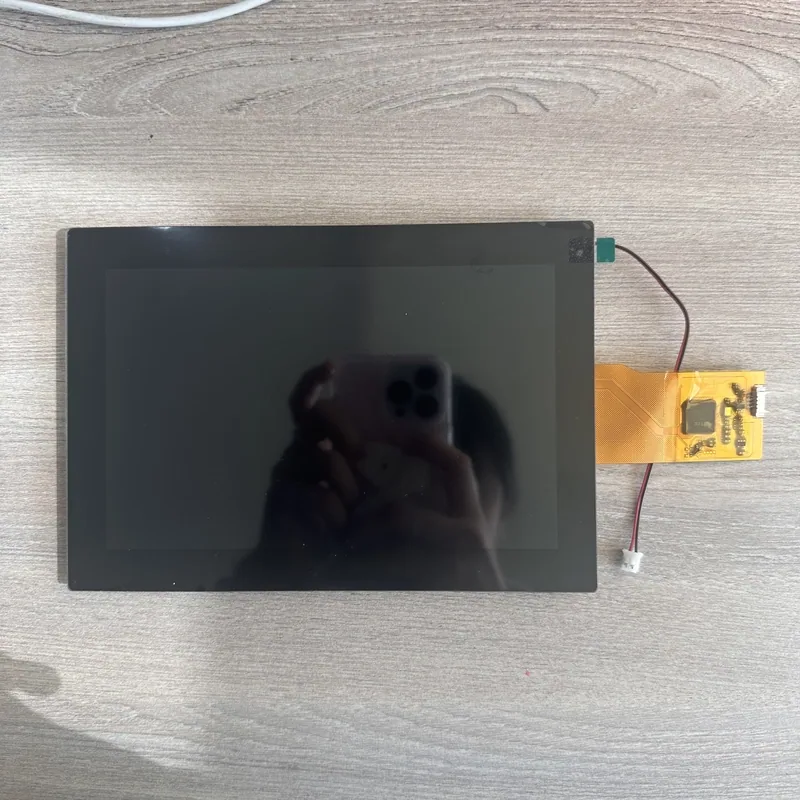

7.0 Inch 1200×1920 MIPI TFT LCD Display Module With Hard Coating product image
