5 inch Landscape TFT display resolution 800*480 product image

Standard TFT LCD Displays Model FZ5001C40-TP

5 inch Landscape TFT display resolution 800x480

This TFT TRANSMISSIVE record brings together the product identity, source-matched imagery and published technical values currently available for engineering review.

TFT TRANSMISSIVE
Parallel RGB 24-bit

Technology: TFT TRANSMISSIVE
Interface: Parallel RGB 24-bit
Viewing Angle: ALL
Driver IC: ST7262
Backlight: 6*3chips white LED
Module Dimensions: 120.8x75.95*2.9(Typ)

Specifications and media are retained from the current source record. Unpublished fields are not inferred.

Exact-record review: Source-matched media and published values remain attached to this product record.
Integration context: Format, interface, touch, optical and mechanical review points are organized around the published data.
Product-specific inquiry: Quotation, sample and WhatsApp actions carry this display name into the engineering discussion.

Product details

Review the module around published evidence.

This TFT TRANSMISSIVE record brings together the product identity, source-matched imagery and published technical values currently available for engineering review.

The current record identifies Parallel RGB 24-bit interface. Use these values to narrow the shortlist, then confirm the electrical, optical and mechanical requirements against the host product.

Standard-format TFT LCD modules represented in the current catalog, covering compact embedded displays through larger landscape panels. Final suitability depends on the approved drawing, sample evaluation and the host system requirements.

Product views

Inspect the module from the available source imagery.

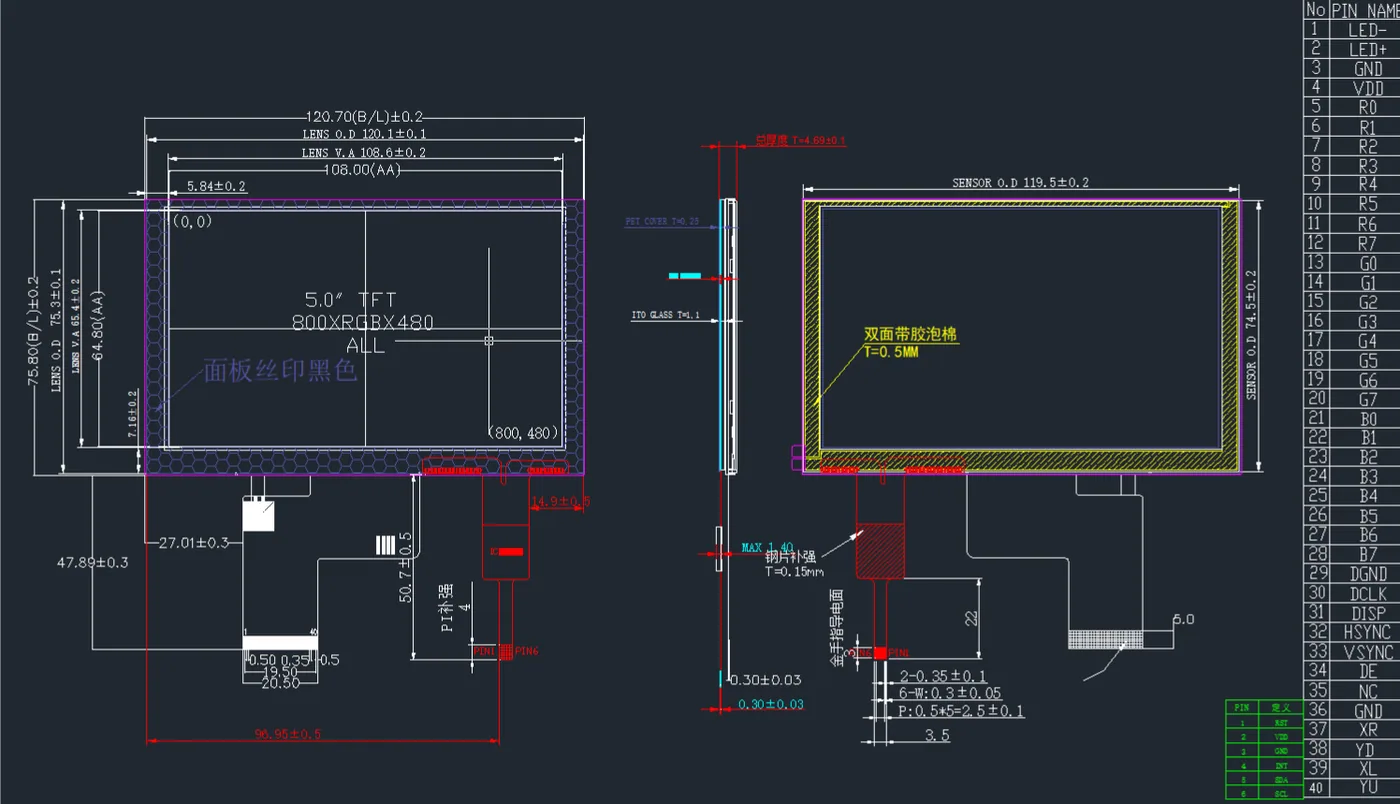

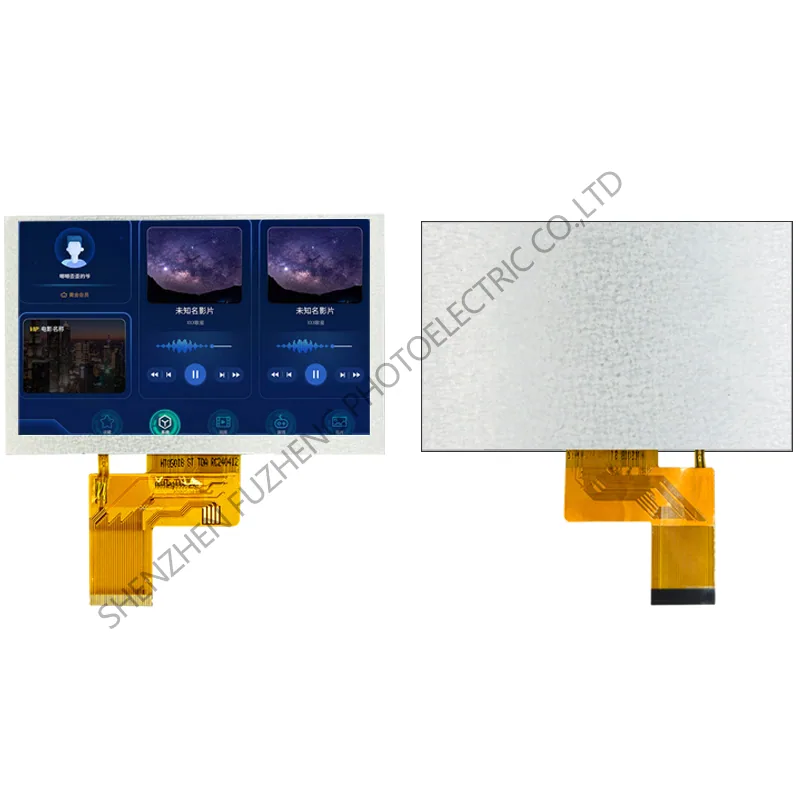

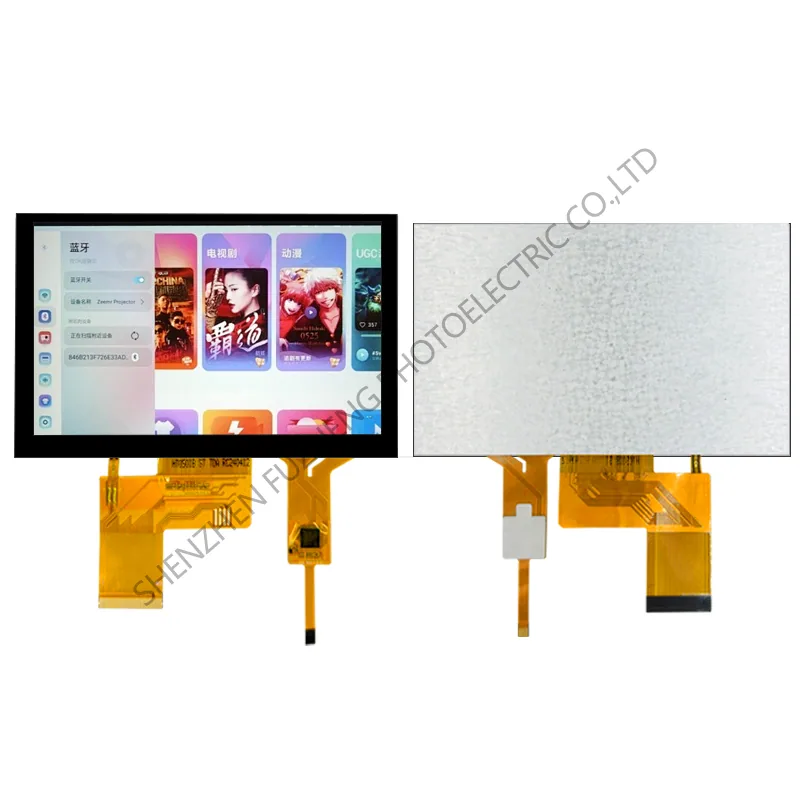

Images stay contained and uncropped so the display, flex cable, connector and visible assembly details remain available for review.

Published product data

Specifications in one consistent format.

Values are normalized from the current product record; no missing parameter is estimated.

Published specifications for 5 inch Landscape TFT display resolution 800x480
Specification	Published value	Review status
Technology	TFT TRANSMISSIVE	Current source record
Interface	Parallel RGB 24-bit	Current source record
Viewing Angle	ALL	Current source record
Driver IC	ST7262	Current source record
Backlight	6*3chips white LED	Current source record
Module Dimensions	120.8x75.95*2.9(Typ)	Current source record
Active Area	108.00*64.80	Current source record
Input Voltage	3.3 / DVDD	Multiple source values — confirm
Number of Dots	800(RGB) x480	Current source record
AVDD	-	Current source record
VGH	-	Current source record
VGL	-	Current source record
Input logic high voltage	VIH	Current source record
0.7VDD	-	Current source record
DVDD	V	Current source record
Input logic low voltage	VIL	Current source record
0.3DVDD	V	Current source record

Published technical data

Published technical data for 5 inch Landscape TFT display resolution 800x480
Item	Contents	Unit
LCD Type	TFT TRANSMISSIVE	/
Viewing direction	ALL	O' Clock
Module outline (W x HxD)	120.8x75.95*2.9(Typ)	mm
Active area (WxH)	108.00*64.80	mm
Number of Dots	800(RGB) x480	/
Driver IC	ST7262	/
Backlight Type	6*3chips white LED	/
Interface Type	Parallel RGB 24-bit	/
Input voltage	3.3	V

Published technical data

Published technical data for 5 inch Landscape TFT display resolution 800x480
Item	Symbol	Values	Unit	Remark	Column 6
Min.	Typ.	Max.	—	—	—
Power Voltage	DVDD	3.0	3.3	3.6	V
AVDD	-	-	-	V	—
VGH	-	-	-	V	—
VGL	-	-	-	V	—
Input logic high voltage	VIH	0.7VDD	-	DVDD	V
Input logic low voltage	VIL	0	-	0.3DVDD	V

Published technical data

Published technical data for 5 inch Landscape TFT display resolution 800x480
Item	Symbol	Values	Unit	Remark	Column 6	Column 7
Min.	Typ.	Max.	—	—	—	—
Current for Driver	IGH	-	0.50	1	mA	VGH=16.0V
IGL	-	0.54	1	mA	VGL=-6.0V	—
IVDD	-	4.2	10	mA	VDD=3.3V	—
IAVDD	-	19	50	mA	AVDD=10.4V	—

Published technical data

Published technical data for 5 inch Landscape TFT display resolution 800x480
Item	Symbol	Min	Typ	Max	Unit	Condition
Forward voltage	Vf	-	18	-	V	If=60mA
Luminance	Lv	-	500	-	cd/m2	If=60mA
Number of LED	--	18	Piece	--	—	—
Connection mode	P	6chips serial *3	--	--	—	—

Design-in review

Move from a catalog match to a controlled sample evaluation.

Format and image area

Module dimensions: 120.8x75.95*2.9(Typ). Active area: 108.00*64.80.

Electrical connection

Published interface: Parallel RGB 24-bit. Driver IC: ST7262. Backlight: 6*3chips white LED.

Optical and front assembly

Viewing angle: ALL.

Configuration discussion

Define the requirements that the catalog record cannot decide alone.

Use the published values as a starting point, then document the host electronics, enclosure, user interface and operating environment before requesting a sample.

Send product requirements

Review interface, connector and FPC alignment against the host electronics.
Discuss touch panel and cover lens requirements where the product design needs a front assembly.
Confirm outline, active area, mounting constraints and environmental requirements before sample approval.

Product FAQ

Planning the next engineering step.

Answers stay within the published record and the information needed for a useful RFQ.

Which product details should be confirmed before design-in?

Confirm the final drawing, interface and pin assignment, connector or FPC, touch stack, optical target and operating environment against the supplied sample and approved documentation.

What should I include in an inquiry for this display?

Include the product name or model, target size and resolution, host interface, touch and cover-lens requirements, brightness and environment, quantity and current project stage.

Can I request a sample for evaluation?

Use the sample request action and share the intended electrical and mechanical integration requirements so the evaluation scope can be discussed around this exact record.

Can interface, touch or mechanical requirements be discussed?

Yes. Send the host interface, connector or FPC constraints, touch and cover-lens needs, outline limits and environmental targets for an engineering review. No unpublished capability is assumed on this page.
