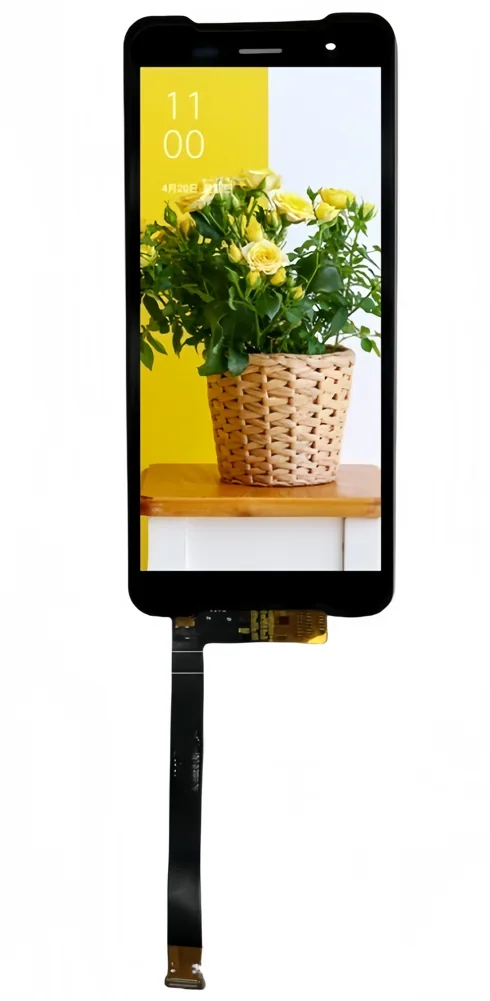

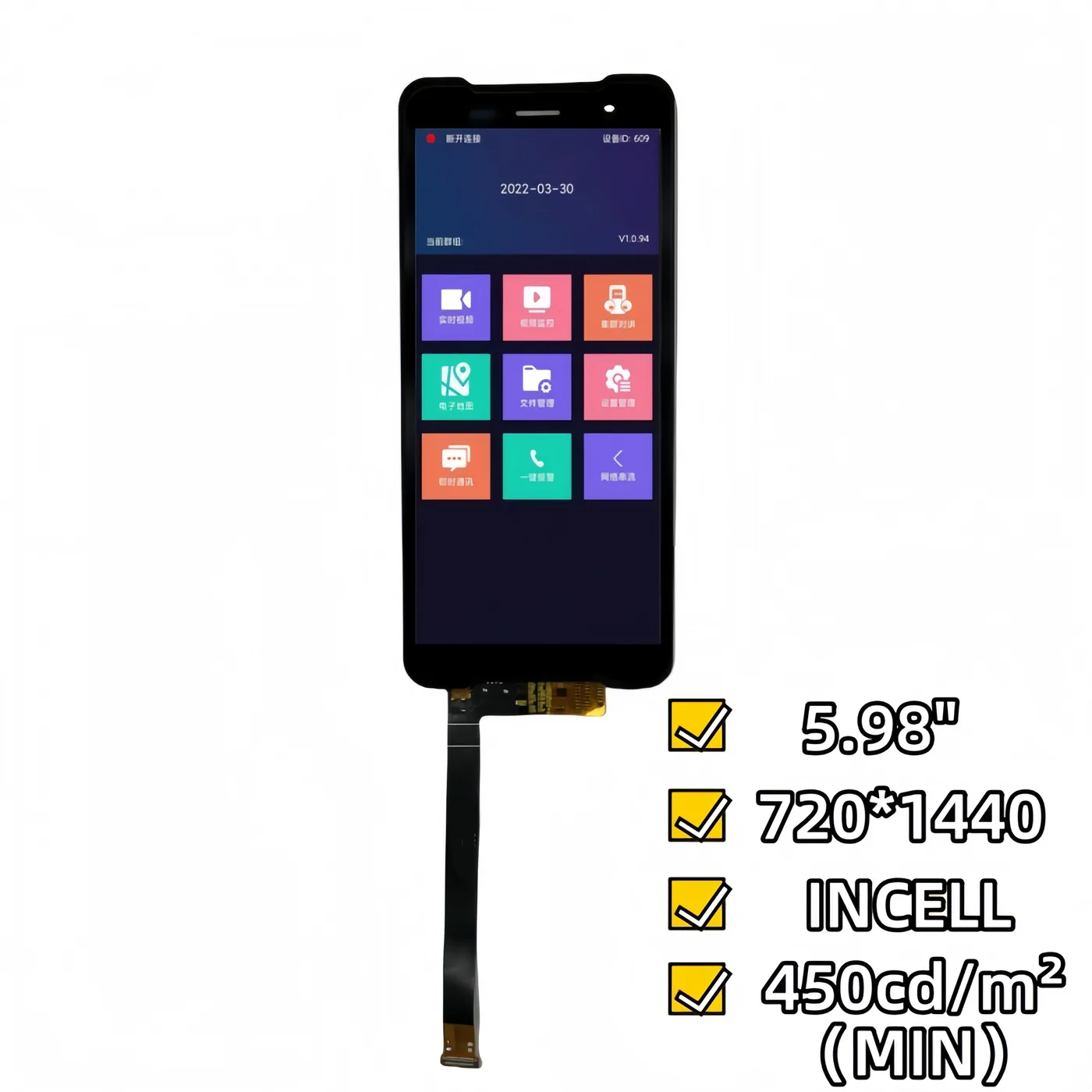

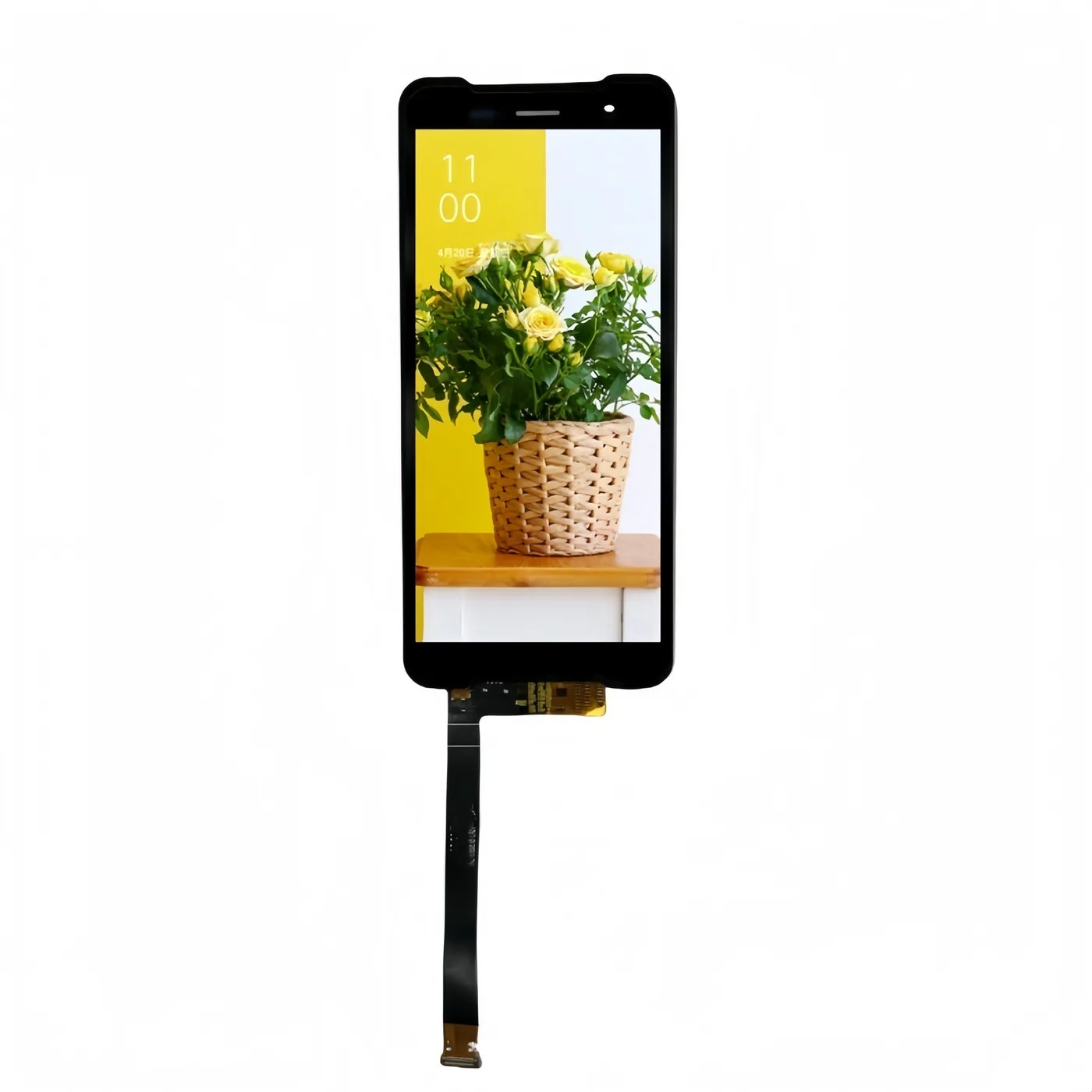

Product images and mechanical references for this assembly. Confirm the selected model and drawing revision before design-in.
Model no.FZB0598ICC01
FZB0598ICC01 5.98 Inch MIPI In-cell TFT-LCD Display
This high-performance 5.98″ INCELL TFT LCD display has an excellent resolution (720×1440 pixels) and a smooth 18:9 aspect ratio, making it ideal for a variety of applications. Its high brightness of 450cd/m² (minimum) provides clear and vivid visuals even in bright environments. Its compact form factor (70.24mm x 142.57mm x 1.41mm) ensures compatibility with a wide range of devices, making it a versatile choice for a wide range of industries.
- Normal Black
- MIPI / MIPI for efficient, high-speed data transfer connections
- INCELL
- Resolution
- 720*1440
- Technology
- Normal Black
- Interface
- MIPI
- Touch
- INCELL
- Viewing Angle
- U/D/L/R: 80/80/80/80
- Module Dimensions
- 70.24*142.57*1.41(mm)
Product overview
This high-performance 5.98″ INCELL TFT LCD display has an excellent resolution (720×1440 pixels) and a smooth 18:9 aspect ratio, making it ideal for a variety of applications. Its high brightness of 450cd/m² (minimum) provides clear and vivid visuals even in bright environments. Its compact form factor (70.24mm x 142.57mm x 1.41mm) ensures compatibility with a wide range of devices, making it a versatile choice for a wide range of industries.
Outdoor Handheld Devices: The 5.98-inch TFT LCD display is ideal for rugged devices such as GPS systems, GoPro cameras, and law enforcement handhelds.
Medical Devices: Meets the high-performance needs of medical devices such as diagnostic and monitoring equipment.
Industrial use: Suitable for instruments and control panels that require high-quality display output in harsh environments.
Confirm the FZB0598ICC01 assembly against the latest specification and drawing revision before design-in.
Product highlights
Technical specifications
Values are normalized from the current product record; no missing parameter is estimated.
| Specification | Published value |
|---|---|
| Resolution | 720*1440 / 720×1440 pixels for crisp, clear visualsMultiple source entries — confirm the selected value. |
| Technology | Normal Black |
| Interface | MIPI / MIPI for efficient, high-speed data transfer connectionsMultiple source entries — confirm the selected value. |
| Touch | INCELL |
| Brightness | 450cd/m²(MIN) / 450cd/m² (minimum) for crisp, bright visuals even in harsh lighting conditionsMultiple source entries — confirm the selected value. |
| Viewing Angle | U/D/L/R: 80/80/80/80 |
| Module Dimensions | 70.24*142.57*1.41(mm) / 70.24mm x 142.57mm x 1.41mm, compact and portable for a variety of devicesMultiple source entries — confirm the selected value. |
| Active Area | 67.93*135.86 (mm) |
| Operating Temperature | -20℃~+70℃ |
| Storage Temperature | -30℃~+80℃ |
| Aspect Ratio | 18:9 / 18:9 for a balanced, modern screen displayMultiple source entries — confirm the selected value. |
| Product Type | TFT(a-si) |
Mechanical fit
- Module Dimensions
- 70.24*142.57*1.41(mm) / 70.24mm x 142.57mm x 1.41mm, compact and portable for a variety of devices
- Active Area
- 67.93*135.86 (mm)
Allow space for the FPC, connector, cover lens and mounting. Use an approved, version-matched drawing before fixing the enclosure.
Review drawing availability →Some parameters contain multiple source entries. They may describe different configurations or conflicting records; do not treat them as interchangeable specifications.
Interface & integration
| Parameter | Source value |
|---|---|
| Interface | MIPI / MIPI for efficient, high-speed data transfer connections |
| Touch | INCELL |
Confirm pin numbering, supply levels, controller revision and initialization before connecting power. Source tables are references, not a substitute for an approved electrical specification.
Format and image area
Resolution: 720*1440 / 720×1440 pixels for crisp, clear visuals. Module dimensions: 70.24*142.57*1.41(mm) / 70.24mm x 142.57mm x 1.41mm, compact and portable for a variety of devices. Active area: 67.93*135.86 (mm).
Electrical connection
Published interface: MIPI / MIPI for efficient, high-speed data transfer connections.
Optical and front assembly
Published touch information: INCELL. Brightness: 450cd/m²(MIN) / 450cd/m² (minimum) for crisp, bright visuals even in harsh lighting conditions. Viewing angle: U/D/L/R: 80/80/80/80. Operating temperature: -20℃~+70℃.
Drawings & technical documents
Reference files from this product record, retained at their available source resolution.
Request the matching mechanical drawing
No separate mechanical drawing is verified in this record. Send your enclosure limits and the selected product reference; request the approved outline and FPC drawing before tooling.
Request drawing & datasheetMatch the module to your application
Use the published values as a starting point, then document the host electronics, enclosure, user interface and operating environment before requesting a sample.
Send product requirements- Review interface, connector and FPC alignment against the host electronics.
- Discuss touch panel and cover lens requirements where the product design needs a front assembly.
- Confirm outline, active area, mounting constraints and environmental requirements before sample approval.
Product questions
Specifications, documents and sample planning for FZB0598ICC01.
What are the published specifications for FZB0598ICC01?
FZB0598ICC01 currently publishes Resolution: 720*1440; Technology: Normal Black; Interface: MIPI; Touch: INCELL; Viewing Angle: U/D/L/R: 80/80/80/80; Module Dimensions: 70.24*142.57*1.41(mm). Confirm the final drawing and pin assignment against the supplied sample before design-in.
What should I include in an inquiry for this display?
Include the product name or model, target size and resolution, host interface, touch and cover-lens requirements, brightness and environment, quantity and current project stage.
Can I request a sample for evaluation?
Use the sample request action and share the intended electrical and mechanical integration requirements so the evaluation scope can be discussed around this exact record.
Can interface, touch or mechanical requirements be discussed?
Yes. Send the host interface, connector or FPC constraints, touch and cover-lens needs, outline limits and environmental targets for an engineering review. No unpublished capability is assumed on this page.
