Model no.FZ4300DPC02

FZ4300DPC02 4.5 Inch MIPI On-cell TFT-LCD Screen

✓ Ultra-narrow frame design: 45.85×112.07×1.59mm compact body, 21.9:9 cinema-level ratio, suitable for narrow and long device space

  • Normal Black
  • MIPI
  • ONCELL
Resolution
480*1170
Technology
Normal Black
Interface
MIPI
Touch
ONCELL
Viewing Angle
U/D/L/R: 80/80/80/80
Module Dimensions
45.85*112.07*1.59(mm)
Discuss this module with our team

Review the listed module configuration and confirm the matching specification and drawing revision with your inquiry.

Product overview

✓ Ultra-narrow frame design: 45.85×112.07×1.59mm compact body, 21.9:9 cinema-level ratio, suitable for narrow and long device space

✓ Full-view HD display: 480×1170 resolution + 450cd/m² brightness (minimum), 80° wide viewing angle (U/D/L/R), clearly visible in strong light environment

✓ Integrated touch solution: ONCELL fitting technology, sensitive touch response, support glove/wet hand operation (capacitive touch optional)

✓ Wide temperature durability: -20℃~70℃ working temperature, -30℃~80℃ storage temperature, suitable for harsh industrial and outdoor scenes

Wearable extension equipment: vehicle-mounted central control sub-screen, drone remote control, smart home control panel

Advantages: narrow and long ratio adapts to vertical screen operation, low power consumption design extends equipment life

Equipment human-machine interface (HMI): small PLC control panel, machine tool operation screen, smart meter display

Advantages: wide temperature performance to cope with high and low-temperature workshop/outdoor operations, MIPI interface compatible with mainstream MCU solutions

In-vehicle scene: vehicle-mounted rearview mirror display, head-up display (HUD) auxiliary screen, in-vehicle atmosphere control screen

Advantages: optional anti-glare surface treatment; application-specific reliability and certification requirements must be confirmed during engineering review

Advantages: support customized touch algorithm, adapt to special-shaped cutting and special shell integration

Confirm the FZ4300DPC02 assembly against the latest specification and drawing revision before design-in.

Product highlights

    Technical specifications

    Values are normalized from the current product record; no missing parameter is estimated.

    Published specifications for FZ4300DPC02 4.5 Inch MIPI On-cell TFT-LCD Screen
    SpecificationPublished value
    Resolution 480*1170
    Technology Normal Black
    Interface MIPI
    Touch ONCELL
    Brightness 450cd/m²(MIN)
    Viewing Angle U/D/L/R: 80/80/80/80
    Module Dimensions 45.85*112.07*1.59(mm)
    Active Area 43.2 * 105.3 (mm)
    Operating Temperature -20℃~+70℃
    Storage Temperature -30℃~+80℃
    Aspect Ratio 21.9:9
    Product Type TFT(a-si)
    Full-view HD display 480×1170 resolution + 450cd/m² brightness (minimum), 80° wide viewing angle (U/D/L/R), clearly visible in strong light environment
    Integrated touch solution ONCELL fitting technology, sensitive touch response, support glove/wet hand operation (capacitive touch optional)
    Wide temperature durability -20℃~70℃ working temperature, -30℃~80℃ storage temperature, suitable for harsh industrial and outdoor scenes
    Equipment human-machine interface (HMI) small PLC control panel, machine tool operation screen, smart meter display

    Mechanical fit

    Module Dimensions
    45.85*112.07*1.59(mm)
    Active Area
    43.2 * 105.3 (mm)

    Allow space for the FPC, connector, cover lens and mounting. Use an approved, version-matched drawing before fixing the enclosure.

    Review drawing availability →

    Interface & integration

    Connection information for FZ4300DPC02
    ParameterSource value
    InterfaceMIPI
    TouchONCELL

    Confirm pin numbering, supply levels, controller revision and initialization before connecting power. Source tables are references, not a substitute for an approved electrical specification.

    Format and image area

    Resolution: 480*1170. Module dimensions: 45.85*112.07*1.59(mm). Active area: 43.2 * 105.3 (mm).

    Electrical connection

    Published interface: MIPI.

    Optical and front assembly

    Published touch information: ONCELL. Brightness: 450cd/m²(MIN). Viewing angle: U/D/L/R: 80/80/80/80. Operating temperature: -20℃~+70℃.

    Drawings & technical documents

    Reference files from this product record, retained at their available source resolution.

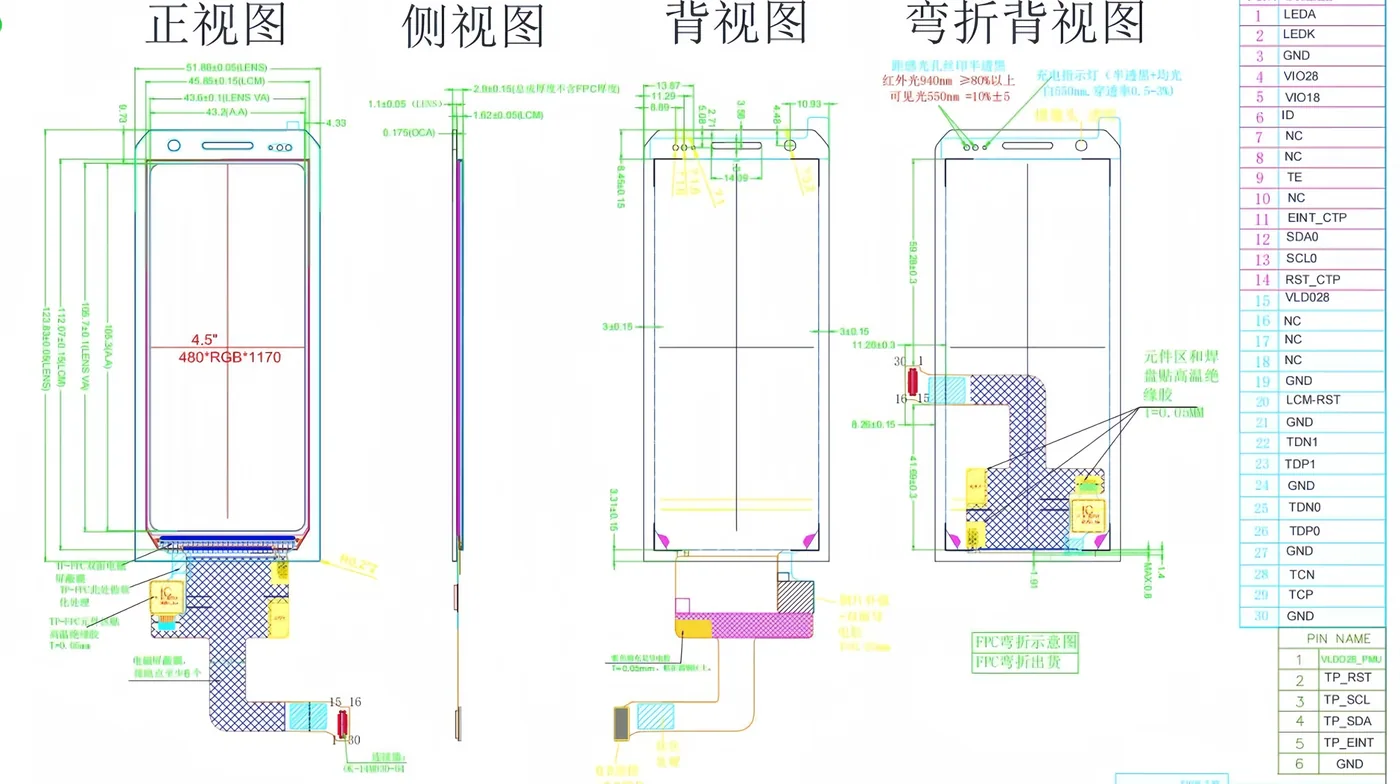

    FZ4300DPC02 reference drawing 1Inspect drawing 1 ↗

    Reference drawing 1

    Confirm the model suffix, dimensional tolerances and assembly revision with the quoted sample.

    Download source drawing ↓

    Match the module to your application

    Use the published values as a starting point, then document the host electronics, enclosure, user interface and operating environment before requesting a sample.

    Send product requirements
    • Review interface, connector and FPC alignment against the host electronics.
    • Discuss touch panel and cover lens requirements where the product design needs a front assembly.
    • Confirm outline, active area, mounting constraints and environmental requirements before sample approval.

    Product questions

    Specifications, documents and sample planning for FZ4300DPC02.

    What are the published specifications for FZ4300DPC02?

    FZ4300DPC02 currently publishes Resolution: 480*1170; Technology: Normal Black; Interface: MIPI; Touch: ONCELL; Viewing Angle: U/D/L/R: 80/80/80/80; Module Dimensions: 45.85*112.07*1.59(mm). Confirm the final drawing and pin assignment against the supplied sample before design-in.

    What should I include in an inquiry for this display?

    Include the product name or model, target size and resolution, host interface, touch and cover-lens requirements, brightness and environment, quantity and current project stage.

    Can I request a sample for evaluation?

    Use the sample request action and share the intended electrical and mechanical integration requirements so the evaluation scope can be discussed around this exact record.

    Can interface, touch or mechanical requirements be discussed?

    Yes. Send the host interface, connector or FPC constraints, touch and cover-lens needs, outline limits and environmental targets for an engineering review. No unpublished capability is assumed on this page.

    Discuss this display with our team

    FZ4300DPC02

    Share the required interface, assembly, quantity and project timing. Request the matching specification and drawing revision with your quote.

    Shenzhen FuZheng Photoelectric Co., Ltd. · Company information
    Victory.Wang@szfuzheng.com · WhatsApp +86 159 8944 5783

    Start a product inquiry →

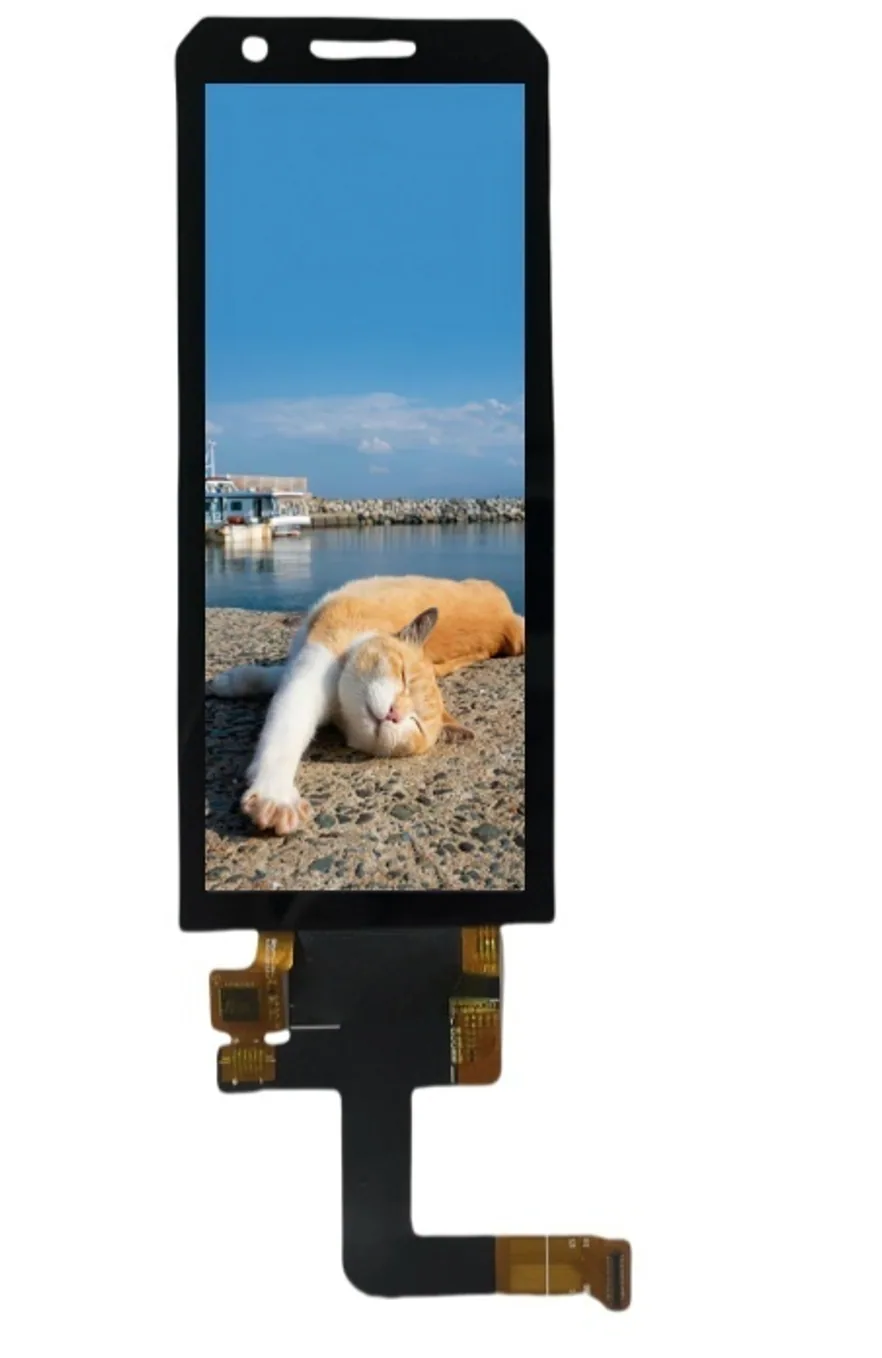

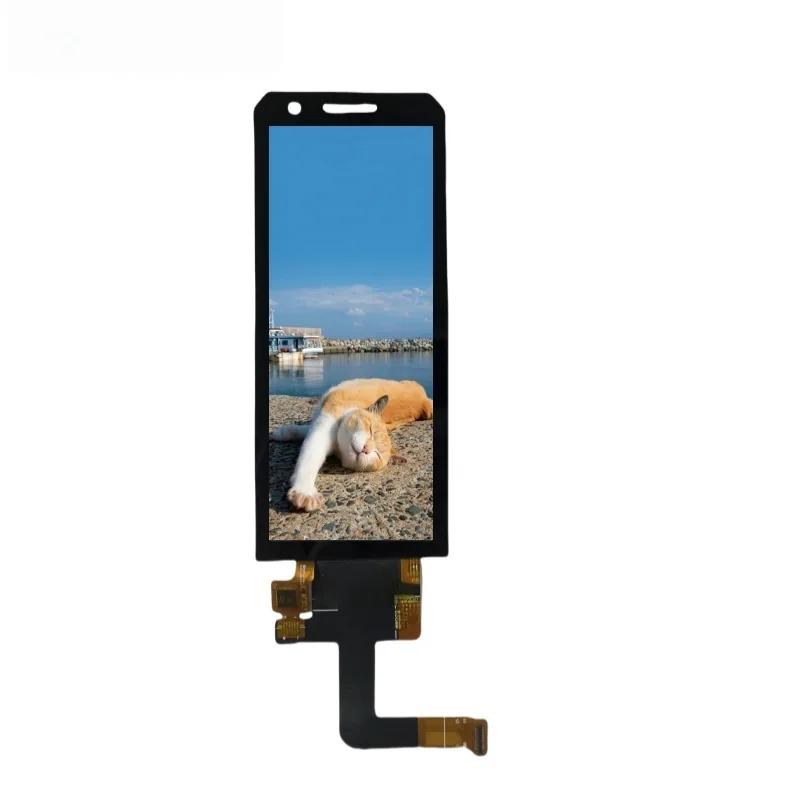

    4.5 Inch MIPI Oncell TFT LCD Screen product image
