Model no.FZ43001C40-TP

4.3-Inch 480x272 RGB TFT-LCD Display

FZ43001C40-TP is a color active matrix LCD module incorporating amorphous silicon TFT (Thin Film Transistor). It is composed of a color TFT-LCD panel, driver IC, FPC and a back light unit. The module display area contains 480X272 pixels. This product accords with RoHS environmental criterion.

  • TFT TRANSMISSIVE
  • Parallel RGB 24-Bit
Resolution
480(RGB) x272
Technology
TFT TRANSMISSIVE
Interface
Parallel RGB 24-Bit
Viewing Direction
ALL
Module Dimensions
105.40x67.10x3.0
Active Area
95.04x53.856
Discuss this module with our team

Review the listed module configuration and confirm the matching specification and drawing revision with your inquiry.

Product overview

FZ43001C40-TP is a color active matrix LCD module incorporating amorphous silicon TFT (Thin Film Transistor). It is composed of a color TFT-LCD panel, driver IC, FPC and a back light unit. The module display area contains 480X272 pixels. This product accords with RoHS environmental criterion.

Confirm the FZ43001C40-TP assembly against the latest specification and drawing revision before design-in.

Product highlights

    Technical specifications

    Values are normalized from the current product record; no missing parameter is estimated.

    Published specifications for 4.3-Inch 480x272 RGB TFT-LCD Display
    SpecificationPublished value
    Resolution 480(RGB) x272
    Technology TFT TRANSMISSIVE
    Interface Parallel RGB 24-Bit
    Viewing Direction ALL
    Driver IC ST7282E
    Backlight 7chips white LEDS, Serial
    Module Dimensions 105.40x67.10x3.0
    Active Area 95.04x53.856
    Input Voltage 3.3 / VinMultiple source entries — confirm the selected value.
    Supply voltage for logic Vcc / Vcc -VssMultiple source entries — confirm the selected value.
    -0.3 3.6 / VCC+ 0.3Multiple source entries — confirm the selected value.
    -20 70
    -30 80
    Humidity RH
    -- 90%(Max60C)

    Mechanical fit

    Module Dimensions
    105.40x67.10x3.0
    Active Area
    95.04x53.856

    Allow space for the FPC, connector, cover lens and mounting. Use an approved, version-matched drawing before fixing the enclosure.

    Review drawing availability →

    Some parameters contain multiple source entries. They may describe different configurations or conflicting records; do not treat them as interchangeable specifications.

    Published technical data

    Published technical data for 4.3-Inch 480x272 RGB TFT-LCD Display
    ItemContentsUnit
    LCD TypeTFT TRANSMISSIVE/
    Viewing directionALLO' Clock
    Module outline (W x HxD)105.40x67.10x3.0mm
    Active area (WxH)95.04x53.856mm
    Resolution480(RGB) x272/
    Driver ICST7282E/
    Backlight Type7chips white LEDS, Serial/
    Interface TypeParallel RGB 24-Bit/
    Input voltage3.3V

    Published technical data

    Published technical data for 4.3-Inch 480x272 RGB TFT-LCD Display
    ParameterSymbolMinMaxUnit
    Supply voltage for logicVcc-0.33.6V
    Input voltageVin-0.3VCC+ 0.3V
    Operating temperaturTop-2070℃
    Storage temperatureTst-3080℃
    HumidityRH--90%(Max60C)RH

    Published technical data

    Published technical data for 4.3-Inch 480x272 RGB TFT-LCD Display
    ParameterSymbolMinTypMaxUnit
    Supply voltage for logicVcc -Vss3.03.33.6V
    Input CurrentIdd410-mA

    Published technical data

    Published technical data for 4.3-Inch 480x272 RGB TFT-LCD Display
    ItemSymbolMinTypMaxUnitCondition
    Forward voltageVf-21-VIf=20mA
    LuminanceLv-450-cd/m2If=20mA
    Number of LED--7Piece--——
    Connection modePserial----——

    Interface & integration

    Connection information for FZ43001C40-TP
    ParameterSource value
    InterfaceParallel RGB 24-Bit
    Driver ICST7282E
    Backlight7chips white LEDS, Serial
    Input Voltage3.3 / Vin

    Confirm pin numbering, supply levels, controller revision and initialization before connecting power. Source tables are references, not a substitute for an approved electrical specification.

    Format and image area

    Resolution: 480(RGB) x272. Module dimensions: 105.40x67.10x3.0. Active area: 95.04x53.856.

    Electrical connection

    Published interface: Parallel RGB 24-Bit. Driver IC: ST7282E. Backlight: 7chips white LEDS, Serial.

    Optical and front assembly

    Viewing direction: ALL.

    Drawings & technical documents

    Reference files from this product record, retained at their available source resolution.

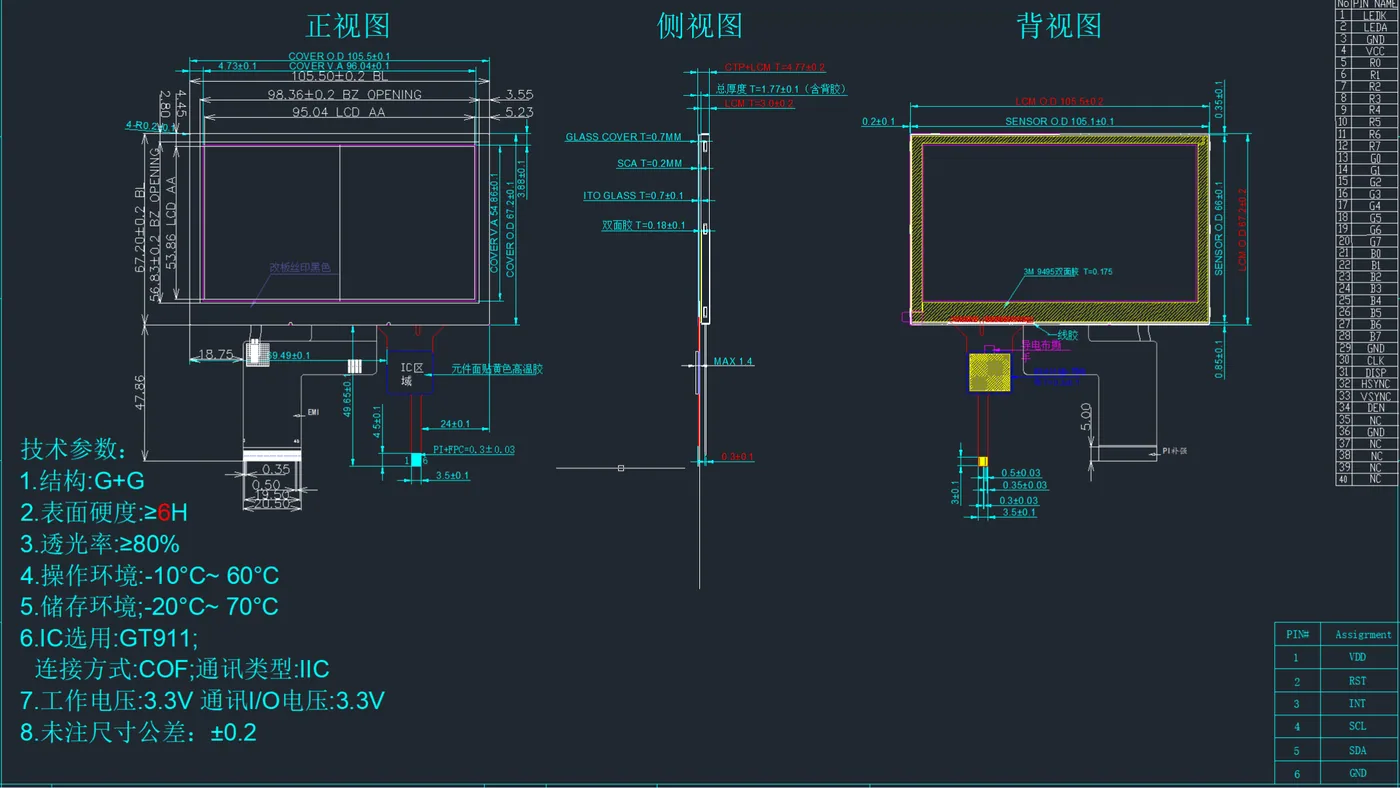

    FZ43001C40-TP reference drawing 1Inspect drawing 1 ↗

    Reference drawing 1

    Confirm the model suffix, dimensional tolerances and assembly revision with the quoted sample.

    Download source drawing ↓

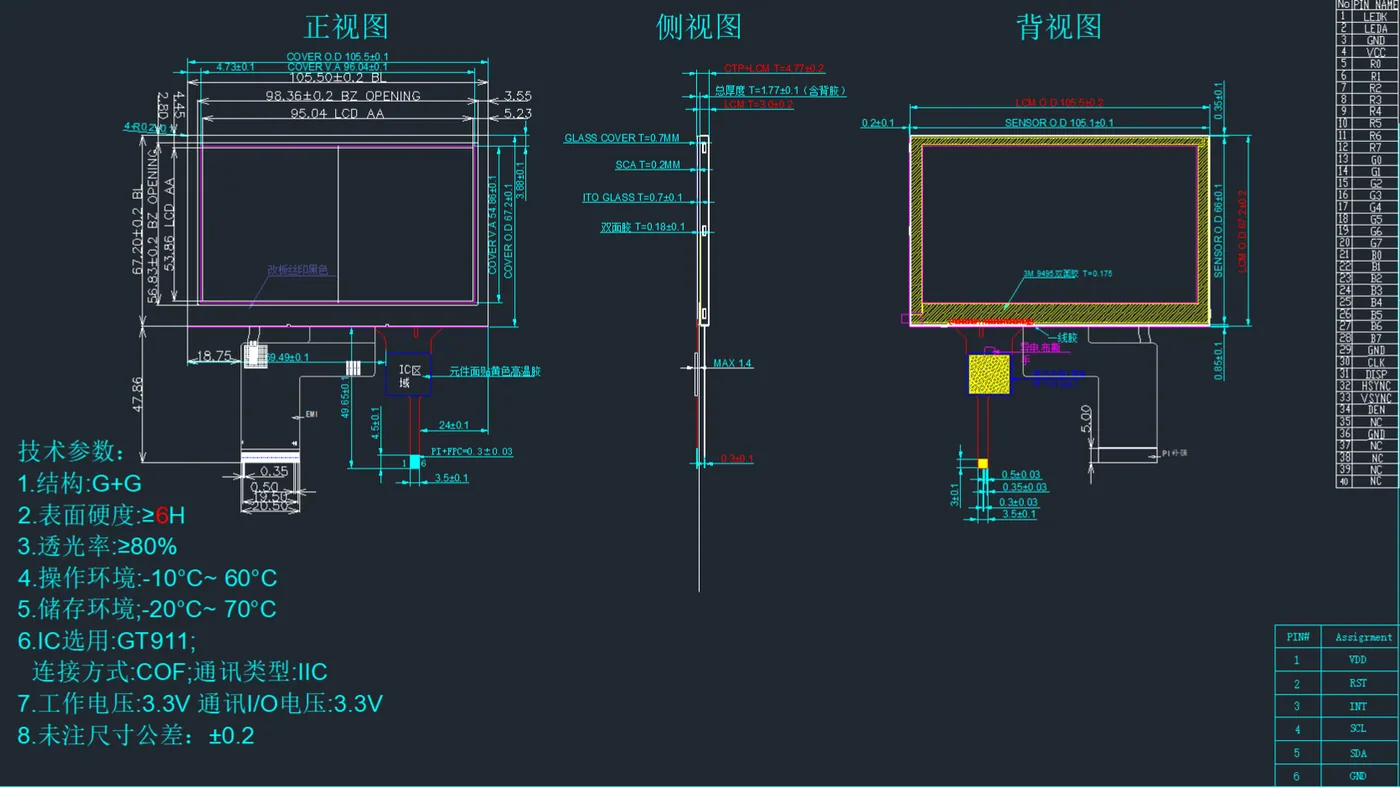

    FZ43001C40-TP reference drawing 2Inspect drawing 2 ↗

    Reference drawing 2

    Confirm the model suffix, dimensional tolerances and assembly revision with the quoted sample.

    Download source drawing ↓

    Match the module to your application

    Use the published values as a starting point, then document the host electronics, enclosure, user interface and operating environment before requesting a sample.

    Send product requirements
    • Review interface, connector and FPC alignment against the host electronics.
    • Discuss touch panel and cover lens requirements where the product design needs a front assembly.
    • Confirm outline, active area, mounting constraints and environmental requirements before sample approval.

    Product questions

    Specifications, documents and sample planning for FZ43001C40-TP.

    What are the published specifications for FZ43001C40-TP?

    FZ43001C40-TP currently publishes Resolution: 480(RGB) x272; Technology: TFT TRANSMISSIVE; Interface: Parallel RGB 24-Bit; Viewing Direction: ALL; Module Dimensions: 105.40x67.10x3.0; Active Area: 95.04x53.856. Confirm the final drawing and pin assignment against the supplied sample before design-in.

    What should I include in an inquiry for this display?

    Include the product name or model, target size and resolution, host interface, touch and cover-lens requirements, brightness and environment, quantity and current project stage.

    Can I request a sample for evaluation?

    Use the sample request action and share the intended electrical and mechanical integration requirements so the evaluation scope can be discussed around this exact record.

    Can interface, touch or mechanical requirements be discussed?

    Yes. Send the host interface, connector or FPC constraints, touch and cover-lens needs, outline limits and environmental targets for an engineering review. No unpublished capability is assumed on this page.

    Discuss this display with our team

    FZ43001C40-TP

    Share the required interface, assembly, quantity and project timing. Request the matching specification and drawing revision with your quote.

    Shenzhen FuZheng Photoelectric Co., Ltd. · Company information
    Victory.Wang@szfuzheng.com · WhatsApp +86 159 8944 5783

    Start a product inquiry →

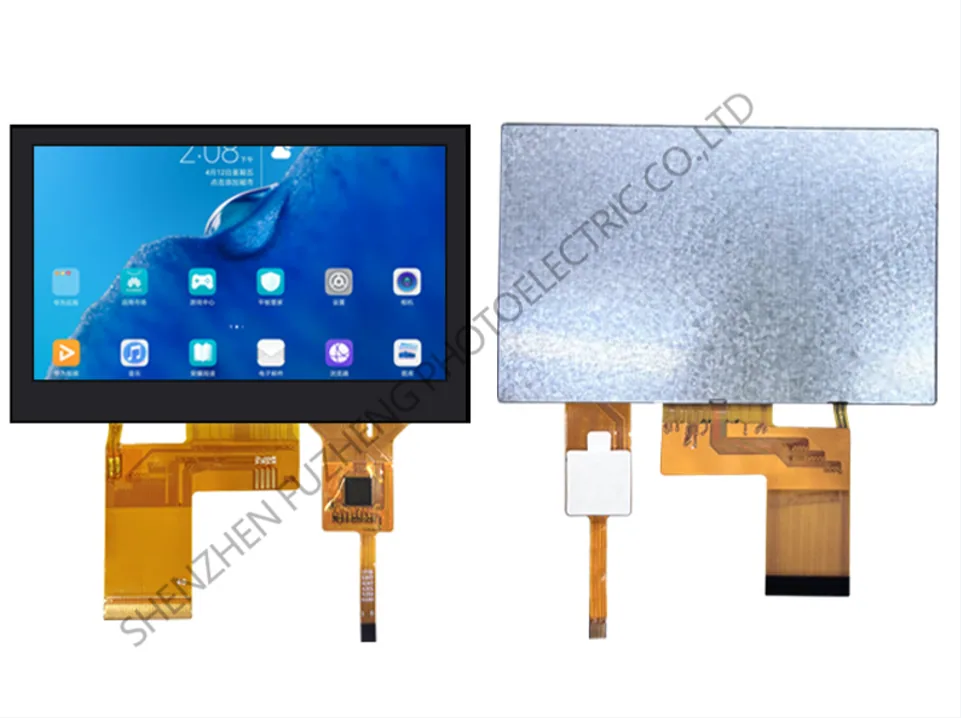

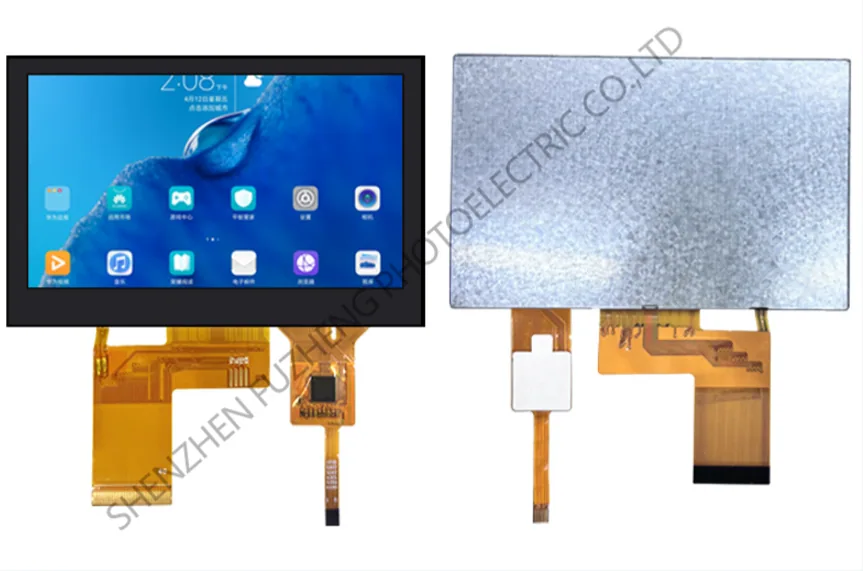

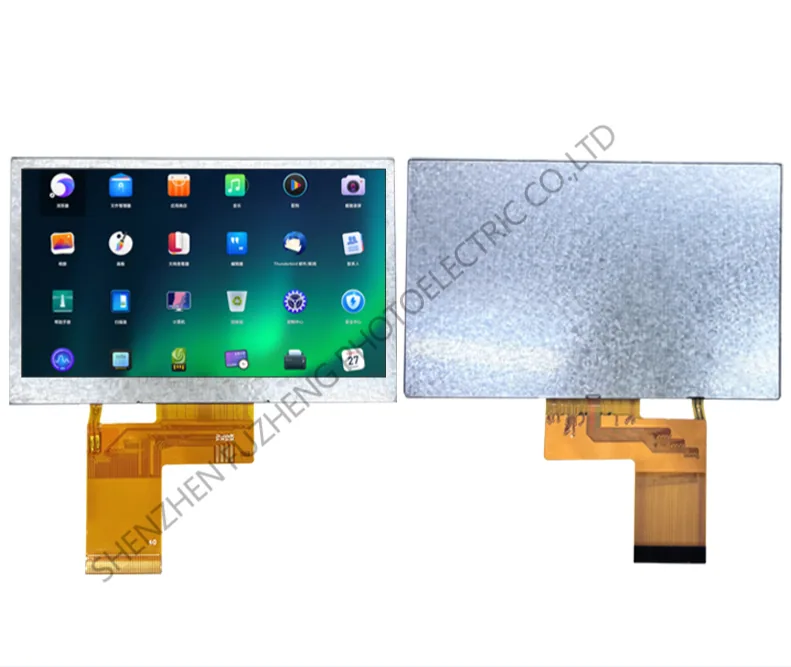

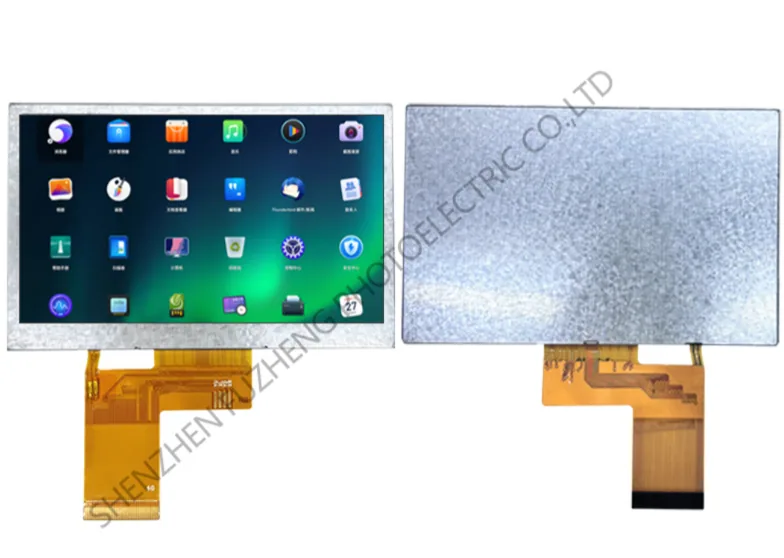

    4.3 inch Landscape display resolution 480(RGB) x272 product image
