Reference no.11577

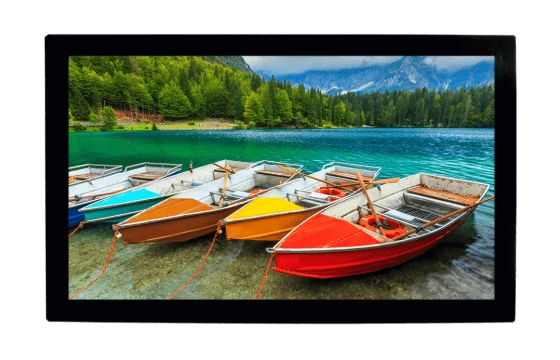

15.6-Inch FHD PCAP IPS TFT-LCD Display with extended temperature range

This source-tracked comparison record covers a 15.6" IPS-TFT module. Its imagery and listed values support initial engineering review; availability, model ownership and the final specification require Fuzheng confirmation before quotation or sample evaluation.

IPS-TFT
Rectangular
LVDS
CTP / PCAP
1920 (RGB) x 1080

Screen Size: 15.6"
Resolution: 1920 (RGB) x 1080
Technology: IPS-TFT
Shape: Rectangular
Interface: LVDS
Touch: CTP / PCAP

Request a Quote Request a Sample

View Full Specifications

Discuss this module with an engineer

Comparison candidate: specifications remain available for review; external product imagery is withheld until Fuzheng supplies or approves replacement media.

Technical specifications

Reference values are displayed for comparison and require confirmation before quotation.

Published specifications for 15.6-Inch FHD PCAP IPS TFT-LCD Display with extended temperature range
Specification	Published value	Review status
Screen Size	15.6"	Confirm before quotation
Resolution	1920 (RGB) x 1080	Confirm before quotation
Technology	IPS-TFT	Confirm before quotation
Shape	Rectangular	Confirm before quotation
Interface	LVDS	Confirm before quotation
Touch	CTP / PCAPMultiple source entries — confirm the selected value.	Multiple source values — confirm
Brightness	450 cd/m2	Confirm before quotation
Viewing Angle	All round - IPS	Confirm before quotation
Module Dimensions	375.8 x 225.1 x 12.8 mm	Confirm before quotation
Aspect Ratio	16:9	Confirm before quotation

Mechanical fit

Screen Size: 15.6"
Shape: Rectangular
Module Dimensions: 375.8 x 225.1 x 12.8 mm

Allow space for the FPC, connector, cover lens and mounting. Use an approved, version-matched drawing before fixing the enclosure.

Review drawing availability →

Some parameters contain multiple source entries. They may describe different configurations or conflicting records; do not treat them as interchangeable specifications.

Interface & integration

Connection information for 11577
Parameter	Source value
Interface	LVDS
Touch	CTP / PCAP

Confirm pin numbering, supply levels, controller revision and initialization before connecting power. Source tables are references, not a substitute for an approved electrical specification.

Format and image area

Published screen size: 15.6". Resolution: 1920 (RGB) x 1080. Shape: Rectangular. Module dimensions: 375.8 x 225.1 x 12.8 mm.

Electrical connection

Published interface: LVDS.

Optical and front assembly

Published touch information: CTP / PCAP. Brightness: 450 cd/m2. Viewing angle: All round - IPS.

Drawings & technical documents

Reference files from this product record, retained at their available source resolution.

Request the matching mechanical drawing

No separate mechanical drawing is verified in this record. Send your enclosure limits and the selected product reference; request the approved outline and FPC drawing before tooling.

Request drawing & datasheet

Match the module to your application

Use the published values as a starting point, then document the host electronics, enclosure, user interface and operating environment before requesting a sample.

Send product requirements

Confirm availability and the final electrical, optical and mechanical specification before design-in.
Review interface, connector and FPC alignment against the host electronics.
Discuss touch panel and cover lens requirements where the product design needs a front assembly.
Confirm outline, active area, mounting constraints and environmental requirements before sample approval.

Product questions

Specifications, documents and sample planning for 11577.

What are the published specifications for 11577?

11577 currently publishes Screen Size: 15.6"; Resolution: 1920 (RGB) x 1080; Technology: IPS-TFT; Shape: Rectangular; Interface: LVDS; Touch: CTP / PCAP. Confirm the final drawing and pin assignment against the supplied sample before design-in.

What should I include in an inquiry for this display?

Include the product name or model, target size and resolution, host interface, touch and cover-lens requirements, brightness and environment, quantity and current project stage.

Can I request a sample for evaluation?

Use the sample request action and share the intended electrical and mechanical integration requirements so the evaluation scope can be discussed around this exact record.

Can interface, touch or mechanical requirements be discussed?

Yes. Send the host interface, connector or FPC constraints, touch and cover-lens needs, outline limits and environmental targets for an engineering review. No unpublished capability is assumed on this page.
