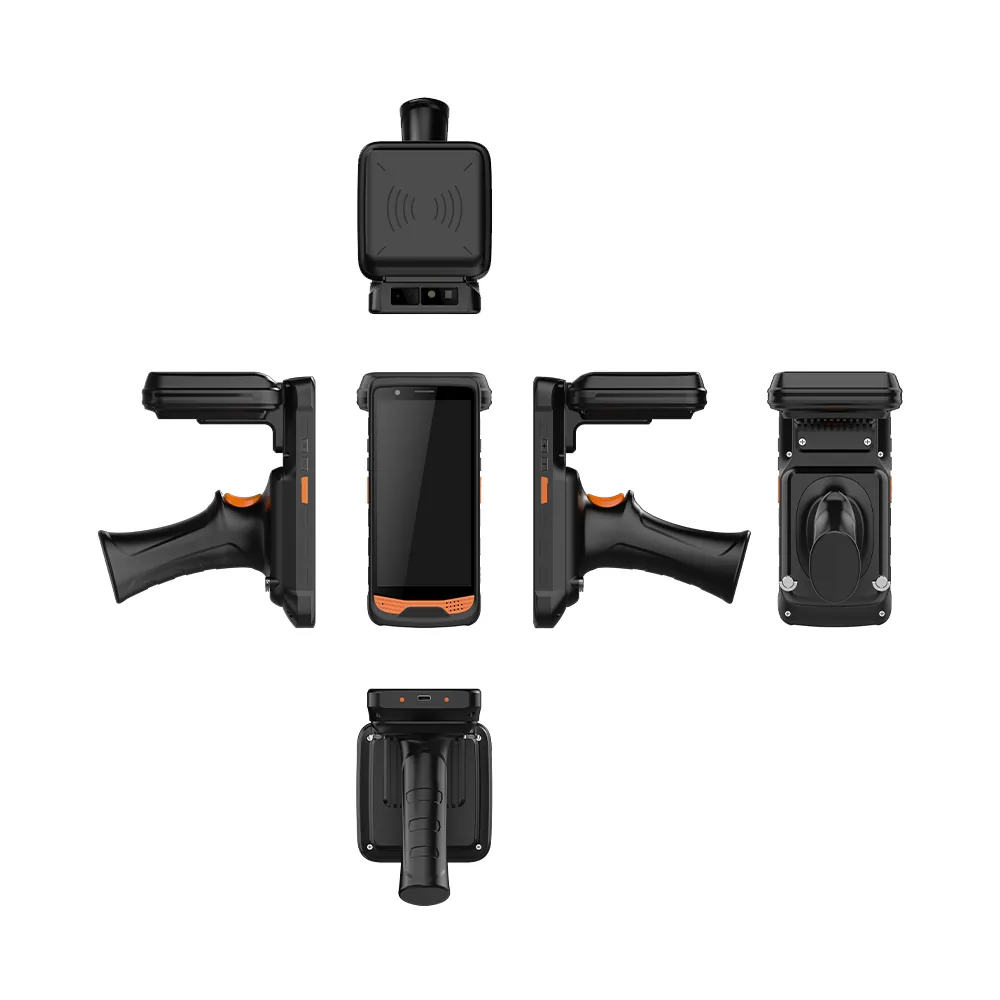

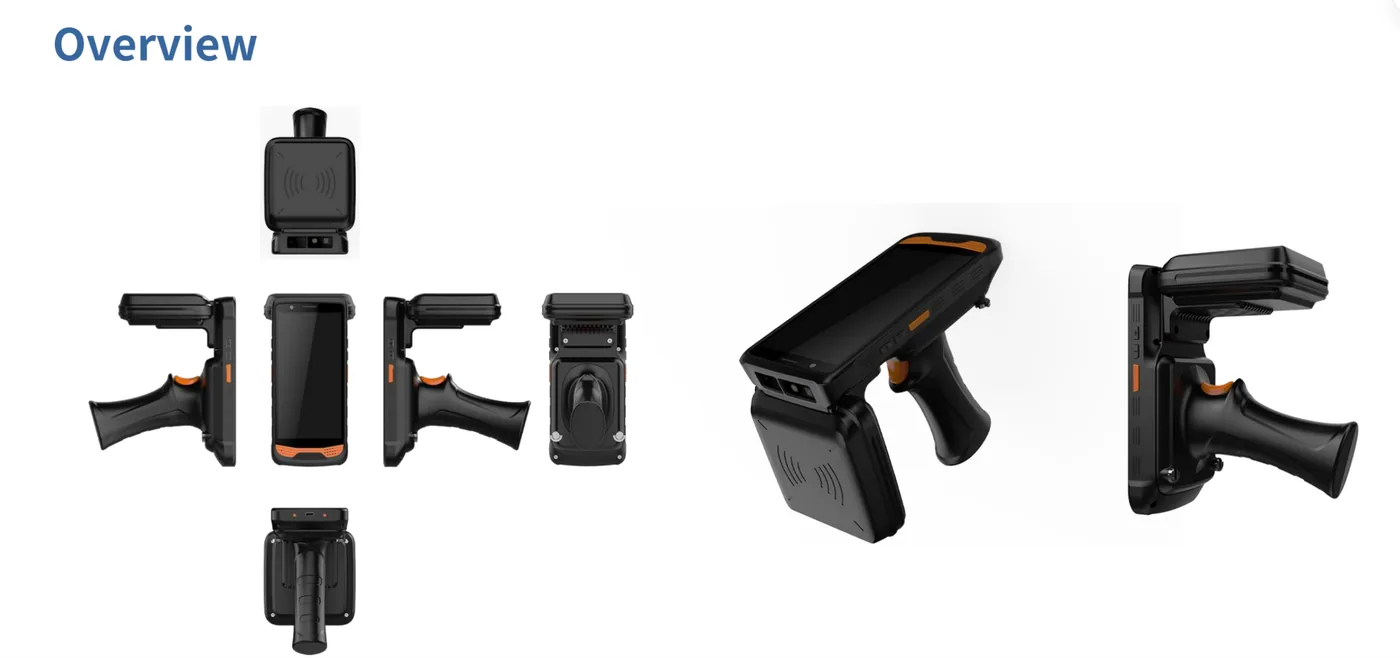

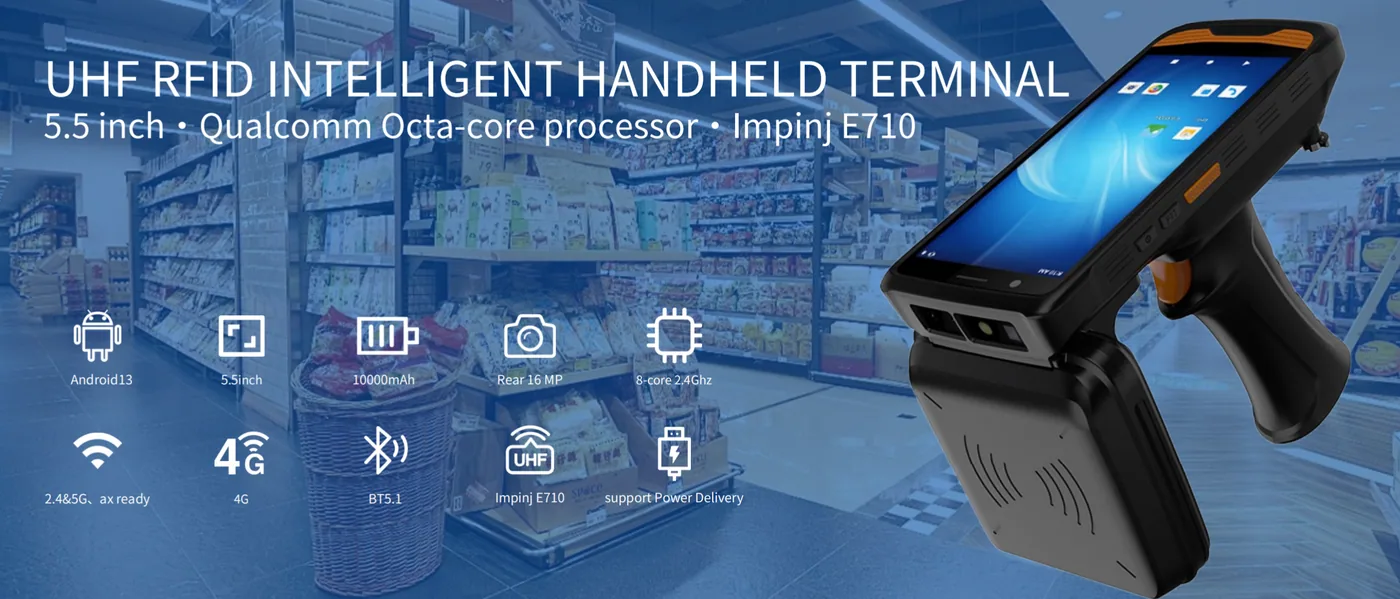

R366C‑S Long‑Range UHF RFID Handheld
5.5″ IPS | Impinj E710 | 10‑20m Read Range | 10000mAh Battery | Android 13
The R366C‑S handheld terminal is built for high‑intensity RFID applications. Powered by the Impinj E710 UHF module, it delivers exceptional read range (up to 20 meters) and speed (≥900 tags/s). Combined with a large 5.5‑inch IPS HD+ display, Qualcomm octa‑core processor, and a massive 10000mAh detachable battery with Power Delivery, this device keeps you running through the longest shifts – indoors or outdoors.
Why Choose R366C‑S?
Industry‑Leading UHF RFID Performance
Equipped with the Impinj E710 chip and a 4dBi antenna, the R366C‑S reads tags from 10 to 20 meters (depending on region and tag type). Capture over 900 tags per second – ideal for bulk inventory, asset tracking, and rapid cycle counting.All‑Day, Multi‑Day Battery
The 3.8V / 10000mAh detachable battery powers intensive RFID scanning for full shifts and beyond. USB‑C with Power Delivery (PD) ensures fast recharging when you need it.Large, Usable Display
5.5‑inch IPS HD+ screen (720×1440), multi‑touch, bright and responsive – view inventory dashboards, maps, and forms clearly even under sunlight.High Performance Computing
Qualcomm SM6225 octa‑core 2.4GHz + Android 13 + 4GB RAM / 64GB ROM (expandable to 256GB via TF) – smooth multitasking and data processing.Rugged Yet Ergonomic

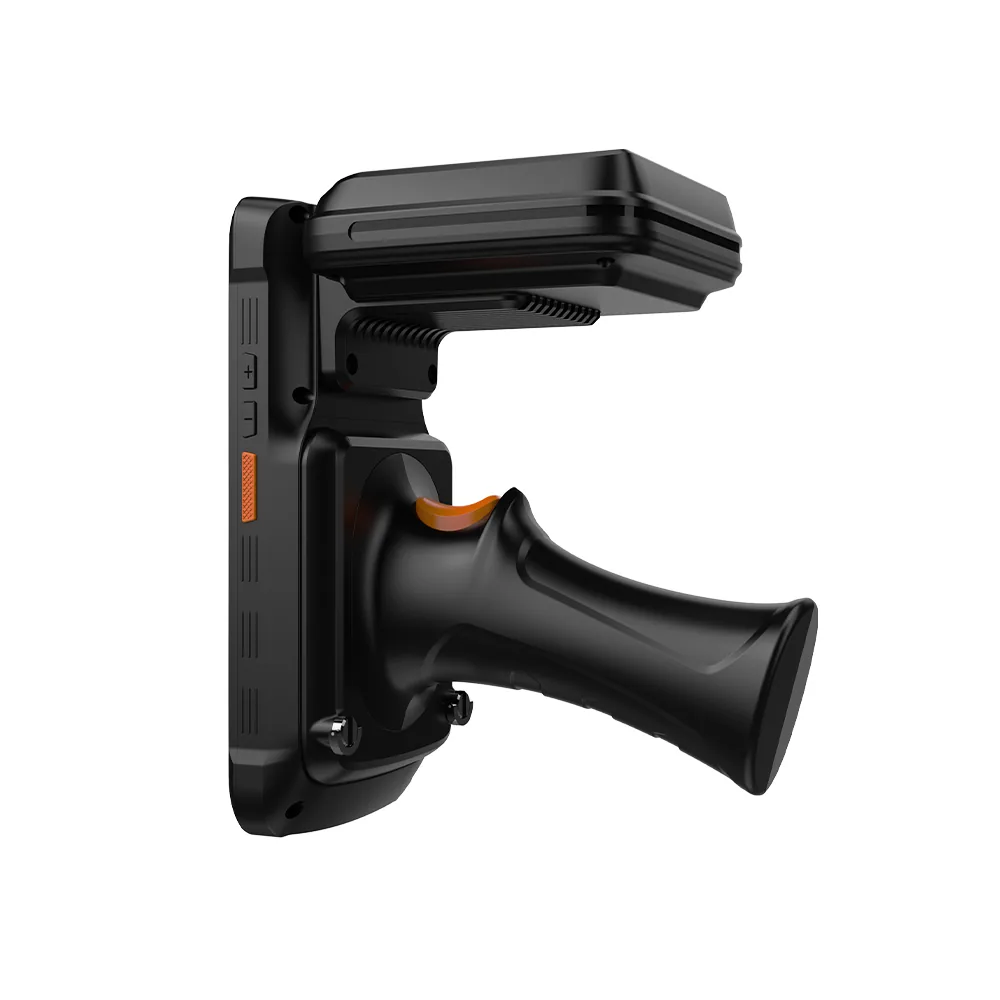

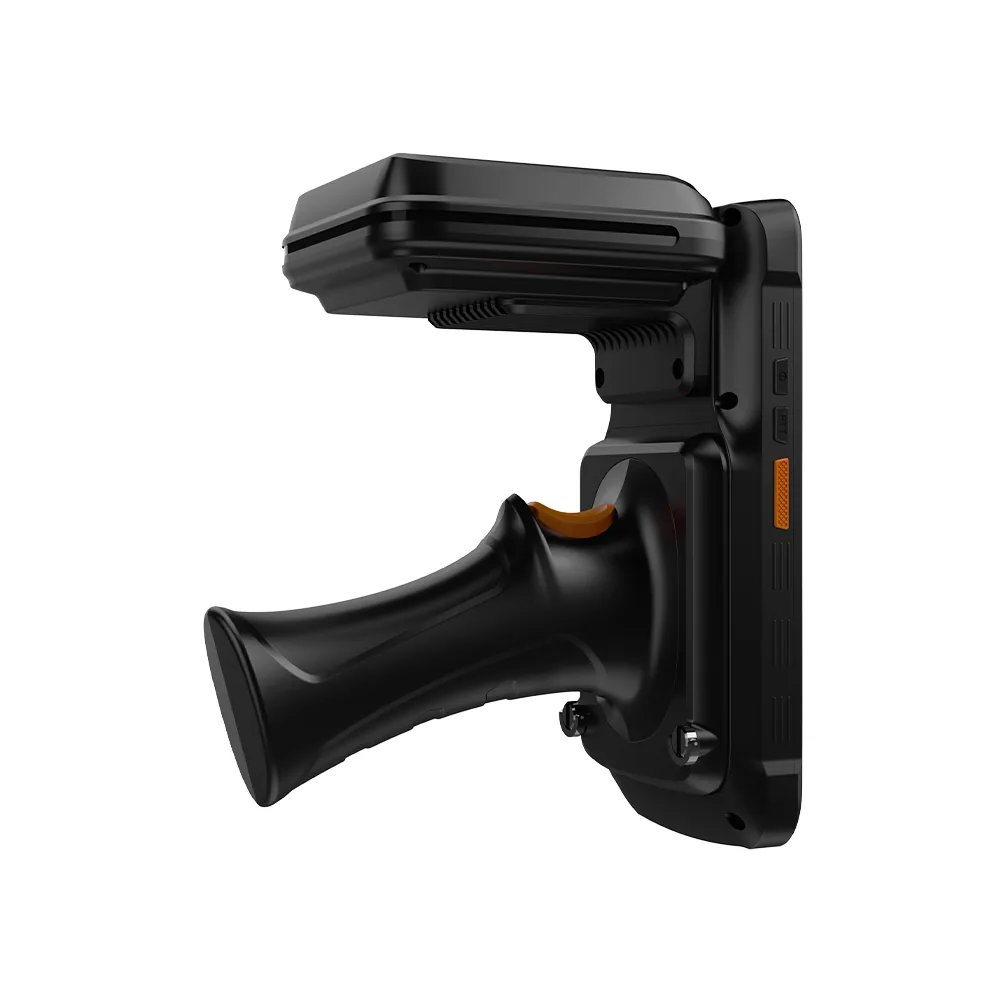

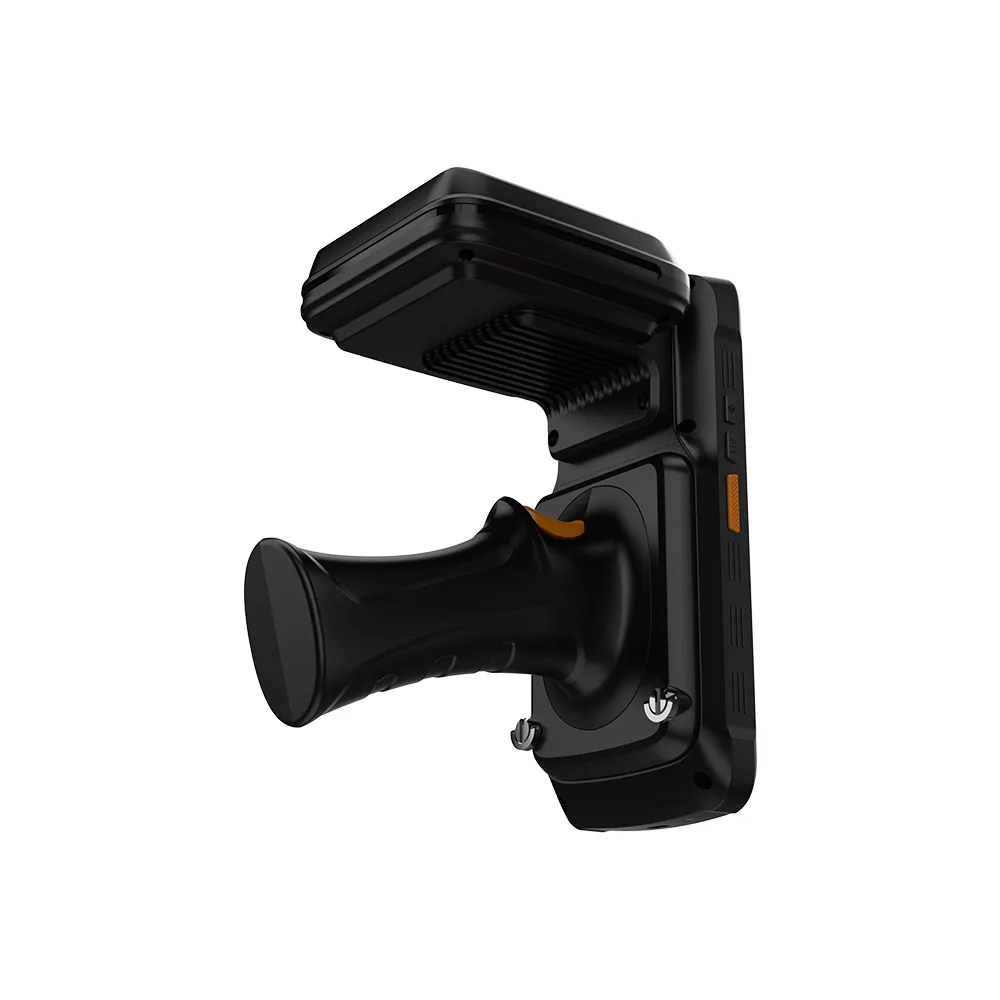

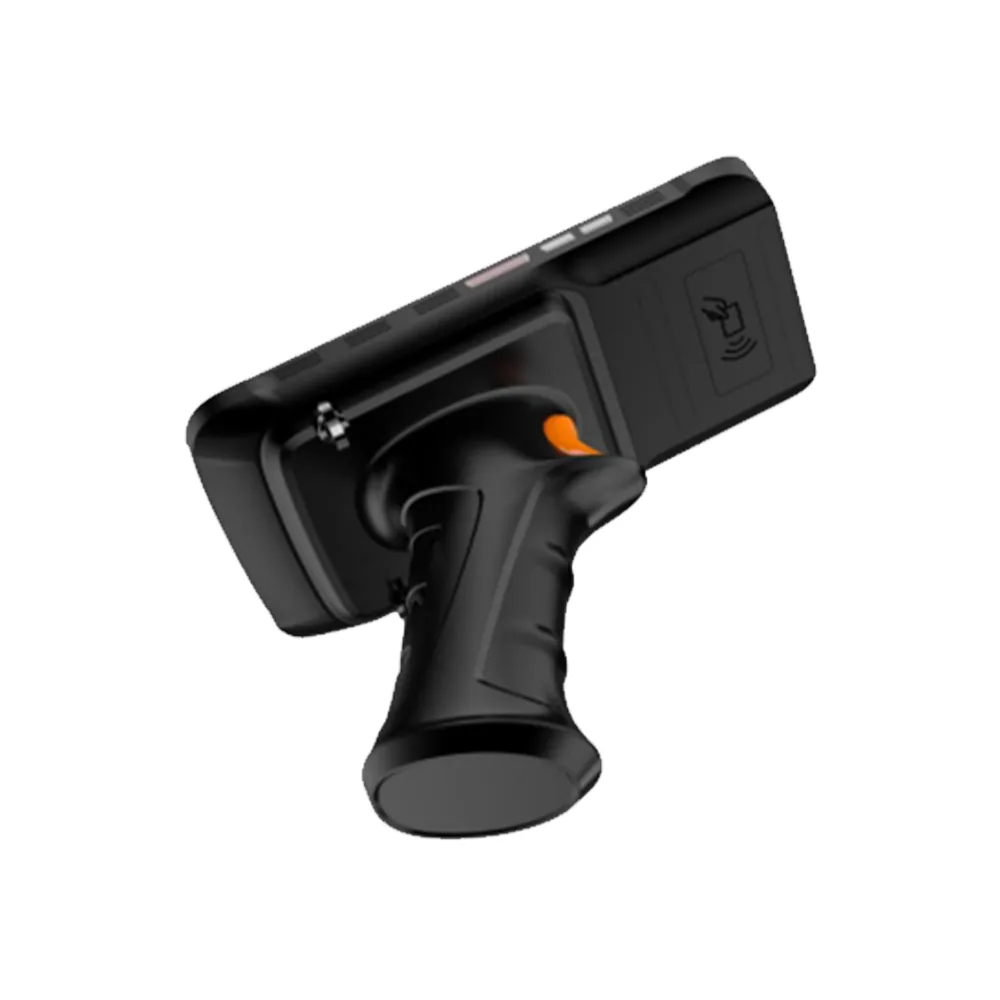

Compact dimensions: 170 × 79 × 22.6 mm, weight <700g. Built for warehouse, utility, and field use. Side keys include Power, Volume +/‑, and two dedicated SCAN buttons for one‑handed operation.Comprehensive Connectivity
Dual‑band Wi‑Fi 6 ready (2.4/5GHz, 802.11 a/b/g/n/ac/ax)
Bluetooth 5.1
Global 4G LTE – choose CN version (China/India) or EAU version (Europe, Middle East, Africa, Korea, Thailand, Australia)
GPS/GLONASS/BeiDou for location tagging
Professional Imaging & Feedback
Rear 16 MP autofocus camera with flash (front 8 MP optional) • Tri‑color breathing light • Motor vibration • Loudspeaker & microphone support voice calls.
Key Technical Specifications
| Feature | Detail |
|---|---|
| Display | 5.5″ IPS HD+ (720×1440), multi‑touch |
| Processor | Qualcomm SM6225, octa‑core 2.4 GHz |
| Operating System | Android 13.0 |
| Memory | 4GB RAM + 64GB ROM, expandable via TF to 256GB |
| Battery | 3.8V 10000mAh, detachable; USB‑C PD support |
| Dimensions | 170 × 79 × 22.6 mm |
| Weight | <700g |
| Interfaces | Nano‑SIM ×2, TF slot, Type‑C (OTG, PD), optional PSAM ×2 |
| Audio | Loudspeaker, microphone, voice call support |
| Camera | Rear 16 MP autofocus with flash; front 8 MP (optional) |
| Indicators | Tri‑color breathing light, vibration motor |
| Side Keys | Power, Volume +/‑ , SCAN button ×2 |
| Sensors (optional) | Gravity / Gyroscope / Magnetic |
| Operating Temp | -10℃ to 50℃ |
| Storage Temp | -40℃ to 70℃ |
| Humidity | 5%RH – 95%RH (non‑condensing) |
UHF RFID – Impinj E710
| Parameter | Detail |
|---|---|
| Module | Impinj E710 |
| Frequency | FCC (902‑928MHz) / ETSI (865‑868MHz) / SRRC (840‑845, 920‑925MHz) |
| Protocol | EPC Class 1 Gen 2 (ISO 18000-6C) |
| Read Distance | 10 – 20 meters (4dBi antenna) |
| Read Rate | ≥900 tags/s |
Optional Functions – Tailor to Your Application
2D Barcode Scanning Engine
Accuracy ≥3mil – reads all standard 1D/2D barcodes, even damaged or low‑contrast labels.PSAM (2 Slots)
Supports ISO/IEC 7816‑1/2/3/4 – two PSAM card slots for secure key storage, payment authentication, or government ID verification.NFC (already standard? – not listed as optional but similar to other models; however this datasheet doesn’t show NFC as optional, only 2D and PSAM. I’ll only mention what’s listed.)
Note: NFC is not explicitly listed in this datasheet; stick to 2D and PSAM.
Optimized for Your Industry
Assets Inventory Management – Quickly locate and count high‑value assets from a distance (up to 20m).
Retail Store Management – Perform rapid cycle counts, find misplaced items, and manage stock in real time.
Book Inventory Management – Scan entire shelves of RFID‑tagged books without line‑of‑sight.
Power Inspection Management – Read utility asset tags from a safe distance, record readings with GPS and camera.
What’s in the Box
Standard accessories: Power adapter ×1, USB data cable ×1, Battery ×1, Protective film ×1, User manual ×1.
Ready to Transform Your RFID Workflow?
The R366C‑S handheld terminal offers unmatched UHF RFID performance (Impinj E710, up to 20m range), marathon battery life (10000mAh), and Android flexibility. Contact us for a demo, sample testing, or volume pricing.
Email: Victory.Wang@szfuzheng.com
Plan the display review for a similar device
This R366C-S reference shows a host-product application. It does not establish the availability of a replacement screen, a named customer relationship, or qualification of a new display assembly.
Mechanical and touch fit
Compare the active area and full module outline with the enclosure opening. Include thickness, mounting, FPC routing, touch area and cover lens in the same drawing review. The nominal screen size alone is not sufficient to confirm fit.
Electrical compatibility and sample scope
Collect the host interface, connector pin assignment, power requirements and software configuration before shortlisting a module. Evaluate the sample with the real UI and front assembly, and record the operating conditions that need to be demonstrated.
Review the interface checklist and prepare the drawing and touch checklist before sending an inquiry.
