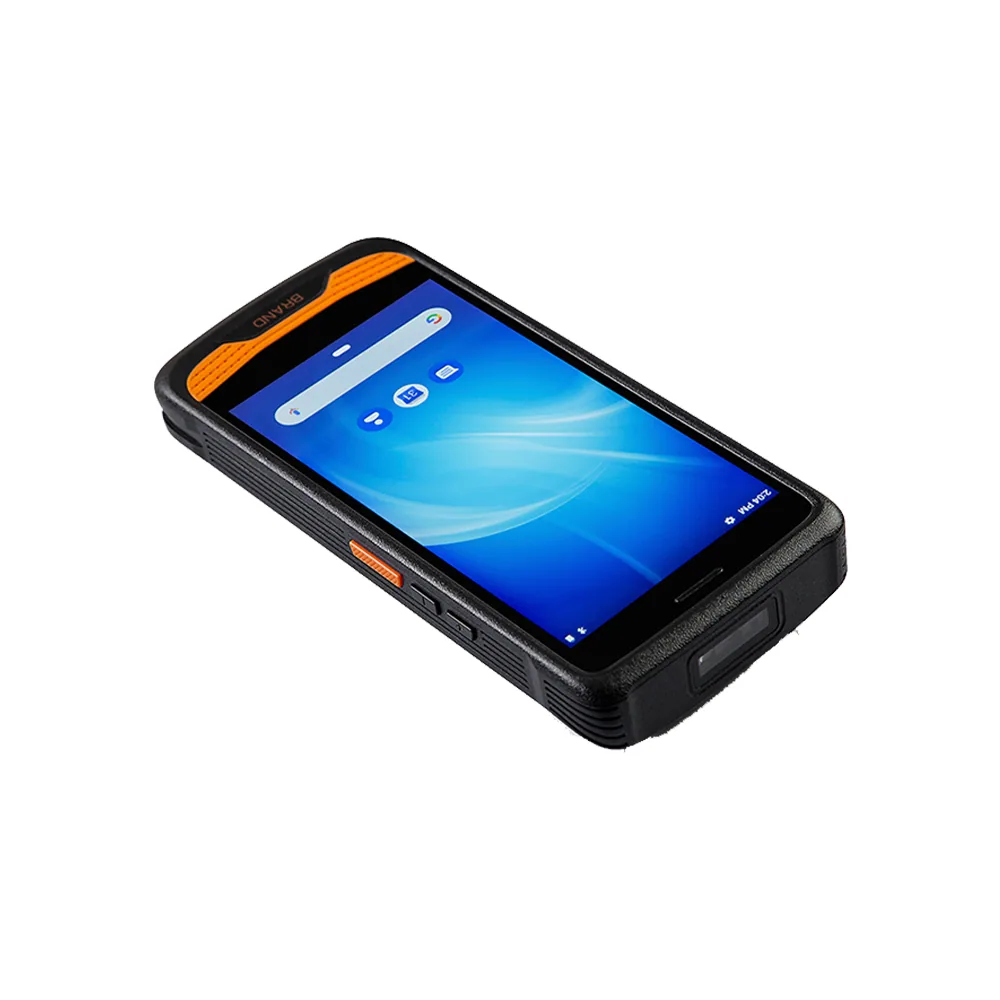

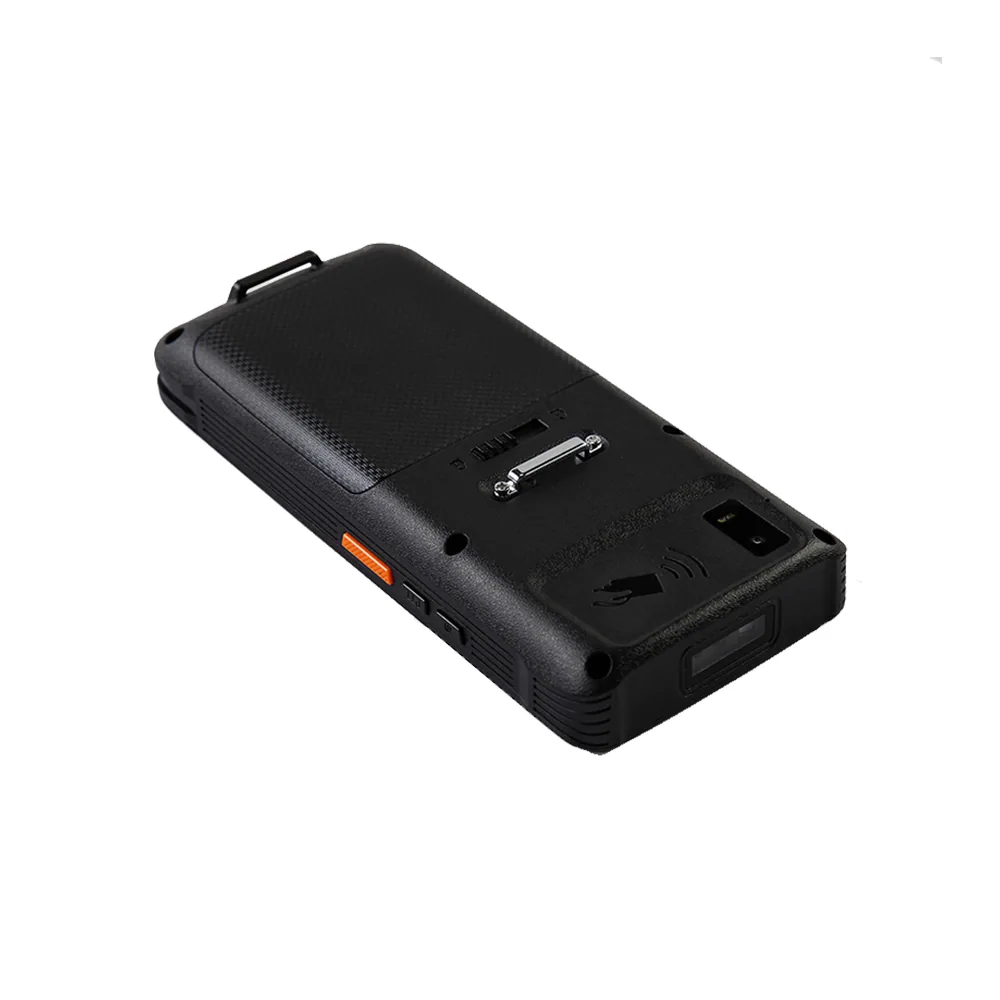

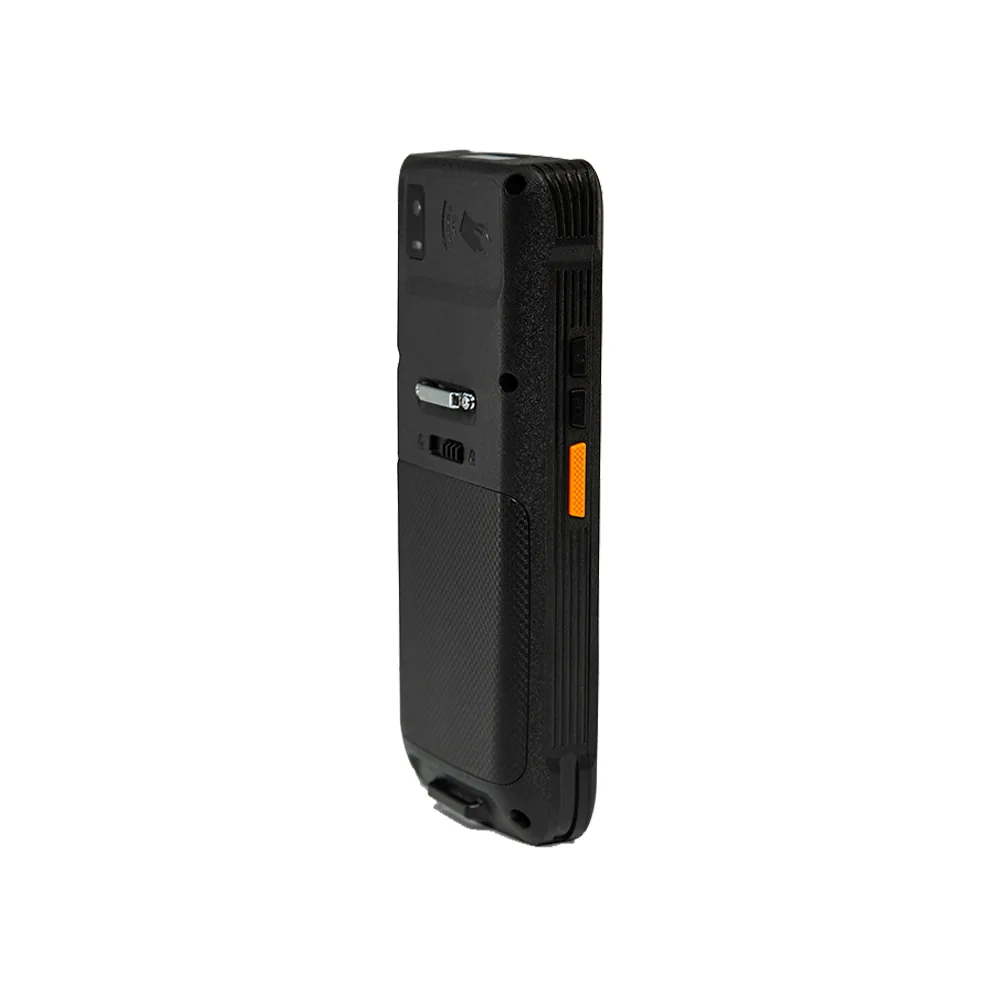

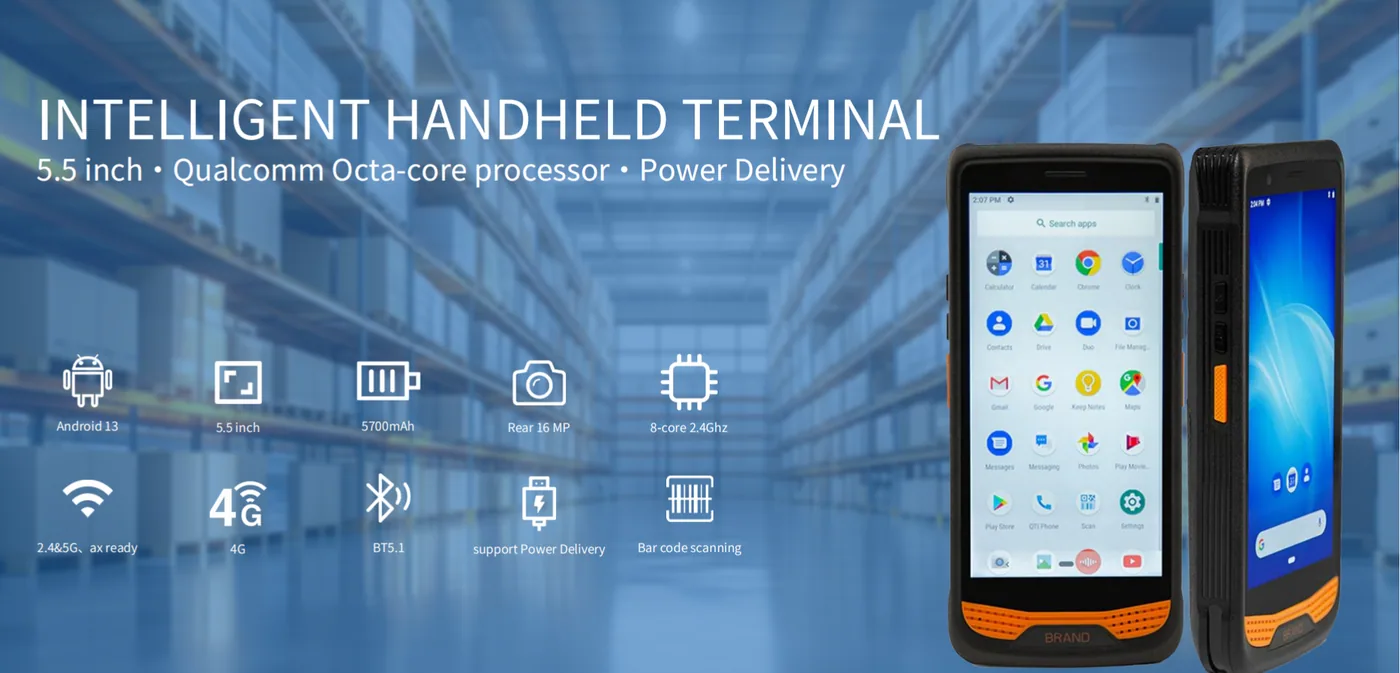

R366A‑S Rugged Handheld Computer
5.5″ IPS HD+ | Octa‑Core Power | 5700mAh with PD | UHF RFID & PSAM Ready
The R366A‑S handheld terminal combines a large 5.5‑inch IPS HD+ display, Qualcomm SM6225 octa‑core 2.4GHz processor, and a massive 5700mAh detachable battery with Power Delivery (PD) support. Built for demanding industrial environments, it offers optional UHF RFID (up to 2m read range), 2D barcode scanning, NFC, and 4 PSAM slots for secure payment or identity applications.
Why Choose R366A‑S?

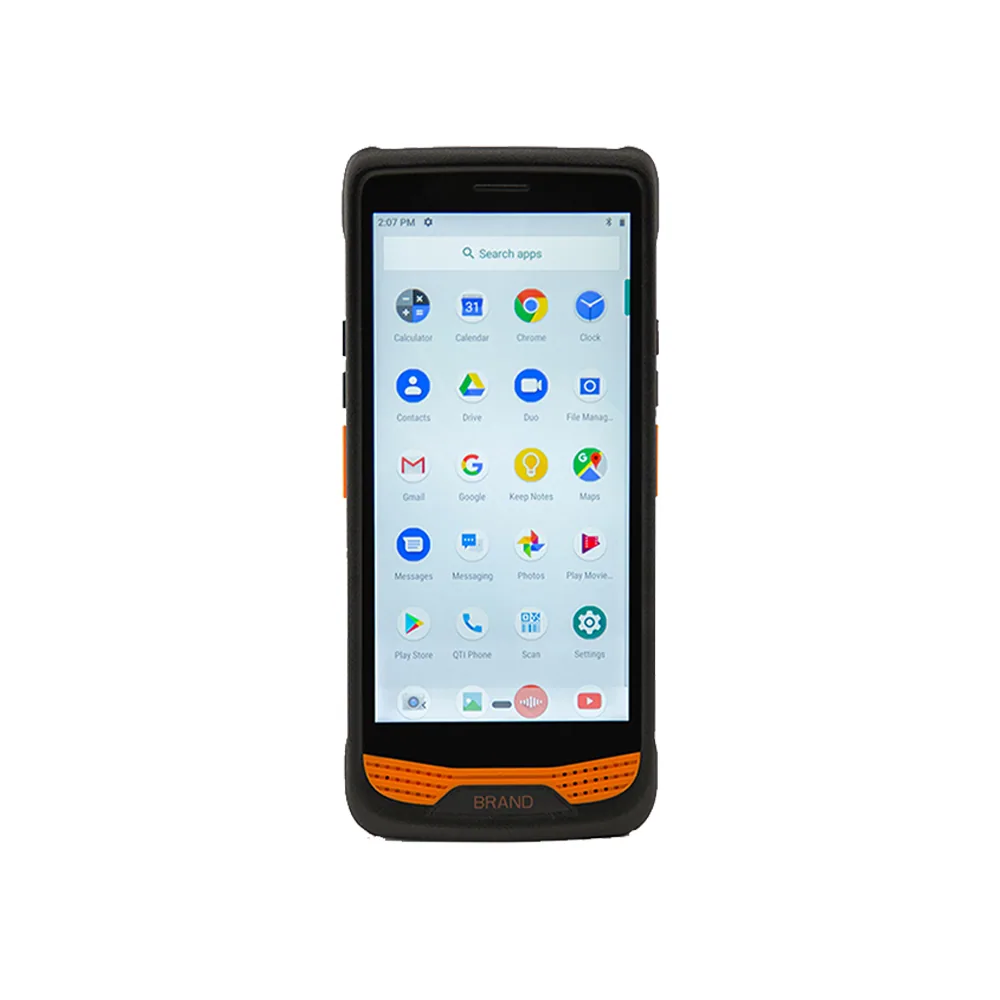

Large, Crisp Display
The 5.5‑inch IPS HD+ screen (720×1440) with multi‑touch provides excellent visibility for inventory lists, forms, and maps – even outdoors.High Performance
Powered by the Qualcomm SM6225 octa‑core 2.4GHz and Android 13 with 4GB RAM + 64GB ROM (expandable to 256GB via TF card), it handles complex apps and data processing with ease.All‑Day Battery + Fast Charging
The 3.8V / 5700mAh detachable battery keeps you working through long shifts. USB Type‑C with Power Delivery support means rapid charging when you need it.Rugged, Ergonomic Design

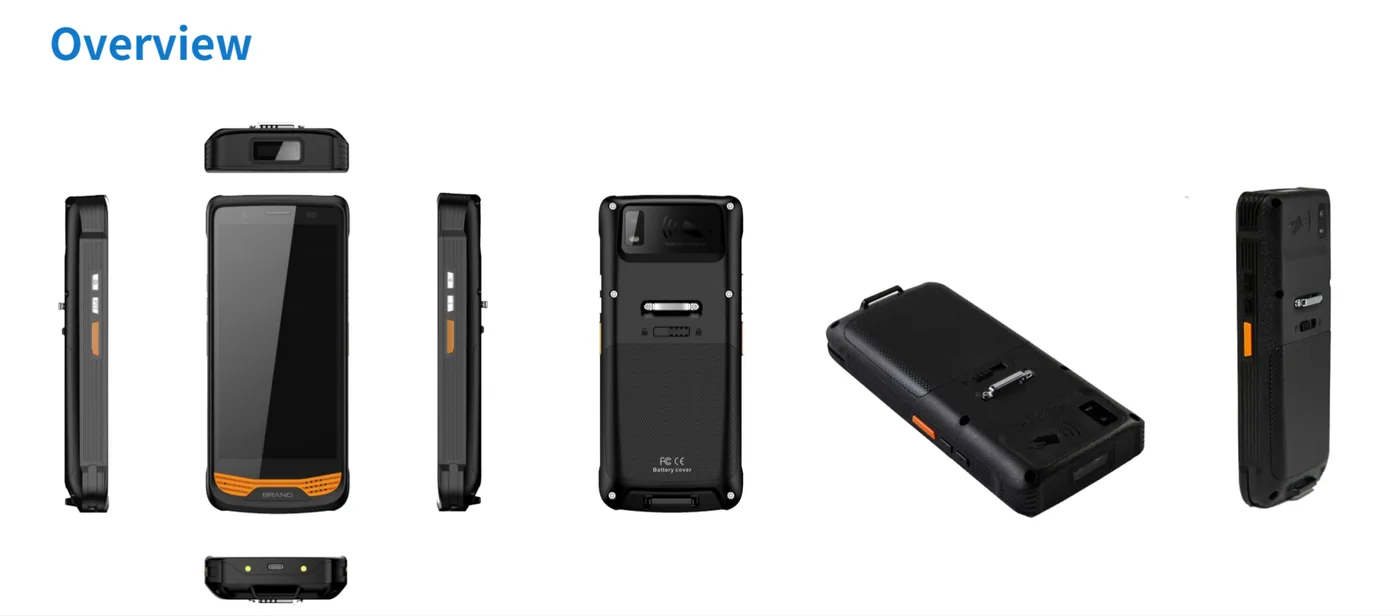

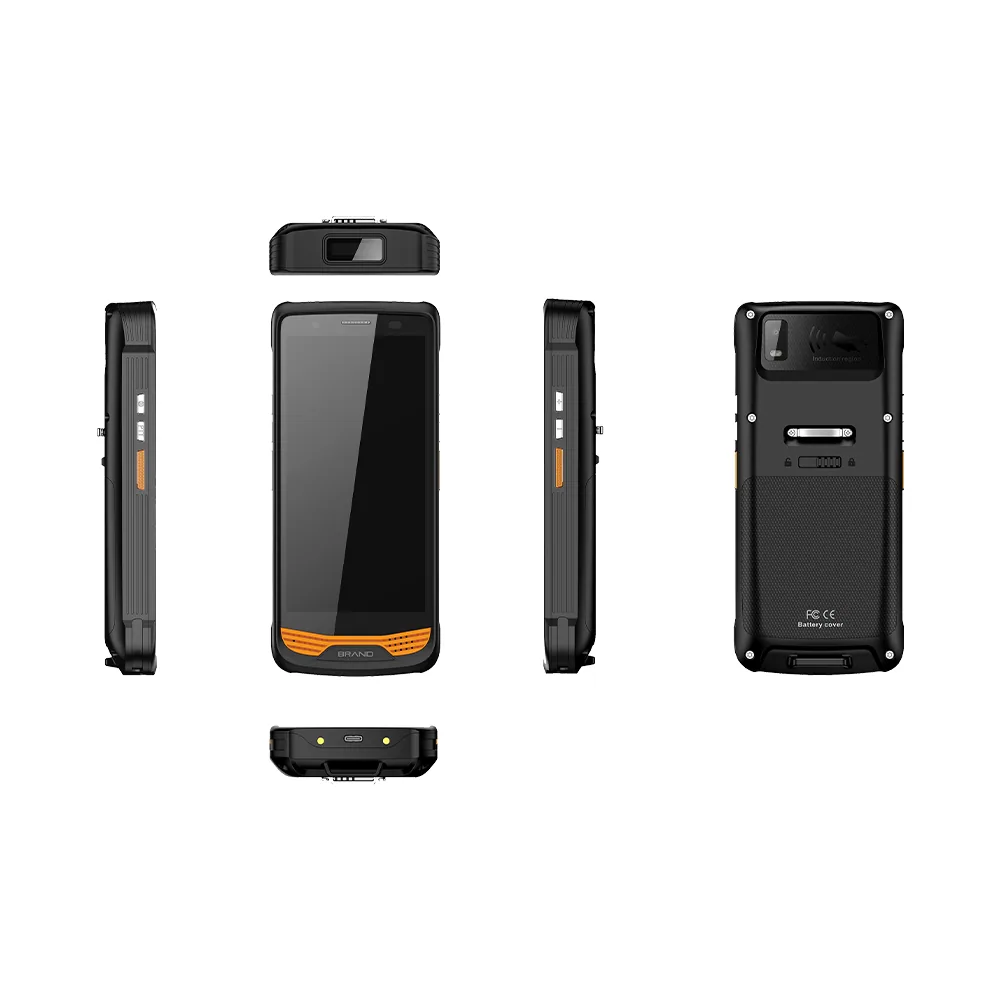

At 170 × 79 × 22.6mm and under 500g, the device is compact enough for daily carry yet durable for warehouse, logistics, and field operations.Comprehensive Connectivity
Dual‑band Wi‑Fi (2.4/5GHz) with 802.11 a/b/g/n/ac/ax ready
Bluetooth 5.1
Global 4G LTE – choose CN version (China/India bands) or EAU version (Europe, Middle East, Africa, Korea, Thailand, Australia)
GPS/GLONASS/BeiDou for location tracking
Rich Input & Feedback

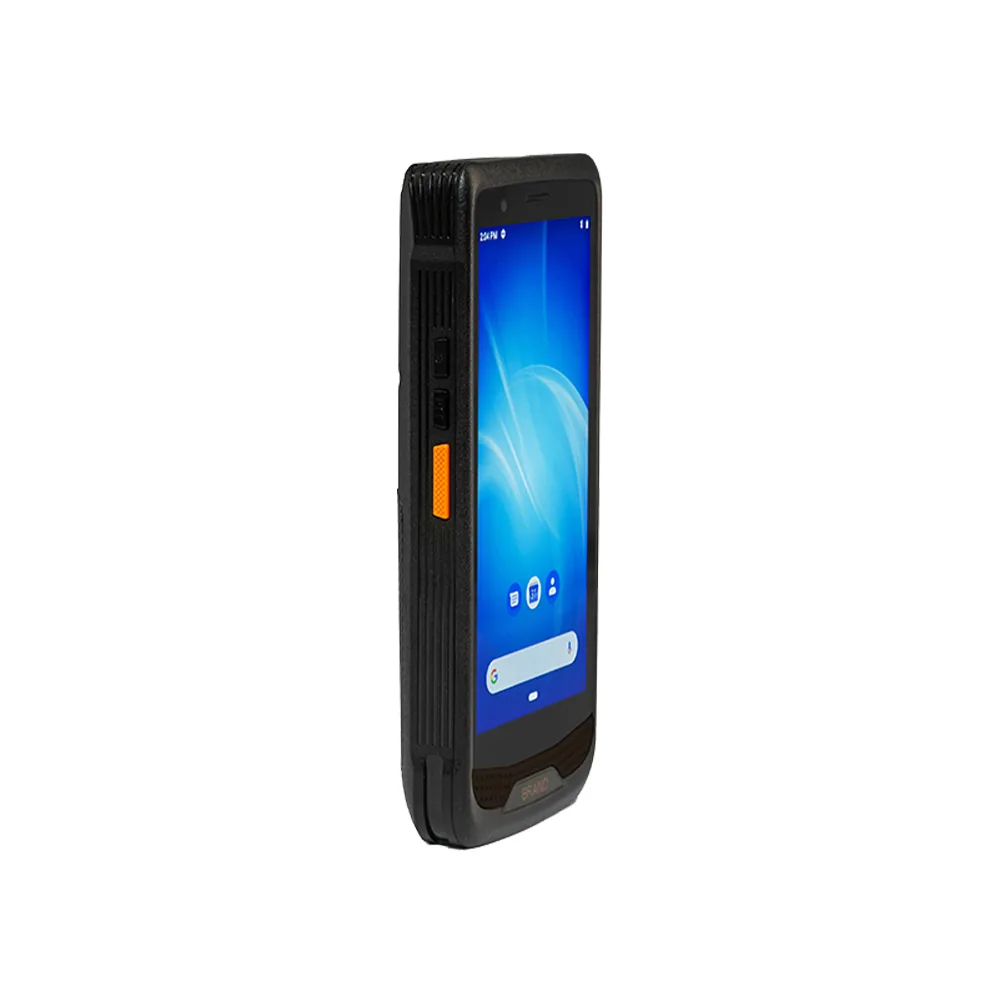

Physical side keys: Power, Volume +/‑, two scan buttons • Tri‑color breathing light • Motor vibration • Loudspeaker & microphone support voice calls.Professional Cameras

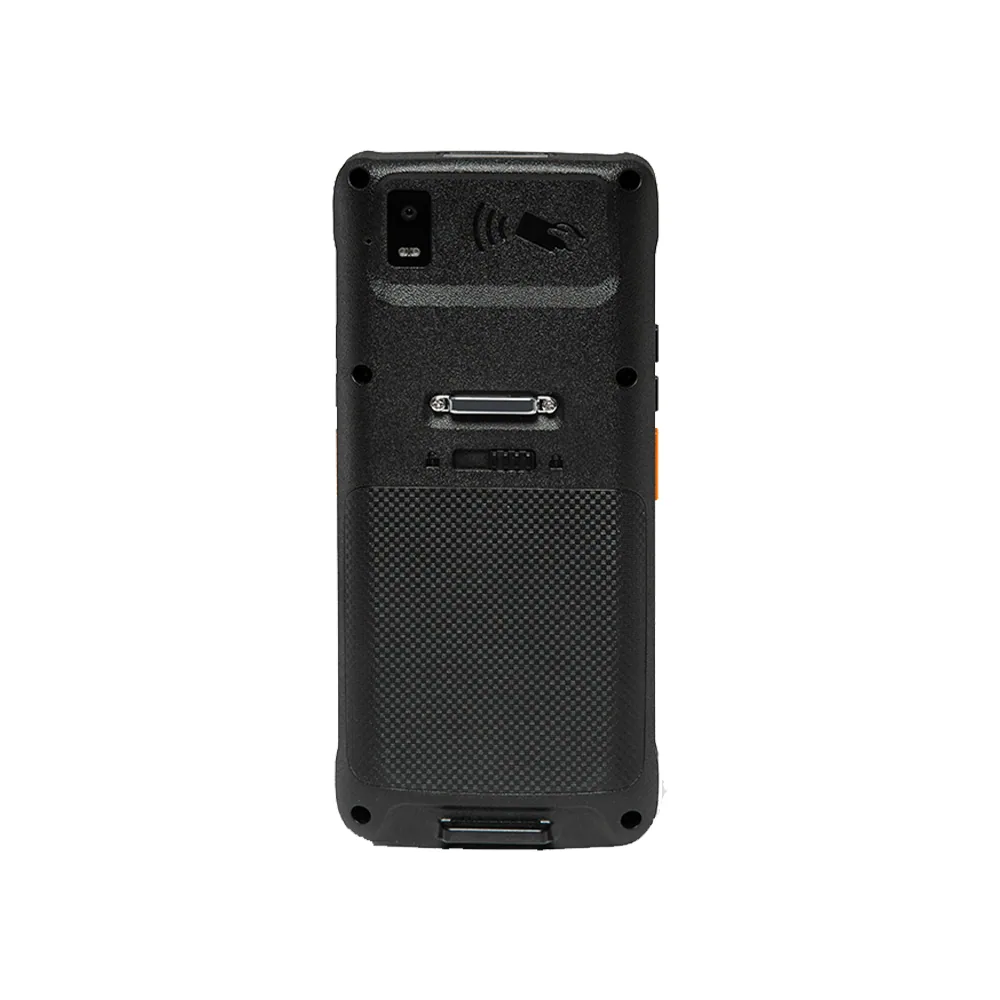

Rear 16 MP autofocus camera with flash (front 8 MP optional). Capture photos of assets, damaged packages, or documents.
Key Technical Specifications
| Feature | Detail |
|---|---|
| Display | 5.5″ IPS HD+ (720×1440), multi‑touch |
| Processor | Qualcomm SM6225, octa‑core 2.4 GHz |
| Operating System | Android 13.0 |
| Memory | 4GB RAM + 64GB ROM, expandable via TF to 256GB |
| Battery | 3.8V 5700mAh, detachable; USB‑C PD support |
| Dimensions | 170 × 79 × 22.6 mm |
| Weight | <500g |
| Interfaces | Nano‑SIM ×2, TF slot, Type‑C (OTG, PD), optional PSAM ×4 |
| Audio | Loudspeaker, microphone, voice call support |
| Camera | Rear 16 MP autofocus with flash; front 8 MP (optional) |
| Indicators | Tri‑color breathing light, vibration motor |
| Side Keys | Power, Volume +/- , SCAN button ×2 |
| Sensors (optional) | Gravity / Gyroscope / Magnetic |
| Operating Temp | -10℃ to 50℃ |
| Storage Temp | -40℃ to 70℃ |
| Humidity | 5%RH – 95%RH (non‑condensing) |
Optional Functions – Configure for Your Workflow
2D Barcode Scanning Engine
Accuracy ≥3mil – reads all standard 1D/2D barcodes, even worn or low‑contrast labels.NFC Reader/Writer
Frequency 13.56MHz • Supports ISO14443A/B, ISO15693, NFC tags • Read/write M1 (S50, S70), CPU tags • Distance 2‑3cm – ideal for access control, inventory verification, or contactless payments.UHF RFID (Built‑in Ceramic Module)
Module: 40×40 ceramic antenna
Frequency options: FCC (902‑928MHz) / ETSI (865‑868MHz) / SRRC (840‑845 & 920‑925MHz)
Protocol: EPC Class 1 Gen 2 (ISO 18000-6C)
Read distance: ≤2 meters – perfect for medium‑range asset tracking and inventory counts.
PSAM (4 Slots)
Supports ISO/IEC 7816‑1/2/3/4 – four PSAM card slots for secure key storage, payment authentication, or government ID verification.
Optimized for Your Industry
Logistics & Courier – Scan barcodes, capture signatures, track parcels with GPS, and process payments securely.
Warehouse Management – Perform cycle counts with UHF RFID (≤2m) and barcode scanning.
Retail & Inventory – Check prices, update stock, and use NFC for customer engagement.
Secure Payment / E‑ticketing – Leverage 4 PSAM slots for encrypted transactions or fare collection.
Asset Tracking – Attach UHF tags to equipment or vehicles for quick, non‑line‑of‑sight reading.
What’s in the Box
Standard accessories: Power adapter ×1, USB data cable ×1, Battery ×1, Protective film ×1, User manual ×1, Wrist strap ×1.
Ready to Upgrade Your Operations?
The R366A‑S handheld terminal delivers a perfect balance of screen size, processing power, battery life, and optional RFID/PSAM functionality. Contact us for a demo, custom configuration, or volume pricing.
Email: Victory.Wang@szfuzheng.com
Plan the display review for a similar device
This R366A-S reference shows a host-product application. It does not establish the availability of a replacement screen, a named customer relationship, or qualification of a new display assembly.
Mechanical and touch fit
Compare the active area and full module outline with the enclosure opening. Include thickness, mounting, FPC routing, touch area and cover lens in the same drawing review. The nominal screen size alone is not sufficient to confirm fit.
Electrical compatibility and sample scope
Collect the host interface, connector pin assignment, power requirements and software configuration before shortlisting a module. Evaluate the sample with the real UI and front assembly, and record the operating conditions that need to be demonstrated.
Review the interface checklist and prepare the drawing and touch checklist before sending an inquiry.
