R2 Ultra‑Rugged Handheld Terminal
Long‑Range UHF RFID | Android 13 | All‑Day Productivity

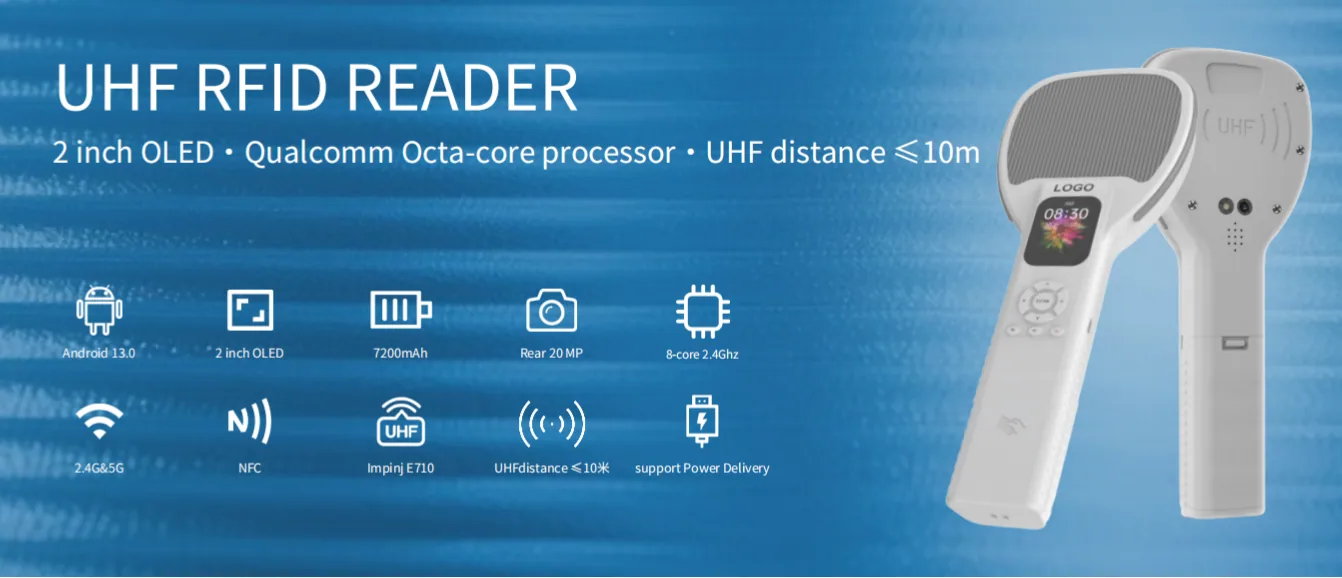

The R2 handheld mobile computer combines a powerful UHF RFID reader (≤10m read range) with a bright 2‑inch OLED display and Qualcomm octa‑core processor. Built for warehouses, retail inventory, patrol inspection, and jewelry management – it handles high‑speed RFID tag capture (≥900 tags/s) while running Android 13.
Why Choose R2?
Exceptional UHF Performance
Equipped with the Impinj E710 module, the R2 delivers reliable long‑range reading up to 10 meters (4dBi antenna). Read rates exceed 900 tags per second – perfect for bulk inventory and asset tracking.All‑Day Power, Field‑Swappable
The 7.6V / 3600mAh detachable battery keeps you working without downtime. Swap batteries in seconds – no need to power off.Compact & Lightweight
Weighing under 700g and measuring 275.5mm × 30.3mm, the R2 is comfortable for extended shifts while remaining rugged enough for industrial environments.Future‑Ready Connectivity
Dual‑band Wi‑Fi 6 (2.4/5GHz, 802.11 a/b/g/n/ac/ax)
Bluetooth 5.1
Global 4G LTE (supports EAU bands: B1/3/5/7/8/20/28, B38/40/41)
GPS/GLONASS/BeiDou for location‑based tasks
Professional Imaging & Interaction
20 MP autofocus rear camera with flash • Multi‑touch screen • Physical navigation keys (UP/DOWN/LEFT/RIGHT/Scan, Return, OK) • Tricolor breathing light and dual indicator lights
Key Technical Specifications
| Feature | Detail |
|---|---|
| Display | 2″ OLED (410×502), multi‑touch |
| Processor | Qualcomm SM6225, octa‑core 2.4 GHz |
| Operating System | Android 13.0 |
| Memory | 4GB RAM + 64GB ROM, expandable via TF up to 256GB |
| UHF Module | Impinj E710 |
| Read Distance | ≤10m (FCC/ETSI/SRRC) |
| Read Rate | ≥900 tags/s |
| Protocol | EPC Class 1 Gen 2 (ISO 18000-6C) |
| Optional | 2D barcode scanning (≥3mil), NFC (13.56MHz, ISO14443A/B/15693) |
| Battery | 7.6V 3600mAh, detachable |
| Dimensions | 275.5 × 51(104) × 30.3 mm |
| Weight | <700g |
| Interface | USB Type‑C (OTG, PD), dual Nano‑SIM option |
| Sensors | Gravity / Gyroscope / Magnetic (optional) |
| Operating Temp | -10℃ to 50℃ |
Optimized for Your Industry
Warehouse Inventory – Scan entire pallets from a distance, reduce walking time.
Patrol Inspection – Record checkpoints with GPS and RFID evidence.
Jewelry & Luxury Retail – Instantly verify high‑value items with short‑range NFC and UHF.
Clothing Inventory – Bulk read RFID‑tagged garments – count hundreds per second.
Optional Functionality – One Device, Many Uses
2D Scanning Engine (accuracy ≥3mil) for barcode‑only workflows.
NFC Reader/Writer – read/write M1 (S50/S70), CPU, and NFC tags from 2‑3 cm.
Multi‑region UHF – FCC (902‑928MHz), ETSI (865‑868MHz), or SRRC (840‑845/920‑925MHz).
Ready to Upgrade Your Operations?
The R2 handheld terminal delivers enterprise‑grade RFID performance, Android flexibility, and outstanding durability. Contact us for a demo or volume pricing.
