Model no.ZT080WS04
ZT080WS04 8-Inch 800 × 600 TFT-LCD Display Module — Ref 53843325
ZT080WS04 is a 8-inch tft-lcd display module with 800 × 600 resolution and a 24 BIT RGB interface. Review the module specifications, product images and integration requirements before requesting a sample.
- 24 BIT RGB
- Resolution: 800 × 600 pixels
- Module Dimensions: 182.9 × 141 × 5.5 mm
- Interface: 24 BIT RGB
- Brightness: 1000 cd/m²
- Operating Temperature: -20 to 70 °C
- Screen Size: 8 inch
- Screen Size
- 8 inch
- Resolution
- 800 × 600 pixels
- Display Mode
- Normally black, Transmissive
- Interface
- 24 BIT RGB
- Viewing Angle
- 80/80/80/80
Specification confirmation. Confirm active area against the latest approved specification before design-in.
ZT080WS04 product introduction
ZT080WS04 is a 8-inch tft-lcd display module with 800 × 600 resolution and a 24 BIT RGB interface. Review the module specifications, product images and integration requirements before requesting a sample. The standard tft lcd displays format helps define the display area and user-interface layout while the exact model reference keeps the optical, electrical and mechanical requirements tied to one assembly.
Module Dimensions: 182.9 × 141 × 5.5 mm. Brightness: 1000 cd/m². Operating Temperature: -20 to 70 °C. Use these published characteristics to compare ZT080WS04 with the requirements of your equipment. Brightness, viewing direction and touch operation should be evaluated in the intended enclosure, lighting and user environment.
The 24 BIT RGB connection on ZT080WS04 should be checked against the host controller and connector arrangement. Review supply levels, backlight drive, cable routing and the matching pin assignment before connecting a sample. A shared interface name alone does not establish compatibility between two modules.
Product features
The following ZT080WS04 attributes are listed for this assembly. Select the module by the requirements that affect your product, including the optical output, controller interface and mechanical envelope.
- Resolution: 800 × 600 pixels
- Module Dimensions: 182.9 × 141 × 5.5 mm
- Interface: 24 BIT RGB
- Brightness: 1000 cd/m²
- Operating Temperature: -20 to 70 °C
- Screen Size: 8 inch
Technical specifications
| Parameter | Value |
|---|---|
| LCM | 8 Inch 800*600 IPS TFT LCD Module |
| Resolution | 800 × 600 pixels |
| Module Dimensions | 182.9 × 141 × 5.5 mm |
| Interface | 24 BIT RGB |
| Display Mode | Normally Black, Transmissive |
| Working Temperatures | -20 To 70 Degree |
| Storage Temperature | -30 to 80 °C |
| Driver Controller | JD9165A-A3 |
| Model Size (W*H*T)mm | 182.9*141*5.5 mm |
| Viewing | ALL |
| Brightness | 1000 cd/m² |
| Pin Count | 50 |
| Viewing Angle | 80/80/80/80 |
| Operating Temperature | -20 to 70 °C |
| Screen Size | 8 inch |
Confirm active area against the latest approved module specification before design-in.
Interface & pin definition
Use the ZT080WS04 electrical documentation to confirm pin numbering, signal direction, voltage limits, backlight connections and any touch-controller wiring. The connector and FPC arrangement must match the host electronics and the quoted assembly.
| Parameter | Value |
|---|---|
| Interface | 24 BIT RGB |
| Pin Count | 50 |

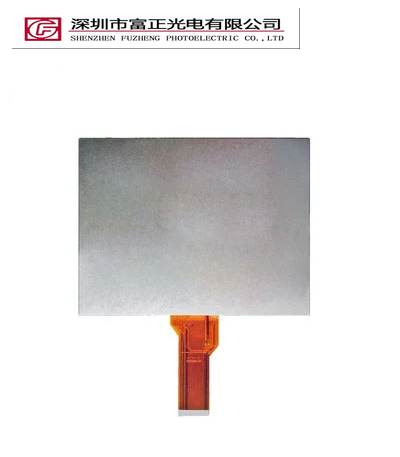

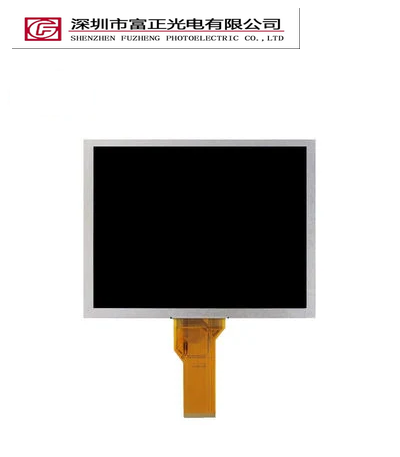

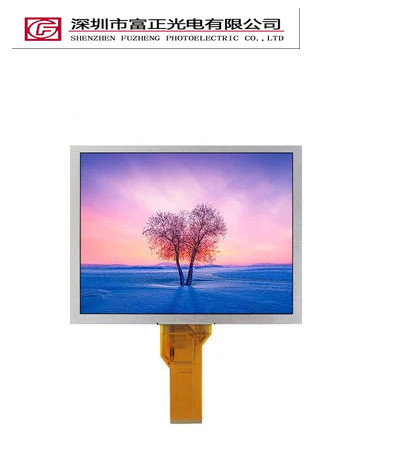

Product photographs
Mechanical drawings & documents
Request the ZT080WS04 mechanical drawing and datasheet with your project inquiry. Confirm the outline, active area, mounting features and FPC position before finalizing the enclosure.
Application & selection guidance
ZT080WS04 can be evaluated for equipment user interfaces and embedded instruments and control panels. These are integration directions: suitability depends on the final optical, electrical, mechanical and environmental requirements.
Compare the 8-inch display format with your available viewing area, then check 800 × 600 pixel resolution, 24 BIT RGB host connectivity, touch operation and power requirements. Evaluate a sample in the real enclosure before approving production. Share the target conditions and quantity so Fuzheng can review the selected ZT080WS04 configuration.
