Model no.FZ1001R50-TP

10.1-Inch 1024x600 RGB Touch TFT-LCD

FZ1001R50-TP is a color active matrix LCD module incorporating amorphous silicon TFT (Thin Film Transistor). It is composed of a color TFT-LCD panel, driver IC, FPC and a back light unit. The module display area contains 1024x 600pixels. This product accords with RoHS environmental criterion.

  • TFT
  • Parallel RGB 24-bit
  • CTP (capacitive touch panel)
Screen Size
10.1 inch
Resolution
1024(RGB) x600
Technology
TFT
Interface
Parallel RGB 24-bit
Touch
Capacitive touch
Viewing Direction
ALL
Discuss this module with our team

Review the listed module configuration and confirm the matching specification and drawing revision with your inquiry.

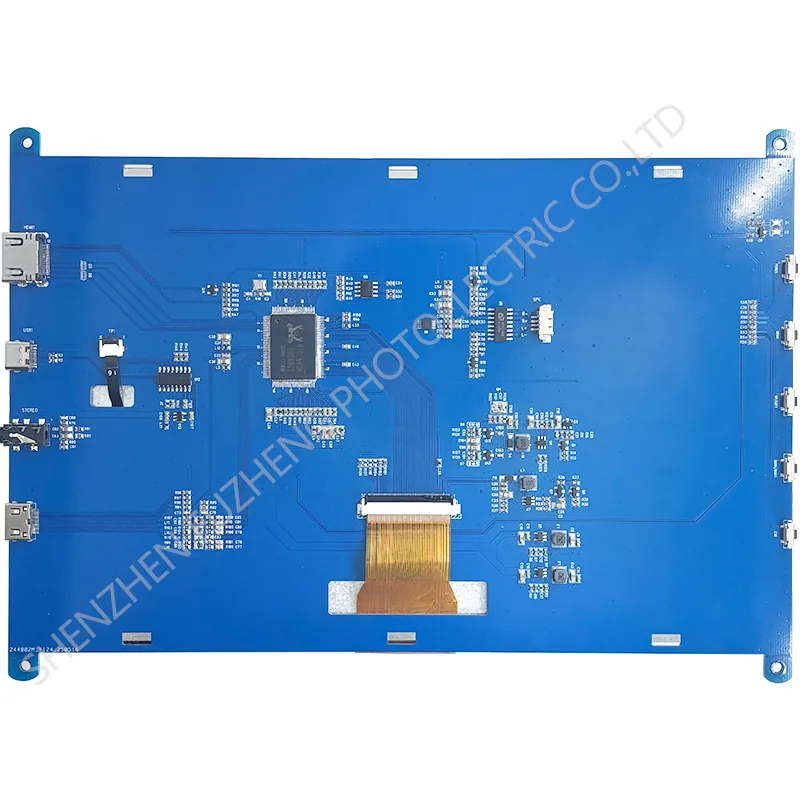

Specification confirmation. The source heading identifies FZ1001R50-TP, while its technical table identifies FZ10L140-TP. Source photography also shows an adapter-board assembly. Confirm the exact module, interface and matching drawing before quotation or connection.

Product overview

FZ1001R50-TP is a color active matrix LCD module incorporating amorphous silicon TFT (Thin Film Transistor). It is composed of a color TFT-LCD panel, driver IC, FPC and a back light unit. The module display area contains 1024x 600pixels. This product accords with RoHS environmental criterion.

Note1:If users use the product out off the environmemtal operation range(temperature and humidity),it will have visual quality concerns.

Note3:DVDD setting should match the signals output voltage(refer to Note4)of customer's system board.

Note5:Typical VCOM is only a reference value,it must be optimized according to each LCM. Please ues VR and base on below application circuit.

Confirm the FZ1001R50-TP assembly against the latest specification and drawing revision before design-in.

Product highlights

    Technical specifications

    Values are normalized from the current product record; no missing parameter is estimated.

    Published specifications for 10.1-Inch 1024x600 RGB Touch TFT-LCD
    SpecificationPublished value
    Screen Size 10.1 inch
    Resolution 1024(RGB) x600
    Technology TFT
    Interface Parallel RGB 24-bit
    Touch CTP (capacitive touch panel)
    Brightness 400
    Viewing Direction ALL
    Backlight 6*7chips white LED
    Module Dimensions 235x143x3.5
    Active Area 222.72x125.28
    Input Voltage 3.3
    Operating Temperature -20 -- 70 °C
    Storage Temperature -30 -- 80 °C
    Model FZ10L140-TP
    LED Life span 30000
    Power Voltage DVDD
    AVDD 10.65

    Mechanical fit

    Screen Size
    10.1 inch
    Module Dimensions
    235x143x3.5
    Active Area
    222.72x125.28

    Allow space for the FPC, connector, cover lens and mounting. Use an approved, version-matched drawing before fixing the enclosure.

    Review drawing availability →

    The source heading identifies FZ1001R50-TP, while its technical table identifies FZ10L140-TP. Source photography also shows an adapter-board assembly. Confirm the exact module, interface and matching drawing before quotation or connection.

    Published technical data

    Published technical data for 10.1-Inch 1024x600 RGB Touch TFT-LCD
    ItemContentsUnit
    ModelFZ10L140-TP—
    LCD TypeTFT/
    Viewing directionALLO' Clock
    Size10.1 inchinch
    Module outline (W x HxD)235x143x3.5mm
    Active area (WxH)222.72x125.28mm
    Resolution (pixels)1024(RGB) x600/
    Interface TypeParallel RGB 24-bit/
    Input voltage3.3V
    Luminance400cd/m2
    Backlight type and color6*7chips white LED—

    Controller IC

    Controller IC for 10.1-Inch 1024x600 RGB Touch TFT-LCD
    ParameterPublished valueNotes
    Touch typeCTP (capacitive touch panel)—
    LED Life span:30000hour
    Operating temperature range:-20 -- 70 °C—
    Storage temperature range:-30 -- 80 °C—

    Published technical data

    Published technical data for 10.1-Inch 1024x600 RGB Touch TFT-LCD
    ItemSymbolValuesUnitRemarkColumn 6
    Min.Typ.Max.———
    Power VoltageDVDD3.03.33.6V
    AVDD10.6510.8511.05V—
    VGH202122V—
    VGL--8-V—
    Input signal voltageVCOM3.63.84.2V
    Input logic high voltageVIH0.9VDD-DVDDV
    Input logic low voltageVIL0-0.1DVDDV

    Published technical data

    Published technical data for 10.1-Inch 1024x600 RGB Touch TFT-LCD
    ItemSymbolValuesUnitRemarkColumn 6Column 7
    Min.Typ.Max.————
    Current for DriverIGH-0.501mAVGH=18.0V
    IGL-0.501mAVGL=-6.0V—
    IVDD-815mAVDD=3.3V—
    IAVDD-3040mAAVDD=9.6V—

    Published technical data

    Published technical data for 10.1-Inch 1024x600 RGB Touch TFT-LCD
    ItemSymbolMinTypMaxUnitCondition
    Forward voltageVf-9.0-VIf= 14 0 mA
    LuminanceLv-400-cd/m2If= 140 mA
    Number of LED--42Piece--——
    Connection modeP6chips serial *7----——

    Published technical data

    Published technical data for 10.1-Inch 1024x600 RGB Touch TFT-LCD
    Pin .NoSymbolFunction
    1,2NCNC
    3,4NCNC
    5GNDPower ground
    6VCOMCommon Voltage
    7DVDDDigital Power
    8MODEDE/SYNC mode select. Normally pull high H: DE mode. L: HSD/VSD mode
    9:DEData Enable signal.
    10VSDVertical sync input. Negative polarity
    11HSDHorizontal sync input. Negative polarity
    12-19B7-R0Blue Data
    20-27G7-G0Green Data
    28-35R7-R0Red Data
    36GNDGround
    37DCLKColock signal
    38GNDGround
    39SHLRLeft or Right Display Control
    40UPDNUp / Down Display Control
    41VDDGPositive Power for TFT
    42VEEGNegative Power for TFT
    43AVDDAnalog Power
    44RSTBGlobal reset pin. Active low to enter reset state. Suggest to connecting with an RC reset circuit for stability. Normally pull high. (R=10KΩ,C=1μF)
    45NCNot connect
    46VCOMCommon Voltage
    47DITHDithering setting DITH=”H” 6bit resolution(last 2 bit of input data truncated) DITH=”L” 8bit resolution(default setting)
    48GNDPower ground
    49NCNot connect
    50NCNot connect

    Published technical data

    Published technical data for 10.1-Inch 1024x600 RGB Touch TFT-LCD
    ParameterPublished valueNotes
    1RSTTouch Reset Signal
    2VDDTouch Power supply
    3GNDGround
    4INTTouch Interrupt
    5SDAouch IIC Data signal
    6SCATouch IIC Clock signal

    Interface & integration

    Connection information for FZ1001R50-TP
    ParameterSource value
    InterfaceParallel RGB 24-bit
    TouchCTP (capacitive touch panel)
    Backlight6*7chips white LED
    Input Voltage3.3

    Confirm pin numbering, supply levels, controller revision and initialization before connecting power. Source tables are references, not a substitute for an approved electrical specification.

    Format and image area

    Published screen size: 10.1 inch. Resolution: 1024(RGB) x600. Module dimensions: 235x143x3.5. Active area: 222.72x125.28.

    Electrical connection

    Published interface: Parallel RGB 24-bit. Backlight: 6*7chips white LED.

    Optical and front assembly

    Published touch information: CTP (capacitive touch panel). Brightness: 400. Viewing direction: ALL. Operating temperature: -20 -- 70 °C.

    Drawings & technical documents

    Reference files from this product record, retained at their available source resolution.

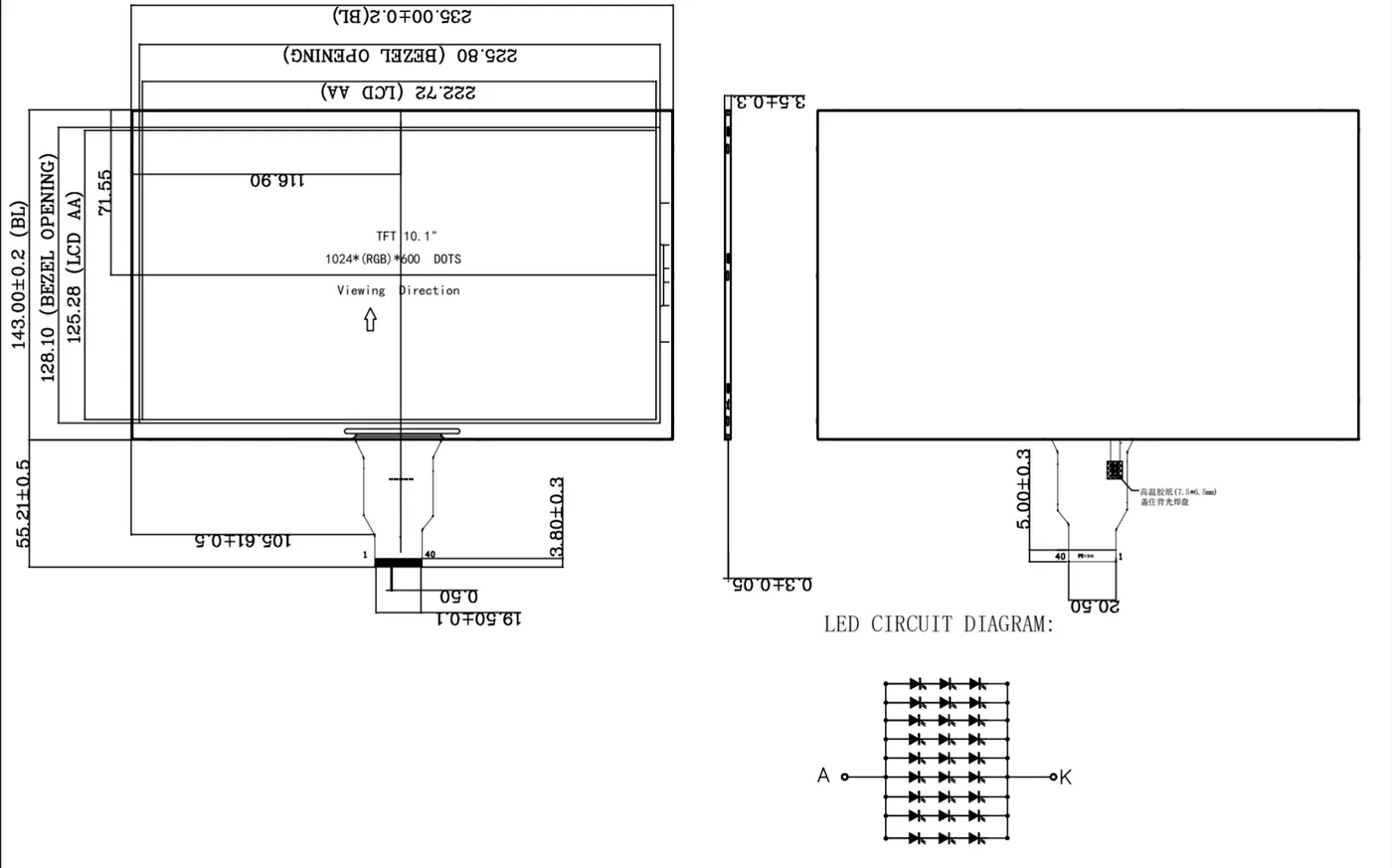

    FZ1001R50-TP reference drawing 1Inspect drawing 1 ↗

    Reference drawing 1

    Confirm the model suffix, dimensional tolerances and assembly revision with the quoted sample.

    Download source drawing ↓

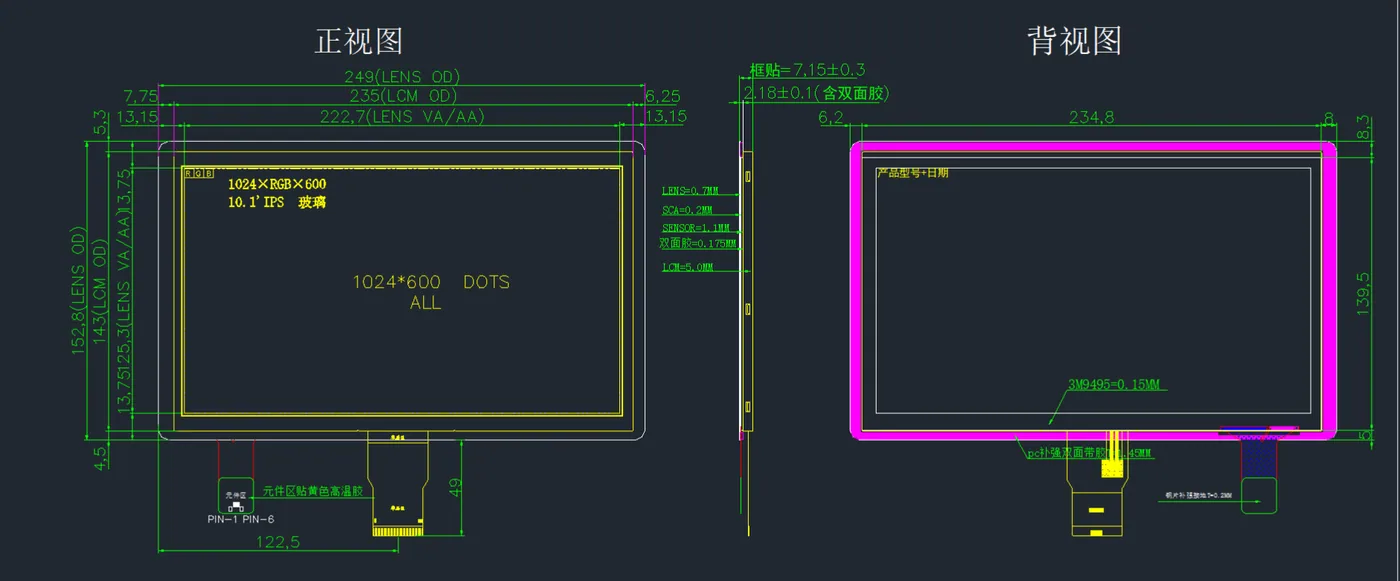

    FZ1001R50-TP reference drawing 2Inspect drawing 2 ↗

    Reference drawing 2

    Confirm the model suffix, dimensional tolerances and assembly revision with the quoted sample.

    Download source drawing ↓

    Match the module to your application

    Use the published values as a starting point, then document the host electronics, enclosure, user interface and operating environment before requesting a sample.

    Send product requirements
    • Review interface, connector and FPC alignment against the host electronics.
    • Discuss touch panel and cover lens requirements where the product design needs a front assembly.
    • Confirm outline, active area, mounting constraints and environmental requirements before sample approval.

    Product questions

    Specifications, documents and sample planning for FZ1001R50-TP.

    What are the published specifications for FZ1001R50-TP?

    FZ1001R50-TP currently publishes Screen Size: 10.1 inch; Resolution: 1024(RGB) x600; Technology: TFT; Interface: Parallel RGB 24-bit; Touch: Capacitive touch; Viewing Direction: ALL. Confirm the final drawing and pin assignment against the supplied sample before design-in.

    What should I include in an inquiry for this display?

    Include the product name or model, target size and resolution, host interface, touch and cover-lens requirements, brightness and environment, quantity and current project stage.

    Can I request a sample for evaluation?

    Use the sample request action and share the intended electrical and mechanical integration requirements so the evaluation scope can be discussed around this exact record.

    Can interface, touch or mechanical requirements be discussed?

    Yes. Send the host interface, connector or FPC constraints, touch and cover-lens needs, outline limits and environmental targets for an engineering review. No unpublished capability is assumed on this page.

    Discuss this display with our team

    FZ1001R50-TP

    Share the required interface, assembly, quantity and project timing. Request the matching specification and drawing revision with your quote.

    Shenzhen FuZheng Photoelectric Co., Ltd. · Company information
    Victory.Wang@szfuzheng.com · WhatsApp +86 159 8944 5783

    Start a product inquiry →

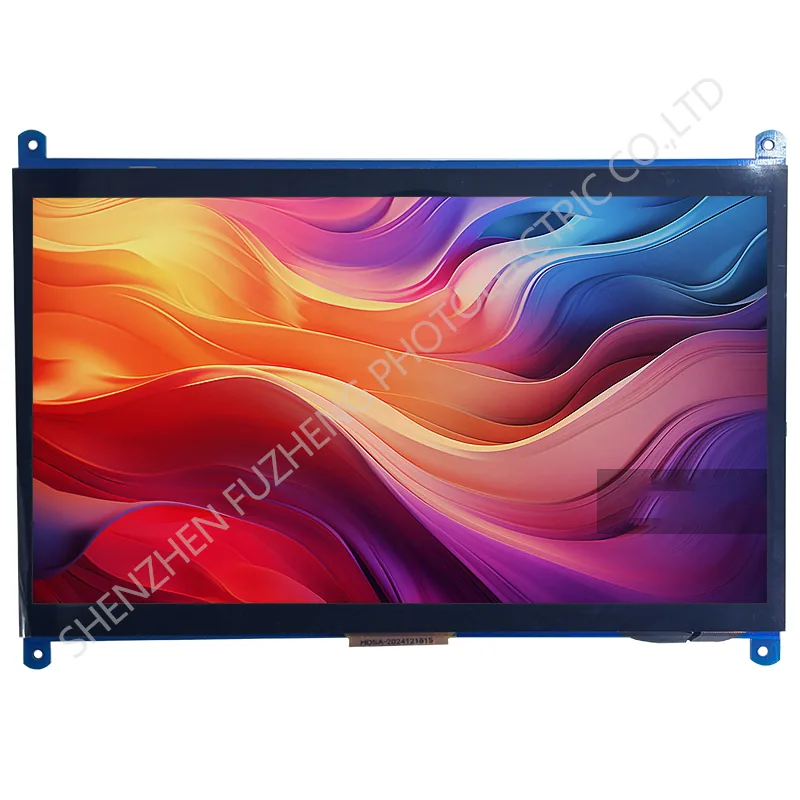

    10.1 inch TFT RGB display 1024*600 with touch screen product image
