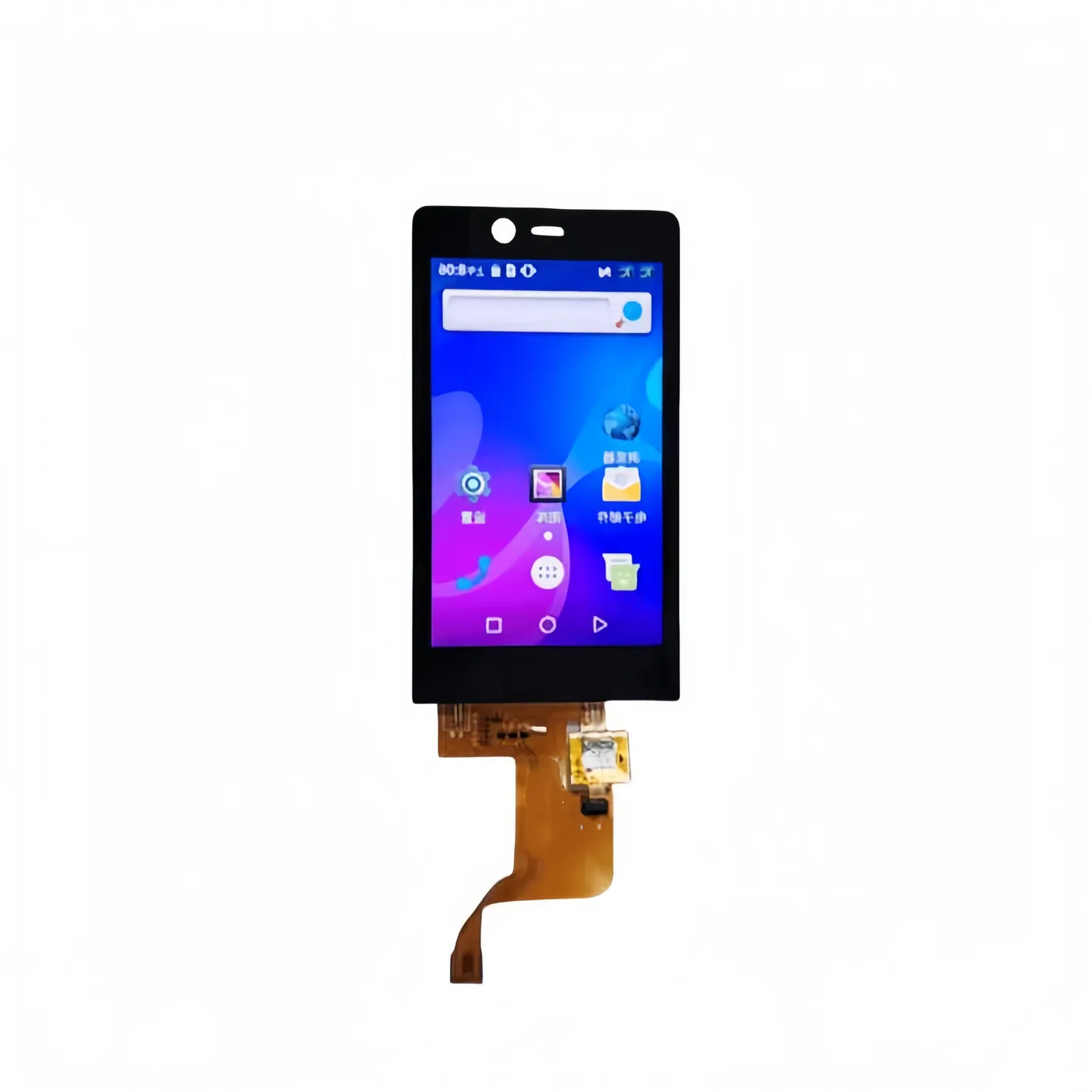

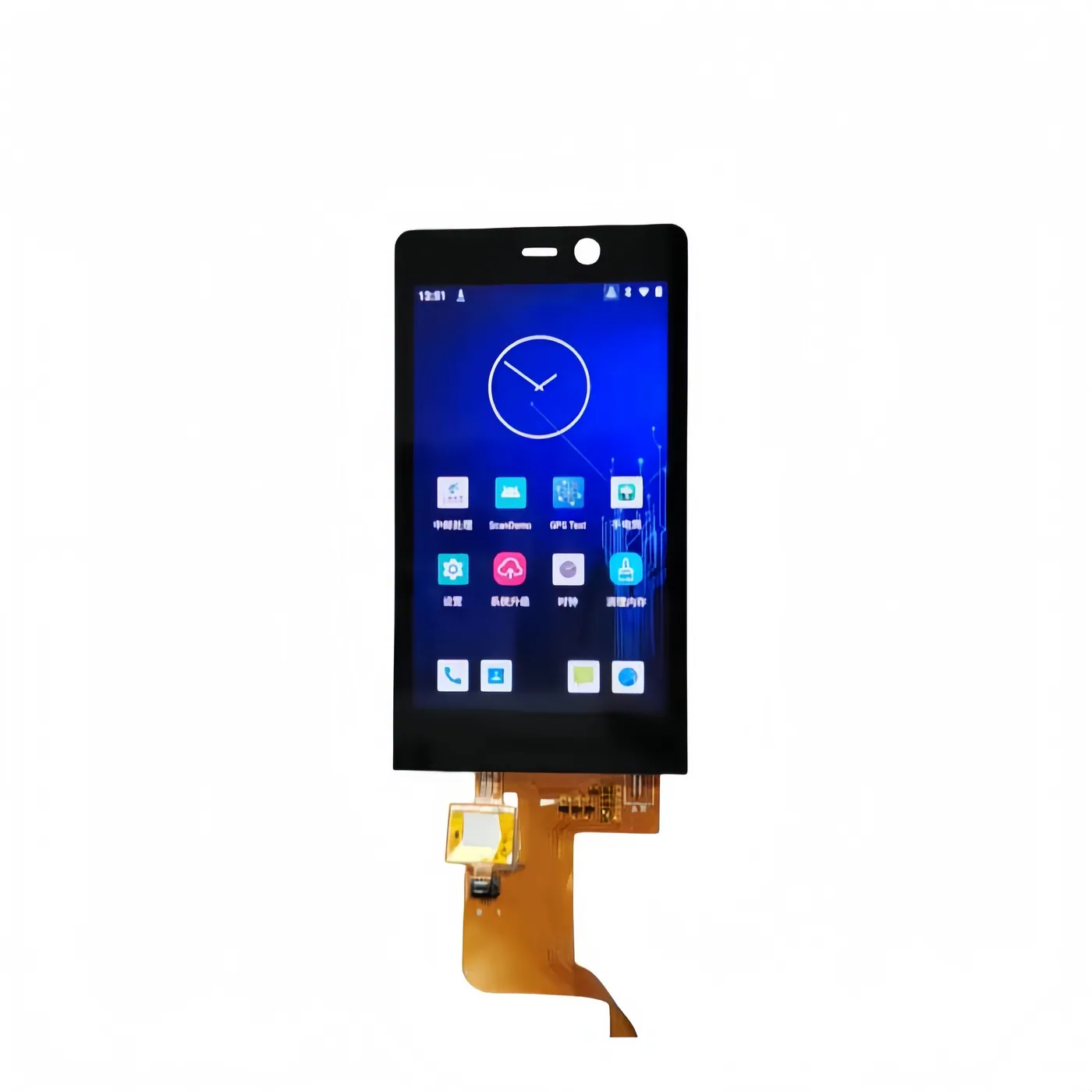

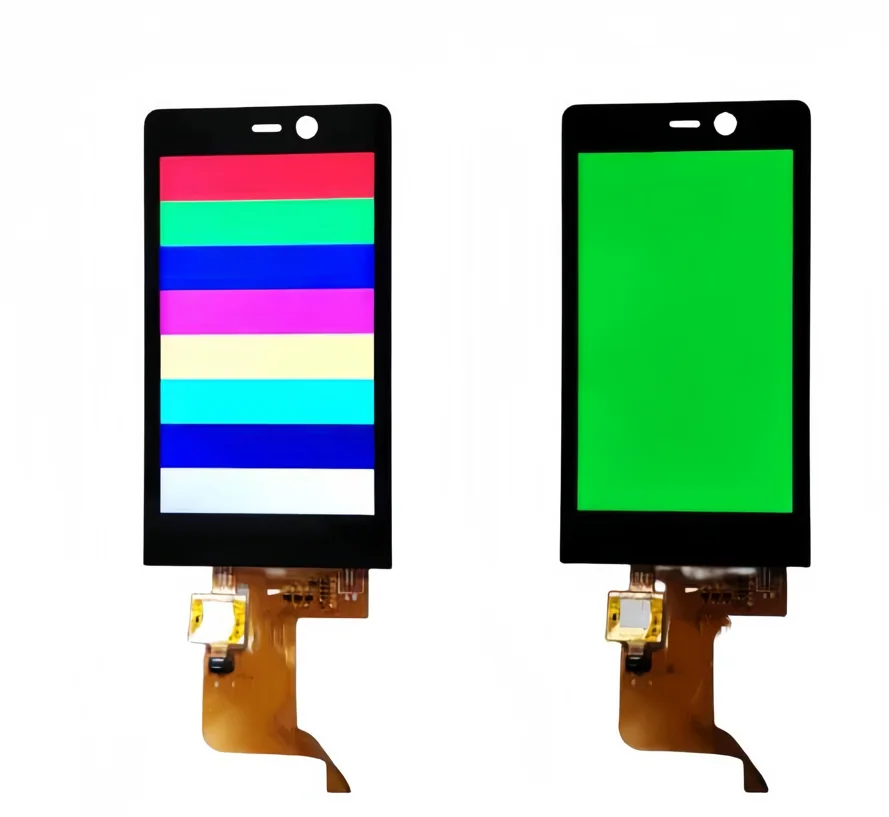

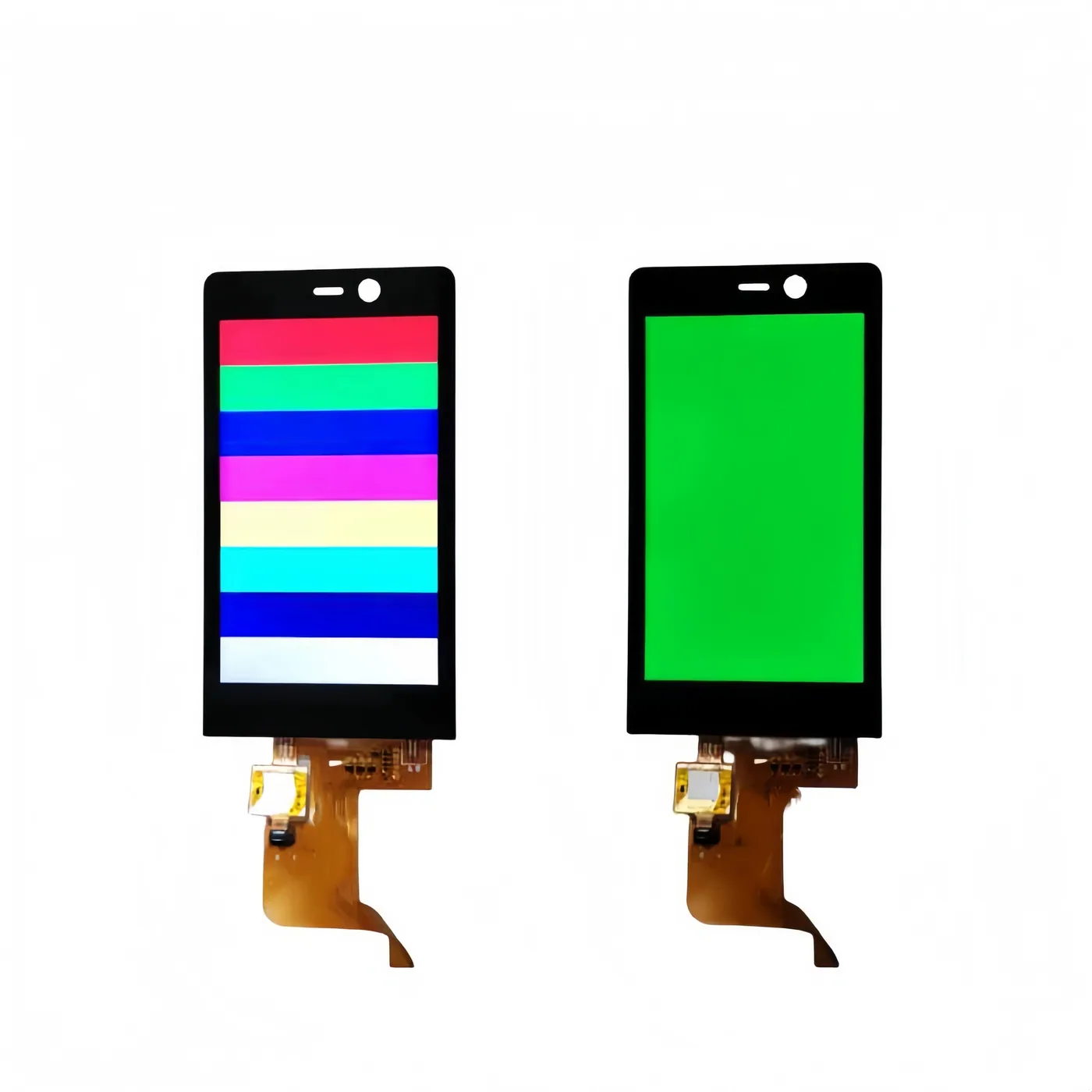

Product images and mechanical references for this assembly. Confirm the selected model and drawing revision before design-in.
Model no.FZ035DPZ05
3.5-Inch IPS Touch TFT-LCD Display Module
The 3.53-inch IPS LCD display (resolution 480×800) adopts IPS (a-si) technology, has a 178° full viewing angle, 400cd/m² ultra-high brightness, and Normal Black display type, with clear and delicate pictures, and can still work stably under strong light. Supports MIPI/RGB dual interface and CTP capacitive touch, strong compatibility, and smooth operation. The thickness of the whole machine is only 1.94mm, and the thin and light design is suitable for miniaturized equipment. With a wide temperature working range (-20℃~+70℃) and customized services, it meets the stringent requirements of multiple scenarios such as industry, vehicle-mounted, and medical.
- Normal Black / Normal Black, high contrast, excellent dark performance.
- MIPI、RGB
- CTP
- Resolution
- 480*800
- Technology
- Normal Black
- Interface
- MIPI、RGB
- Touch
- Capacitive touch
- Viewing Angle
- U/D/L/R: 80/80/80/80
- Module Dimensions
- 49.12*84.17*1.94(mm)
Product overview
The 3.53-inch IPS LCD display (resolution 480×800) adopts IPS (a-si) technology, has a 178° full viewing angle, 400cd/m² ultra-high brightness, and Normal Black display type, with clear and delicate pictures, and can still work stably under strong light. Supports MIPI/RGB dual interface and CTP capacitive touch, strong compatibility, and smooth operation. The thickness of the whole machine is only 1.94mm, and the thin and light design is suitable for miniaturized equipment. With a wide temperature working range (-20℃~+70℃) and customized services, it meets the stringent requirements of multiple scenarios such as industry, vehicle-mounted, and medical.
High-definition IPS hard screen: This screen adopts lPS(a-si) technology, has a 178° wide viewing angle (U/D/L/R:80/80/80/80), accurate color reproduction, and clear visibility under strong light.
High brightness and durability: 400cd/m² ultra-high brightness, suitable for outdoor and strong light environments; wide temperature design (-20℃~+70℃), meeting the needs of harsh industrial scenarios.
A flexible interface and touch support: lt supports the MlPl/RGB dual interface, which is strongly compatible; italso integrates CTp capacitive touch, which provides a sensitive response and smooth operation.
Lightweight and compact design: display area 45.36×75.6mm, the thickness of the whole machine is only 1.94mm, saving equipment space and adapting to miniaturized terminals.
Used for factory HMI human-machine interface, ultra-high brightness ensures visibility in a strong light environment, wide temperature design adapts to high/low-temperature workshop environment, and touch function improves operation efficiency.
Integrated into a handheld blood analyzer, the IPS screen accurately restores the color of test data, the thin body reduces equipment weight, CTP touch simplifies the medical operation process.
Embedded in the vehicle navigation screen, the wide viewing angle design ensures that the driver can view road information from multiple angles, with stable anti-interference performance and adaptability to extreme temperature differences of -20℃~70℃.
As an intelligent temperature control panel, it supports the MIPI interface to quickly respond to commands, high contrast to display energy consumption data, and compact size to seamlessly integrate into home design.
With monitoring equipment, 400cd/m² brightness ensures clear images under the scorching sun, and wide temperature durability adapts to long-term outdoor deployment and reduces maintenance costs.
Confirm the FZ035DPZ05 assembly against the latest specification and drawing revision before design-in.
Product highlights
Technical specifications
Values are normalized from the current product record; no missing parameter is estimated.
| Specification | Published value |
|---|---|
| Resolution | 480*800 / 480×800, a fine picture without graininess.Multiple source entries — confirm the selected value. |
| Technology | Normal Black / Normal Black, high contrast, excellent dark performance.Multiple source entries — confirm the selected value. |
| Interface | MIPI、RGB |
| Touch | CTP |
| Brightness | 400cd/m²(MIN) |
| Viewing Angle | U/D/L/R: 80/80/80/80 |
| Module Dimensions | 49.12*84.17*1.94(mm) |
| Active Area | 45.36*75.6 (mm) |
| Operating Temperature | -20℃~+70℃ / -20℃~+70℃; Storage temperature: -30℃~+80℃.Multiple source entries — confirm the selected value. |
| Storage Temperature | -30℃~+80℃ |
| Product Type | IPS (a-si) |
| High brightness and durability | 400cd/m² ultra-high brightness, suitable for outdoor and strong light environments; wide temperature design (-20℃~+70℃), meeting the needs of harsh industrial scenarios. |
| A flexible interface and touch support | lt supports the MlPl/RGB dual interface, which is strongly compatible; italso integrates CTp capacitive touch, which provides a sensitive response and smooth operation. |
| Lightweight and compact design | display area 45.36×75.6mm, the thickness of the whole machine is only 1.94mm, saving equipment space and adapting to miniaturized terminals. |
Mechanical fit
- Module Dimensions
- 49.12*84.17*1.94(mm)
- Active Area
- 45.36*75.6 (mm)
Allow space for the FPC, connector, cover lens and mounting. Use an approved, version-matched drawing before fixing the enclosure.
Review drawing availability →Some parameters contain multiple source entries. They may describe different configurations or conflicting records; do not treat them as interchangeable specifications.
Interface & integration
| Parameter | Source value |
|---|---|
| Interface | MIPI、RGB |
| Touch | CTP |
Confirm pin numbering, supply levels, controller revision and initialization before connecting power. Source tables are references, not a substitute for an approved electrical specification.
Format and image area
Resolution: 480*800 / 480×800, a fine picture without graininess.. Module dimensions: 49.12*84.17*1.94(mm). Active area: 45.36*75.6 (mm).
Electrical connection
Published interface: MIPI、RGB.
Optical and front assembly
Published touch information: CTP. Brightness: 400cd/m²(MIN). Viewing angle: U/D/L/R: 80/80/80/80. Operating temperature: -20℃~+70℃ / -20℃~+70℃; Storage temperature: -30℃~+80℃..
Drawings & technical documents
Reference files from this product record, retained at their available source resolution.
Request the matching mechanical drawing
No separate mechanical drawing is verified in this record. Send your enclosure limits and the selected product reference; request the approved outline and FPC drawing before tooling.
Request drawing & datasheetMatch the module to your application
Use the published values as a starting point, then document the host electronics, enclosure, user interface and operating environment before requesting a sample.
Send product requirements- Review interface, connector and FPC alignment against the host electronics.
- Discuss touch panel and cover lens requirements where the product design needs a front assembly.
- Confirm outline, active area, mounting constraints and environmental requirements before sample approval.
Product questions
Specifications, documents and sample planning for FZ035DPZ05.
What are the published specifications for FZ035DPZ05?
FZ035DPZ05 currently publishes Resolution: 480*800; Technology: Normal Black; Interface: MIPI、RGB; Touch: Capacitive touch; Viewing Angle: U/D/L/R: 80/80/80/80; Module Dimensions: 49.12*84.17*1.94(mm). Confirm the final drawing and pin assignment against the supplied sample before design-in.
What should I include in an inquiry for this display?
Include the product name or model, target size and resolution, host interface, touch and cover-lens requirements, brightness and environment, quantity and current project stage.
Can I request a sample for evaluation?
Use the sample request action and share the intended electrical and mechanical integration requirements so the evaluation scope can be discussed around this exact record.
Can interface, touch or mechanical requirements be discussed?
Yes. Send the host interface, connector or FPC constraints, touch and cover-lens needs, outline limits and environmental targets for an engineering review. No unpublished capability is assumed on this page.
Discuss this display with our team
FZ035DPZ05
Share the required interface, assembly, quantity and project timing. Request the matching specification and drawing revision with your quote.
