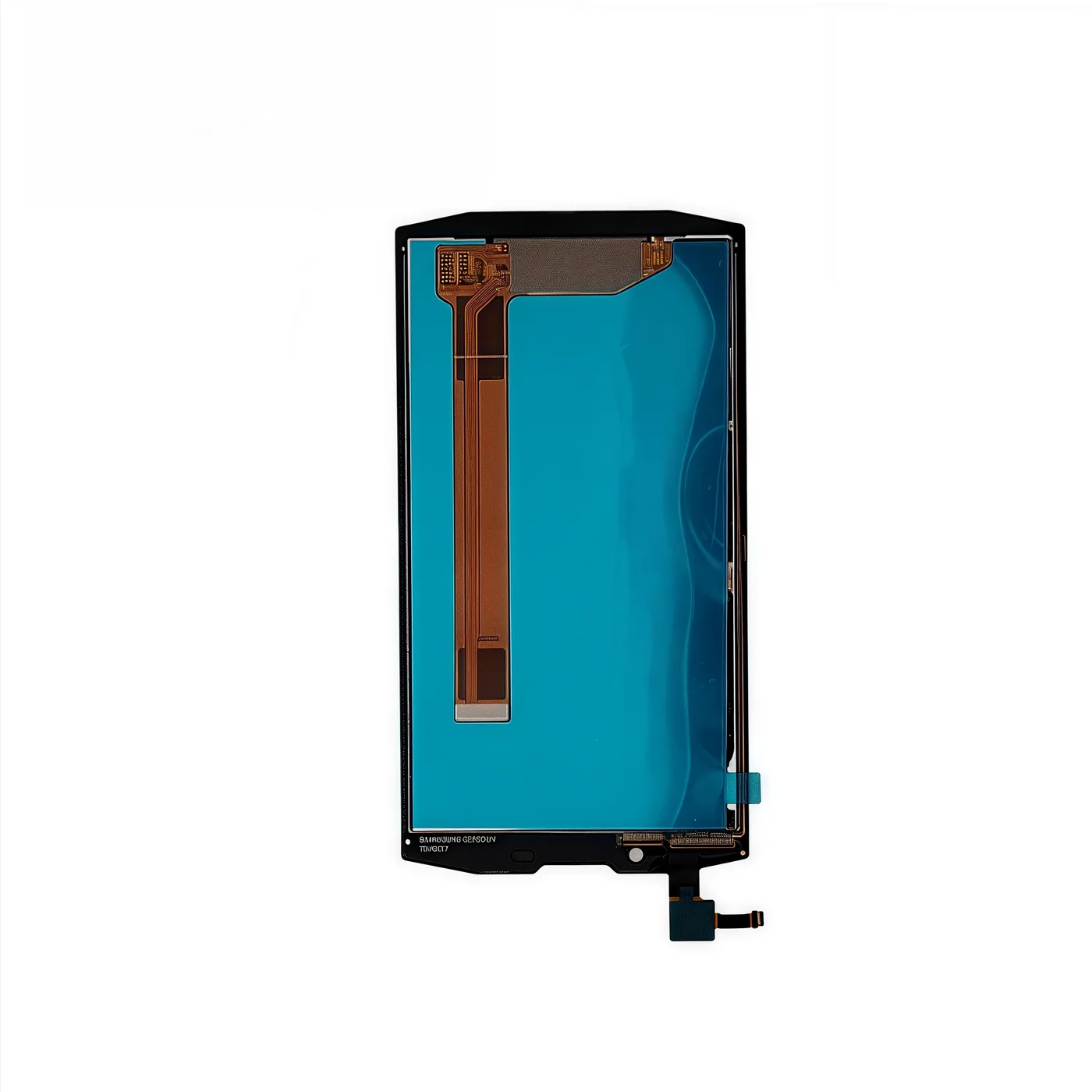

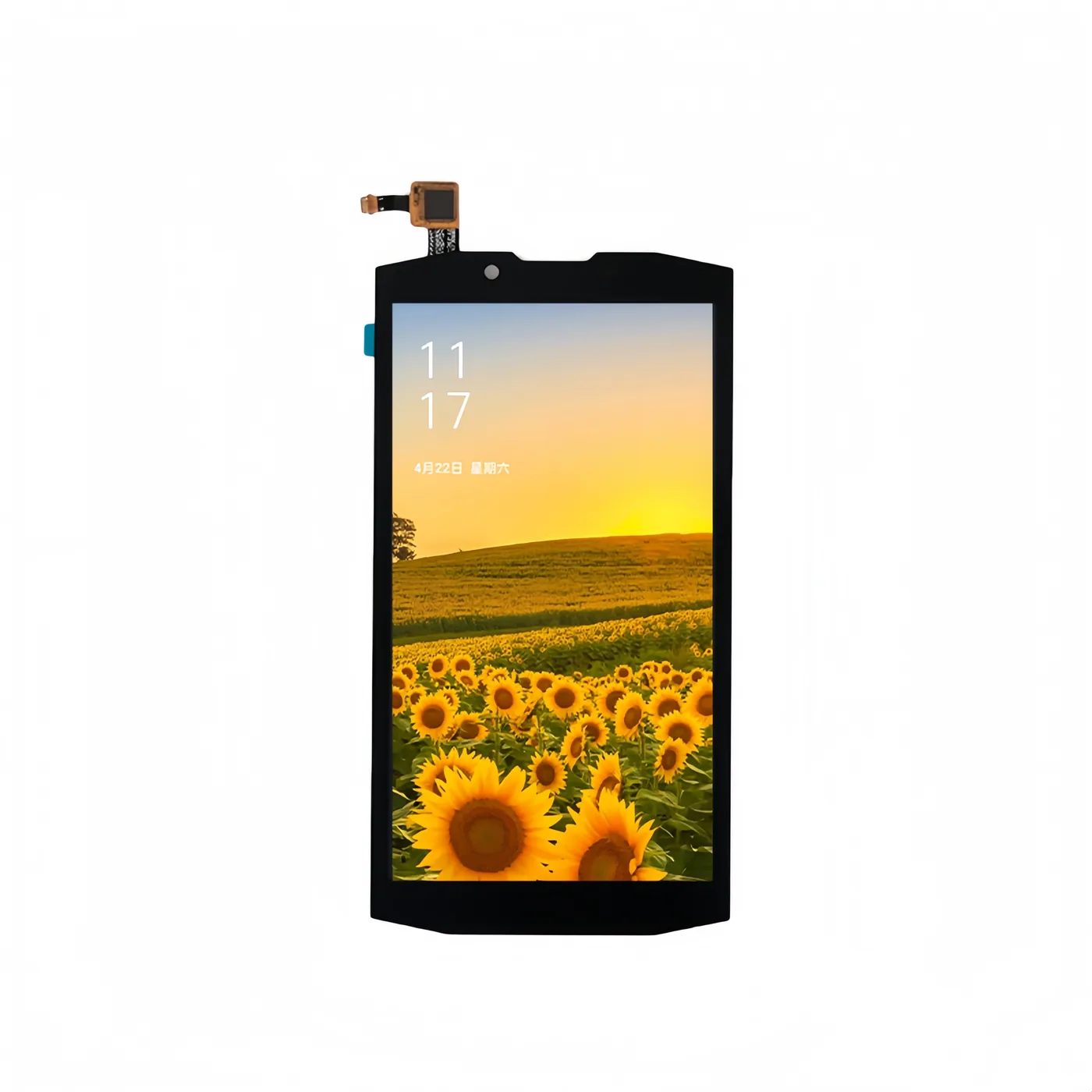

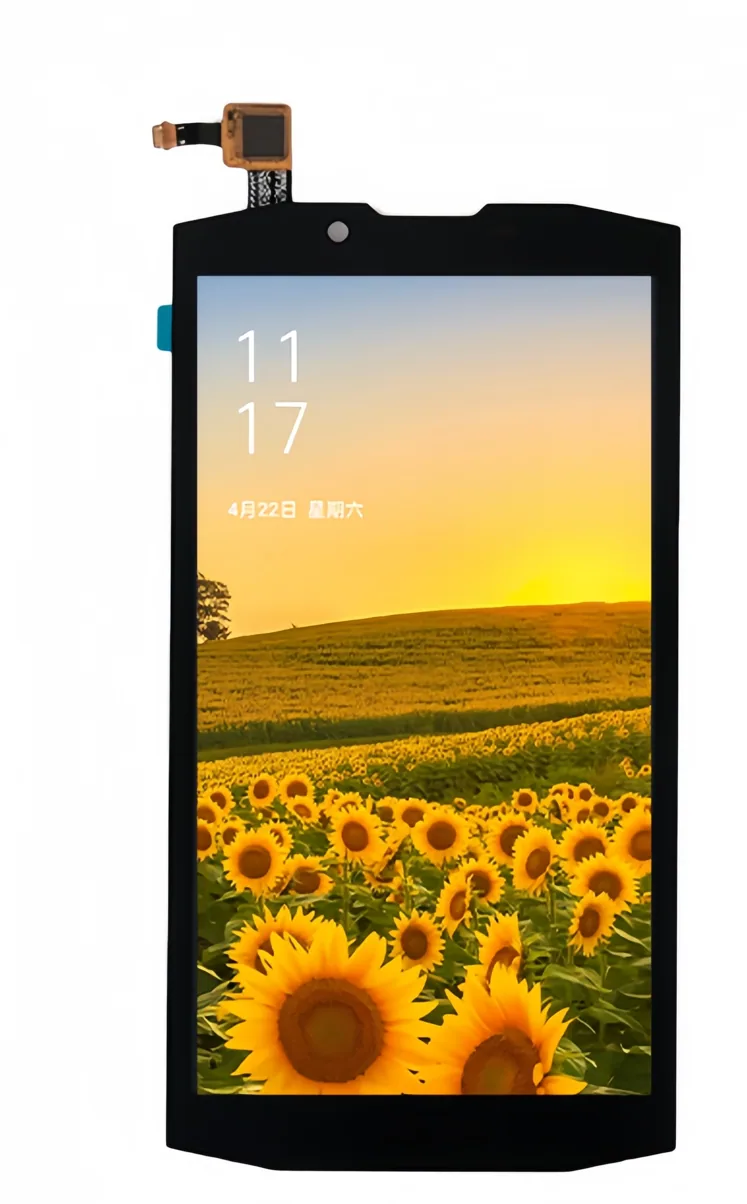

Product images and mechanical references for this assembly. Confirm the selected model and drawing revision before design-in.
Model no.FZ055FHC04
5.5-Inch 1080x1920 Touch TFT-LCD Module
The 5.5-inch FHD (Full High Definition) TFT LCD touch display module adopts advanced manufacturing technology and has multiple uses and significant advantages.
- Normal Black
- MIPI
- CTP
- Resolution
- 1080*1920
- Technology
- Normal Black
- Interface
- MIPI
- Touch
- Capacitive touch
- Viewing Angle
- U/D/L/R: 80/80/80/80
- Module Dimensions
- 69.84*128(mm)
Product overview
The 5.5-inch FHD (Full High Definition) TFT LCD touch display module adopts advanced manufacturing technology and has multiple uses and significant advantages.
Advantages High Definition: FHD resolution brings delicate and realistic visual effects. Wide viewing angle: Maintain good picture quality no matter what angle you view it from. Fast response speed: suitable for playing video content and scrolling quickly. Low power consumption design: Optimized driver IC helps extend battery life. Strong durability: Made of sturdy materials, it can work normally in harsh environments. Good user experience: Precise and sensitive touch response improves the user’s operating comfort. This type of screen is favored by many industries for its high-quality picture rendering capabilities and wide applicability.
Confirm the FZ055FHC04 assembly against the latest specification and drawing revision before design-in.
Product highlights
Technical specifications
Values are normalized from the current product record; no missing parameter is estimated.
| Specification | Published value |
|---|---|
| Resolution | 1080*1920 / Equipped with a backlight system that can support 1080*1920 pixel resolution, ensuring the picture is rich in detail and bright.Multiple source entries — confirm the selected value. |
| Technology | Normal Black |
| Interface | MIPI |
| Touch | CTP |
| Brightness | 500cd/m²(MIN) |
| Viewing Angle | U/D/L/R: 80/80/80/80 / Maintain good picture quality no matter what angle you view it from.Multiple source entries — confirm the selected value. |
| Module Dimensions | 69.84*128(mm) |
| Active Area | 68.04 * 120.96 (mm) |
| Operating Temperature | -20℃~+70℃ |
| Storage Temperature | -30℃~+80℃ |
| Aspect Ratio | 16:9 |
| Product type | TFT(a-si) |
| TFT technology | Thin film transistor technology is used on each pixel to improve image quality. |
| Multi-touch capacitive screen | The Integrated multi-touch function provides a smooth and intuitive operating experience. |
| Fast response speed | suitable for playing video content and scrolling quickly. |
| Low power consumption design | Optimized driver IC helps extend battery life. |
Mechanical fit
- Module Dimensions
- 69.84*128(mm)
- Active Area
- 68.04 * 120.96 (mm)
Allow space for the FPC, connector, cover lens and mounting. Use an approved, version-matched drawing before fixing the enclosure.
Review drawing availability →Some parameters contain multiple source entries. They may describe different configurations or conflicting records; do not treat them as interchangeable specifications.
Interface & integration
| Parameter | Source value |
|---|---|
| Interface | MIPI |
| Touch | CTP |
Confirm pin numbering, supply levels, controller revision and initialization before connecting power. Source tables are references, not a substitute for an approved electrical specification.
Format and image area
Resolution: 1080*1920 / Equipped with a backlight system that can support 1080*1920 pixel resolution, ensuring the picture is rich in detail and bright.. Module dimensions: 69.84*128(mm). Active area: 68.04 * 120.96 (mm).
Electrical connection
Published interface: MIPI.
Optical and front assembly
Published touch information: CTP. Brightness: 500cd/m²(MIN). Viewing angle: U/D/L/R: 80/80/80/80 / Maintain good picture quality no matter what angle you view it from.. Operating temperature: -20℃~+70℃.
Drawings & technical documents
Reference files from this product record, retained at their available source resolution.
Request the matching mechanical drawing
No separate mechanical drawing is verified in this record. Send your enclosure limits and the selected product reference; request the approved outline and FPC drawing before tooling.
Request drawing & datasheetMatch the module to your application
Use the published values as a starting point, then document the host electronics, enclosure, user interface and operating environment before requesting a sample.
Send product requirements- Review interface, connector and FPC alignment against the host electronics.
- Discuss touch panel and cover lens requirements where the product design needs a front assembly.
- Confirm outline, active area, mounting constraints and environmental requirements before sample approval.
Product questions
Specifications, documents and sample planning for FZ055FHC04.
What are the published specifications for FZ055FHC04?
FZ055FHC04 currently publishes Resolution: 1080*1920; Technology: Normal Black; Interface: MIPI; Touch: Capacitive touch; Viewing Angle: U/D/L/R: 80/80/80/80; Module Dimensions: 69.84*128(mm). Confirm the final drawing and pin assignment against the supplied sample before design-in.
What should I include in an inquiry for this display?
Include the product name or model, target size and resolution, host interface, touch and cover-lens requirements, brightness and environment, quantity and current project stage.
Can I request a sample for evaluation?
Use the sample request action and share the intended electrical and mechanical integration requirements so the evaluation scope can be discussed around this exact record.
Can interface, touch or mechanical requirements be discussed?
Yes. Send the host interface, connector or FPC constraints, touch and cover-lens needs, outline limits and environmental targets for an engineering review. No unpublished capability is assumed on this page.
Discuss this display with our team
FZ055FHC04
Share the required interface, assembly, quantity and project timing. Request the matching specification and drawing revision with your quote.
