Model no.FZ024TPC01

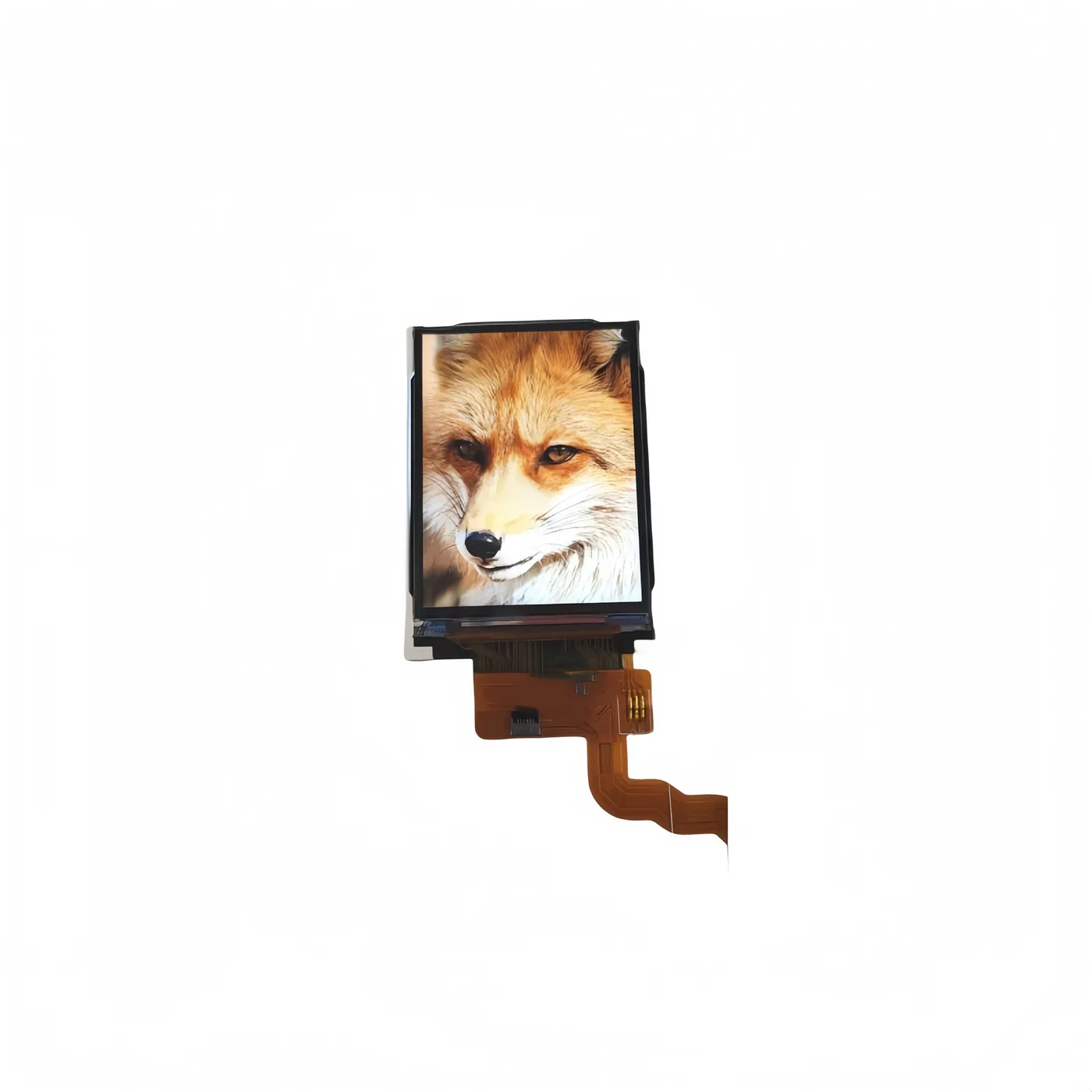

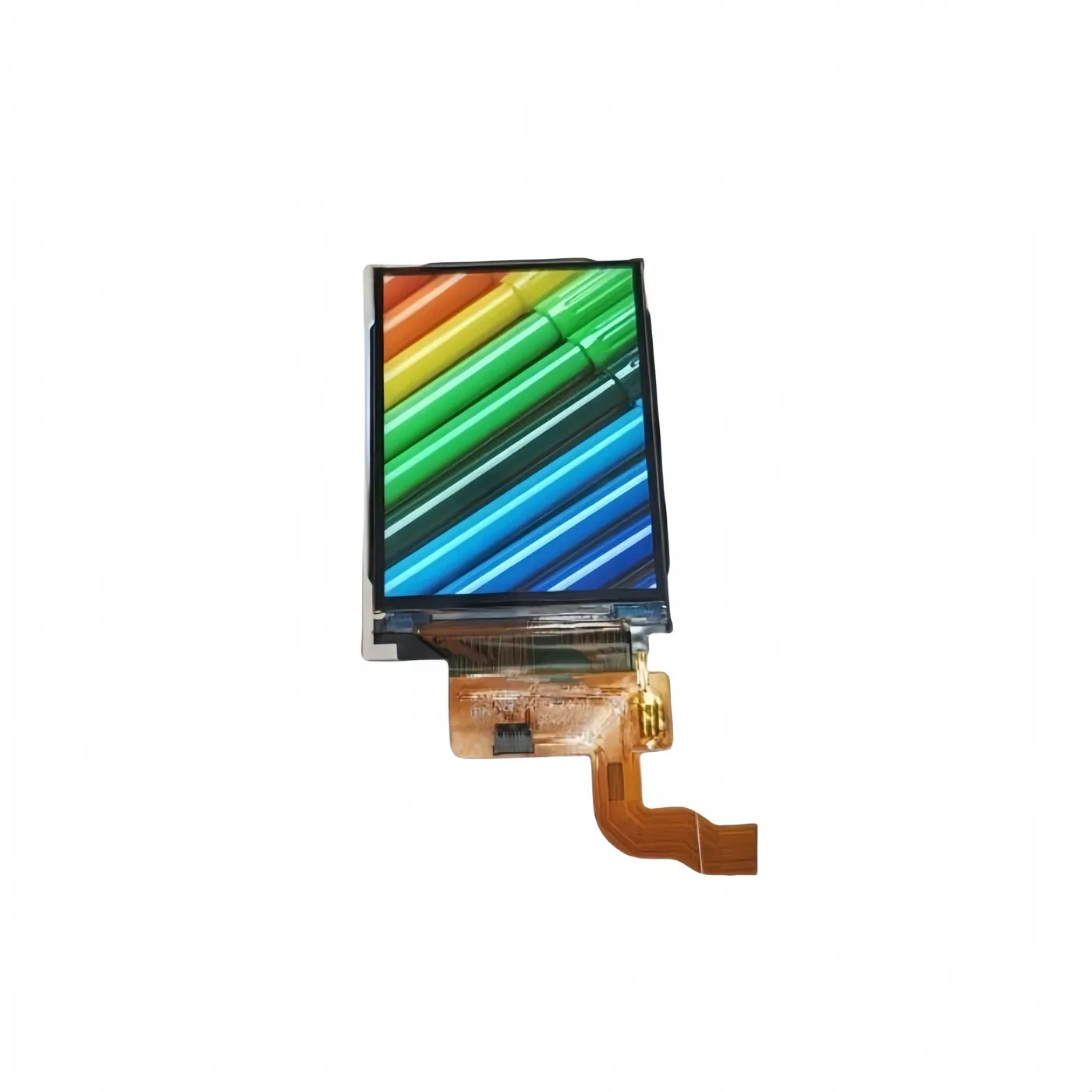

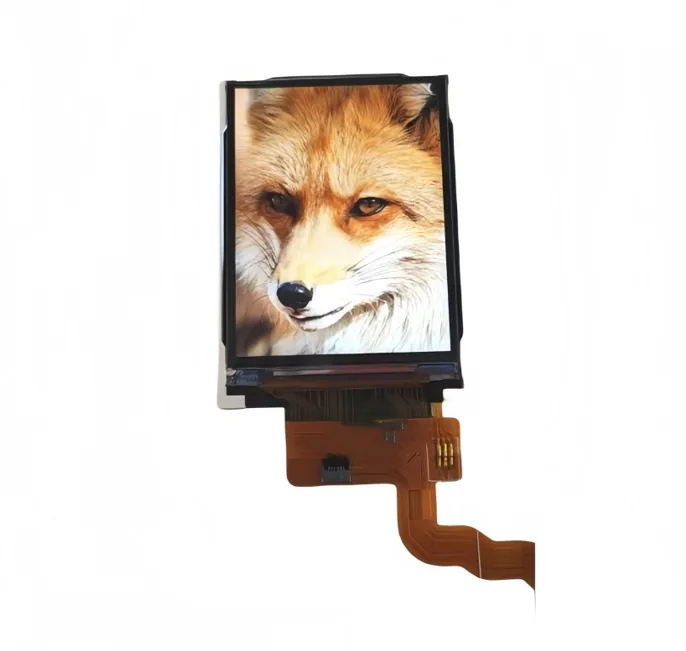

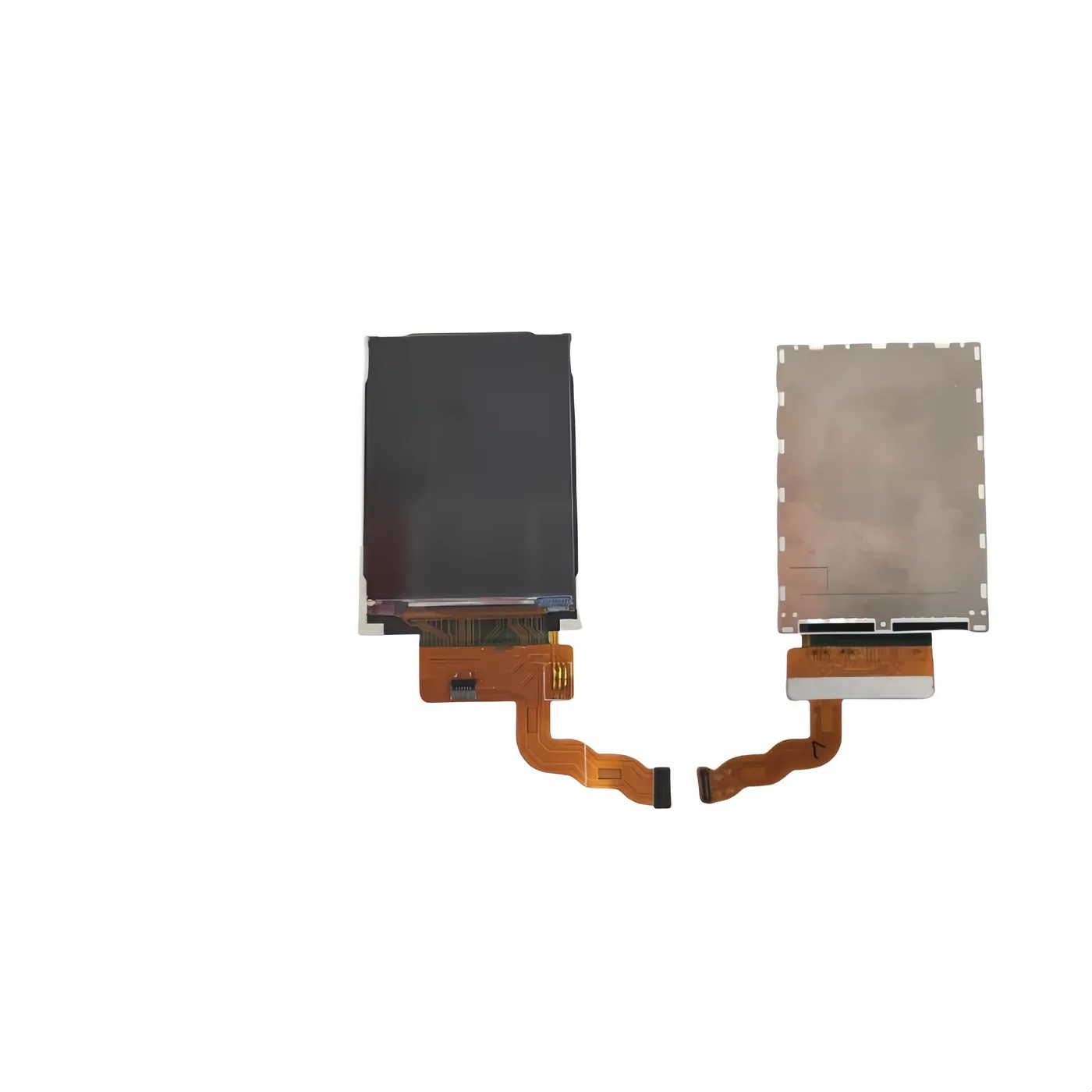

FZ024TPC01 2.4 Inch TFT-LCD Display Module Touch Screen
This 2.4-inch TFT LCD display uses advanced thin-film transistor (TFT) technology. It has a resolution of 480×600. The display is equipped with a MIPI RGB MCU interface. It also supports touch functionality for a smooth experience. The display offers high-definition, delicate visuals and a responsive touch. Its compact design and moderate size suit various electronic devices. This display is a preferred choice in the module market.
- Normal Black
- MIPI、RGB、MCU
- Resolution
- 480*640
- Technology
- Normal Black
- Interface
- MIPI、RGB、MCU
- Viewing Angle
- Full viewing angle
- Module Dimensions
- 42.72*60.26*2.2(mm)
- Active Area
- 36.72*48.94(mm)
Product overview
This 2.4-inch TFT LCD display uses advanced thin-film transistor (TFT) technology. It has a resolution of 480×600. The display is equipped with a MIPI RGB MCU interface. It also supports touch functionality for a smooth experience. The display offers high-definition, delicate visuals and a responsive touch. Its compact design and moderate size suit various electronic devices. This display is a preferred choice in the module market.
In-vehicle electronics: This 2.4-inch LCD is ideal for car navigators and recorders, offering clear guidance and real-time recording. The touch screen simplifies driver operation, enhancing safety.
Industrial control: Used in instruments, control panels, and testers, this display shows real-time equipment status and parameters. Its reliability makes it a top industrial choice.
Consumer electronics: Outdoor phones, e-readers, and portable devices use this display size for a great visual experience.
Medical equipment: In portable medical devices and monitors, this display helps medical staff quickly access patient information, improving efficiency.
High-resolution display: Achieve high resolution with vibrant, detailed images, ideal for text, pictures, or videos.
Wide viewing angle and brightness adjustment: Maintains color accuracy across wide angles and adjusts brightness for optimal viewing.
Fast response and low power consumption: Offers quick response speeds and smooth display, with low power consumption for extended battery life.
Touch integration: Supports multi-touch and gestures for intuitive, efficient user interaction, enhancing the user experience.
This 2.4-inch TFT LCD display uses advanced manufacturing technology, combining transparent liquid crystal materials with precise assembly.
The process includes liquid crystal injection, TFT array creation, backlight assembly, and touch module integration, all strictly controlled for high-quality standards.
The display utilizes the COF (Chip on Film) process, integrating the driver IC directly onto the FPC cable for a narrow frame design and improved aesthetics.
In conclusion, the 2.4-inch 480*600 resolution MIPI RGB MCU interface TFT LCD display touch screen module delivers outstanding performance and has diverse applications. It excels in display quality, power efficiency, color, and touch experience. With ongoing technological advancements, it promises to lead the visual trends and enhance users’ digital lives.
Confirm the FZ024TPC01 assembly against the latest specification and drawing revision before design-in.
Product highlights
Technical specifications
Values are normalized from the current product record; no missing parameter is estimated.
| Specification | Published value |
|---|---|
| Resolution | 480*640 / Achieve high resolution with vibrant, detailed images, ideal for text, pictures, or videos.Multiple source entries — confirm the selected value. |
| Technology | Normal Black |
| Interface | MIPI、RGB、MCU |
| Brightness | 500cd/m² |
| Viewing Angle | ALL / Maintains color accuracy across wide angles and adjusts brightness for optimal viewing.Multiple source entries — confirm the selected value. |
| Contrast Ratio | 800:1000 |
| Module Dimensions | 42.72*60.26*2.2(mm) |
| Active Area | 36.72*48.94(mm) |
| Response Time | 35ms |
| Operating Temperature | -20℃~+70℃ |
| Storage Temperature | -30℃~+80℃ |
| Display Color | 16.7M |
| Dot Pitch | 76.5 Um*76.5 Um |
| Product Type | TFT |
| Fast response and low power consumption | Offers quick response speeds and smooth display, with low power consumption for extended battery life. |
| Touch integration | Supports multi-touch and gestures for intuitive, efficient user interaction, enhancing the user experience. |
Mechanical fit
- Module Dimensions
- 42.72*60.26*2.2(mm)
- Active Area
- 36.72*48.94(mm)
Allow space for the FPC, connector, cover lens and mounting. Use an approved, version-matched drawing before fixing the enclosure.
Review drawing availability →Some parameters contain multiple source entries. They may describe different configurations or conflicting records; do not treat them as interchangeable specifications.
Interface & integration
| Parameter | Source value |
|---|---|
| Interface | MIPI、RGB、MCU |
Confirm pin numbering, supply levels, controller revision and initialization before connecting power. Source tables are references, not a substitute for an approved electrical specification.
Format and image area
Resolution: 480*640 / Achieve high resolution with vibrant, detailed images, ideal for text, pictures, or videos.. Module dimensions: 42.72*60.26*2.2(mm). Active area: 36.72*48.94(mm).
Electrical connection
Published interface: MIPI、RGB、MCU.
Optical and front assembly
Brightness: 500cd/m². Viewing angle: ALL / Maintains color accuracy across wide angles and adjusts brightness for optimal viewing.. Operating temperature: -20℃~+70℃.
Drawings & technical documents
Reference files from this product record, retained at their available source resolution.
Request the matching mechanical drawing
No separate mechanical drawing is verified in this record. Send your enclosure limits and the selected product reference; request the approved outline and FPC drawing before tooling.
Request drawing & datasheetMatch the module to your application
Use the published values as a starting point, then document the host electronics, enclosure, user interface and operating environment before requesting a sample.
Send product requirements- Review interface, connector and FPC alignment against the host electronics.
- Discuss touch panel and cover lens requirements where the product design needs a front assembly.
- Confirm outline, active area, mounting constraints and environmental requirements before sample approval.
Product questions
Specifications, documents and sample planning for FZ024TPC01.
What are the published specifications for FZ024TPC01?
FZ024TPC01 currently publishes Resolution: 480*640; Technology: Normal Black; Interface: MIPI、RGB、MCU; Viewing Angle: Full viewing angle; Module Dimensions: 42.72*60.26*2.2(mm); Active Area: 36.72*48.94(mm). Confirm the final drawing and pin assignment against the supplied sample before design-in.
What should I include in an inquiry for this display?
Include the product name or model, target size and resolution, host interface, touch and cover-lens requirements, brightness and environment, quantity and current project stage.
Can I request a sample for evaluation?
Use the sample request action and share the intended electrical and mechanical integration requirements so the evaluation scope can be discussed around this exact record.
Can interface, touch or mechanical requirements be discussed?
Yes. Send the host interface, connector or FPC constraints, touch and cover-lens needs, outline limits and environmental targets for an engineering review. No unpublished capability is assumed on this page.
Discuss this display with our team
FZ024TPC01
Share the required interface, assembly, quantity and project timing. Request the matching specification and drawing revision with your quote.
