Product images and mechanical references for this assembly. Confirm the selected model and drawing revision before design-in.
Model no.ZHD55015C40
ZHD55015C40 5.5-Inch 720 × 1280 TFT-LCD Display Module
ZHD55015C40 is a 5.5-inch tft-lcd display module with 720 × 1280 resolution and a 3SPI+RGB18BIT interface. Review the module specifications, product images and integration requirements before requesting a sample.
- 3SPI+RGB18BIT
- Touch Panel Optional
- Module Dimensions: 71.04 × 129.56 × 1.72 mm
- Interface: 3SPI+RGB18BIT
- Brightness: 300 cd/m²
- Driver IC: NV3052CGRB
- Resolution: 720 × 1280 pixels
- Touch: Touch Panel Optional
- Screen Size
- 5.5 inch
- Resolution
- 720 × 1280 pixels
- Display Mode
- TFT, Normally black, Transmissive
- Interface
- 3SPI+RGB18BIT
- Touch
- Touch Panel Optional
- Viewing Angle
- ALL/IPS
Specification confirmation. Confirm operating temperature against the latest approved specification before design-in.
ZHD55015C40 product introduction
ZHD55015C40 is a 5.5-inch tft-lcd display module with 720 × 1280 resolution and a 3SPI+RGB18BIT interface. Review the module specifications, product images and integration requirements before requesting a sample. The standard tft lcd displays format helps define the display area and user-interface layout while the exact model reference keeps the optical, electrical and mechanical requirements tied to one assembly.
Module Dimensions: 71.04 × 129.56 × 1.72 mm. Brightness: 300 cd/m². Driver IC: NV3052CGRB. Touch: Touch Panel Optional. Use these published characteristics to compare ZHD55015C40 with the requirements of your equipment. Brightness, viewing direction and touch operation should be evaluated in the intended enclosure, lighting and user environment.
The 3SPI+RGB18BIT connection on ZHD55015C40 should be checked against the host controller and connector arrangement. Review supply levels, backlight drive, cable routing and the matching pin assignment before connecting a sample. A shared interface name alone does not establish compatibility between two modules.
Product features
The following ZHD55015C40 attributes are listed for this assembly. Select the module by the requirements that affect your product, including the optical output, controller interface and mechanical envelope.
- Module Dimensions: 71.04 × 129.56 × 1.72 mm
- Interface: 3SPI+RGB18BIT
- Brightness: 300 cd/m²
- Driver IC: NV3052CGRB
- Resolution: 720 × 1280 pixels
- Touch: Touch Panel Optional
- Screen Size: 5.5 inch
Technical specifications
| Parameter | Value |
|---|---|
| Module Dimensions | 71.04 × 129.56 × 1.72 mm |
| Active Area | 68.04 × 120.96 mm |
| Interface | 3SPI+RGB18BIT |
| Brightness | 300 cd/m² |
| Display Mode | TFT, Normally Black, Transmissive |
| Viewing Direction | ALL/IPS |
| Storage Temperature | -30 to 80 ℃ |
| Driver IC | NV3052CGRB |
| Resolution | 720 × 1280 pixels |
| Communication interface | 3SPI+RGB18BIT |
| Touch | Touch Panel Optional |
| Viewing Angle | ALL |
| Screen Size | 5.5 inch |
Confirm operating temperature against the latest approved module specification before design-in.
Interface & pin definition
Use the ZHD55015C40 electrical documentation to confirm pin numbering, signal direction, voltage limits, backlight connections and any touch-controller wiring. The connector and FPC arrangement must match the host electronics and the quoted assembly.
| Parameter | Value |
|---|---|
| Interface | 3SPI+RGB18BIT |
| Driver IC | NV3052CGRB |
| Touch | Touch Panel Optional |

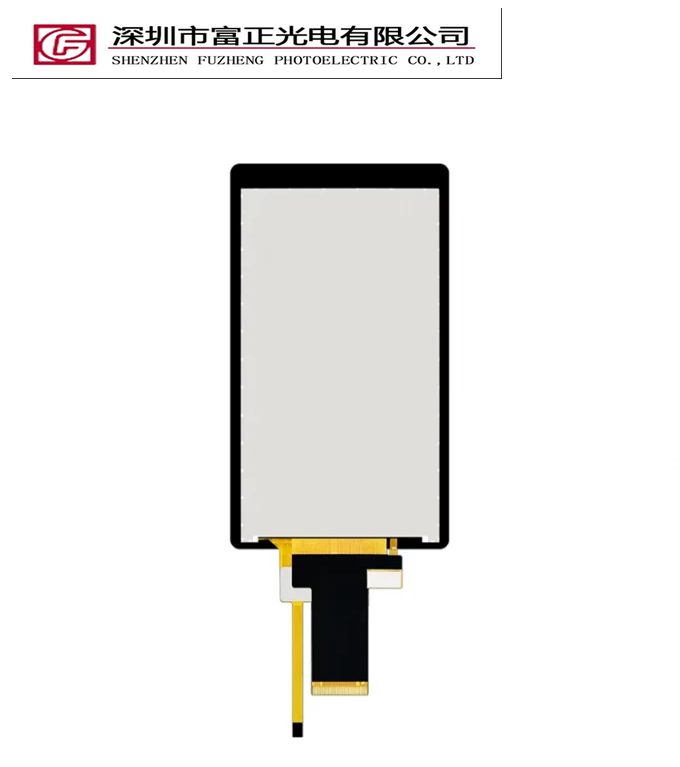

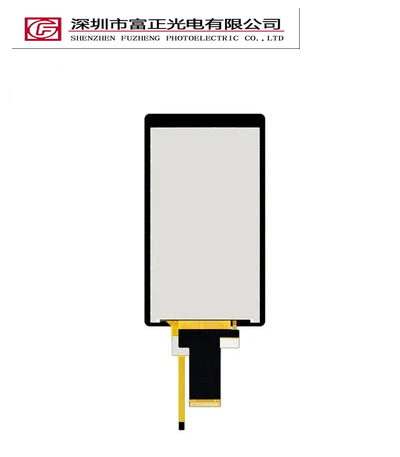

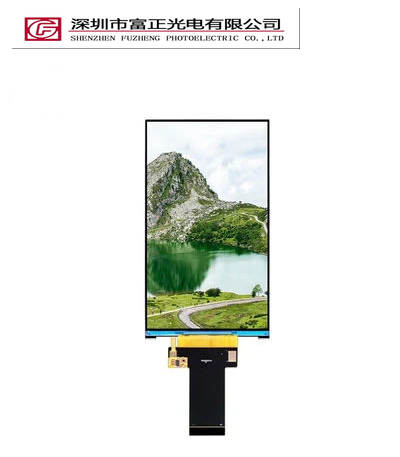

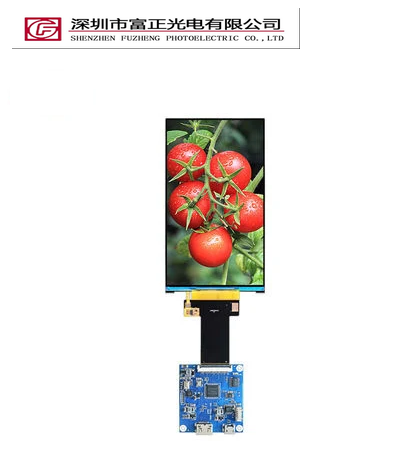

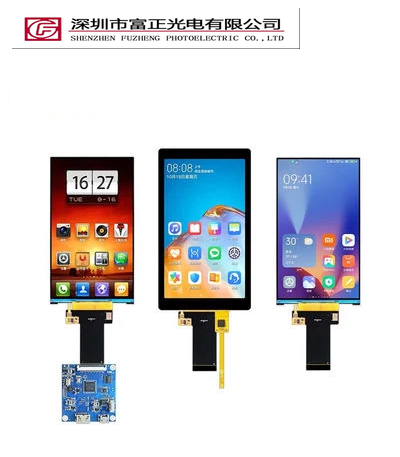

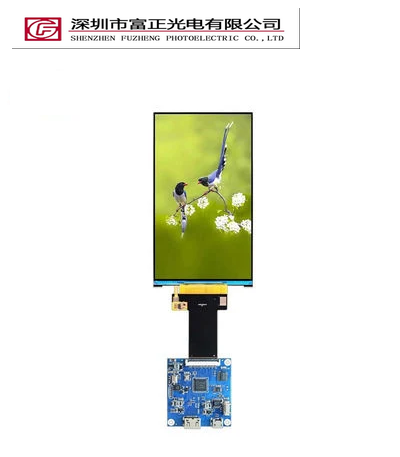

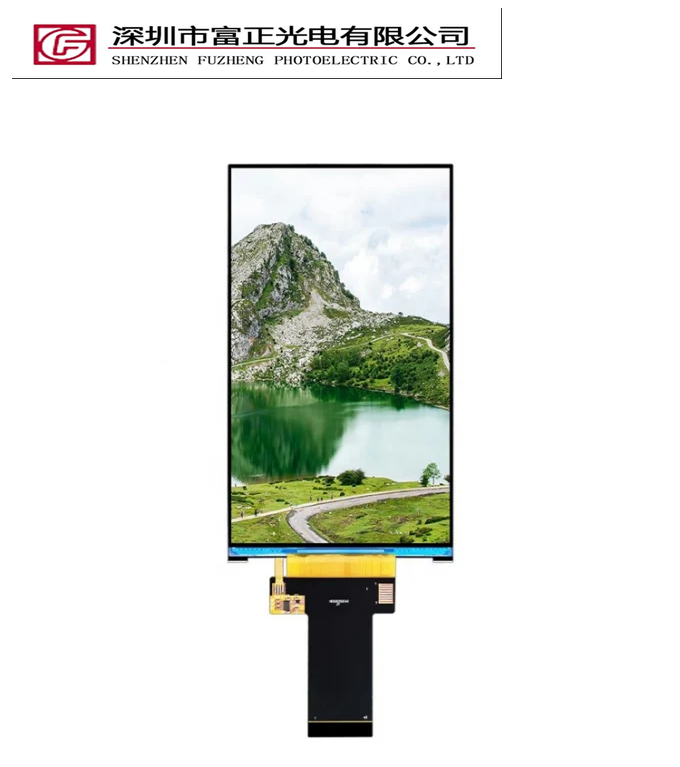

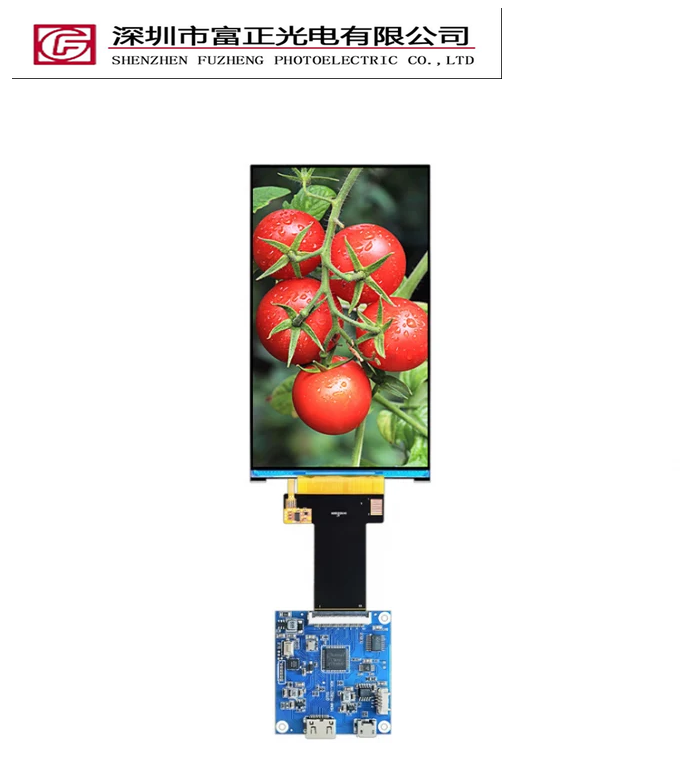

Product photographs

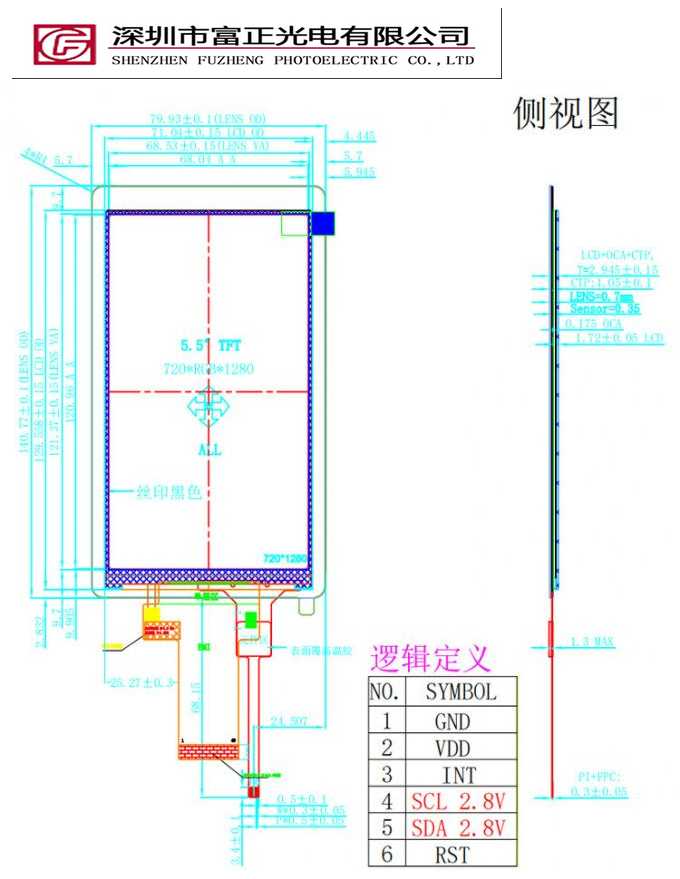

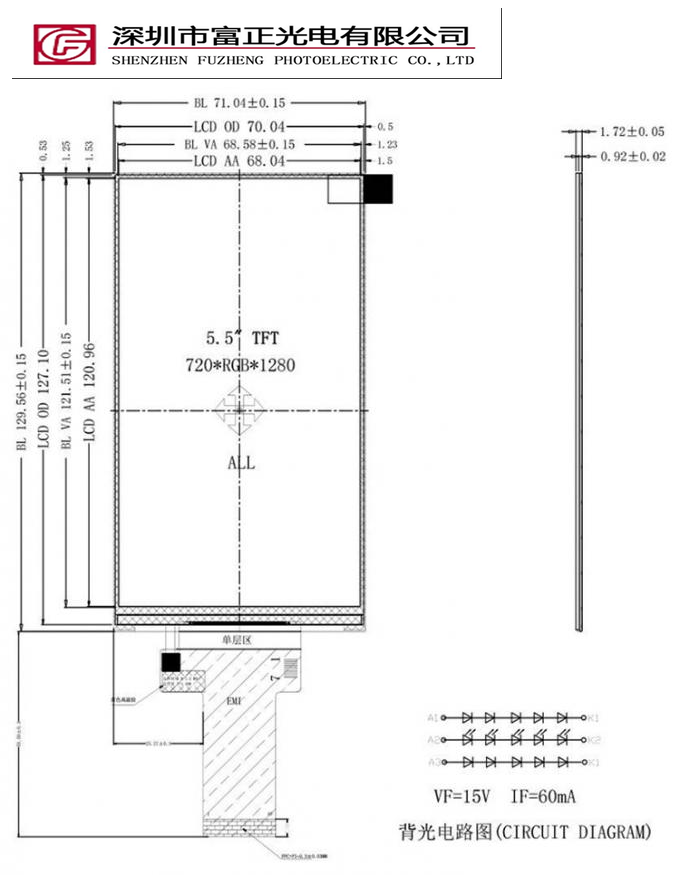

Mechanical drawings & documents
Check the dimensions, active area, connector position and cable clearance of ZHD55015C40 against the enclosure. Confirm the drawing revision before tooling.
Application & selection guidance
ZHD55015C40 can be evaluated for equipment user interfaces and embedded instruments and control panels. These are integration directions: suitability depends on the final optical, electrical, mechanical and environmental requirements.
Compare the 5.5-inch display format with your available viewing area, then check 720 × 1280 pixel resolution, 3SPI+RGB18BIT host connectivity, touch operation and power requirements. Evaluate a sample in the real enclosure before approving production. Share the target conditions and quantity so Fuzheng can review the selected ZHD55015C40 configuration.
ZHD55015C40 frequently asked questions
What specifications are listed for ZHD55015C40?
Module Dimensions: 71.04 × 129.56 × 1.72 mm; Interface: 3SPI+RGB18BIT; Brightness: 300 cd/m²; Driver IC: NV3052CGRB; Resolution: 720 × 1280 pixels; Touch: Touch Panel Optional; Screen Size: 5.5 inch. Confirm the selected assembly and latest drawing revision when requesting a quotation.
How should ZHD55015C40 connect to a host system?
ZHD55015C40 lists a 3SPI+RGB18BIT interface. Check the pin assignment, connector, logic voltage, timing and initialization against your host controller. Do not apply power based only on a similar product photograph.
Is touch information available for ZHD55015C40?
The listed touch configuration is Touch Panel Optional. Confirm the touch controller, connector, cover lens, total thickness and application requirements with the sample request.
Where can I find the drawing for ZHD55015C40?
The drawing section contains 2 model-associated mechanical reference images. Open it at full size and confirm the model suffix, tolerances and revision before enclosure design or tooling.
What should I send when requesting a ZHD55015C40 sample?
Include the model ZHD55015C40, target interface, touch and cover-lens requirements, operating environment, sample quantity and estimated production quantity. Share a host schematic or enclosure drawing when available so electrical and mechanical fit can be reviewed.
Request a quotation or sample
Send the ZHD55015C40 reference together with the interface, touch, enclosure, sample quantity and production schedule. Fuzheng will review the matching module and document requirements with your inquiry.
