Product images and mechanical references for this assembly. Confirm the selected model and drawing revision before design-in.
Model no.Z121WX01J
Z121WX01J 12.1-Inch 1024 × 768 TFT-LCD Display Module — Ref 51804467
Z121WX01J is a 12.1-inch tft-lcd display module with 1024 × 768 resolution and a LVDS interface. Review the module specifications, product images and integration requirements before requesting a sample.
- LVDS
- Resolution: 1024 × 768 pixels
- Module Dimensions: 160.5 × 204 × 8.6 mm
- Interface: LVDS
- Brightness: 650 cd/m²
- Operating Temperature: -20 to 70 °C
- Screen Size: 12.1 inch
- Screen Size
- 12.1 inch
- Resolution
- 1024 × 768 pixels
- Display Mode
- Normally black, Transmissive
- Interface
- LVDS
- Viewing Angle
- 85/85/85/85
Z121WX01J product introduction
Z121WX01J is a 12.1-inch tft-lcd display module with 1024 × 768 resolution and a LVDS interface. Review the module specifications, product images and integration requirements before requesting a sample. The standard tft lcd displays format helps define the display area and user-interface layout while the exact model reference keeps the optical, electrical and mechanical requirements tied to one assembly.
Module Dimensions: 160.5 × 204 × 8.6 mm. Brightness: 650 cd/m². Operating Temperature: -20 to 70 °C. Use these published characteristics to compare Z121WX01J with the requirements of your equipment. Brightness, viewing direction and touch operation should be evaluated in the intended enclosure, lighting and user environment.
The LVDS connection on Z121WX01J should be checked against the host controller and connector arrangement. Review supply levels, backlight drive, cable routing and the matching pin assignment before connecting a sample. A shared interface name alone does not establish compatibility between two modules.
Product features
The following Z121WX01J attributes are listed for this assembly. Select the module by the requirements that affect your product, including the optical output, controller interface and mechanical envelope.
- Resolution: 1024 × 768 pixels
- Module Dimensions: 160.5 × 204 × 8.6 mm
- Interface: LVDS
- Brightness: 650 cd/m²
- Operating Temperature: -20 to 70 °C
- Screen Size: 12.1 inch
Technical specifications
| Parameter | Value |
|---|---|
| Resolution | 1024 × 768 pixels |
| Module Dimensions | 160.5 × 204 × 8.6 mm |
| Active Area | 245.76 × 184.32 mm |
| Interface | LVDS |
| Display Mode | Normally Black, Transmissive |
| Brightness | 650 cd/m² |
| Contrast Ratio | 900:1 |
| Operating Temperature | -20 to 70 °C |
| Storage Temperature | -30 to 80 °C |
| Model Size (W*H*T) | 160.5*204*8.6 mm |
| Viewing | IPS/ALL |
| Pin Count | 20 |
| Viewing Angle | 85/85/85/85 |
| Screen Size | 12.1 inch |
Interface & pin definition
Use the Z121WX01J electrical documentation to confirm pin numbering, signal direction, voltage limits, backlight connections and any touch-controller wiring. The connector and FPC arrangement must match the host electronics and the quoted assembly.
| Parameter | Value |
|---|---|
| Interface | LVDS |
| Pin Count | 20 |

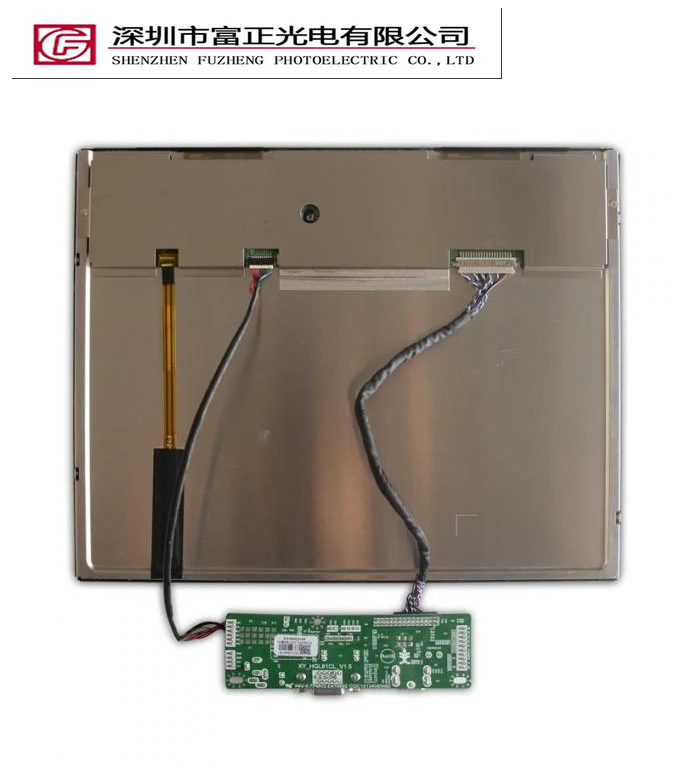

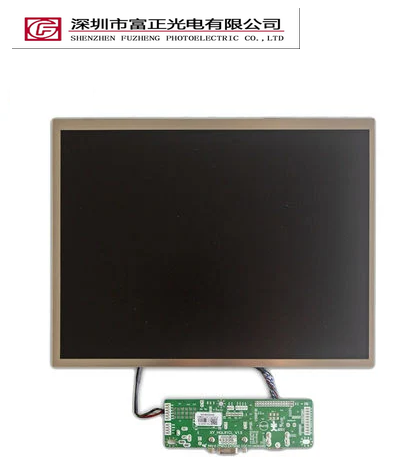

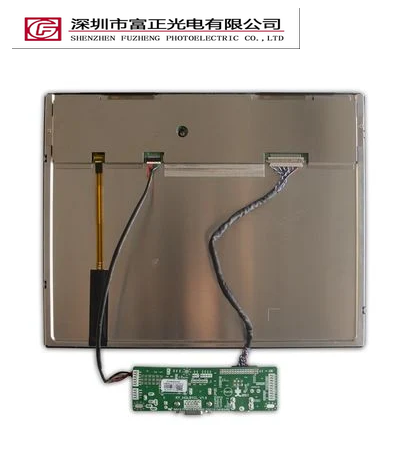

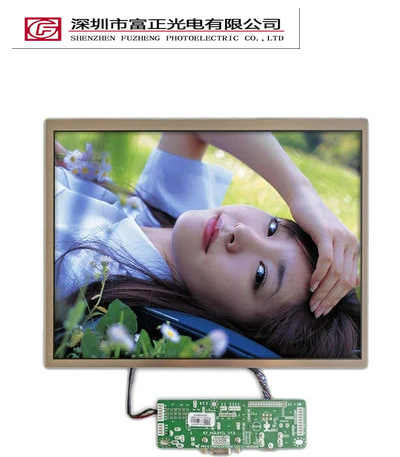

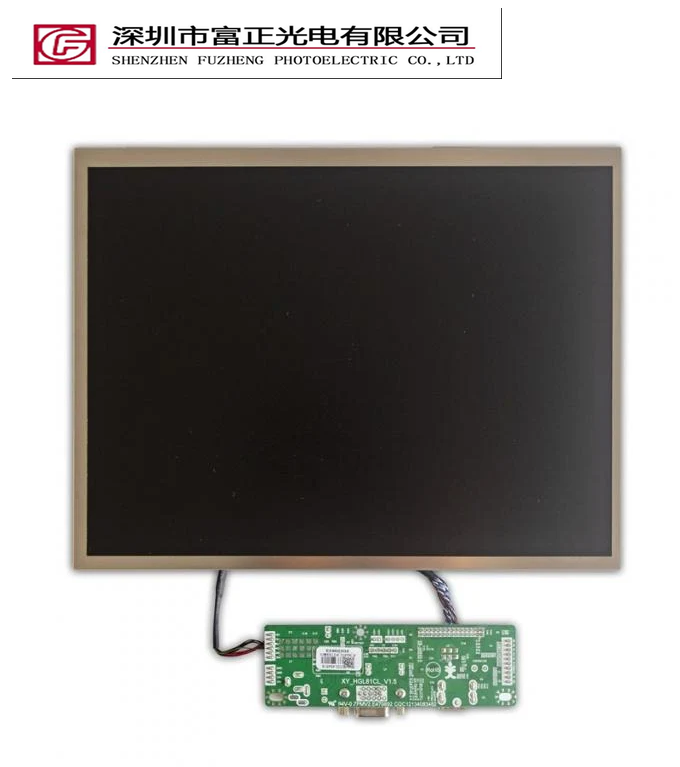

Product photographs

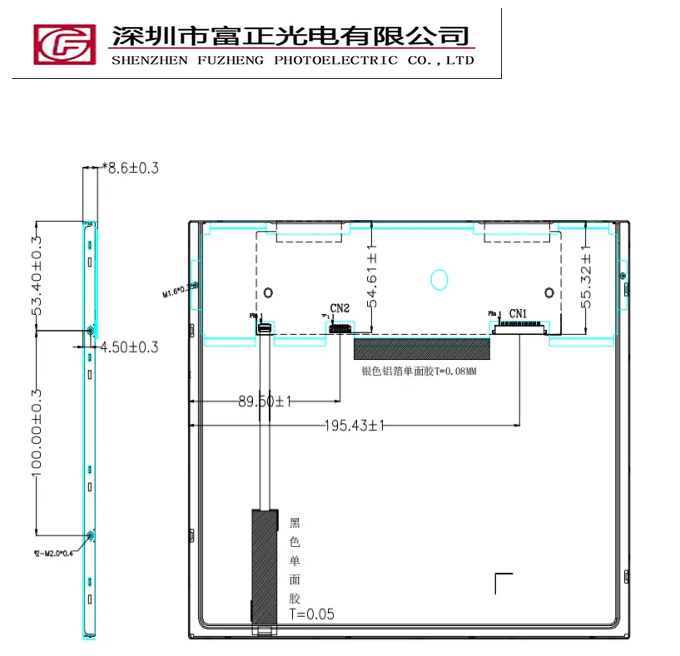

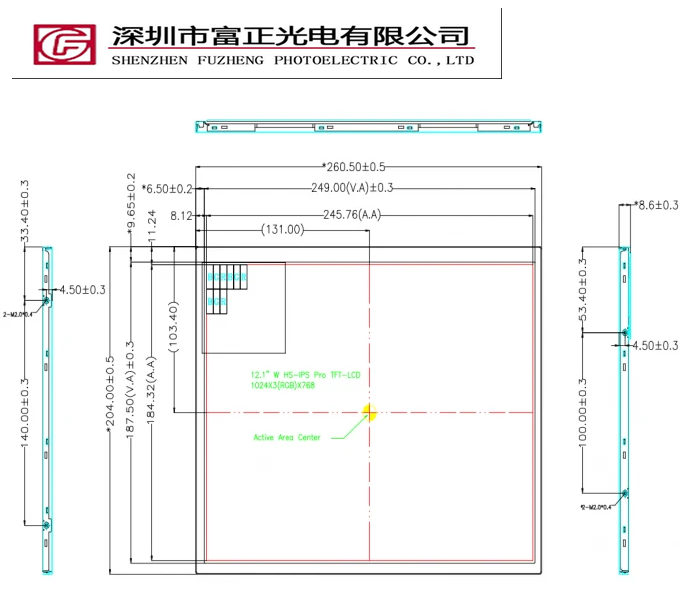

Mechanical drawings & documents
Request the Z121WX01J mechanical drawing and datasheet with your project inquiry. Confirm the outline, active area, mounting features and FPC position before finalizing the enclosure.
Application & selection guidance
Z121WX01J can be evaluated for equipment user interfaces and embedded instruments and control panels. These are integration directions: suitability depends on the final optical, electrical, mechanical and environmental requirements.
Compare the 12.1-inch display format with your available viewing area, then check 1024 × 768 pixel resolution, LVDS host connectivity, touch operation and power requirements. Evaluate a sample in the real enclosure before approving production. Share the target conditions and quantity so Fuzheng can review the selected Z121WX01J configuration.
Z121WX01J frequently asked questions
What specifications are listed for Z121WX01J?
Resolution: 1024 × 768 pixels; Module Dimensions: 160.5 × 204 × 8.6 mm; Interface: LVDS; Brightness: 650 cd/m²; Operating Temperature: -20 to 70 °C; Screen Size: 12.1 inch. Confirm the selected assembly and latest drawing revision when requesting a quotation.
How should Z121WX01J connect to a host system?
Z121WX01J lists a LVDS interface. Check the pin assignment, connector, logic voltage, timing and initialization against your host controller. Do not apply power based only on a similar product photograph.
Is touch information available for Z121WX01J?
A fixed touch configuration is not specified in this record. Include your touch, cover-lens and controller requirements in the inquiry for Z121WX01J so the exact assembly can be reviewed.
Where can I find the drawing for Z121WX01J?
Request the mechanical drawing and electrical datasheet for Z121WX01J. Include available enclosure space, mounting method and FPC routing constraints so the correct assembly documents can be supplied.
What should I send when requesting a Z121WX01J sample?
Include the model Z121WX01J, target interface, touch and cover-lens requirements, operating environment, sample quantity and estimated production quantity. Share a host schematic or enclosure drawing when available so electrical and mechanical fit can be reviewed.
Request a quotation or sample
Send the Z121WX01J reference together with the interface, touch, enclosure, sample quantity and production schedule. Fuzheng will review the matching module and document requirements with your inquiry.
