Product images and mechanical references for this assembly. Confirm the selected model and drawing revision before design-in.
Model no.Z101WX01
Z101WX01 10.1-Inch 800 × 1280 TFT-LCD Display Module
Z101WX01 is a 10.1-inch tft-lcd display module with 800 × 1280 resolution and a MIPI interface. Review the module specifications, product images and integration requirements before requesting a sample.
- MIPI
- Resolution: 800 × 1280 pixels
- Module Dimensions: 143 × 228.6 × 2.6 mm
- Interface: MIPI
- Brightness: 280 cd/m²
- Operating Temperature: -10 to 50 °C
- Screen Size: 10.1 inch
- Screen Size
- 10.1 inch
- Resolution
- 800 × 1280 pixels
- Display Mode
- Normally black, Transmissive
- Interface
- MIPI
- Viewing Angle
- 80/80/80/80
Z101WX01 product introduction
Z101WX01 is a 10.1-inch tft-lcd display module with 800 × 1280 resolution and a MIPI interface. Review the module specifications, product images and integration requirements before requesting a sample. The standard tft lcd displays format helps define the display area and user-interface layout while the exact model reference keeps the optical, electrical and mechanical requirements tied to one assembly.
Module Dimensions: 143 × 228.6 × 2.6 mm. Brightness: 280 cd/m². Operating Temperature: -10 to 50 °C. Use these published characteristics to compare Z101WX01 with the requirements of your equipment. Brightness, viewing direction and touch operation should be evaluated in the intended enclosure, lighting and user environment.
The MIPI connection on Z101WX01 should be checked against the host controller and connector arrangement. Review supply levels, backlight drive, cable routing and the matching pin assignment before connecting a sample. A shared interface name alone does not establish compatibility between two modules.
Product features
The following Z101WX01 attributes are listed for this assembly. Select the module by the requirements that affect your product, including the optical output, controller interface and mechanical envelope.
- Resolution: 800 × 1280 pixels
- Module Dimensions: 143 × 228.6 × 2.6 mm
- Interface: MIPI
- Brightness: 280 cd/m²
- Operating Temperature: -10 to 50 °C
- Screen Size: 10.1 inch
Technical specifications
| Parameter | Value |
|---|---|
| Resolution | 800 × 1280 pixels |
| Module Dimensions | 143 × 228.6 × 2.6 mm |
| Active Area | 135.36 × 216.576 mm |
| Interface | MIPI |
| Display Mode | Normally Black, Transmissive |
| Brightness | 280 cd/m² |
| Operating Temperature | -10 to 50 °C |
| Storage Temperature | -20 to 60 °C |
| Model Size (W*H*T)mm | 143x228.6x2.6 mm |
| Viewing | IPS/ALL |
| Pin Count | 40 |
| Viewing Angle | 80/80/80/80 |
| Screen Size | 10.1 inch |
Interface & pin definition
Use the Z101WX01 electrical documentation to confirm pin numbering, signal direction, voltage limits, backlight connections and any touch-controller wiring. The connector and FPC arrangement must match the host electronics and the quoted assembly.
| Parameter | Value |
|---|---|
| Interface | MIPI |
| Pin Count | 40 |

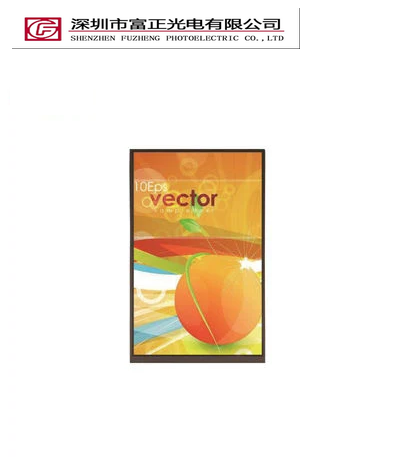

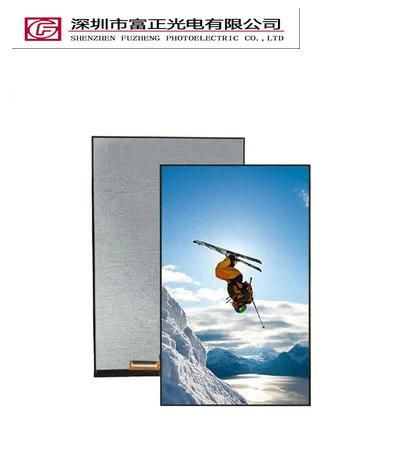

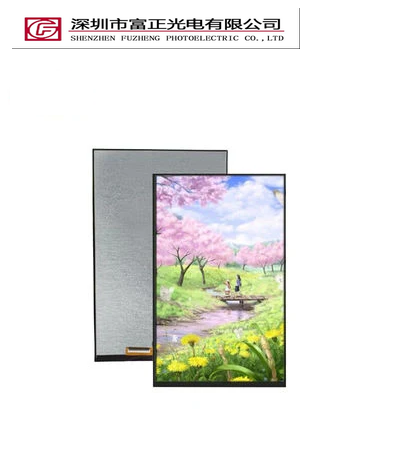

Product photographs
Mechanical drawings & documents
Request the Z101WX01 mechanical drawing and datasheet with your project inquiry. Confirm the outline, active area, mounting features and FPC position before finalizing the enclosure.
Application & selection guidance
Z101WX01 can be evaluated for equipment user interfaces and embedded instruments and control panels. These are integration directions: suitability depends on the final optical, electrical, mechanical and environmental requirements.
Compare the 10.1-inch display format with your available viewing area, then check 800 × 1280 pixel resolution, MIPI host connectivity, touch operation and power requirements. Evaluate a sample in the real enclosure before approving production. Share the target conditions and quantity so Fuzheng can review the selected Z101WX01 configuration.
Z101WX01 frequently asked questions
What specifications are listed for Z101WX01?
Resolution: 800 × 1280 pixels; Module Dimensions: 143 × 228.6 × 2.6 mm; Interface: MIPI; Brightness: 280 cd/m²; Operating Temperature: -10 to 50 °C; Screen Size: 10.1 inch. Confirm the selected assembly and latest drawing revision when requesting a quotation.
How should Z101WX01 connect to a host system?
Z101WX01 lists a MIPI interface. Check the pin assignment, connector, logic voltage, timing and initialization against your host controller. Do not apply power based only on a similar product photograph.
Is touch information available for Z101WX01?
A fixed touch configuration is not specified in this record. Include your touch, cover-lens and controller requirements in the inquiry for Z101WX01 so the exact assembly can be reviewed.
Where can I find the drawing for Z101WX01?
Request the mechanical drawing and electrical datasheet for Z101WX01. Include available enclosure space, mounting method and FPC routing constraints so the correct assembly documents can be supplied.
What should I send when requesting a Z101WX01 sample?
Include the model Z101WX01, target interface, touch and cover-lens requirements, operating environment, sample quantity and estimated production quantity. Share a host schematic or enclosure drawing when available so electrical and mechanical fit can be reviewed.
Request a quotation or sample
Send the Z101WX01 reference together with the interface, touch, enclosure, sample quantity and production schedule. Fuzheng will review the matching module and document requirements with your inquiry.
