Model no.Z101WS07
Z101WS07 1024 × 600 TFT-LCD Display Module
Z101WS07 is a tft-lcd display module with 1024 × 600 resolution and a LVDS interface. Review the module specifications, product images and integration requirements before requesting a sample.
- LVDS
- Module Dimensions: 235 × 143 × 4.9 mm
- Interface: LVDS
- Resolution: 1024 × 600 pixels
- Brightness: 300 cd/m²
- Resolution
- 1024 × 600 pixels
- Display Mode
- Normally White Transmissive
- Interface
- LVDS
Z101WS07 product introduction
Z101WS07 is a tft-lcd display module with 1024 × 600 resolution and a LVDS interface. Review the module specifications, product images and integration requirements before requesting a sample. The standard tft lcd displays format helps define the display area and user-interface layout while the exact model reference keeps the optical, electrical and mechanical requirements tied to one assembly.
Module Dimensions: 235 × 143 × 4.9 mm. Brightness: 300 cd/m². Use these published characteristics to compare Z101WS07 with the requirements of your equipment. Brightness, viewing direction and touch operation should be evaluated in the intended enclosure, lighting and user environment.
The LVDS connection on Z101WS07 should be checked against the host controller and connector arrangement. Review supply levels, backlight drive, cable routing and the matching pin assignment before connecting a sample. A shared interface name alone does not establish compatibility between two modules.
Product features
The following Z101WS07 attributes are listed for this assembly. Select the module by the requirements that affect your product, including the optical output, controller interface and mechanical envelope.
- Module Dimensions: 235 × 143 × 4.9 mm
- Interface: LVDS
- Resolution: 1024 × 600 pixels
- Brightness: 300 cd/m²
Technical specifications
| Parameter | Value |
|---|---|
| Module Dimensions | 235 × 143 × 4.9 mm |
| Interface | LVDS |
| Resolution | 1024 × 600 pixels |
| Storage Temperature | -30 to 80 °C |
| Active Area | 222.72 × 125.28 mm |
| Brightness | 300 cd/m² |
| Display Mode | Normally White Transmissive |
Interface & pin definition
Use the Z101WS07 electrical documentation to confirm pin numbering, signal direction, voltage limits, backlight connections and any touch-controller wiring. The connector and FPC arrangement must match the host electronics and the quoted assembly.
| Parameter | Value |
|---|---|
| Interface | LVDS |

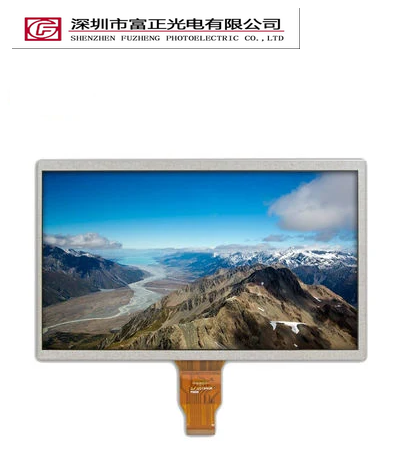

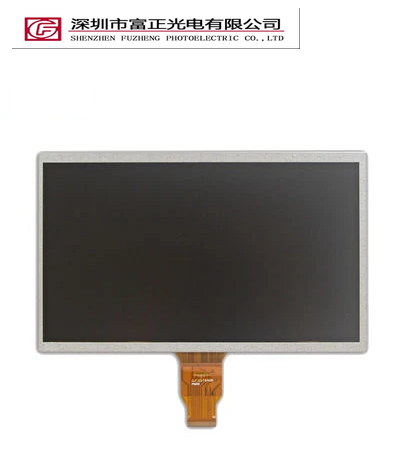

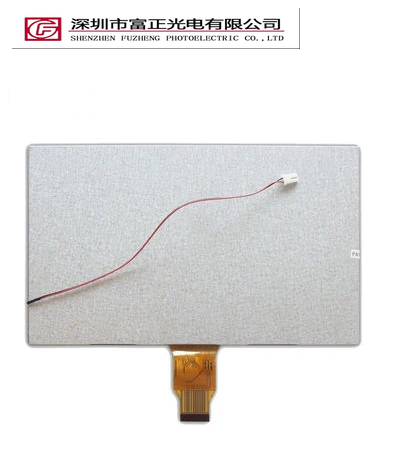

Product photographs
Mechanical drawings & documents
Request the Z101WS07 mechanical drawing and datasheet with your project inquiry. Confirm the outline, active area, mounting features and FPC position before finalizing the enclosure.
Application & selection guidance
Z101WS07 can be evaluated for equipment user interfaces and embedded instruments and control panels. These are integration directions: suitability depends on the final optical, electrical, mechanical and environmental requirements.
Compare the display format with your available viewing area, then check 1024 × 600 pixel resolution, LVDS host connectivity, touch operation and power requirements. Evaluate a sample in the real enclosure before approving production. Share the target conditions and quantity so Fuzheng can review the selected Z101WS07 configuration.
Z101WS07 frequently asked questions
What specifications are listed for Z101WS07?
Module Dimensions: 235 × 143 × 4.9 mm; Interface: LVDS; Resolution: 1024 × 600 pixels; Brightness: 300 cd/m². Confirm the selected assembly and latest drawing revision when requesting a quotation.
How should Z101WS07 connect to a host system?
Z101WS07 lists a LVDS interface. Check the pin assignment, connector, logic voltage, timing and initialization against your host controller. Do not apply power based only on a similar product photograph.
Is touch information available for Z101WS07?
A fixed touch configuration is not specified in this record. Include your touch, cover-lens and controller requirements in the inquiry for Z101WS07 so the exact assembly can be reviewed.
Where can I find the drawing for Z101WS07?
Request the mechanical drawing and electrical datasheet for Z101WS07. Include available enclosure space, mounting method and FPC routing constraints so the correct assembly documents can be supplied.
What should I send when requesting a Z101WS07 sample?
Include the model Z101WS07, target interface, touch and cover-lens requirements, operating environment, sample quantity and estimated production quantity. Share a host schematic or enclosure drawing when available so electrical and mechanical fit can be reviewed.
