Model no.Z090WV01
Z090WV01 9-Inch 800 × 480 TFT-LCD Display Module
Z090WV01 is a 9-inch tft-lcd display module with 800 × 480 resolution. Review the module specifications, product images and integration requirements before requesting a sample.
- Resolution: 800 × 480 pixels
- Module Dimensions: 210.6 × 126.5 × 5.3 mm
- Brightness: 500 cd/m²
- Operating Temperature: -20 to 70 °C
- Screen Size: 9 inch
- Screen Size
- 9 inch
- Resolution
- 800 × 480 pixels
- Display Mode
- Normally White,Transmissive
- Viewing Angle
- 70/70/50/70
Specification confirmation. Confirm interface against the latest approved specification before design-in.
Z090WV01 product introduction
Z090WV01 is a 9-inch tft-lcd display module with 800 × 480 resolution. Review the module specifications, product images and integration requirements before requesting a sample. The standard tft lcd displays format helps define the display area and user-interface layout while the exact model reference keeps the optical, electrical and mechanical requirements tied to one assembly.
Module Dimensions: 210.6 × 126.5 × 5.3 mm. Brightness: 500 cd/m². Operating Temperature: -20 to 70 °C. Use these published characteristics to compare Z090WV01 with the requirements of your equipment. Brightness, viewing direction and touch operation should be evaluated in the intended enclosure, lighting and user environment.
Confirm the host connection and controller requirements for Z090WV01. Review supply levels, backlight drive, cable routing and the matching pin assignment before connecting a sample. A shared interface name alone does not establish compatibility between two modules.
Product features
The following Z090WV01 attributes are listed for this assembly. Select the module by the requirements that affect your product, including the optical output, controller interface and mechanical envelope.
- Resolution: 800 × 480 pixels
- Module Dimensions: 210.6 × 126.5 × 5.3 mm
- Brightness: 500 cd/m²
- Operating Temperature: -20 to 70 °C
- Screen Size: 9 inch
Technical specifications
| Parameter | Value |
|---|---|
| Resolution | 800 × 480 pixels |
| Module Dimensions | 210.6 × 126.5 × 5.3 mm |
| Active Area | 198 × 111.69 mm |
| Brightness | 500 cd/m² |
| Operating Temperature | -20 to 70 °C |
| Storage Temperature | -30 to 80 °C |
| Model Size (W*H*T) | 210.6*126.5*5.3mm |
| Display Mode | Normally White,Transmissive |
| Viewing Angle | 70/70/50/70 |
| Pin Count | 50 |
| Contrast Ratio | 500:1 |
| Screen Size | 9 inch |
Confirm interface against the latest approved module specification before design-in.
Interface & pin definition
Use the Z090WV01 electrical documentation to confirm pin numbering, signal direction, voltage limits, backlight connections and any touch-controller wiring. The connector and FPC arrangement must match the host electronics and the quoted assembly.
| Parameter | Value |
|---|---|
| Pin Count | 50 |

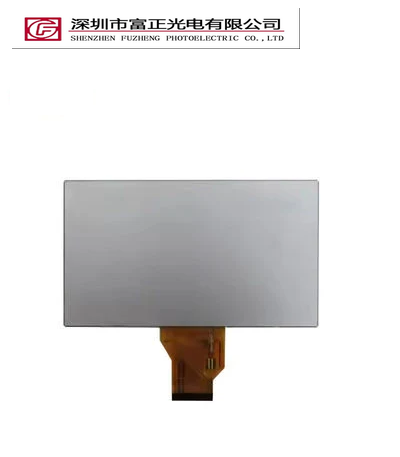

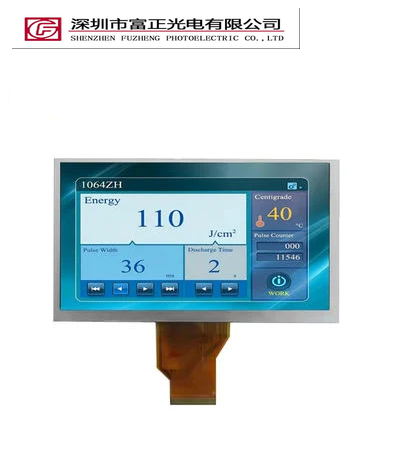

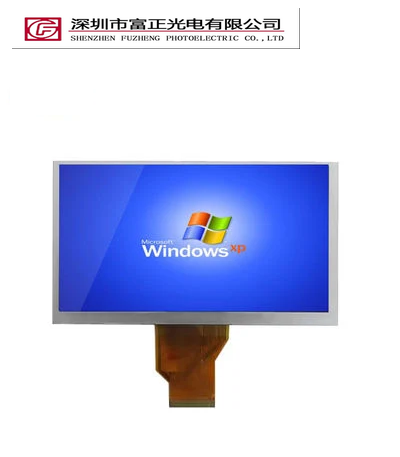

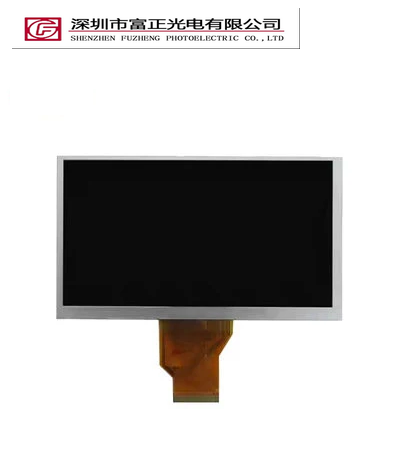

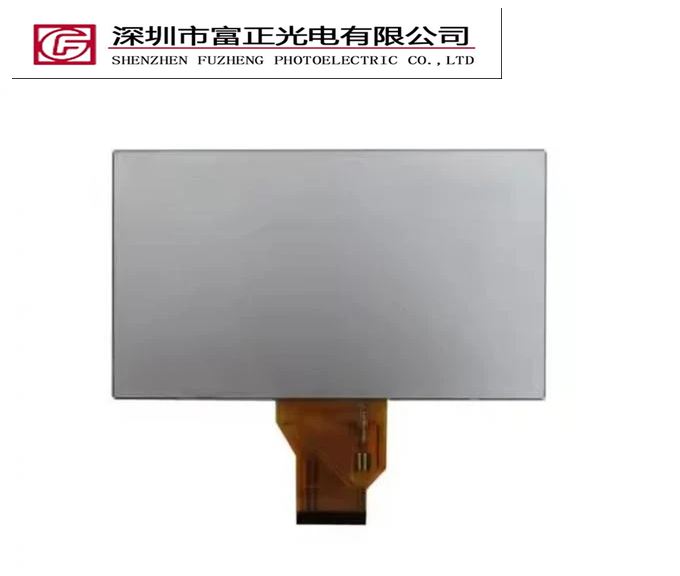

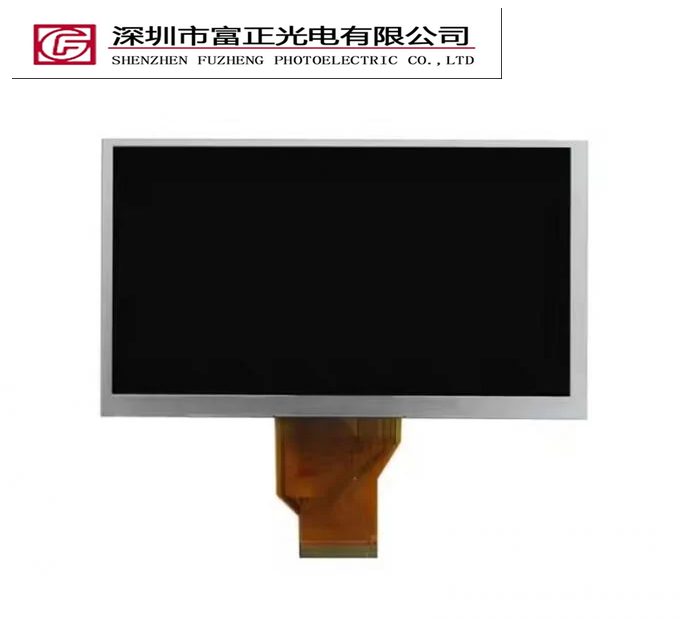

Product photographs

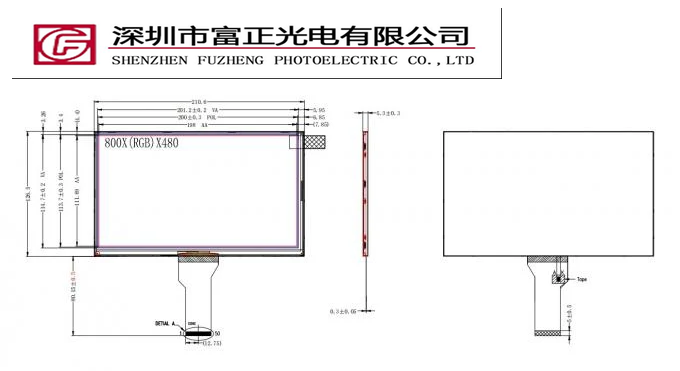

Mechanical drawings & documents
Request the Z090WV01 mechanical drawing and datasheet with your project inquiry. Confirm the outline, active area, mounting features and FPC position before finalizing the enclosure.
Application & selection guidance
Z090WV01 can be evaluated for equipment user interfaces and embedded instruments and control panels. These are integration directions: suitability depends on the final optical, electrical, mechanical and environmental requirements.
Compare the 9-inch display format with your available viewing area, then check 800 × 480 pixel resolution, touch operation and power requirements. Evaluate a sample in the real enclosure before approving production. Share the target conditions and quantity so Fuzheng can review the selected Z090WV01 configuration.
Z090WV01 frequently asked questions
What specifications are listed for Z090WV01?
Resolution: 800 × 480 pixels; Module Dimensions: 210.6 × 126.5 × 5.3 mm; Brightness: 500 cd/m²; Operating Temperature: -20 to 70 °C; Screen Size: 9 inch. Confirm the selected assembly and latest drawing revision when requesting a quotation.
How should Z090WV01 connect to a host system?
Request the exact interface documentation for this assembly. Check the pin assignment, connector, logic voltage, timing and initialization against your host controller. Do not apply power based only on a similar product photograph.
Is touch information available for Z090WV01?
A fixed touch configuration is not specified in this record. Include your touch, cover-lens and controller requirements in the inquiry for Z090WV01 so the exact assembly can be reviewed.
Where can I find the drawing for Z090WV01?
Request the mechanical drawing and electrical datasheet for Z090WV01. Include available enclosure space, mounting method and FPC routing constraints so the correct assembly documents can be supplied.
What should I send when requesting a Z090WV01 sample?
Include the model Z090WV01, target interface, touch and cover-lens requirements, operating environment, sample quantity and estimated production quantity. Share a host schematic or enclosure drawing when available so electrical and mechanical fit can be reviewed.
Request a quotation or sample
Send the Z090WV01 reference together with the interface, touch, enclosure, sample quantity and production schedule. Fuzheng will review the matching module and document requirements with your inquiry.
Compare more in Standard TFT LCD Displays.
