Product images and mechanical references for this assembly. Confirm the selected model and drawing revision before design-in.

Model no.Z080XG01J

Z080XG01J 8-Inch 1024 × 768 TFT-LCD Display Module

LVDS
Resolution: 1024 × 768 pixels
Module Dimensions: 183 × 141 × 6.15 mm
Interface: LVDS
Brightness: 1000 cd/m²
Operating Temperature: -20 to 70 °C
Screen Size: 8 inch

Screen Size: 8 inch
Resolution: 1024 × 768 pixels
Display Mode: Normally black, Transmissive
Interface: LVDS
Viewing Angle: 85/85/85/85

Review the listed module configuration and confirm the matching specification and drawing revision with your inquiry.

Z080XG01J product introduction

Z080XG01J is a 8-inch tft-lcd display module with 1024 × 768 resolution and a LVDS interface. Review the module specifications, product images and integration requirements before requesting a sample. The standard tft lcd displays format helps define the display area and user-interface layout while the exact model reference keeps the optical, electrical and mechanical requirements tied to one assembly.

Module Dimensions: 183 × 141 × 6.15 mm. Brightness: 1000 cd/m². Operating Temperature: -20 to 70 °C. Use these published characteristics to compare Z080XG01J with the requirements of your equipment. Brightness, viewing direction and touch operation should be evaluated in the intended enclosure, lighting and user environment.

The LVDS connection on Z080XG01J should be checked against the host controller and connector arrangement. Review supply levels, backlight drive, cable routing and the matching pin assignment before connecting a sample. A shared interface name alone does not establish compatibility between two modules.

Product features

The following Z080XG01J attributes are listed for this assembly. Select the module by the requirements that affect your product, including the optical output, controller interface and mechanical envelope.

Resolution: 1024 × 768 pixels
Module Dimensions: 183 × 141 × 6.15 mm
Interface: LVDS
Brightness: 1000 cd/m²
Operating Temperature: -20 to 70 °C
Screen Size: 8 inch

Technical specifications

Z080XG01J technical parameters
Parameter	Value
Resolution	1024 × 768 pixels
Module Dimensions	183 × 141 × 6.15 mm
Interface	LVDS
Display Mode	Normally Black, Transmissive
Brightness	1000 cd/m²
Working Temperature	-20 to 70 °C
Storage Temperature	-30 to 80 °C
Model Size (WHT)mm	1831416.15
Active Area	162.05 × 121.54 mm
Viewing	IPS/ALL
Pin Count	40
Viewing Angle	85/85/85/85
Operating Temperature	-20 to 70 °C
Screen Size	8 inch

Interface & pin definition

Use the Z080XG01J electrical documentation to confirm pin numbering, signal direction, voltage limits, backlight connections and any touch-controller wiring. The connector and FPC arrangement must match the host electronics and the quoted assembly.

Z080XG01J technical parameters
Parameter	Value
Interface	LVDS
Pin Count	40

Product photographs

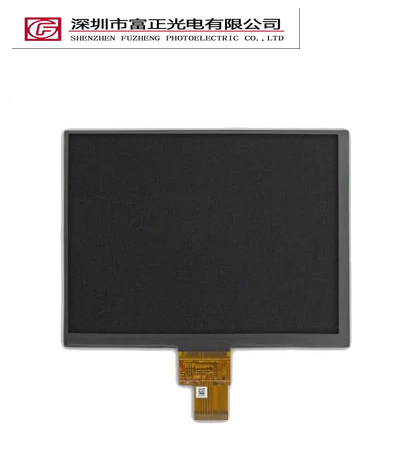

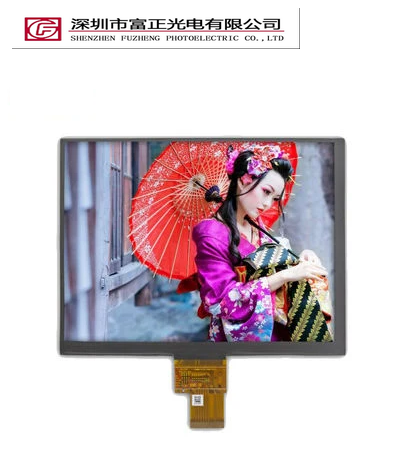

Z080XG01J product view 1

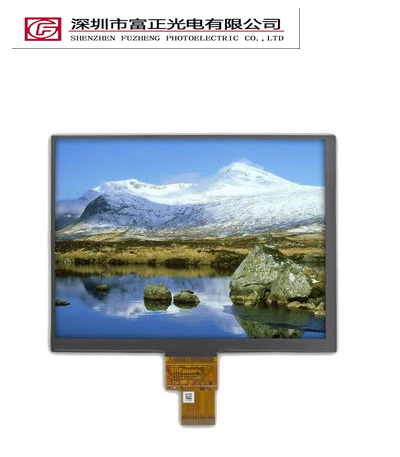

Z080XG01J product view 2

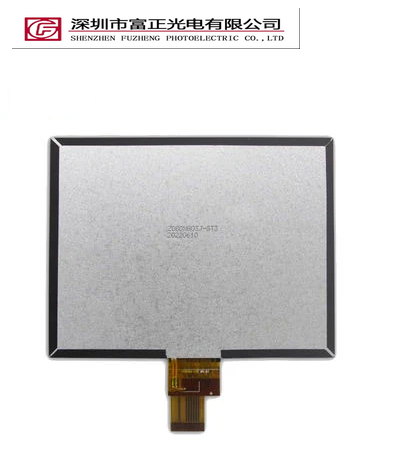

Z080XG01J product view 3

Z080XG01J product view 4

Z080XG01J product view 5

Z080XG01J product view 6

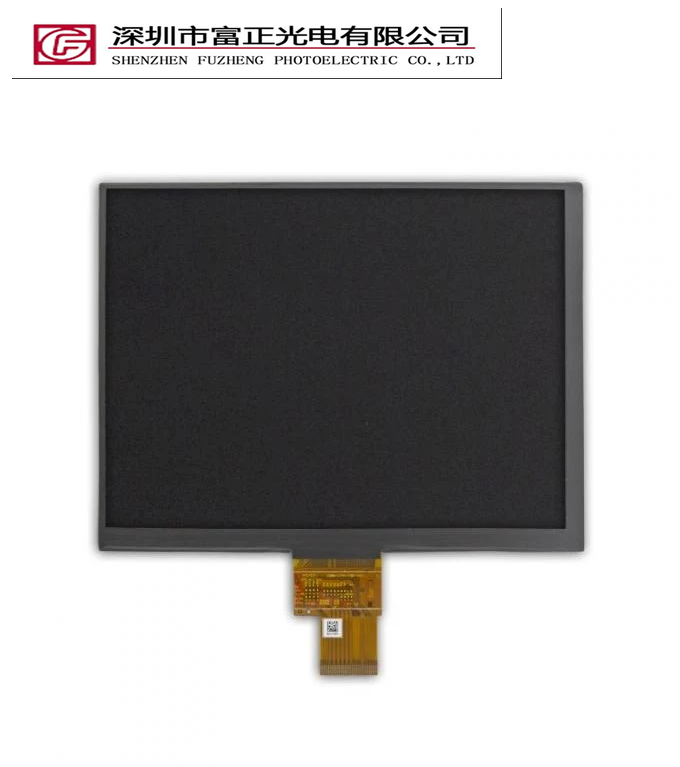

Z080XG01J product view 7

Z080XG01J product view 8

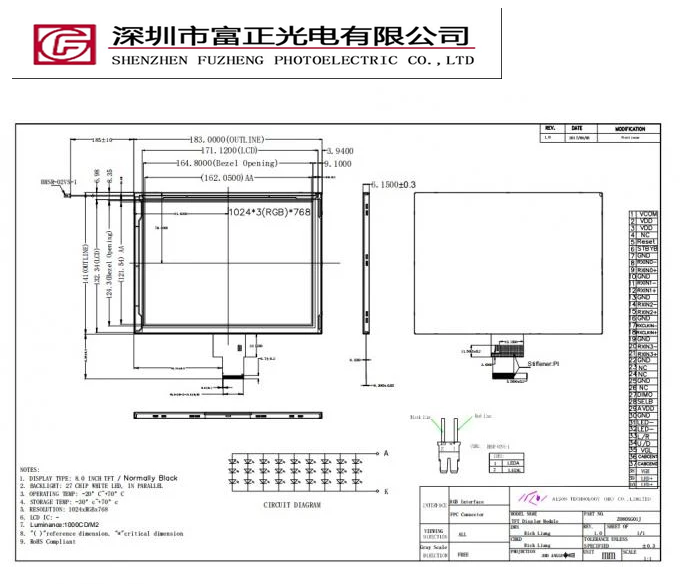

Mechanical drawings & documents

Request the Z080XG01J mechanical drawing and datasheet with your project inquiry. Confirm the outline, active area, mounting features and FPC position before finalizing the enclosure.

Application & selection guidance

Z080XG01J can be evaluated for equipment user interfaces and embedded instruments and control panels. These are integration directions: suitability depends on the final optical, electrical, mechanical and environmental requirements.

Compare the 8-inch display format with your available viewing area, then check 1024 × 768 pixel resolution, LVDS host connectivity, touch operation and power requirements. Evaluate a sample in the real enclosure before approving production. Share the target conditions and quantity so Fuzheng can review the selected Z080XG01J configuration.

Z080XG01J frequently asked questions

What specifications are listed for Z080XG01J?

Resolution: 1024 × 768 pixels; Module Dimensions: 183 × 141 × 6.15 mm; Interface: LVDS; Brightness: 1000 cd/m²; Operating Temperature: -20 to 70 °C; Screen Size: 8 inch. Confirm the selected assembly and latest drawing revision when requesting a quotation.

How should Z080XG01J connect to a host system?

Z080XG01J lists a LVDS interface. Check the pin assignment, connector, logic voltage, timing and initialization against your host controller. Do not apply power based only on a similar product photograph.

Is touch information available for Z080XG01J?

A fixed touch configuration is not specified in this record. Include your touch, cover-lens and controller requirements in the inquiry for Z080XG01J so the exact assembly can be reviewed.

Where can I find the drawing for Z080XG01J?

Request the mechanical drawing and electrical datasheet for Z080XG01J. Include available enclosure space, mounting method and FPC routing constraints so the correct assembly documents can be supplied.

What should I send when requesting a Z080XG01J sample?

Include the model Z080XG01J, target interface, touch and cover-lens requirements, operating environment, sample quantity and estimated production quantity. Share a host schematic or enclosure drawing when available so electrical and mechanical fit can be reviewed.

Request a quotation or sample

Send the Z080XG01J reference together with the interface, touch, enclosure, sample quantity and production schedule. Fuzheng will review the matching module and document requirements with your inquiry.

Request a Z080XG01J quote or evaluation sample →

Discuss this display with our team

Z080XG01J

Share the required interface, touch assembly, quantity and project timing. Pricing and availability are confirmed by inquiry.

Start a product inquiry →
