Z076-30MB-A1 7.6-Inch 800 × 800 TFT-LCD Display Module

MIPI
Resolution: 800 × 800 pixels
Interface: MIPI
Brightness: 1000 cd/m²
Driver IC: ILI9881C
Screen Size: 7.6 inch

Screen Size: 7.6 inch
Resolution: 800 × 800 pixels
Display Mode: Normally black
Interface: MIPI
Viewing Angle: 80/80/80/80

Review the listed module configuration and confirm the matching specification and drawing revision with your inquiry.

Specification confirmation. Confirm module dimensions, operating temperature, storage temperature against the latest approved specification before design-in.

Z076-30MB-A1 product introduction

Z076-30MB-A1 is a 7.6-inch tft-lcd display module with 800 × 800 resolution and a MIPI interface. Review the module specifications, product images and integration requirements before requesting a sample. The standard tft lcd displays format helps define the display area and user-interface layout while the exact model reference keeps the optical, electrical and mechanical requirements tied to one assembly.

Brightness: 1000 cd/m². Driver IC: ILI9881C. Use these published characteristics to compare Z076-30MB-A1 with the requirements of your equipment. Brightness, viewing direction and touch operation should be evaluated in the intended enclosure, lighting and user environment.

The MIPI connection on Z076-30MB-A1 should be checked against the host controller and connector arrangement. Review supply levels, backlight drive, cable routing and the matching pin assignment before connecting a sample. A shared interface name alone does not establish compatibility between two modules.

Product features

The following Z076-30MB-A1 attributes are listed for this assembly. Select the module by the requirements that affect your product, including the optical output, controller interface and mechanical envelope.

Resolution: 800 × 800 pixels
Interface: MIPI
Brightness: 1000 cd/m²
Driver IC: ILI9881C
Screen Size: 7.6 inch

Technical specifications

Z076-30MB-A1 technical parameters
Parameter	Value
Resolution	800 × 800 pixels
Active Area	135.36 × 135.36 mm
Interface	MIPI
Viewing Angle	80/80/80/80
Brightness	1000 cd/m²
Display Mode	Normally Black
Driver IC	ILI9881C
Dimensional outline	142.56 (H)148.24 (V)5.1(D)
Viewing Direction	Free
Screen Size	7.6 inch

Confirm module dimensions, operating temperature, storage temperature against the latest approved module specification before design-in.

Interface & pin definition

Use the Z076-30MB-A1 electrical documentation to confirm pin numbering, signal direction, voltage limits, backlight connections and any touch-controller wiring. The connector and FPC arrangement must match the host electronics and the quoted assembly.

Z076-30MB-A1 technical parameters
Parameter	Value
Interface	MIPI
Driver IC	ILI9881C

Product photographs

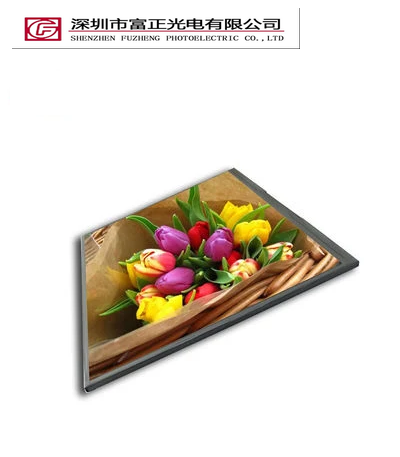

Z076-30MB-A1 product view 1

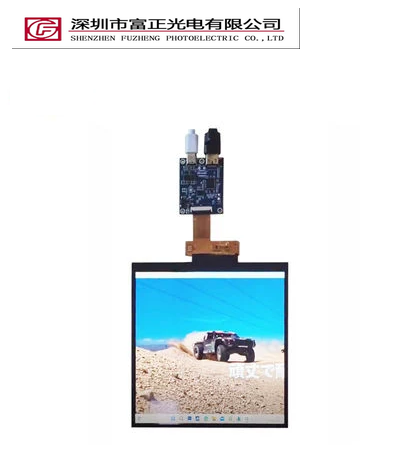

Z076-30MB-A1 product view 2

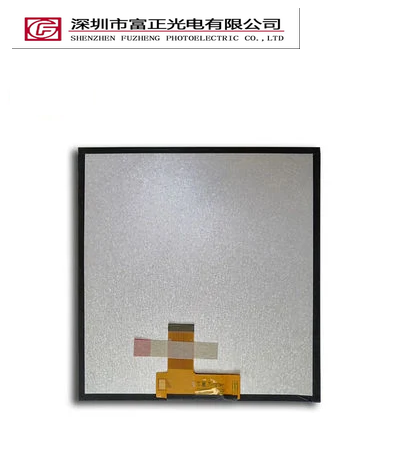

Z076-30MB-A1 product view 3

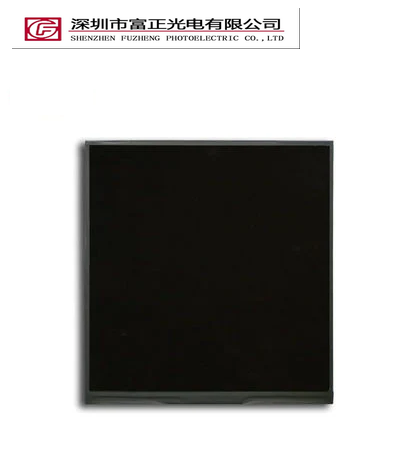

Z076-30MB-A1 product view 4

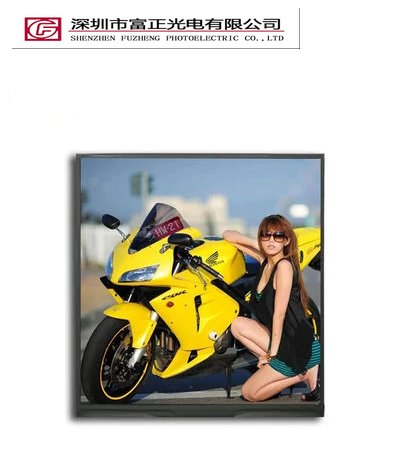

Z076-30MB-A1 product view 5

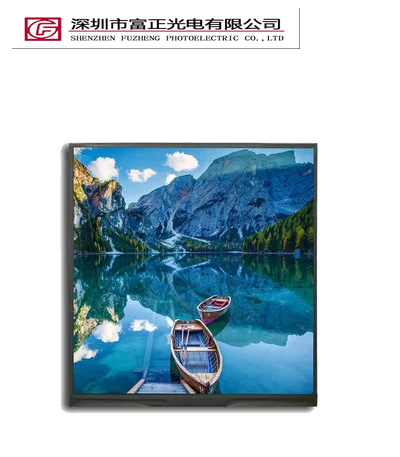

Z076-30MB-A1 product view 6

Z076-30MB-A1 product view 7

Z076-30MB-A1 product view 8

Mechanical drawings & documents

Mechanical reference 1 — open full size to inspect dimensions.

Mechanical reference 2 — open full size to inspect dimensions.

Check the dimensions, active area, connector position and cable clearance of Z076-30MB-A1 against the enclosure. Confirm the drawing revision before tooling.

Application & selection guidance

Z076-30MB-A1 can be evaluated for equipment user interfaces and embedded instruments and control panels. These are integration directions: suitability depends on the final optical, electrical, mechanical and environmental requirements.

Compare the 7.6-inch display format with your available viewing area, then check 800 × 800 pixel resolution, MIPI host connectivity, touch operation and power requirements. Evaluate a sample in the real enclosure before approving production. Share the target conditions and quantity so Fuzheng can review the selected Z076-30MB-A1 configuration.
