Model no.Z070WS03

Z070WS03 7-Inch 1024 × 600 TFT-LCD Display Module

Z070WS03 is a 7-inch tft-lcd display module with 1024 × 600 resolution and a RGB interface. Review the module specifications, product images and integration requirements before requesting a sample.

RGB
Resolution: 1024 × 600 pixels
Module Dimensions: 164.9 × 100 × 3.5 mm
Interface: RGB
Brightness: 400 cd/m²
Screen Size: 7 inch

Screen Size: 7 inch
Resolution: 1024 × 600 pixels
Display Mode: Normally White,Transmissive
Interface: RGB

Review the listed module configuration and confirm the matching specification and drawing revision with your inquiry.

Specification confirmation. Confirm operating temperature, storage temperature against the latest approved specification before design-in.

Z070WS03 product introduction

Z070WS03 is a 7-inch tft-lcd display module with 1024 × 600 resolution and a RGB interface. Review the module specifications, product images and integration requirements before requesting a sample. The standard tft lcd displays format helps define the display area and user-interface layout while the exact model reference keeps the optical, electrical and mechanical requirements tied to one assembly.

Module Dimensions: 164.9 × 100 × 3.5 mm. Brightness: 400 cd/m². Use these published characteristics to compare Z070WS03 with the requirements of your equipment. Brightness, viewing direction and touch operation should be evaluated in the intended enclosure, lighting and user environment.

The RGB connection on Z070WS03 should be checked against the host controller and connector arrangement. Review supply levels, backlight drive, cable routing and the matching pin assignment before connecting a sample. A shared interface name alone does not establish compatibility between two modules.

Product features

The following Z070WS03 attributes are listed for this assembly. Select the module by the requirements that affect your product, including the optical output, controller interface and mechanical envelope.

Resolution: 1024 × 600 pixels
Module Dimensions: 164.9 × 100 × 3.5 mm
Interface: RGB
Brightness: 400 cd/m²
Screen Size: 7 inch

Technical specifications

Z070WS03 technical parameters
Parameter	Value
Resolution	1024 × 600 pixels
Module Dimensions	164.9 × 100 × 3.5 mm
Active Area	154.21 × 85.92 mm
Interface	RGB
Brightness	400 cd/m²
Display Technology	TFT, Normally White, Transmissive
Contrast Ratio	800:1
Model Size (WHT)	164.91003.5 mm
Display Mode	Normally White,Transmissive
Viewing	12 o'clock
Pin Count	50 pin
Screen Size	7 inch

Confirm operating temperature, storage temperature against the latest approved module specification before design-in.

Interface & pin definition

Use the Z070WS03 electrical documentation to confirm pin numbering, signal direction, voltage limits, backlight connections and any touch-controller wiring. The connector and FPC arrangement must match the host electronics and the quoted assembly.

Z070WS03 technical parameters
Parameter	Value
Interface	RGB
Pin Count	50 pin

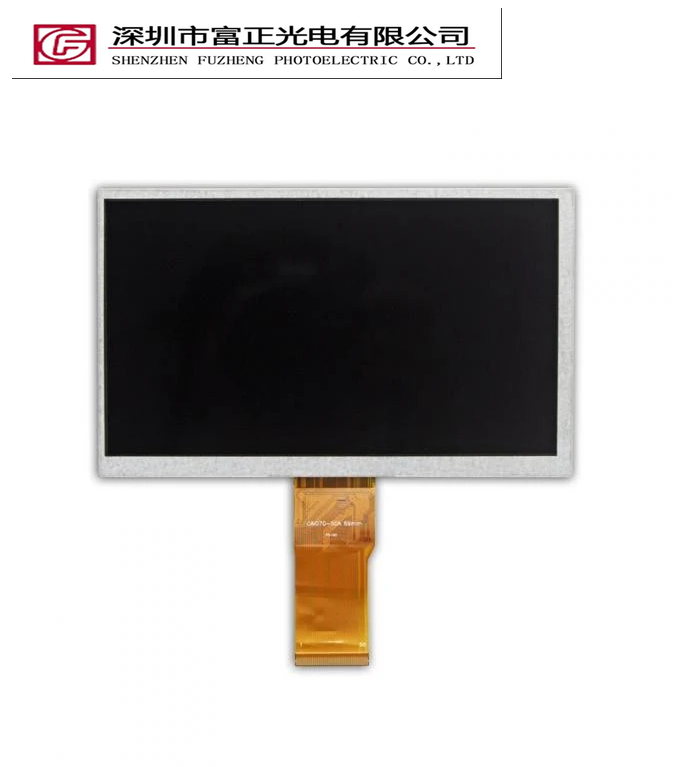

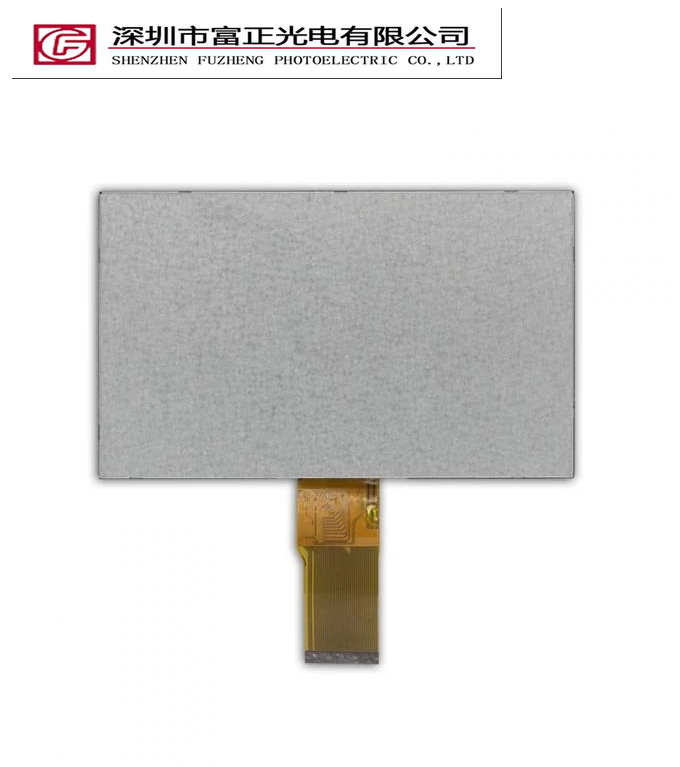

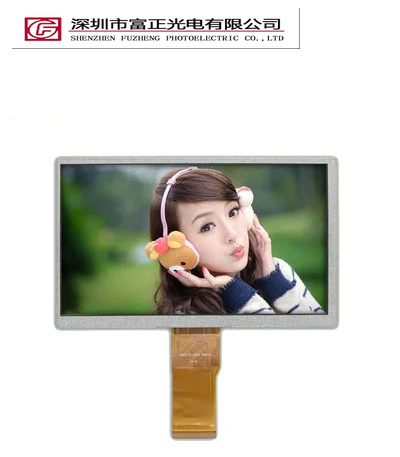

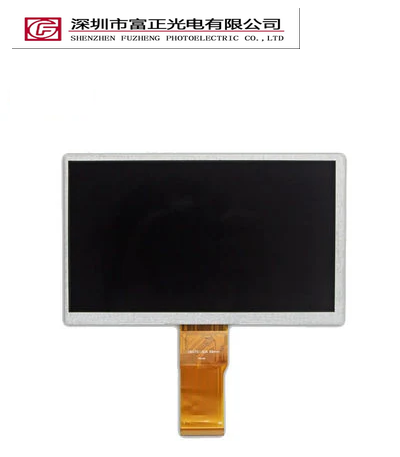

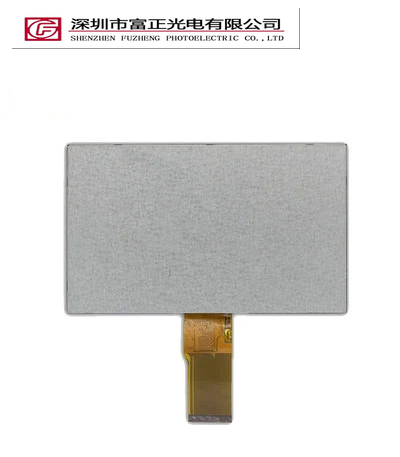

Product photographs

Z070WS03 product view 1

Z070WS03 product view 2

Z070WS03 product view 3

Z070WS03 product view 4

Z070WS03 product view 5

Mechanical drawings & documents

Mechanical reference 1 — open full size to inspect dimensions.

Check the dimensions, active area, connector position and cable clearance of Z070WS03 against the enclosure. Confirm the drawing revision before tooling.

Application & selection guidance

Z070WS03 can be evaluated for equipment user interfaces and embedded instruments and control panels. These are integration directions: suitability depends on the final optical, electrical, mechanical and environmental requirements.

Compare the 7-inch display format with your available viewing area, then check 1024 × 600 pixel resolution, RGB host connectivity, touch operation and power requirements. Evaluate a sample in the real enclosure before approving production. Share the target conditions and quantity so Fuzheng can review the selected Z070WS03 configuration.

Z070WS03 frequently asked questions

What specifications are listed for Z070WS03?

Resolution: 1024 × 600 pixels; Module Dimensions: 164.9 × 100 × 3.5 mm; Interface: RGB; Brightness: 400 cd/m²; Screen Size: 7 inch. Confirm the selected assembly and latest drawing revision when requesting a quotation.

How should Z070WS03 connect to a host system?

Z070WS03 lists a RGB interface. Check the pin assignment, connector, logic voltage, timing and initialization against your host controller. Do not apply power based only on a similar product photograph.

Is touch information available for Z070WS03?

A fixed touch configuration is not specified in this record. Include your touch, cover-lens and controller requirements in the inquiry for Z070WS03 so the exact assembly can be reviewed.

Where can I find the drawing for Z070WS03?

The drawing section contains 1 model-associated mechanical reference image. Open it at full size and confirm the model suffix, tolerances and revision before enclosure design or tooling.

What should I send when requesting a Z070WS03 sample?

Include the model Z070WS03, target interface, touch and cover-lens requirements, operating environment, sample quantity and estimated production quantity. Share a host schematic or enclosure drawing when available so electrical and mechanical fit can be reviewed.
