Product images and mechanical references for this assembly. Confirm the selected model and drawing revision before design-in.
Model no.Z043WV08H
Z043WV08H 4.3-Inch 800 × 480 TFT-LCD Display Module
Z043WV08H is a 4.3-inch tft-lcd display module with 800 × 480 resolution and a 24 BIT RGB interface. Review the module specifications, product images and integration requirements before requesting a sample.
- 24 BIT RGB
- Resolution: 800 × 480 pixels
- Module Dimensions: 105.45 × 67.2 × 3 mm
- Interface: 24 BIT RGB
- Brightness: 450 cd/m²
- Driver IC: SC7283
- Screen Size: 4.3 inch
- Screen Size
- 4.3 inch
- Resolution
- 800 × 480 pixels
- Display Mode
- Normally black,Transmissive
- Interface
- 24 BIT RGB
- Viewing Angle
- Full viewing angle
Specification confirmation. Confirm operating temperature against the latest approved specification before design-in.
Z043WV08H product introduction
Z043WV08H is a 4.3-inch tft-lcd display module with 800 × 480 resolution and a 24 BIT RGB interface. Review the module specifications, product images and integration requirements before requesting a sample. The standard tft lcd displays format helps define the display area and user-interface layout while the exact model reference keeps the optical, electrical and mechanical requirements tied to one assembly.
Module Dimensions: 105.45 × 67.2 × 3 mm. Brightness: 450 cd/m². Driver IC: SC7283. Use these published characteristics to compare Z043WV08H with the requirements of your equipment. Brightness, viewing direction and touch operation should be evaluated in the intended enclosure, lighting and user environment.
The 24 BIT RGB connection on Z043WV08H should be checked against the host controller and connector arrangement. Review supply levels, backlight drive, cable routing and the matching pin assignment before connecting a sample. A shared interface name alone does not establish compatibility between two modules.
Product features
The following Z043WV08H attributes are listed for this assembly. Select the module by the requirements that affect your product, including the optical output, controller interface and mechanical envelope.
- Resolution: 800 × 480 pixels
- Module Dimensions: 105.45 × 67.2 × 3 mm
- Interface: 24 BIT RGB
- Brightness: 450 cd/m²
- Driver IC: SC7283
- Screen Size: 4.3 inch
Technical specifications
| Parameter | Value |
|---|---|
| Resolution | 800 × 480 pixels |
| Module Dimensions | 105.45 × 67.2 × 3 mm |
| Active Area | 95.04 × 53.856 mm |
| LCD Interface | 24 Bit RGB |
| Display Technology | TFT,Normally Black |
| Viewing Direction | All |
| Model Size (W*H*T) | 105.45*67.2*3 mm |
| Interface | 24 BIT RGB |
| Display Mode | Normally Black,Transmissive |
| Viewing | IPS |
| Brightness | 450 cd/m² |
| Pin Count | 40 pin |
| Driver IC | SC7283 |
| Storage Temperature | -30 to 85 ℃ |
| Screen Size | 4.3 inch |
Confirm operating temperature against the latest approved module specification before design-in.
Interface & pin definition
Use the Z043WV08H electrical documentation to confirm pin numbering, signal direction, voltage limits, backlight connections and any touch-controller wiring. The connector and FPC arrangement must match the host electronics and the quoted assembly.
| Parameter | Value |
|---|---|
| Interface | 24 BIT RGB |
| Pin Count | 40 pin |
| Driver IC | SC7283 |

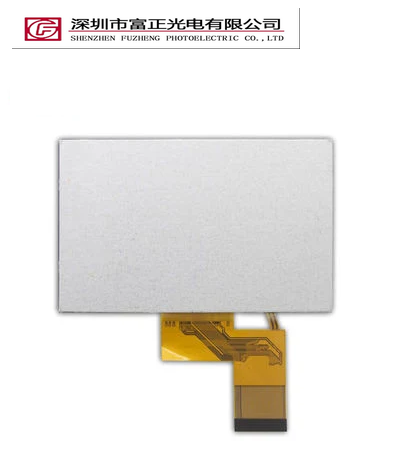

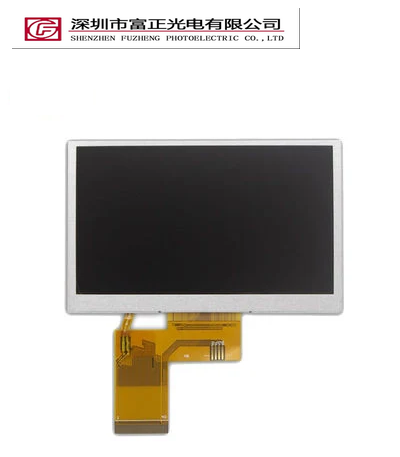

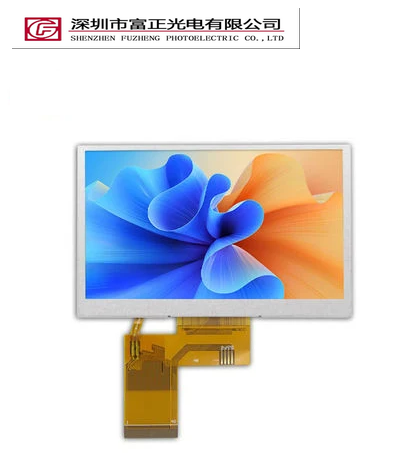

Product photographs
Mechanical drawings & documents
Check the dimensions, active area, connector position and cable clearance of Z043WV08H against the enclosure. Confirm the drawing revision before tooling.
Application & selection guidance
Z043WV08H can be evaluated for equipment user interfaces and embedded instruments and control panels. These are integration directions: suitability depends on the final optical, electrical, mechanical and environmental requirements.
Compare the 4.3-inch display format with your available viewing area, then check 800 × 480 pixel resolution, 24 BIT RGB host connectivity, touch operation and power requirements. Evaluate a sample in the real enclosure before approving production. Share the target conditions and quantity so Fuzheng can review the selected Z043WV08H configuration.
Z043WV08H frequently asked questions
What specifications are listed for Z043WV08H?
Resolution: 800 × 480 pixels; Module Dimensions: 105.45 × 67.2 × 3 mm; Interface: 24 BIT RGB; Brightness: 450 cd/m²; Driver IC: SC7283; Screen Size: 4.3 inch. Confirm the selected assembly and latest drawing revision when requesting a quotation.
How should Z043WV08H connect to a host system?
Z043WV08H lists a 24 BIT RGB interface. Check the pin assignment, connector, logic voltage, timing and initialization against your host controller. Do not apply power based only on a similar product photograph.
Is touch information available for Z043WV08H?
A fixed touch configuration is not specified in this record. Include your touch, cover-lens and controller requirements in the inquiry for Z043WV08H so the exact assembly can be reviewed.
Where can I find the drawing for Z043WV08H?
The drawing section contains 1 model-associated mechanical reference image. Open it at full size and confirm the model suffix, tolerances and revision before enclosure design or tooling.
What should I send when requesting a Z043WV08H sample?
Include the model Z043WV08H, target interface, touch and cover-lens requirements, operating environment, sample quantity and estimated production quantity. Share a host schematic or enclosure drawing when available so electrical and mechanical fit can be reviewed.
Request a quotation or sample
Send the Z043WV08H reference together with the interface, touch, enclosure, sample quantity and production schedule. Fuzheng will review the matching module and document requirements with your inquiry.
