Z043WQ35J 4.3-Inch 480 × 272 TFT-LCD Display Module
Z043WQ35J is a 4.3-inch tft-lcd display module with 480 × 272 resolution and a SPI /808-MCU interface. Review the module specifications, product images and integration requirements before requesting a sample.
- SPI /808-MCU
- Resolution: 480 × 272 pixels
- Module Dimensions: 105.4 × 67.15 × 2.9 mm
- Interface: SPI /808-MCU
- Operating Temperature: -20 to 70 °C
- Screen Size: 4.3 inch
- Screen Size
- 4.3 inch
- Resolution
- 480 × 272 pixels
- Interface
- SPI /808-MCU
- Viewing Angle
- IPS
Z043WQ35J product introduction
Z043WQ35J is a 4.3-inch tft-lcd display module with 480 × 272 resolution and a SPI /808-MCU interface. Review the module specifications, product images and integration requirements before requesting a sample. The standard tft lcd displays format helps define the display area and user-interface layout while the exact model reference keeps the optical, electrical and mechanical requirements tied to one assembly.
Module Dimensions: 105.4 × 67.15 × 2.9 mm. Operating Temperature: -20 to 70 °C. Use these published characteristics to compare Z043WQ35J with the requirements of your equipment. Brightness, viewing direction and touch operation should be evaluated in the intended enclosure, lighting and user environment.
The SPI /808-MCU connection on Z043WQ35J should be checked against the host controller and connector arrangement. Review supply levels, backlight drive, cable routing and the matching pin assignment before connecting a sample. A shared interface name alone does not establish compatibility between two modules.
Product features
The following Z043WQ35J attributes are listed for this assembly. Select the module by the requirements that affect your product, including the optical output, controller interface and mechanical envelope.
- Resolution: 480 × 272 pixels
- Module Dimensions: 105.4 × 67.15 × 2.9 mm
- Interface: SPI /808-MCU
- Operating Temperature: -20 to 70 °C
- Screen Size: 4.3 inch
Technical specifications
| Parameter | Value |
|---|---|
| Resolution | 480 × 272 pixels |
| Module Dimensions | 105.4 × 67.15 × 2.9 mm |
| Active Area | 95.04 × 53.856 mm |
| Interface | SPI /808-MCU |
| Operating Temperature | -20 to 70 °C |
| Storage Temperature | -30 to 80 °C |
| LCM (W x H x D) | 105.4*67.15*2.9 mm |
| Viewing Direction | IPS |
| Screen Size | 4.3 inch |
Interface & pin definition
Use the Z043WQ35J electrical documentation to confirm pin numbering, signal direction, voltage limits, backlight connections and any touch-controller wiring. The connector and FPC arrangement must match the host electronics and the quoted assembly.
| Parameter | Value |
|---|---|
| Interface | SPI /808-MCU |

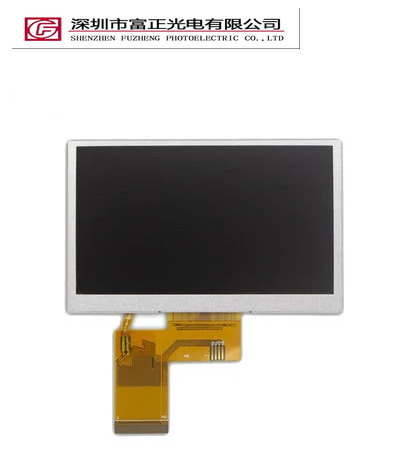

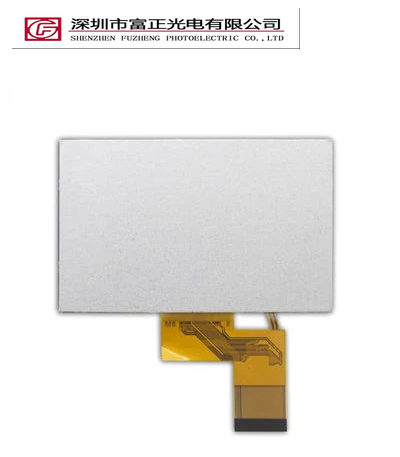

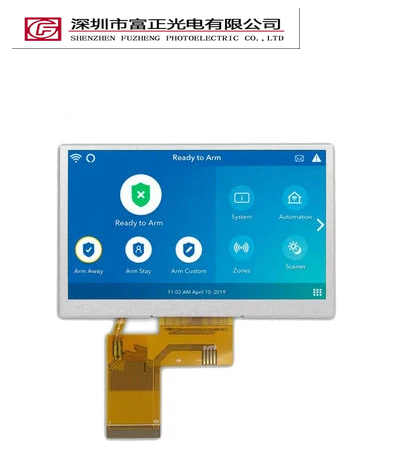

Product photographs
Mechanical drawings & documents

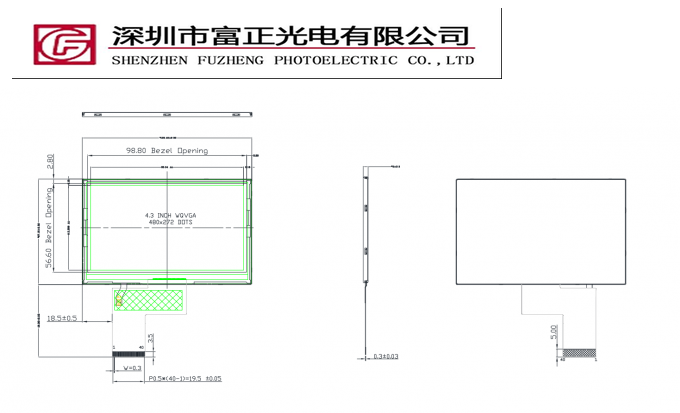

Check the dimensions, active area, connector position and cable clearance of Z043WQ35J against the enclosure. Confirm the drawing revision before tooling.
Application & selection guidance
Z043WQ35J can be evaluated for equipment user interfaces and embedded instruments and control panels. These are integration directions: suitability depends on the final optical, electrical, mechanical and environmental requirements.
Compare the 4.3-inch display format with your available viewing area, then check 480 × 272 pixel resolution, SPI /808-MCU host connectivity, touch operation and power requirements. Evaluate a sample in the real enclosure before approving production. Share the target conditions and quantity so Fuzheng can review the selected Z043WQ35J configuration.
Z043WQ35J frequently asked questions
What specifications are listed for Z043WQ35J?
Resolution: 480 × 272 pixels; Module Dimensions: 105.4 × 67.15 × 2.9 mm; Interface: SPI /808-MCU; Operating Temperature: -20 to 70 °C; Screen Size: 4.3 inch. Confirm the selected assembly and latest drawing revision when requesting a quotation.
How should Z043WQ35J connect to a host system?
Z043WQ35J lists a SPI /808-MCU interface. Check the pin assignment, connector, logic voltage, timing and initialization against your host controller. Do not apply power based only on a similar product photograph.
Is touch information available for Z043WQ35J?
A fixed touch configuration is not specified in this record. Include your touch, cover-lens and controller requirements in the inquiry for Z043WQ35J so the exact assembly can be reviewed.
Where can I find the drawing for Z043WQ35J?
The drawing section contains 1 model-associated mechanical reference image. Open it at full size and confirm the model suffix, tolerances and revision before enclosure design or tooling.
What should I send when requesting a Z043WQ35J sample?
Include the model Z043WQ35J, target interface, touch and cover-lens requirements, operating environment, sample quantity and estimated production quantity. Share a host schematic or enclosure drawing when available so electrical and mechanical fit can be reviewed.
