Model no.Z035VG06
Z035VG06 3.5-Inch 640 × 480 TFT-LCD Display Module
Z035VG06 is a 3.5-inch tft-lcd display module with 640 × 480 resolution. Review the module specifications, product images and integration requirements before requesting a sample.
- Resolution: 640 × 480 pixels
- Module Dimensions: 76.90 × 63.9 × 3.26 mm
- Brightness: 1000 cd/m²
- Driver IC: NV3052C
- Screen Size: 3.5 inch
- Screen Size
- 3.5 inch
- Resolution
- 640 × 480 pixels
- Viewing Angle
- 80/80/80/80
Specification confirmation. Confirm interface, display mode, operating temperature, storage temperature against the latest approved specification before design-in.
Z035VG06 product introduction
Z035VG06 is a 3.5-inch tft-lcd display module with 640 × 480 resolution. Review the module specifications, product images and integration requirements before requesting a sample. The standard tft lcd displays format helps define the display area and user-interface layout while the exact model reference keeps the optical, electrical and mechanical requirements tied to one assembly.
Module Dimensions: 76.90 × 63.9 × 3.26 mm. Brightness: 1000 cd/m². Driver IC: NV3052C. Use these published characteristics to compare Z035VG06 with the requirements of your equipment. Brightness, viewing direction and touch operation should be evaluated in the intended enclosure, lighting and user environment.
Confirm the host connection and controller requirements for Z035VG06. Review supply levels, backlight drive, cable routing and the matching pin assignment before connecting a sample. A shared interface name alone does not establish compatibility between two modules.
Product features
The following Z035VG06 attributes are listed for this assembly. Select the module by the requirements that affect your product, including the optical output, controller interface and mechanical envelope.
- Resolution: 640 × 480 pixels
- Module Dimensions: 76.90 × 63.9 × 3.26 mm
- Brightness: 1000 cd/m²
- Driver IC: NV3052C
- Screen Size: 3.5 inch
Technical specifications
| Parameter | Value |
|---|---|
| Resolution | 640 × 480 pixels |
| Module Dimensions | 76.90 × 63.9 × 3.26 mm |
| Active Area | 70.08 × 52.56 mm |
| Viewing Angle | 80/80/80/80 |
| Brightness | 1000 cd/m² |
| Contrast Ratio | 800:1 |
| Model Size (W*H*T) | 76.90*63.9*3.26mm |
| Viewing | IPS |
| Pin Count | 54 pin |
| Driver IC | NV3052C |
| Screen Size | 3.5 inch |
Confirm interface, display mode, operating temperature, storage temperature against the latest approved module specification before design-in.
Interface & pin definition
Use the Z035VG06 electrical documentation to confirm pin numbering, signal direction, voltage limits, backlight connections and any touch-controller wiring. The connector and FPC arrangement must match the host electronics and the quoted assembly.
| Parameter | Value |
|---|---|
| Pin Count | 54 pin |
| Driver IC | NV3052C |

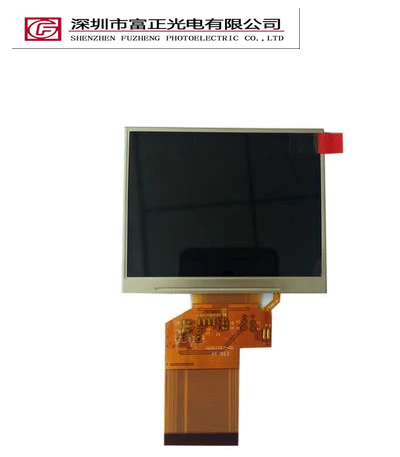

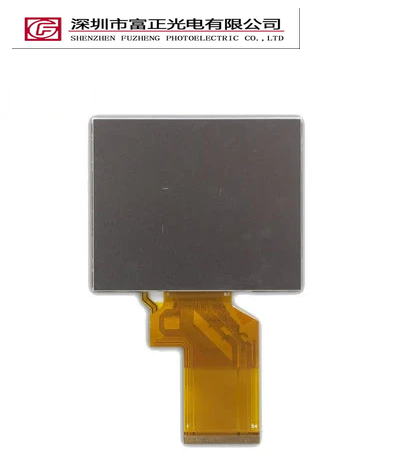

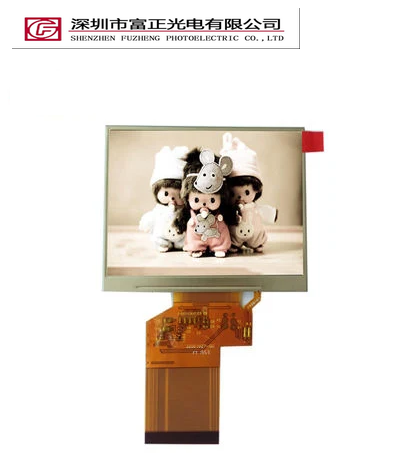

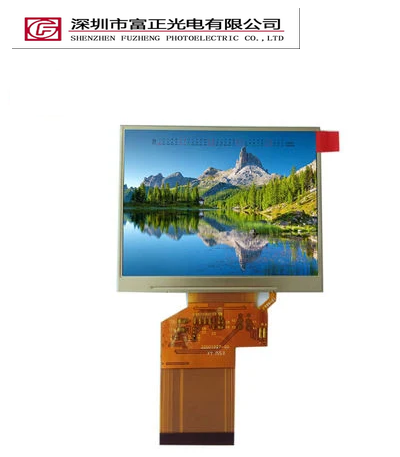

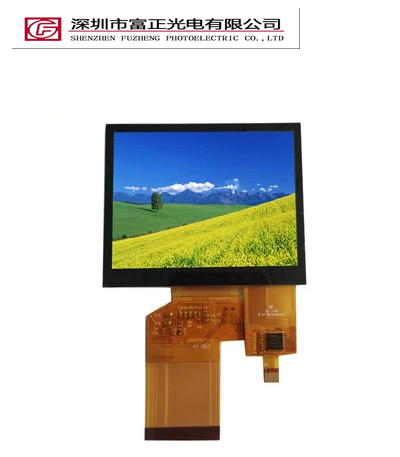

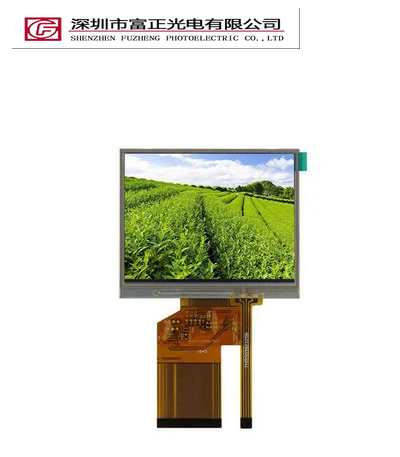

Product photographs
Mechanical drawings & documents
Check the dimensions, active area, connector position and cable clearance of Z035VG06 against the enclosure. Confirm the drawing revision before tooling.
Application & selection guidance
Z035VG06 can be evaluated for equipment user interfaces and embedded instruments and control panels. These are integration directions: suitability depends on the final optical, electrical, mechanical and environmental requirements.
Compare the 3.5-inch display format with your available viewing area, then check 640 × 480 pixel resolution, touch operation and power requirements. Evaluate a sample in the real enclosure before approving production. Share the target conditions and quantity so Fuzheng can review the selected Z035VG06 configuration.
Z035VG06 frequently asked questions
What specifications are listed for Z035VG06?
Resolution: 640 × 480 pixels; Module Dimensions: 76.90 × 63.9 × 3.26 mm; Brightness: 1000 cd/m²; Driver IC: NV3052C; Screen Size: 3.5 inch. Confirm the selected assembly and latest drawing revision when requesting a quotation.
How should Z035VG06 connect to a host system?
Request the exact interface documentation for this assembly. Check the pin assignment, connector, logic voltage, timing and initialization against your host controller. Do not apply power based only on a similar product photograph.
Is touch information available for Z035VG06?
A fixed touch configuration is not specified in this record. Include your touch, cover-lens and controller requirements in the inquiry for Z035VG06 so the exact assembly can be reviewed.
Where can I find the drawing for Z035VG06?
The drawing section contains 1 model-associated mechanical reference image. Open it at full size and confirm the model suffix, tolerances and revision before enclosure design or tooling.
What should I send when requesting a Z035VG06 sample?
Include the model Z035VG06, target interface, touch and cover-lens requirements, operating environment, sample quantity and estimated production quantity. Share a host schematic or enclosure drawing when available so electrical and mechanical fit can be reviewed.
