Model no.Z035Q08
Z035Q08 3.5-Inch TFT-LCD Display Module
Z035Q08 is a 3.5-inch tft-lcd display module and a RGB/MCU/SPI interface. Review the module specifications, product images and integration requirements before requesting a sample.
- RGB/MCU/SPI
- Module Dimensions: 76.90 × 63.9 × 3.26 mm
- Interface: RGB/MCU/SPI
- Operating Temperature: -20 to 70 °C
- Screen Size: 3.5 inch
- Screen Size
- 3.5 inch
- Display Mode
- TFT, Normally White, Transmissive
- Interface
- RGB/MCU/SPI
- Viewing Angle
- 12 O'clock
Z035Q08 product introduction
Z035Q08 is a 3.5-inch tft-lcd display module and a RGB/MCU/SPI interface. Review the module specifications, product images and integration requirements before requesting a sample. The standard tft lcd displays format helps define the display area and user-interface layout while the exact model reference keeps the optical, electrical and mechanical requirements tied to one assembly.
Module Dimensions: 76.90 × 63.9 × 3.26 mm. Operating Temperature: -20 to 70 °C. Use these published characteristics to compare Z035Q08 with the requirements of your equipment. Brightness, viewing direction and touch operation should be evaluated in the intended enclosure, lighting and user environment.
The RGB/MCU/SPI connection on Z035Q08 should be checked against the host controller and connector arrangement. Review supply levels, backlight drive, cable routing and the matching pin assignment before connecting a sample. A shared interface name alone does not establish compatibility between two modules.
Product features
The following Z035Q08 attributes are listed for this assembly. Select the module by the requirements that affect your product, including the optical output, controller interface and mechanical envelope.
- Module Dimensions: 76.90 × 63.9 × 3.26 mm
- Interface: RGB/MCU/SPI
- Operating Temperature: -20 to 70 °C
- Screen Size: 3.5 inch
Technical specifications
| Parameter | Value |
|---|---|
| Module Dimensions | 76.90 × 63.9 × 3.26 mm |
| Interface | RGB/MCU/SPI |
| Viewing Direction | 12 O'clock |
| LCM Luminance | 350cd/m2 |
| Display Mode | TFT, Normally White, Transmissive |
| Storage Temperature | -30 to 80 °C |
| Active Area | 70.08 × 52.56 mm |
| LCM (W x H x D) | 76.90*63.9*3.26mm |
| Operating Temperature | -20 to 70 °C |
| Screen Size | 3.5 inch |
Interface & pin definition
Use the Z035Q08 electrical documentation to confirm pin numbering, signal direction, voltage limits, backlight connections and any touch-controller wiring. The connector and FPC arrangement must match the host electronics and the quoted assembly.
| Parameter | Value |
|---|---|
| Interface | RGB/MCU/SPI |

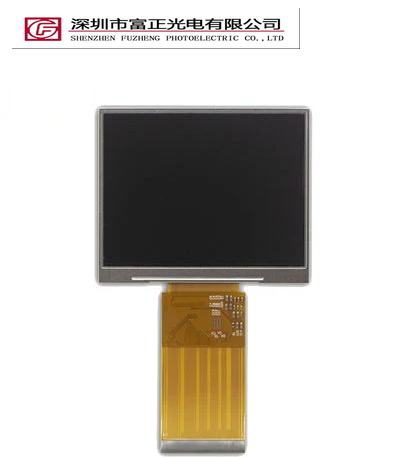

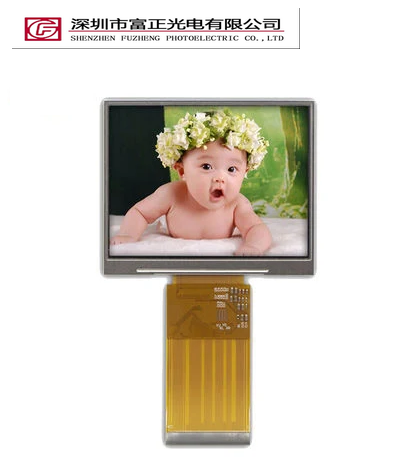

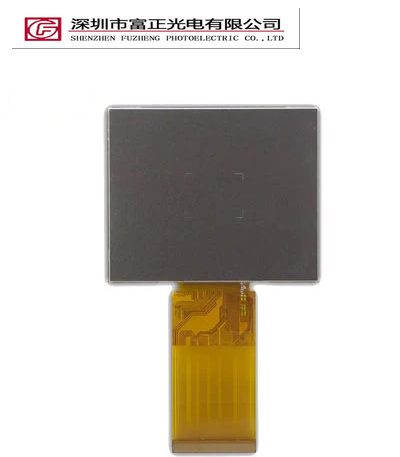

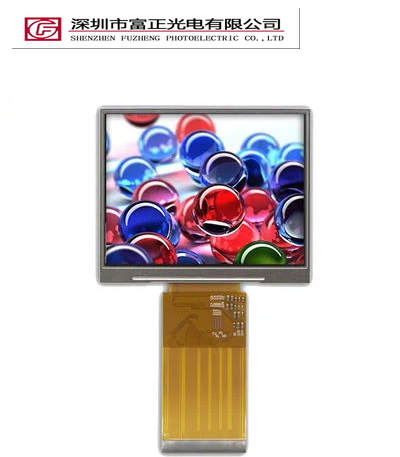

Product photographs
Mechanical drawings & documents
Check the dimensions, active area, connector position and cable clearance of Z035Q08 against the enclosure. Confirm the drawing revision before tooling.
Application & selection guidance
Z035Q08 can be evaluated for equipment user interfaces and embedded instruments and control panels. These are integration directions: suitability depends on the final optical, electrical, mechanical and environmental requirements.
Compare the 3.5-inch display format with your available viewing area, then check RGB/MCU/SPI host connectivity, touch operation and power requirements. Evaluate a sample in the real enclosure before approving production. Share the target conditions and quantity so Fuzheng can review the selected Z035Q08 configuration.
Z035Q08 frequently asked questions
What specifications are listed for Z035Q08?
Module Dimensions: 76.90 × 63.9 × 3.26 mm; Interface: RGB/MCU/SPI; Operating Temperature: -20 to 70 °C; Screen Size: 3.5 inch. Confirm the selected assembly and latest drawing revision when requesting a quotation.
How should Z035Q08 connect to a host system?
Z035Q08 lists a RGB/MCU/SPI interface. Check the pin assignment, connector, logic voltage, timing and initialization against your host controller. Do not apply power based only on a similar product photograph.
Is touch information available for Z035Q08?
A fixed touch configuration is not specified in this record. Include your touch, cover-lens and controller requirements in the inquiry for Z035Q08 so the exact assembly can be reviewed.
Where can I find the drawing for Z035Q08?
The drawing section contains 1 model-associated mechanical reference image. Open it at full size and confirm the model suffix, tolerances and revision before enclosure design or tooling.
What should I send when requesting a Z035Q08 sample?
Include the model Z035Q08, target interface, touch and cover-lens requirements, operating environment, sample quantity and estimated production quantity. Share a host schematic or enclosure drawing when available so electrical and mechanical fit can be reviewed.
Request a quotation or sample
Send the Z035Q08 reference together with the interface, touch, enclosure, sample quantity and production schedule. Fuzheng will review the matching module and document requirements with your inquiry.
