Model no.Z035Q08

Z035Q08 3.5-Inch 320 × 240 TFT-LCD Display Module — Ref 51461053

Z035Q08 is a 3.5-inch tft-lcd display module with 320 × 240 resolution. Review the module specifications, product images and integration requirements before requesting a sample.

Resolution: 320 × 240 pixels
Module Dimensions: 76.90 × 63.9 × 3.26 mm
Brightness: 350 cd/m²
Driver IC: SSD2119
Operating Temperature: -20 to 70 °C
Screen Size: 3.5 inch

Screen Size: 3.5 inch
Resolution: 320 × 240 pixels
Display Mode: TFT,Normally White
Viewing Angle: 12 O'clock

Review the listed module configuration and confirm the matching specification and drawing revision with your inquiry.

Specification confirmation. Confirm interface against the latest approved specification before design-in.

Z035Q08 product introduction

Z035Q08 is a 3.5-inch tft-lcd display module with 320 × 240 resolution. Review the module specifications, product images and integration requirements before requesting a sample. The standard tft lcd displays format helps define the display area and user-interface layout while the exact model reference keeps the optical, electrical and mechanical requirements tied to one assembly.

Module Dimensions: 76.90 × 63.9 × 3.26 mm. Brightness: 350 cd/m². Driver IC: SSD2119. Operating Temperature: -20 to 70 °C. Use these published characteristics to compare Z035Q08 with the requirements of your equipment. Brightness, viewing direction and touch operation should be evaluated in the intended enclosure, lighting and user environment.

Confirm the host connection and controller requirements for Z035Q08. Review supply levels, backlight drive, cable routing and the matching pin assignment before connecting a sample. A shared interface name alone does not establish compatibility between two modules.

Product features

The following Z035Q08 attributes are listed for this assembly. Select the module by the requirements that affect your product, including the optical output, controller interface and mechanical envelope.

Resolution: 320 × 240 pixels
Module Dimensions: 76.90 × 63.9 × 3.26 mm
Brightness: 350 cd/m²
Driver IC: SSD2119
Operating Temperature: -20 to 70 °C
Screen Size: 3.5 inch

Technical specifications

Z035Q08 technical parameters
Parameter	Value
Resolution	320 × 240 pixels
Module Dimensions	76.90 × 63.9 × 3.26 mm
Brightness	350 cd/m²
Display Mode	TFT,Normally White
Driver IC	SSD2119
Operating Temperature	-20 to 70 °C
Active Area	70.08 × 52.56 mm
LCM (W x H x D)	76.9063.93.26mm
Viewing Direction	12 O'clock
Storage Temperature	-30 to 80 °C
Screen Size	3.5 inch

Confirm interface against the latest approved module specification before design-in.

Interface & pin definition

Use the Z035Q08 electrical documentation to confirm pin numbering, signal direction, voltage limits, backlight connections and any touch-controller wiring. The connector and FPC arrangement must match the host electronics and the quoted assembly.

Z035Q08 technical parameters
Parameter	Value
Driver IC	SSD2119

Product photographs

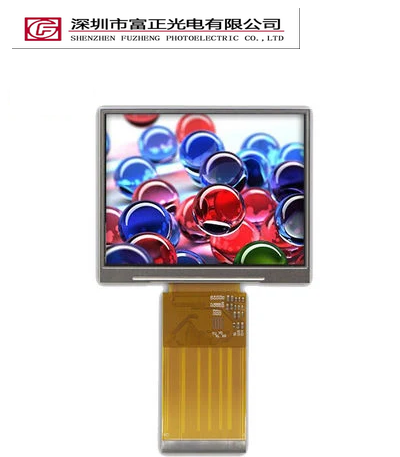

Z035Q08 product view 1

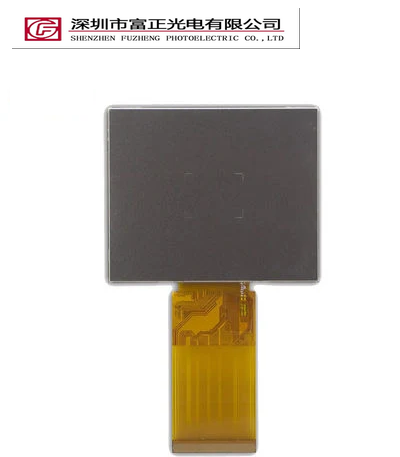

Z035Q08 product view 2

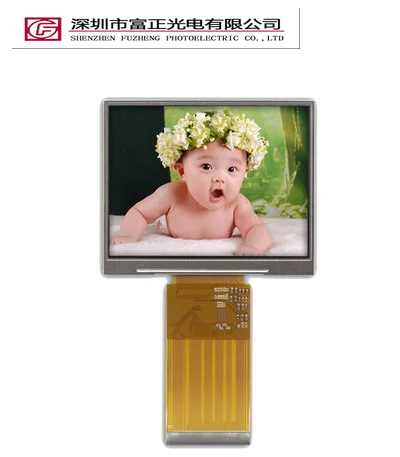

Z035Q08 product view 3

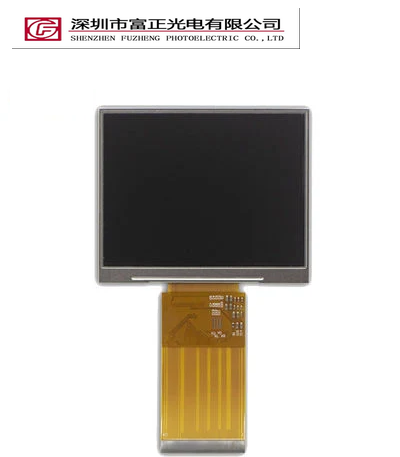

Z035Q08 product view 4

Z035Q08 product view 5

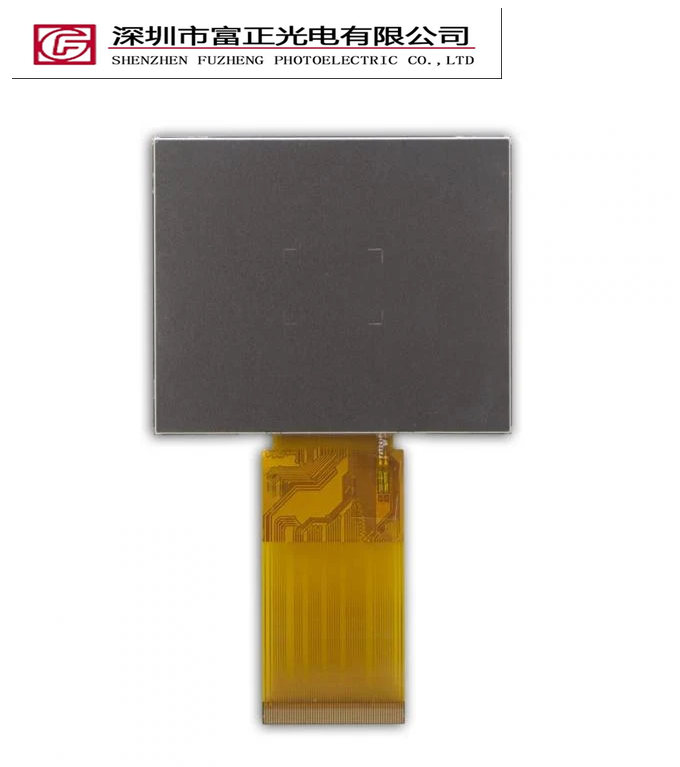

Z035Q08 product view 6

Mechanical drawings & documents

Mechanical reference 1 — open full size to inspect dimensions.

Check the dimensions, active area, connector position and cable clearance of Z035Q08 against the enclosure. Confirm the drawing revision before tooling.

Application & selection guidance

Z035Q08 can be evaluated for equipment user interfaces and embedded instruments and control panels. These are integration directions: suitability depends on the final optical, electrical, mechanical and environmental requirements.

Compare the 3.5-inch display format with your available viewing area, then check 320 × 240 pixel resolution, touch operation and power requirements. Evaluate a sample in the real enclosure before approving production. Share the target conditions and quantity so Fuzheng can review the selected Z035Q08 configuration.

Z035Q08 frequently asked questions

What specifications are listed for Z035Q08?

Resolution: 320 × 240 pixels; Module Dimensions: 76.90 × 63.9 × 3.26 mm; Brightness: 350 cd/m²; Driver IC: SSD2119; Operating Temperature: -20 to 70 °C; Screen Size: 3.5 inch. Confirm the selected assembly and latest drawing revision when requesting a quotation.

How should Z035Q08 connect to a host system?

Request the exact interface documentation for this assembly. Check the pin assignment, connector, logic voltage, timing and initialization against your host controller. Do not apply power based only on a similar product photograph.

Is touch information available for Z035Q08?

A fixed touch configuration is not specified in this record. Include your touch, cover-lens and controller requirements in the inquiry for Z035Q08 so the exact assembly can be reviewed.

Where can I find the drawing for Z035Q08?

The drawing section contains 1 model-associated mechanical reference image. Open it at full size and confirm the model suffix, tolerances and revision before enclosure design or tooling.

What should I send when requesting a Z035Q08 sample?

Include the model Z035Q08, target interface, touch and cover-lens requirements, operating environment, sample quantity and estimated production quantity. Share a host schematic or enclosure drawing when available so electrical and mechanical fit can be reviewed.
