Model no.Z035HV16

Z035HV16 3.5-Inch 320 × 480 TFT-LCD Display Module

Z035HV16 is a 3.5-inch tft-lcd display module with 320 × 480 resolution and a SPI interface. Review the module specifications, product images and integration requirements before requesting a sample.

SPI
Resolution: 320 × 480 pixels
Module Dimensions: 54.86（W）* 83.43（H） * 2.35 mm
Interface: SPI
Brightness: 300 cd/m²
Operating Temperature: -20 to 70 °C
Driver IC: ST7365P
Screen Size: 3.5 inch

Screen Size: 3.5 inch
Resolution: 320 × 480 pixels
Display Mode: TFT,Normally White
Interface: SPI
Viewing Angle: 12 O'clock

Review the listed module configuration and confirm the matching specification and drawing revision with your inquiry.

Z035HV16 product introduction

Z035HV16 is a 3.5-inch tft-lcd display module with 320 × 480 resolution and a SPI interface. Review the module specifications, product images and integration requirements before requesting a sample. The standard tft lcd displays format helps define the display area and user-interface layout while the exact model reference keeps the optical, electrical and mechanical requirements tied to one assembly.

Module Dimensions: 54.86（W）* 83.43（H） * 2.35 mm. Brightness: 300 cd/m². Operating Temperature: -20 to 70 °C. Driver IC: ST7365P. Use these published characteristics to compare Z035HV16 with the requirements of your equipment. Brightness, viewing direction and touch operation should be evaluated in the intended enclosure, lighting and user environment.

The SPI connection on Z035HV16 should be checked against the host controller and connector arrangement. Review supply levels, backlight drive, cable routing and the matching pin assignment before connecting a sample. A shared interface name alone does not establish compatibility between two modules.

Product features

The following Z035HV16 attributes are listed for this assembly. Select the module by the requirements that affect your product, including the optical output, controller interface and mechanical envelope.

Resolution: 320 × 480 pixels
Module Dimensions: 54.86（W）* 83.43（H） * 2.35 mm
Interface: SPI
Brightness: 300 cd/m²
Operating Temperature: -20 to 70 °C
Driver IC: ST7365P
Screen Size: 3.5 inch

Technical specifications

Z035HV16 technical parameters
Parameter	Value
Resolution	320 × 480 pixels
Module Dimensions	54.86（W）* 83.43（H） * 2.35 mm
Active Area	48.96 × 73.44 mm
Interface	SPI
Brightness	300 cd/m²
Display Mode	TFT,Normally White
Operating Temperature	-20 to 70 °C
Driver IC	ST7365P
LCM (W x H x D)	54.86(W)* 83.43(H) * 2.35(T)
Viewing Direction	12 O'clock
Storage Temperature	-30 to 80 °C
Screen Size	3.5 inch

Interface & pin definition

Use the Z035HV16 electrical documentation to confirm pin numbering, signal direction, voltage limits, backlight connections and any touch-controller wiring. The connector and FPC arrangement must match the host electronics and the quoted assembly.

Z035HV16 technical parameters
Parameter	Value
Interface	SPI
Driver IC	ST7365P

Product photographs

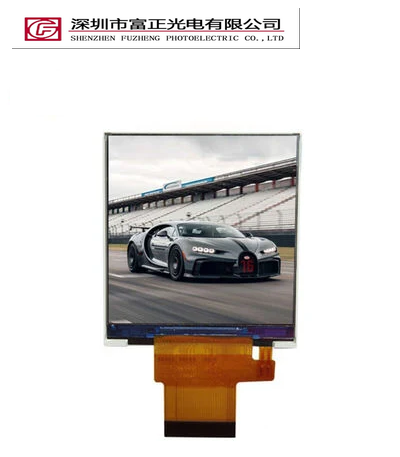

Z035HV16 product view 1

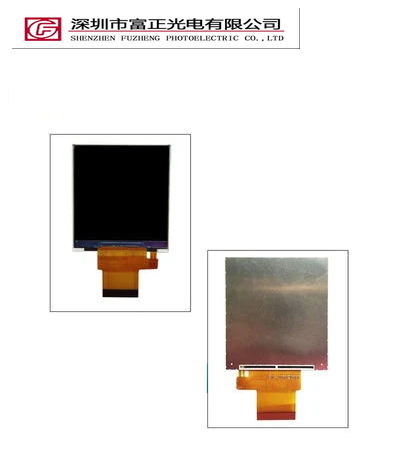

Z035HV16 product view 2

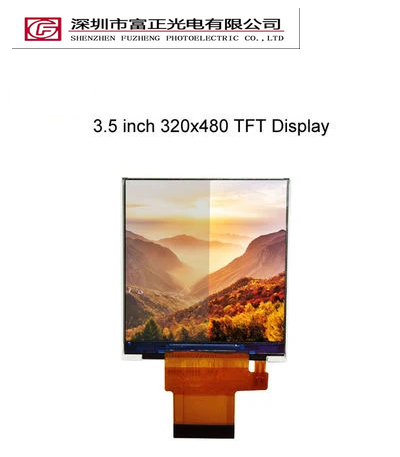

Z035HV16 product view 3

Z035HV16 product view 4

Z035HV16 product view 5

Mechanical drawings & documents

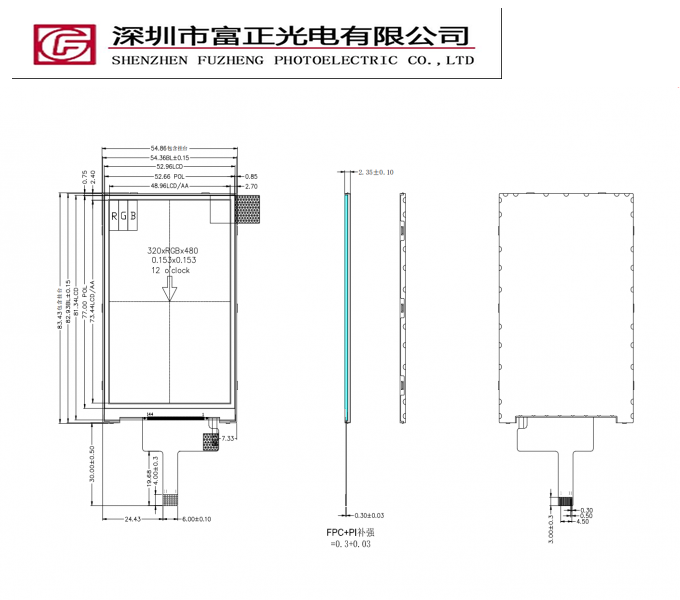

Mechanical reference 1 — open full size to inspect dimensions.

Check the dimensions, active area, connector position and cable clearance of Z035HV16 against the enclosure. Confirm the drawing revision before tooling.

Application & selection guidance

Z035HV16 can be evaluated for equipment user interfaces and embedded instruments and control panels. These are integration directions: suitability depends on the final optical, electrical, mechanical and environmental requirements.

Compare the 3.5-inch display format with your available viewing area, then check 320 × 480 pixel resolution, SPI host connectivity, touch operation and power requirements. Evaluate a sample in the real enclosure before approving production. Share the target conditions and quantity so Fuzheng can review the selected Z035HV16 configuration.

Z035HV16 frequently asked questions

What specifications are listed for Z035HV16?

Resolution: 320 × 480 pixels; Module Dimensions: 54.86（W）* 83.43（H） * 2.35 mm; Interface: SPI; Brightness: 300 cd/m²; Operating Temperature: -20 to 70 °C; Driver IC: ST7365P; Screen Size: 3.5 inch. Confirm the selected assembly and latest drawing revision when requesting a quotation.

How should Z035HV16 connect to a host system?

Z035HV16 lists a SPI interface. Check the pin assignment, connector, logic voltage, timing and initialization against your host controller. Do not apply power based only on a similar product photograph.

Is touch information available for Z035HV16?

A fixed touch configuration is not specified in this record. Include your touch, cover-lens and controller requirements in the inquiry for Z035HV16 so the exact assembly can be reviewed.

Where can I find the drawing for Z035HV16?

The drawing section contains 1 model-associated mechanical reference image. Open it at full size and confirm the model suffix, tolerances and revision before enclosure design or tooling.

What should I send when requesting a Z035HV16 sample?

Include the model Z035HV16, target interface, touch and cover-lens requirements, operating environment, sample quantity and estimated production quantity. Share a host schematic or enclosure drawing when available so electrical and mechanical fit can be reviewed.
