Product images and mechanical references for this assembly. Confirm the selected model and drawing revision before design-in.
Model no.Z024Q20
Z024Q20 2.4-Inch 240 × 320 TFT-LCD Display Module
Z024Q20 is a 2.4-inch tft-lcd display module with 240 × 320 resolution and a SPI/ MCU/RGB interface. Review the module specifications, product images and integration requirements before requesting a sample.
- SPI/ MCU/RGB
- Interface: SPI/ MCU/RGB
- Brightness: 1000 cd/m²
- Resolution: 240 × 320 pixels
- Operating Temperature: -20 to 70 °C
- Screen Size: 2.4 inch
- Screen Size
- 2.4 inch
- Resolution
- 240 × 320 pixels
- Interface
- SPI/ MCU/RGB
- Viewing Angle
- 80/80/80/80
Specification confirmation. Confirm display mode against the latest approved specification before design-in.
Z024Q20 product introduction
Z024Q20 is a 2.4-inch tft-lcd display module with 240 × 320 resolution and a SPI/ MCU/RGB interface. Review the module specifications, product images and integration requirements before requesting a sample. The standard tft lcd displays format helps define the display area and user-interface layout while the exact model reference keeps the optical, electrical and mechanical requirements tied to one assembly.
Brightness: 1000 cd/m². Operating Temperature: -20 to 70 °C. Use these published characteristics to compare Z024Q20 with the requirements of your equipment. Brightness, viewing direction and touch operation should be evaluated in the intended enclosure, lighting and user environment.
The SPI/ MCU/RGB connection on Z024Q20 should be checked against the host controller and connector arrangement. Review supply levels, backlight drive, cable routing and the matching pin assignment before connecting a sample. A shared interface name alone does not establish compatibility between two modules.
Product features
The following Z024Q20 attributes are listed for this assembly. Select the module by the requirements that affect your product, including the optical output, controller interface and mechanical envelope.
- Interface: SPI/ MCU/RGB
- Brightness: 1000 cd/m²
- Resolution: 240 × 320 pixels
- Operating Temperature: -20 to 70 °C
- Screen Size: 2.4 inch
Technical specifications
| Parameter | Value |
|---|---|
| Dimensional Outline | 42.72*59.46*2.3 Mm |
| Active Area | 36.72 × 48.96 mm |
| Interface | SPI/ MCU/RGB |
| Brightness | 1000 cd/m² |
| Driver Controller | ST7789V |
| Resolution | 240 × 320 pixels |
| Model Size (W*H*T) | 42.72*59.46*2.3 mm |
| Viewing Angle | 80/80/80/80 |
| Pin Count | 45 |
| Operating Temperature | -20 to 70 °C |
| Storage Temperature | -30 to 80 °C |
| Screen Size | 2.4 inch |
Confirm display mode against the latest approved module specification before design-in.
Interface & pin definition
Use the Z024Q20 electrical documentation to confirm pin numbering, signal direction, voltage limits, backlight connections and any touch-controller wiring. The connector and FPC arrangement must match the host electronics and the quoted assembly.
| Parameter | Value |
|---|---|
| Interface | SPI/ MCU/RGB |
| Pin Count | 45 |

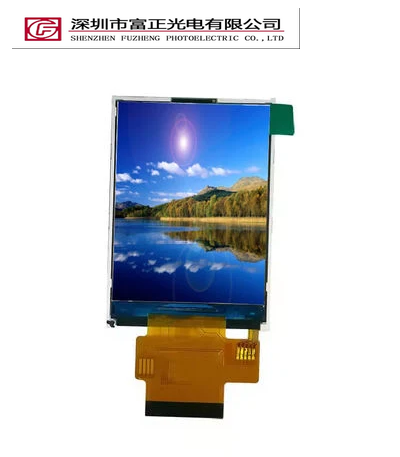

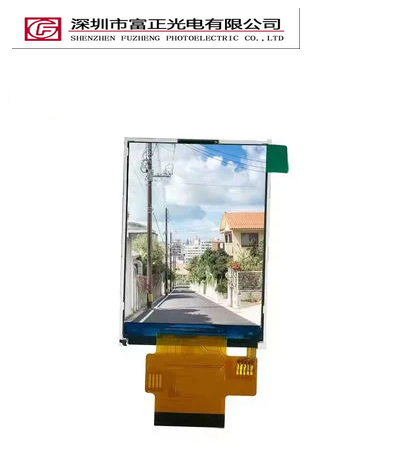

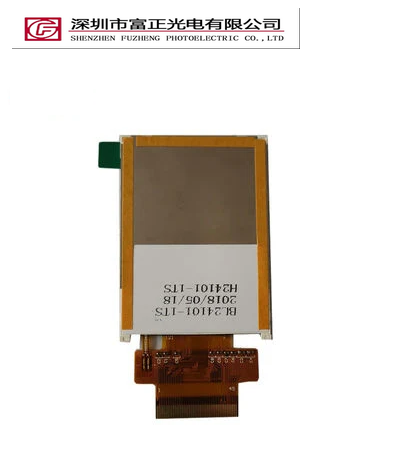

Product photographs
Mechanical drawings & documents
Check the dimensions, active area, connector position and cable clearance of Z024Q20 against the enclosure. Confirm the drawing revision before tooling.
Application & selection guidance
Z024Q20 can be evaluated for equipment user interfaces and embedded instruments and control panels. These are integration directions: suitability depends on the final optical, electrical, mechanical and environmental requirements.
Compare the 2.4-inch display format with your available viewing area, then check 240 × 320 pixel resolution, SPI/ MCU/RGB host connectivity, touch operation and power requirements. Evaluate a sample in the real enclosure before approving production. Share the target conditions and quantity so Fuzheng can review the selected Z024Q20 configuration.
Z024Q20 frequently asked questions
What specifications are listed for Z024Q20?
Interface: SPI/ MCU/RGB; Brightness: 1000 cd/m²; Resolution: 240 × 320 pixels; Operating Temperature: -20 to 70 °C; Screen Size: 2.4 inch. Confirm the selected assembly and latest drawing revision when requesting a quotation.
How should Z024Q20 connect to a host system?
Z024Q20 lists a SPI/ MCU/RGB interface. Check the pin assignment, connector, logic voltage, timing and initialization against your host controller. Do not apply power based only on a similar product photograph.
Is touch information available for Z024Q20?
A fixed touch configuration is not specified in this record. Include your touch, cover-lens and controller requirements in the inquiry for Z024Q20 so the exact assembly can be reviewed.
Where can I find the drawing for Z024Q20?
The drawing section contains 1 model-associated mechanical reference image. Open it at full size and confirm the model suffix, tolerances and revision before enclosure design or tooling.
What should I send when requesting a Z024Q20 sample?
Include the model Z024Q20, target interface, touch and cover-lens requirements, operating environment, sample quantity and estimated production quantity. Share a host schematic or enclosure drawing when available so electrical and mechanical fit can be reviewed.
Request a quotation or sample
Send the Z024Q20 reference together with the interface, touch, enclosure, sample quantity and production schedule. Fuzheng will review the matching module and document requirements with your inquiry.
