Model no.P056I640480TE-W02

P056I640480TE-W02 5.6-Inch 640 × 480 TFT-LCD Display Module

P056I640480TE-W02 is a 5.6-inch tft-lcd display module with 640 × 480 resolution. Review the module specifications, product images and integration requirements before requesting a sample.

Module Dimensions: 126.5 × 100 × 5.7 mm
Brightness: 350 cd/m²
Operating Temperature: -20 to 70 °C
Resolution: 640 × 480 pixels
Screen Size: 5.6 inch

Screen Size: 5.6 inch
Resolution: 640 × 480 pixels

Review the listed module configuration and confirm the matching specification and drawing revision with your inquiry.

Specification confirmation. Confirm interface, display mode against the latest approved specification before design-in.

P056I640480TE-W02 product introduction

P056I640480TE-W02 is a 5.6-inch tft-lcd display module with 640 × 480 resolution. Review the module specifications, product images and integration requirements before requesting a sample. The standard tft lcd displays format helps define the display area and user-interface layout while the exact model reference keeps the optical, electrical and mechanical requirements tied to one assembly.

Module Dimensions: 126.5 × 100 × 5.7 mm. Brightness: 350 cd/m². Operating Temperature: -20 to 70 °C. Use these published characteristics to compare P056I640480TE-W02 with the requirements of your equipment. Brightness, viewing direction and touch operation should be evaluated in the intended enclosure, lighting and user environment.

Confirm the host connection and controller requirements for P056I640480TE-W02. Review supply levels, backlight drive, cable routing and the matching pin assignment before connecting a sample. A shared interface name alone does not establish compatibility between two modules.

Product features

The following P056I640480TE-W02 attributes are listed for this assembly. Select the module by the requirements that affect your product, including the optical output, controller interface and mechanical envelope.

Module Dimensions: 126.5 × 100 × 5.7 mm
Brightness: 350 cd/m²
Operating Temperature: -20 to 70 °C
Resolution: 640 × 480 pixels
Screen Size: 5.6 inch

Technical specifications

P056I640480TE-W02 technical parameters
Parameter	Value
Module Dimensions	126.5 × 100 × 5.7 mm
Active Area	112.896 × 84.672 mm
Brightness	350 cd/m²
Viewing Angel	70/70/50/70
Operating Temperature	-20 to 70 °C
Resolution	640 × 480 pixels
Model Size (WHT)	126.5(H) x 100(V) x 5.7(T)mm
Viewing	12:00 o'clock
Pin Count	40
Storage Temperature	-30 to 80 °C
Screen Size	5.6 inch

Confirm interface, display mode against the latest approved module specification before design-in.

Interface & pin definition

Use the P056I640480TE-W02 electrical documentation to confirm pin numbering, signal direction, voltage limits, backlight connections and any touch-controller wiring. The connector and FPC arrangement must match the host electronics and the quoted assembly.

P056I640480TE-W02 technical parameters
Parameter	Value
Pin Count	40

Product photographs

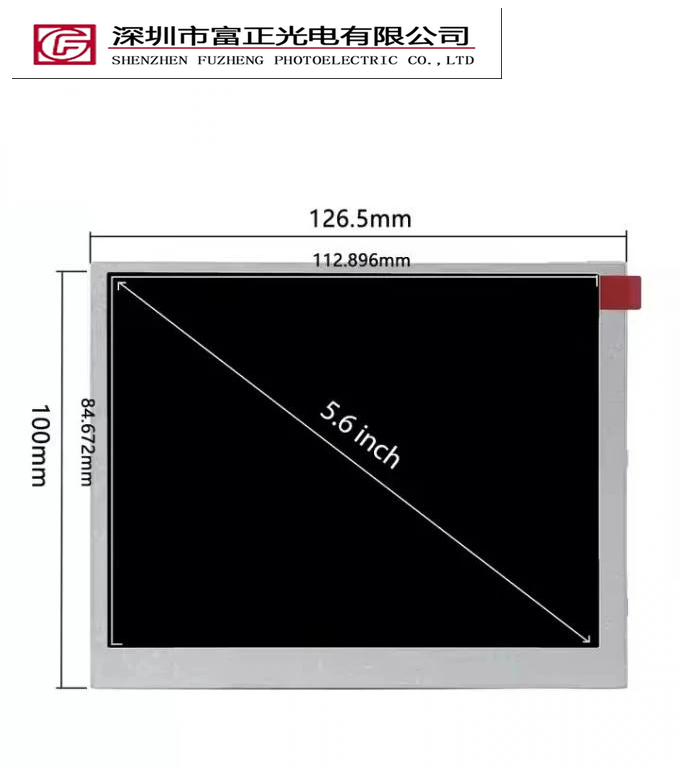

P056I640480TE-W02 product view 1

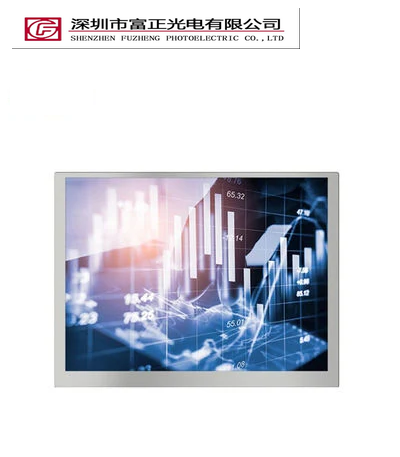

P056I640480TE-W02 product view 2

P056I640480TE-W02 product view 3

P056I640480TE-W02 product view 4

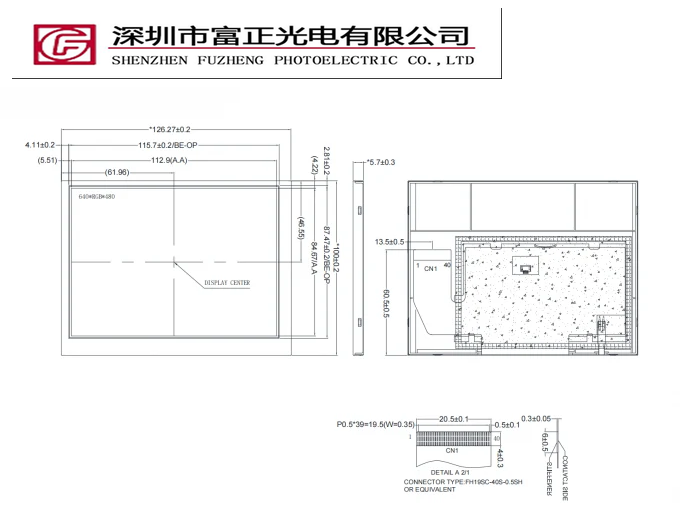

Mechanical drawings & documents

Request the P056I640480TE-W02 mechanical drawing and datasheet with your project inquiry. Confirm the outline, active area, mounting features and FPC position before finalizing the enclosure.

Application & selection guidance

P056I640480TE-W02 can be evaluated for equipment user interfaces and embedded instruments and control panels. These are integration directions: suitability depends on the final optical, electrical, mechanical and environmental requirements.

Compare the 5.6-inch display format with your available viewing area, then check 640 × 480 pixel resolution, touch operation and power requirements. Evaluate a sample in the real enclosure before approving production. Share the target conditions and quantity so Fuzheng can review the selected P056I640480TE-W02 configuration.

P056I640480TE-W02 frequently asked questions

What specifications are listed for P056I640480TE-W02?

Module Dimensions: 126.5 × 100 × 5.7 mm; Brightness: 350 cd/m²; Operating Temperature: -20 to 70 °C; Resolution: 640 × 480 pixels; Screen Size: 5.6 inch. Confirm the selected assembly and latest drawing revision when requesting a quotation.

How should P056I640480TE-W02 connect to a host system?

Request the exact interface documentation for this assembly. Check the pin assignment, connector, logic voltage, timing and initialization against your host controller. Do not apply power based only on a similar product photograph.

Is touch information available for P056I640480TE-W02?

A fixed touch configuration is not specified in this record. Include your touch, cover-lens and controller requirements in the inquiry for P056I640480TE-W02 so the exact assembly can be reviewed.

Where can I find the drawing for P056I640480TE-W02?

Request the mechanical drawing and electrical datasheet for P056I640480TE-W02. Include available enclosure space, mounting method and FPC routing constraints so the correct assembly documents can be supplied.

What should I send when requesting a P056I640480TE-W02 sample?

Include the model P056I640480TE-W02, target interface, touch and cover-lens requirements, operating environment, sample quantity and estimated production quantity. Share a host schematic or enclosure drawing when available so electrical and mechanical fit can be reviewed.

Request a quotation or sample

Send the P056I640480TE-W02 reference together with the interface, touch, enclosure, sample quantity and production schedule. Fuzheng will review the matching module and document requirements with your inquiry.

Request a P056I640480TE-W02 quote or evaluation sample →
