Model no.P056I640480TE-W01
P056I640480TE-W01 640 × 480 TFT-LCD Display Module
P056I640480TE-W01 is a tft-lcd display module with 640 × 480 resolution and a 24 BIT RGB interface. Review the module specifications, product images and integration requirements before requesting a sample.
- 24 BIT RGB
- Resolution: 640 × 480 pixels
- Module Dimensions: 126.5 × 100 × 5.7 mm
- Interface: 24 BIT RGB
- Brightness: 250 cd/m²
- Operating Temperature: -20 to 70 °C
- Resolution
- 640 × 480 pixels
- Interface
- 24 BIT RGB
Specification confirmation. Confirm display mode against the latest approved specification before design-in.
P056I640480TE-W01 product introduction
P056I640480TE-W01 is a tft-lcd display module with 640 × 480 resolution and a 24 BIT RGB interface. Review the module specifications, product images and integration requirements before requesting a sample. The standard tft lcd displays format helps define the display area and user-interface layout while the exact model reference keeps the optical, electrical and mechanical requirements tied to one assembly.
Module Dimensions: 126.5 × 100 × 5.7 mm. Brightness: 250 cd/m². Operating Temperature: -20 to 70 °C. Use these published characteristics to compare P056I640480TE-W01 with the requirements of your equipment. Brightness, viewing direction and touch operation should be evaluated in the intended enclosure, lighting and user environment.
The 24 BIT RGB connection on P056I640480TE-W01 should be checked against the host controller and connector arrangement. Review supply levels, backlight drive, cable routing and the matching pin assignment before connecting a sample. A shared interface name alone does not establish compatibility between two modules.
Product features
The following P056I640480TE-W01 attributes are listed for this assembly. Select the module by the requirements that affect your product, including the optical output, controller interface and mechanical envelope.
- Resolution: 640 × 480 pixels
- Module Dimensions: 126.5 × 100 × 5.7 mm
- Interface: 24 BIT RGB
- Brightness: 250 cd/m²
- Operating Temperature: -20 to 70 °C
Technical specifications
| Parameter | Value |
|---|---|
| Resolution | 640 × 480 pixels |
| Module Dimensions | 126.5 × 100 × 5.7 mm |
| Active Area | 112.896 × 84.672 mm |
| Interface | 24 BIT RGB |
| Brightness | 250 cd/m² |
| Contrast Ratio | 1000:1 |
| Model Size (W*H*T) | 126.5(H) x 100(V) x 5.7(T)mm |
| Viewing | 12:00 o'clock |
| Pin Count | 50 |
| Operating Temperature | -20 to 70 °C |
| Storage Temperature | -30 to 80 °C |
Confirm display mode against the latest approved module specification before design-in.
Interface & pin definition
Use the P056I640480TE-W01 electrical documentation to confirm pin numbering, signal direction, voltage limits, backlight connections and any touch-controller wiring. The connector and FPC arrangement must match the host electronics and the quoted assembly.
| Parameter | Value |
|---|---|
| Interface | 24 BIT RGB |
| Pin Count | 50 |

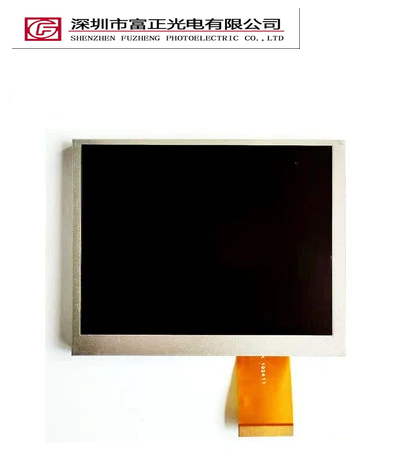

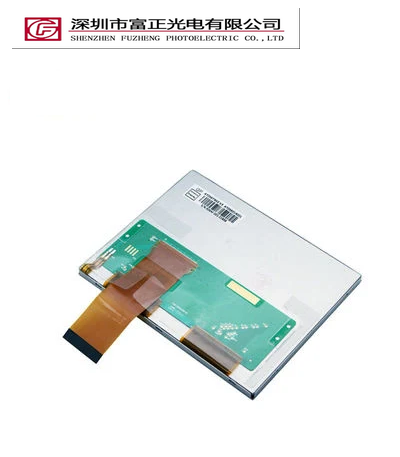

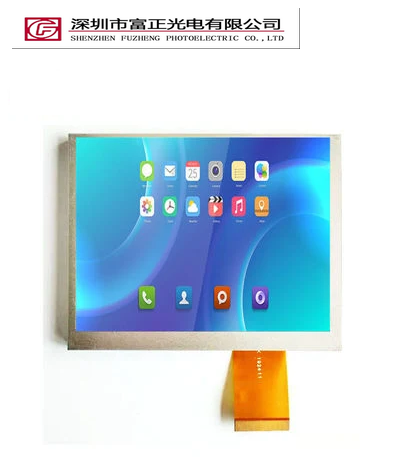

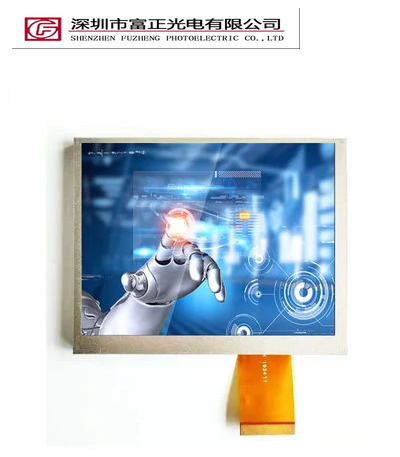

Product photographs
Mechanical drawings & documents
Request the P056I640480TE-W01 mechanical drawing and datasheet with your project inquiry. Confirm the outline, active area, mounting features and FPC position before finalizing the enclosure.
Application & selection guidance
P056I640480TE-W01 can be evaluated for equipment user interfaces and embedded instruments and control panels. These are integration directions: suitability depends on the final optical, electrical, mechanical and environmental requirements.
Compare the display format with your available viewing area, then check 640 × 480 pixel resolution, 24 BIT RGB host connectivity, touch operation and power requirements. Evaluate a sample in the real enclosure before approving production. Share the target conditions and quantity so Fuzheng can review the selected P056I640480TE-W01 configuration.
P056I640480TE-W01 frequently asked questions
What specifications are listed for P056I640480TE-W01?
Resolution: 640 × 480 pixels; Module Dimensions: 126.5 × 100 × 5.7 mm; Interface: 24 BIT RGB; Brightness: 250 cd/m²; Operating Temperature: -20 to 70 °C. Confirm the selected assembly and latest drawing revision when requesting a quotation.
How should P056I640480TE-W01 connect to a host system?
P056I640480TE-W01 lists a 24 BIT RGB interface. Check the pin assignment, connector, logic voltage, timing and initialization against your host controller. Do not apply power based only on a similar product photograph.
Is touch information available for P056I640480TE-W01?
A fixed touch configuration is not specified in this record. Include your touch, cover-lens and controller requirements in the inquiry for P056I640480TE-W01 so the exact assembly can be reviewed.
Where can I find the drawing for P056I640480TE-W01?
Request the mechanical drawing and electrical datasheet for P056I640480TE-W01. Include available enclosure space, mounting method and FPC routing constraints so the correct assembly documents can be supplied.
What should I send when requesting a P056I640480TE-W01 sample?
Include the model P056I640480TE-W01, target interface, touch and cover-lens requirements, operating environment, sample quantity and estimated production quantity. Share a host schematic or enclosure drawing when available so electrical and mechanical fit can be reviewed.
