Model no.MSP2401/MSP2402
MSP2401/MSP2402 2.4-Inch 320 × 240 TFT-LCD Display Module
MSP2401/MSP2402 is a 2.4-inch tft-lcd display module with 320 × 240 resolution and a 4-WIRE SPI interface. Review the module specifications, product images and integration requirements before requesting a sample.
- 4-WIRE SPI
- Resolution: 320 × 240 pixels
- Interface: 4-WIRE SPI
- Driver IC: ILI9341
- Screen Size: 2.4 inch
- Screen Size
- 2.4 inch
- Resolution
- 320 × 240 pixels
- Display Mode
- TFT,Normally White
- Interface
- 4-WIRE SPI
- Viewing Angle
- 55/65/65/65
Specification confirmation. Confirm operating temperature, storage temperature against the latest approved specification before design-in.
MSP2401/MSP2402 product introduction
MSP2401/MSP2402 is a 2.4-inch tft-lcd display module with 320 × 240 resolution and a 4-WIRE SPI interface. Review the module specifications, product images and integration requirements before requesting a sample. The standard tft lcd displays format helps define the display area and user-interface layout while the exact model reference keeps the optical, electrical and mechanical requirements tied to one assembly.
Driver IC: ILI9341. Use these published characteristics to compare MSP2401/MSP2402 with the requirements of your equipment. Brightness, viewing direction and touch operation should be evaluated in the intended enclosure, lighting and user environment.
The 4-WIRE SPI connection on MSP2401/MSP2402 should be checked against the host controller and connector arrangement. Review supply levels, backlight drive, cable routing and the matching pin assignment before connecting a sample. A shared interface name alone does not establish compatibility between two modules.
Product features
The following MSP2401/MSP2402 attributes are listed for this assembly. Select the module by the requirements that affect your product, including the optical output, controller interface and mechanical envelope.
- Resolution: 320 × 240 pixels
- Interface: 4-WIRE SPI
- Driver IC: ILI9341
- Screen Size: 2.4 inch
Technical specifications
| Parameter | Value |
|---|---|
| Resolution | 320 × 240 pixels |
| Active Area | 36.72 × 48.96() mm |
| Interface | 4-WIRE SPI |
| Viewing Angle | 55/65/65/65 |
| Display Mode | TFT,Normally White |
| Driver IC | ILI9341 |
| Module Interface | 4-wire SPI interface |
| VCC power voltage | 3.3V~5V |
| Logic IO port voltage | 3.3V(TTL) |
| Screen Size | 2.4 inch |
Confirm operating temperature, storage temperature against the latest approved module specification before design-in.
Interface & pin definition
Use the MSP2401/MSP2402 electrical documentation to confirm pin numbering, signal direction, voltage limits, backlight connections and any touch-controller wiring. The connector and FPC arrangement must match the host electronics and the quoted assembly.
| Parameter | Value |
|---|---|
| Interface | 4-WIRE SPI |
| Driver IC | ILI9341 |

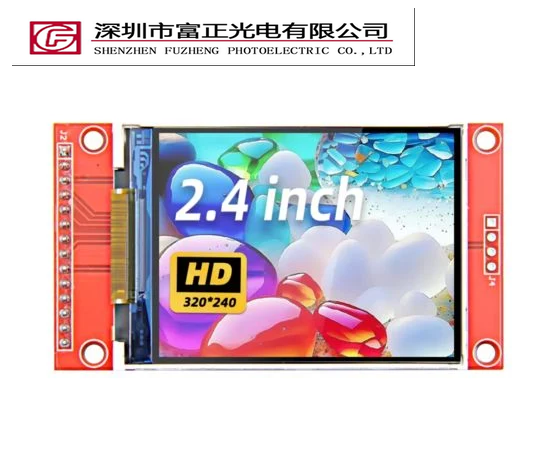

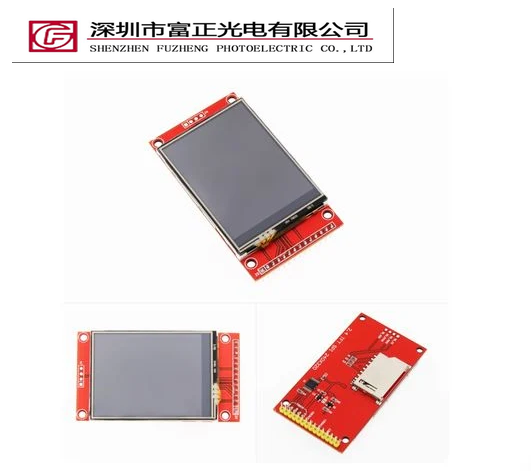

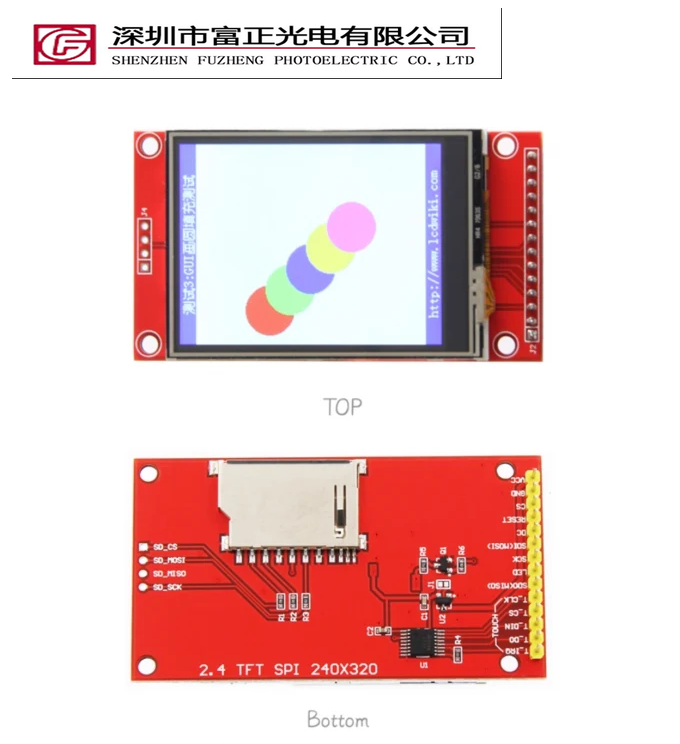

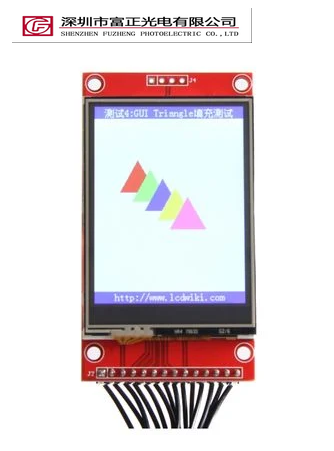

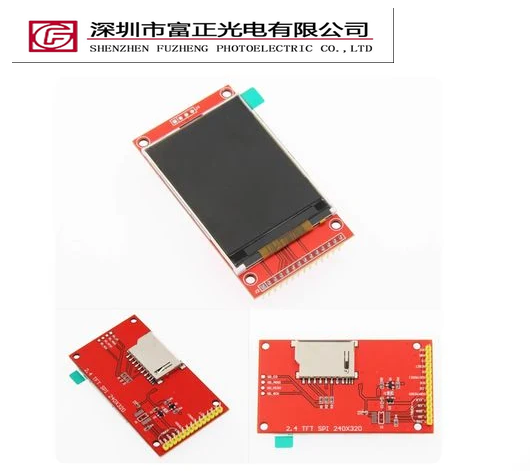

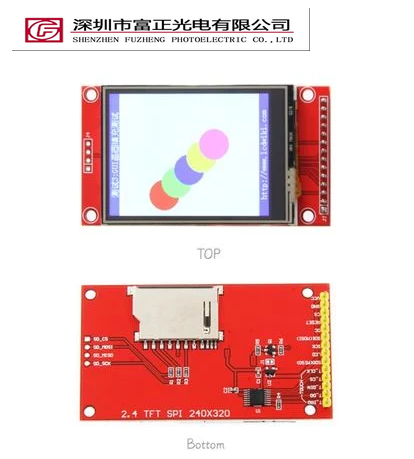

Product photographs
Mechanical drawings & documents
Request the MSP2401/MSP2402 mechanical drawing and datasheet with your project inquiry. Confirm the outline, active area, mounting features and FPC position before finalizing the enclosure.
Application & selection guidance
MSP2401/MSP2402 can be evaluated for equipment user interfaces and embedded instruments and control panels. These are integration directions: suitability depends on the final optical, electrical, mechanical and environmental requirements.
Compare the 2.4-inch display format with your available viewing area, then check 320 × 240 pixel resolution, 4-WIRE SPI host connectivity, touch operation and power requirements. Evaluate a sample in the real enclosure before approving production. Share the target conditions and quantity so Fuzheng can review the selected MSP2401/MSP2402 configuration.
MSP2401/MSP2402 frequently asked questions
What specifications are listed for MSP2401/MSP2402?
Resolution: 320 × 240 pixels; Interface: 4-WIRE SPI; Driver IC: ILI9341; Screen Size: 2.4 inch. Confirm the selected assembly and latest drawing revision when requesting a quotation.
How should MSP2401/MSP2402 connect to a host system?
MSP2401/MSP2402 lists a 4-WIRE SPI interface. Check the pin assignment, connector, logic voltage, timing and initialization against your host controller. Do not apply power based only on a similar product photograph.
Is touch information available for MSP2401/MSP2402?
A fixed touch configuration is not specified in this record. Include your touch, cover-lens and controller requirements in the inquiry for MSP2401/MSP2402 so the exact assembly can be reviewed.
Where can I find the drawing for MSP2401/MSP2402?
Request the mechanical drawing and electrical datasheet for MSP2401/MSP2402. Include available enclosure space, mounting method and FPC routing constraints so the correct assembly documents can be supplied.
What should I send when requesting a MSP2401/MSP2402 sample?
Include the model MSP2401/MSP2402, target interface, touch and cover-lens requirements, operating environment, sample quantity and estimated production quantity. Share a host schematic or enclosure drawing when available so electrical and mechanical fit can be reviewed.
