Standard TFT LCD Displays Model FZ43001L40-TP

4.3-Inch 800x480 LVDS Touch TFT-LCD

This 4.3 TFT TRANSMISSIVE record brings together the product identity, source-matched imagery and published technical values currently available for engineering review.

  • TFT TRANSMISSIVE
  • LVDS
  • CTP (capacitive touch panel)
Screen Size
4.3
Resolution
800(RGB) x480
Technology
TFT TRANSMISSIVE
Interface
LVDS
Touch
CTP (capacitive touch panel)
Brightness
380/550
Request a Quote Request a Sample
WhatsApp an Engineer

Specifications and media are retained from the current source record. Unpublished fields are not inferred.

Buyer advantages

Exact-record review
Source-matched media and published values remain attached to this product record.
Integration context
Format, interface, touch, optical and mechanical review points are organized around the published data.
Product-specific inquiry
Quotation, sample and WhatsApp actions carry this display name into the engineering discussion.
Product details

Review the module around published evidence.

This 4.3 TFT TRANSMISSIVE record brings together the product identity, source-matched imagery and published technical values currently available for engineering review.

The current record identifies 800(RGB) x480 resolution, LVDS interface, CTP (capacitive touch panel) touch information, 380/550 brightness. Use these values to narrow the shortlist, then confirm the electrical, optical and mechanical requirements against the host product.

Standard-format TFT LCD modules represented in the current catalog, covering compact embedded displays through larger landscape panels. Final suitability depends on the approved drawing, sample evaluation and the host system requirements.

Product views

Inspect the module from the available source imagery.

Images stay contained and uncropped so the display, flex cable, connector and visible assembly details remain available for review.

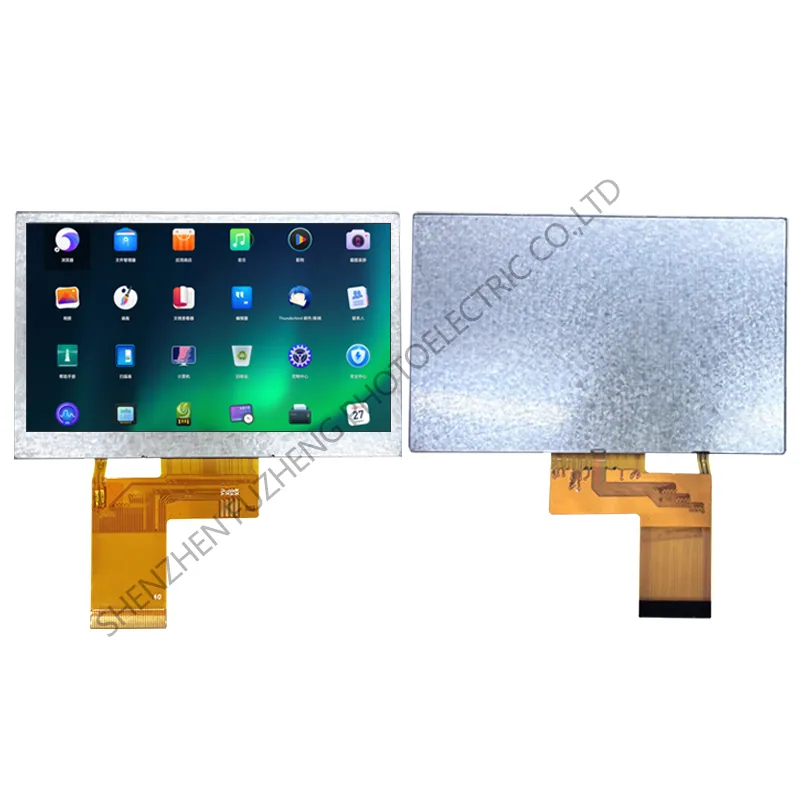

LVDS 4.3 inch 800*480, ST7262, full viewing angle, 8BIT LVDS interface, high brightness LCD with capacitive touch panel product image
4.3-Inch 800x480 LVDS Touch TFT-LCD · product view 01

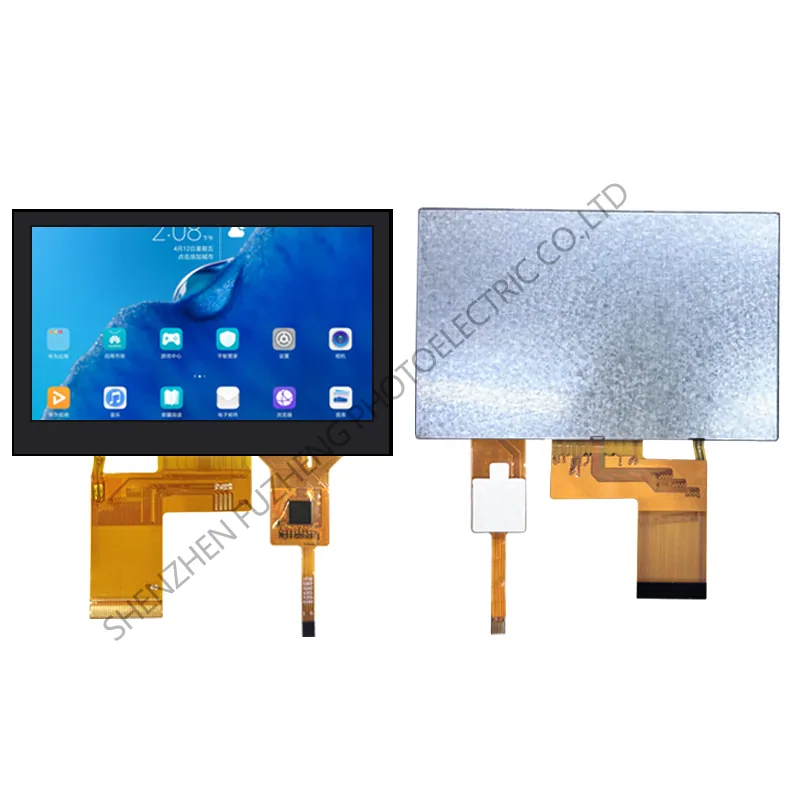

LVDS 4.3 inch 800*480, ST7262, full viewing angle, 8BIT LVDS interface, high brightness LCD with capacitive touch panel product image
4.3-Inch 800x480 LVDS Touch TFT-LCD · product view 02

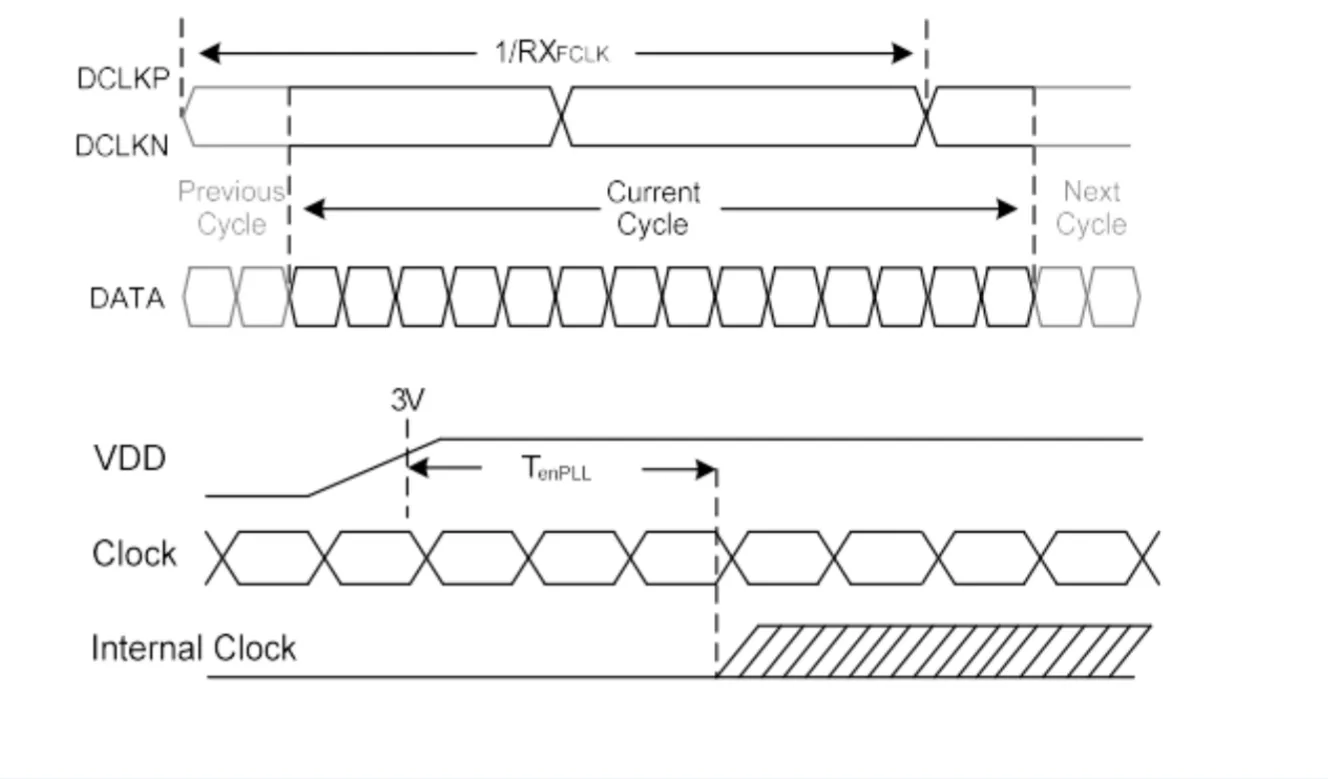

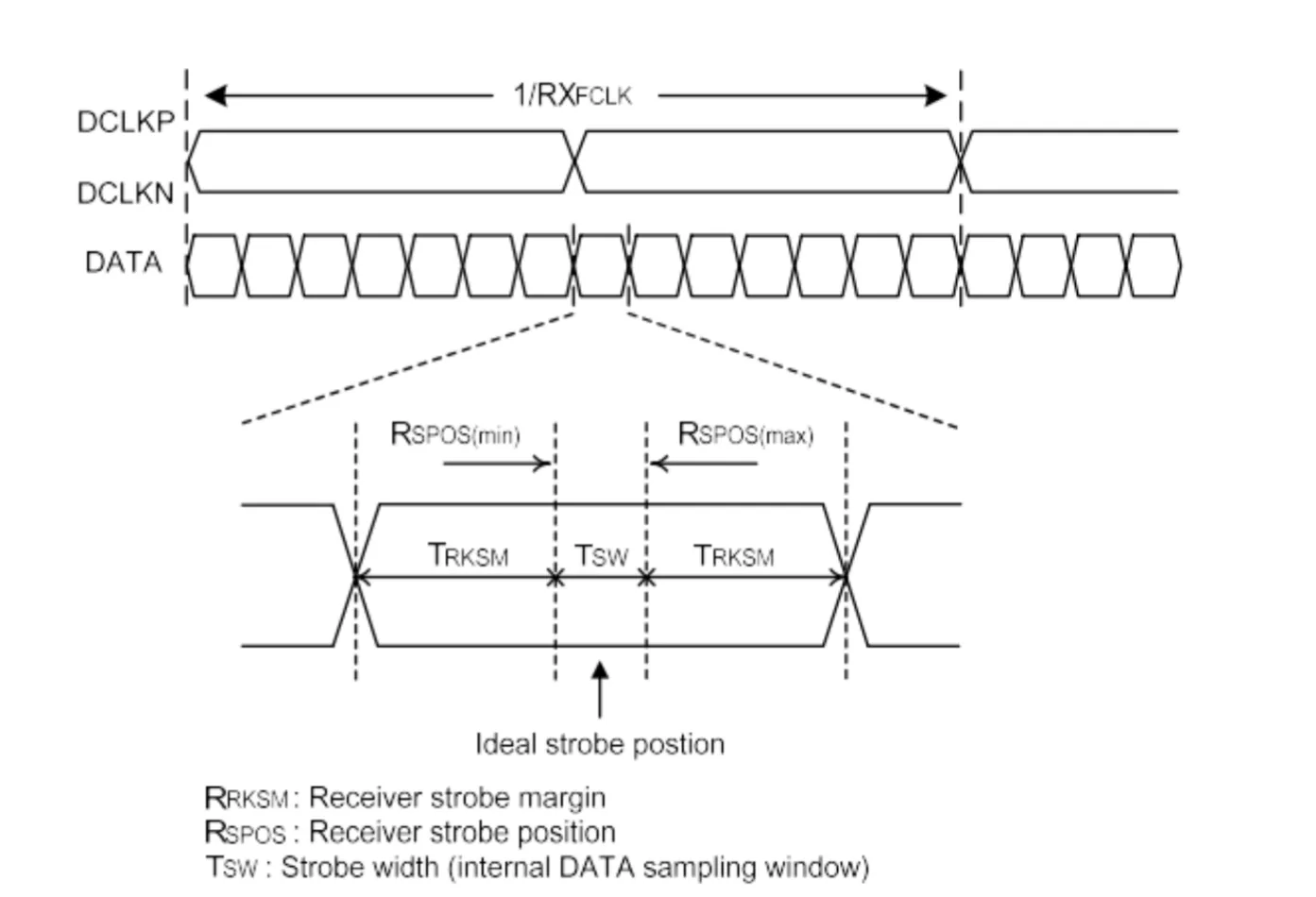

LVDS 4.3 inch 800*480, ST7262, full viewing angle, 8BIT LVDS interface, high brightness LCD with capacitive touch panel product image
4.3-Inch 800x480 LVDS Touch TFT-LCD · product view 03

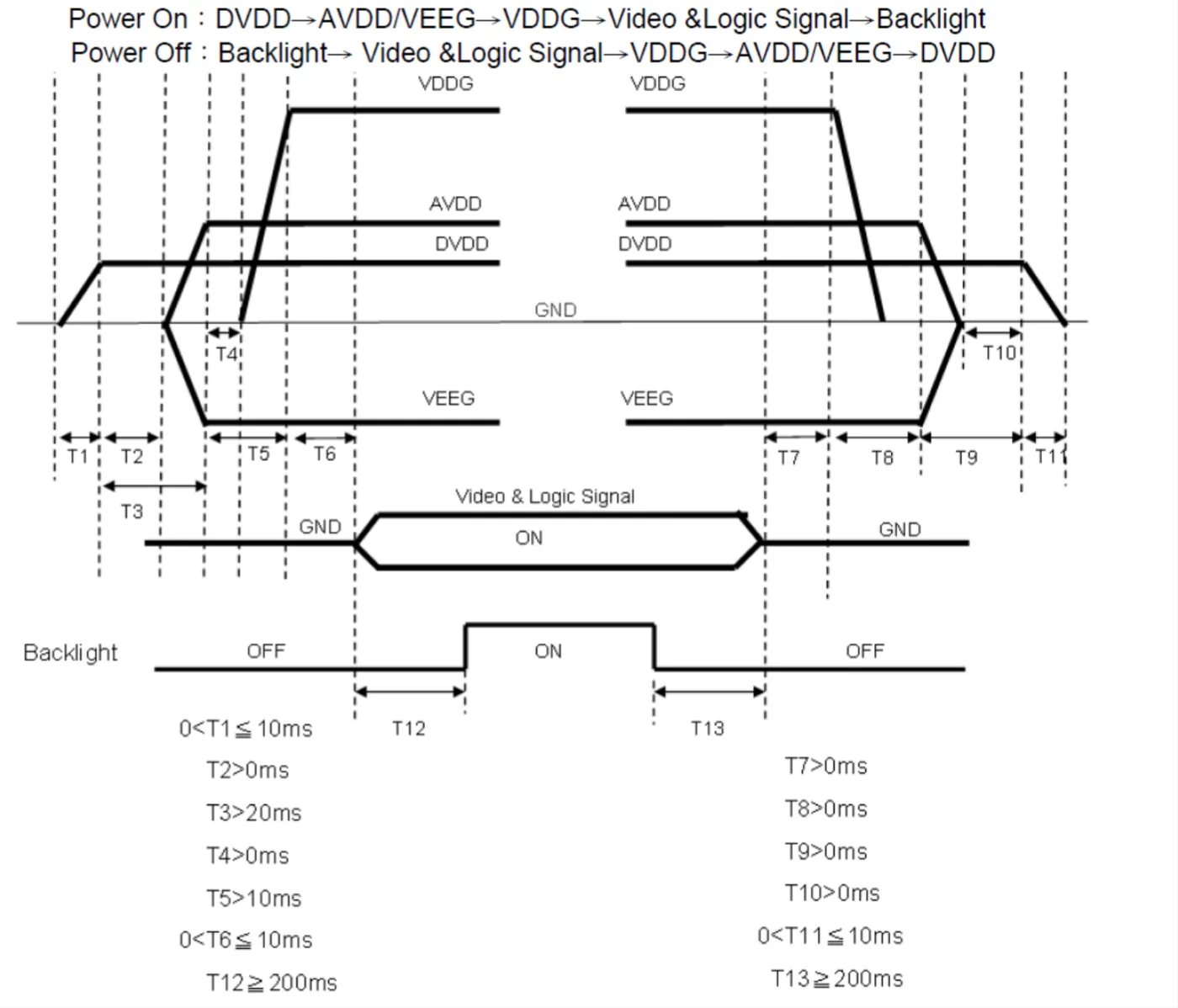

LVDS 4.3 inch 800*480, ST7262, full viewing angle, 8BIT LVDS interface, high brightness LCD with capacitive touch panel product image
4.3-Inch 800x480 LVDS Touch TFT-LCD · product view 04

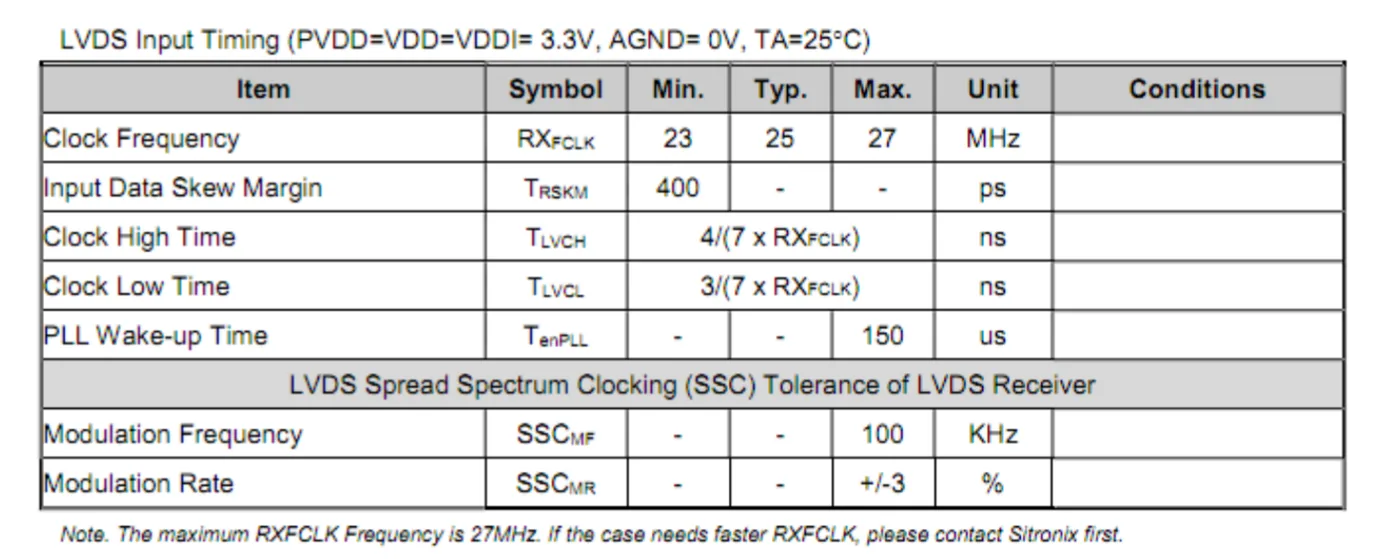

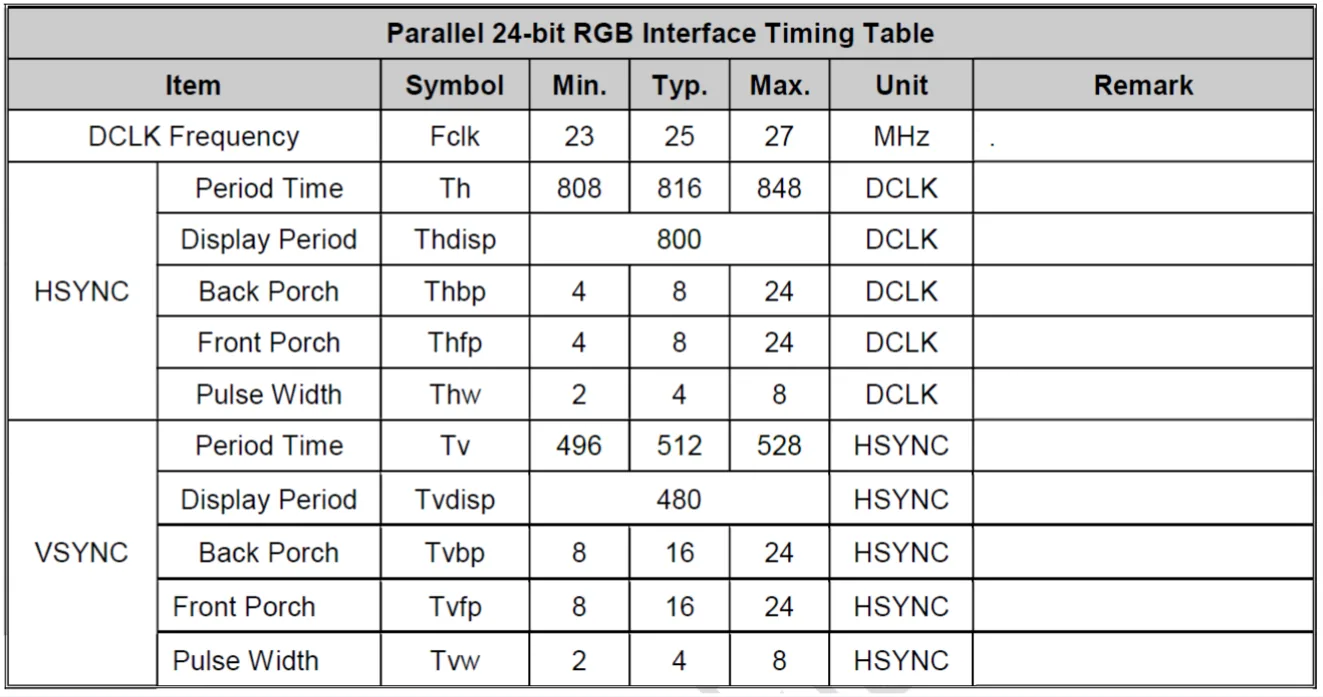

Published product data

Specifications in one consistent format.

Values are normalized from the current product record; no missing parameter is estimated.

Published specifications for 4.3-Inch 800x480 LVDS Touch TFT-LCD
SpecificationPublished valueReview status
Screen Size 4.3 Current source record
Resolution 800(RGB) x480 Current source record
Technology TFT TRANSMISSIVE Current source record
Interface LVDS Current source record
Touch CTP (capacitive touch panel) Current source record
Brightness 380/550 Current source record
Viewing Angle ALL Current source record
Driver IC ST7262 Current source record
Backlight 7 *1chips white LED / LED White Multiple source values — confirm
Module Dimensions 105.5 x67.2x3.0 Current source record
Active Area 95.04x53.86 Current source record
Input Voltage 3.3 Current source record
Operating Temperature -20 -- 70 °C Current source record
Storage Temperature -30 -- 80 °C Current source record
Model FZ43001L40-TP Current source record
