Model no.FZ800X480C50
8 inch 800x480 WVGA RGB TFT-LCD — FZ800X480C50 (50-pin Full 24-bit, DE/SYNC, 6/8-bit Select)
FZ800X480C50 — 8 inch 800x480 WVGA RGB TFT-LCD, 50-pin full 24-bit (B0-B7, G0-G7, R0-R7), 6/8 bit mode, DE/SYNC, L/R U/D mirror, 8.4-10.2 V LED input. Ideal for industrial HMI, medical display, test instrument, EV charging. Factory price, OEM/ODM.
- a-Si TFT
- RGB 24-bit parallel (8-bit R/G/B, TTL CMOS, full 24 lines pinned out)
- Touch-ready module (CTP thickness included in 6.4 mm) — driver IC not specified in spec
- 8 inch a-Si TFT, 800x480 WVGA landscape (5:3), 16.7M colors
- Full RGB 24-bit parallel interface — every bit (B0-B7, G0-G7, R0-R7) individually pinned out
- 6/8 bit mode selectable (LSB pins B0/B1, G0/G1, R0/R1 internally grounded in 6-bit mode)
- DE / SYNC mode selectable (Pin 8) — DE only, or HS+VS sync
- DITHB dithering function (Pin 47) — color depth recovery on 6-bit hosts
- Screen Size
- 8 inch
- Resolution
- 800 × 480
- Technology
- a-Si TFT
- Interface
- RGB 24-bit parallel
- Touch
- Touch-ready
- Viewing Angle
- Wide View
Product Overview
The FZ800X480C50 is an 8″ landscape-format (WVGA 5:3) a-Si TFT-LCD module with 800x480 resolution in a 192.8 (W) x 116.9 (H) x 6.4 (D) mm — module incl. CTP outline. It uses a standard RGB 24-bit parallel interface on a 50-pin plug-in FPC, with all 24 RGB data bits individually pinned out (B0-B7, G0-G7, R0-R7) — making it compatible with both 8-bit-per-channel and 6-bit-per-channel hosts. The wide viewing angle, DE/SYNC mode selection, L/R + U/D mirror pins and DITHB dithering function provide flexible integration with most embedded video controllers. The 8.4-10.2 V high-voltage LED backlight input with integrated backlight driver on the module simplifies the host design. With 16.7M colors and an industrial operating range, this panel is ideal for industrial HMI, medical equipment, test & measurement, EV charging station, POS terminals and digital signage.
Key Features
- 8 inch a-Si TFT, 800x480 WVGA landscape (5:3), 16.7M colors
- Full RGB 24-bit parallel interface — every bit (B0-B7, G0-G7, R0-R7) individually pinned out
- 6/8 bit mode selectable (LSB pins B0/B1, G0/G1, R0/R1 internally grounded in 6-bit mode)
- DE / SYNC mode selectable (Pin 8) — DE only, or HS+VS sync
- DITHB dithering function (Pin 47) — color depth recovery on 6-bit hosts
- L/R and U/D mirror pins (Pin 39/40) — hardware image inversion
- Integrated backlight driver on module — 8.4-10.2 V LED input only
- Wide viewing angle, operating temperature -20 ~ +70 °C

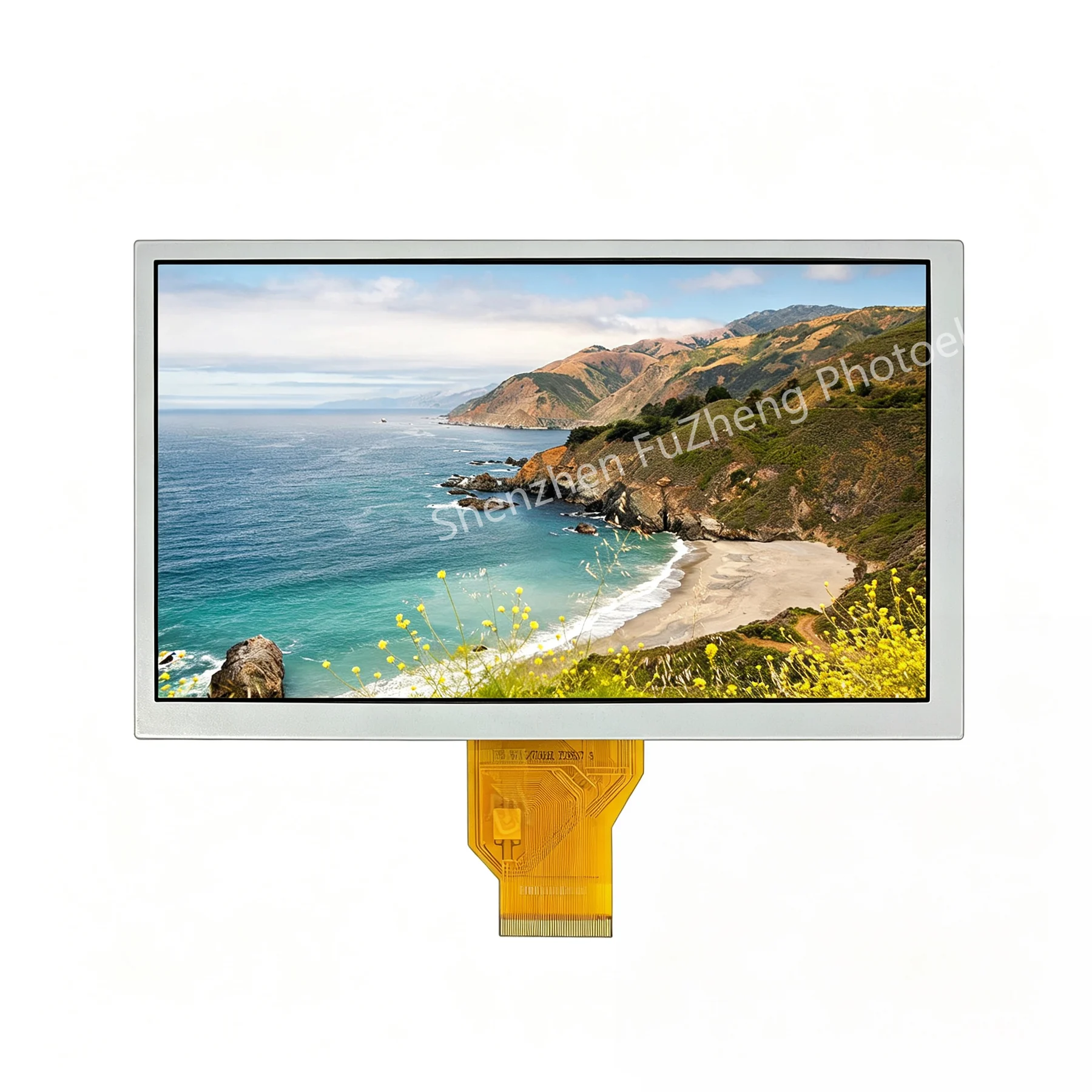

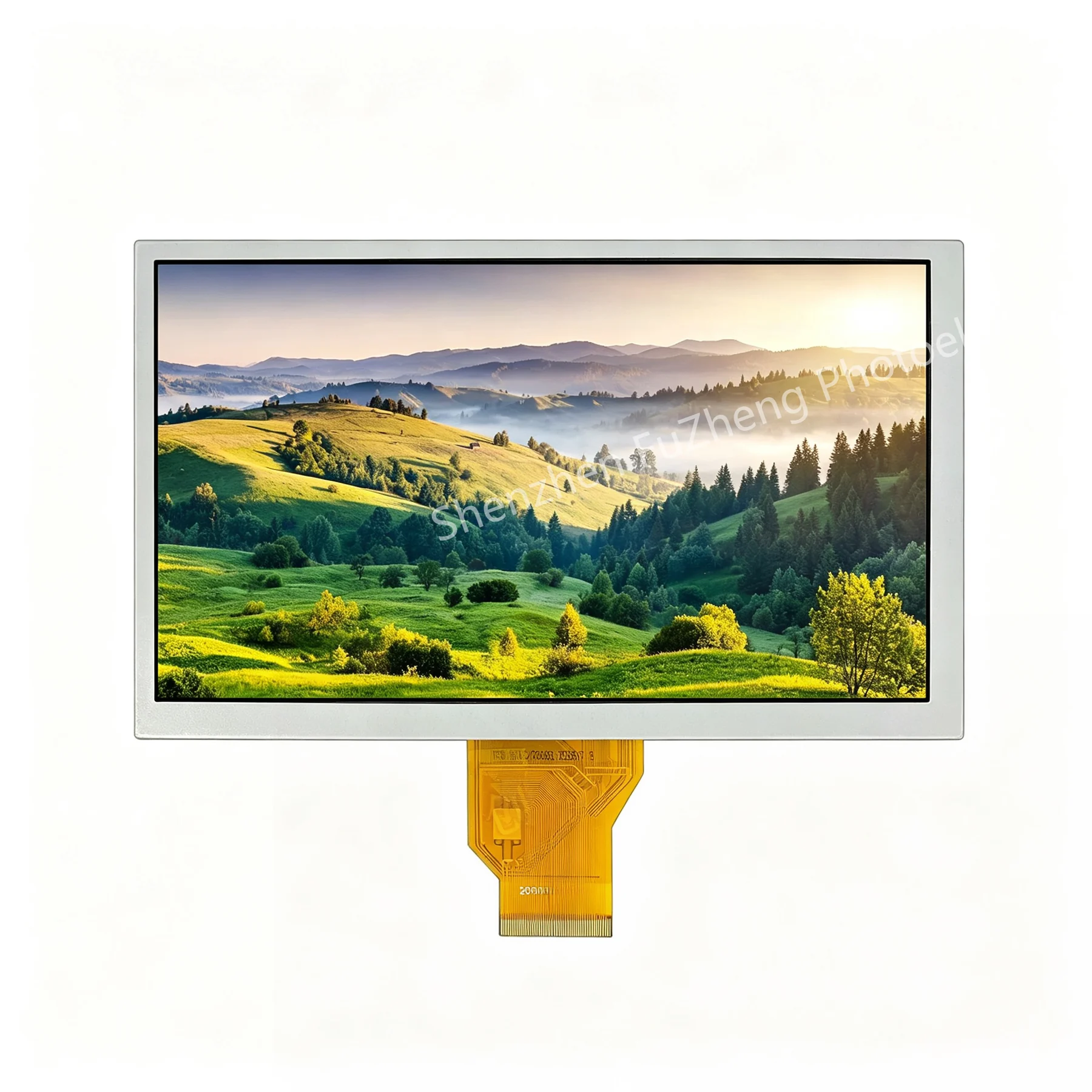

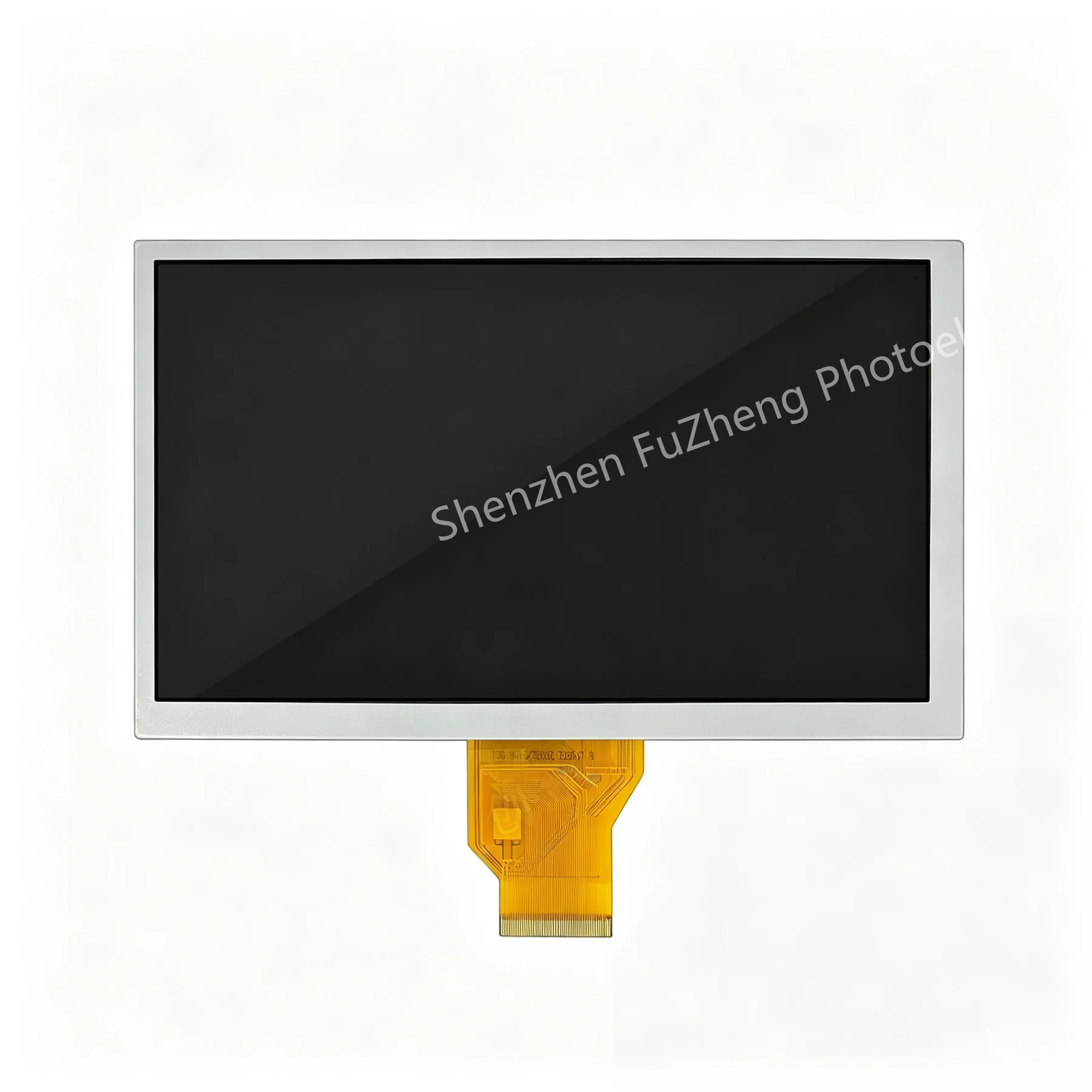

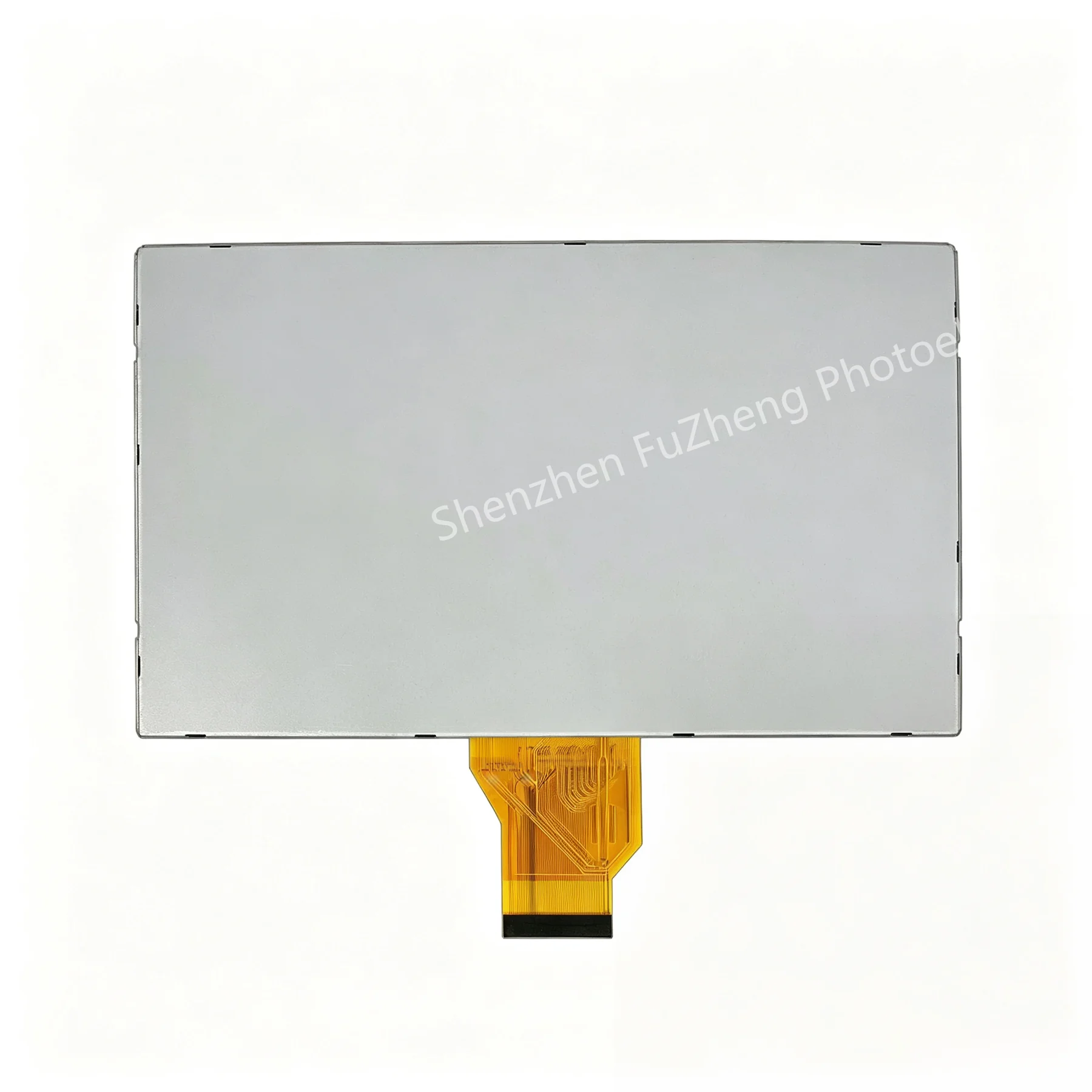

Product Images
Basic Parameters
| Display Type | a-Si TFT |
|---|---|
| Model Number | FZ800X480C50 |
| Screen Size | 8 inch (diagonal, WVGA 5:3 landscape) |
| Resolution | 800x480 (800 RGB x 480 Dots) |
| Pixel Pitch (true) | 0.2208 (W) x 0.2070 (H) mm (176.64/800 = 0.2208, 99.36/480 = 0.2070) |
| Display Colors | 16.7M (RGB 8-bit / 24-bit color depth) |
| Viewing Direction | Wide View (宽视角) |
| Active Area | 176.64 (W) x 99.36 (H) mm |
| LCM Outline Size | 192.8 (W) x 116.9 (H) x 6.4 (D) mm — module incl. CTP |
| Data Interface | RGB 24-bit parallel (8-bit R/G/B, TTL CMOS, full 24 lines pinned out) |
| Pin Count | 50 (plug-in FPC) |
| Controller / Driver IC | TBD (RGB TTL standard controller — see driver datasheet) |
| Timing Mode | DE/SYNC mode selectable via Pin 8 (MODE) — DE mode (Data Enable) or SYNC mode (HS+VS) both supported |
| Image Mirror | Yes — L/R horizontal mirror (Pin 39), U/D vertical mirror (Pin 40) |
| Dithering | Yes — DITHB dithering function (Pin 47) for color depth recovery on 6-bit hosts |
| Power Supply — DVDD (Pin 7, digital) | DVDD 3.0 ~ 3.5 V (Pin 7, digital circuit) |
| Power Supply — AVDD (Pin 43, analog) | AVDD — analog circuit power (Pin 43) |
| Power Supply — VCOM (Pin 6/46, common) | VCOM — common voltage (Pin 6/46) |
| Power Supply — VGH (Pin 41, gate ON) | VGH — Gate ON voltage (Pin 41) |
| Power Supply — VGL (Pin 42, gate OFF) | VGL — Gate OFF voltage (Pin 42) |
| Backlight Input (Pin 1-2) | 8.4 ~ 10.2 V LED input (Pin 1-2, integrated backlight driver on module) |
| Touch Panel | Touch-ready module (CTP thickness included in 6.4 mm) — driver IC not specified in spec |
| Operating Temperature | -20 ~ +70 °C |
| Storage Temperature | -30 ~ +80 °C |
| Manufacturer | Shenzhen FuZheng Photoelectric Co., Ltd |

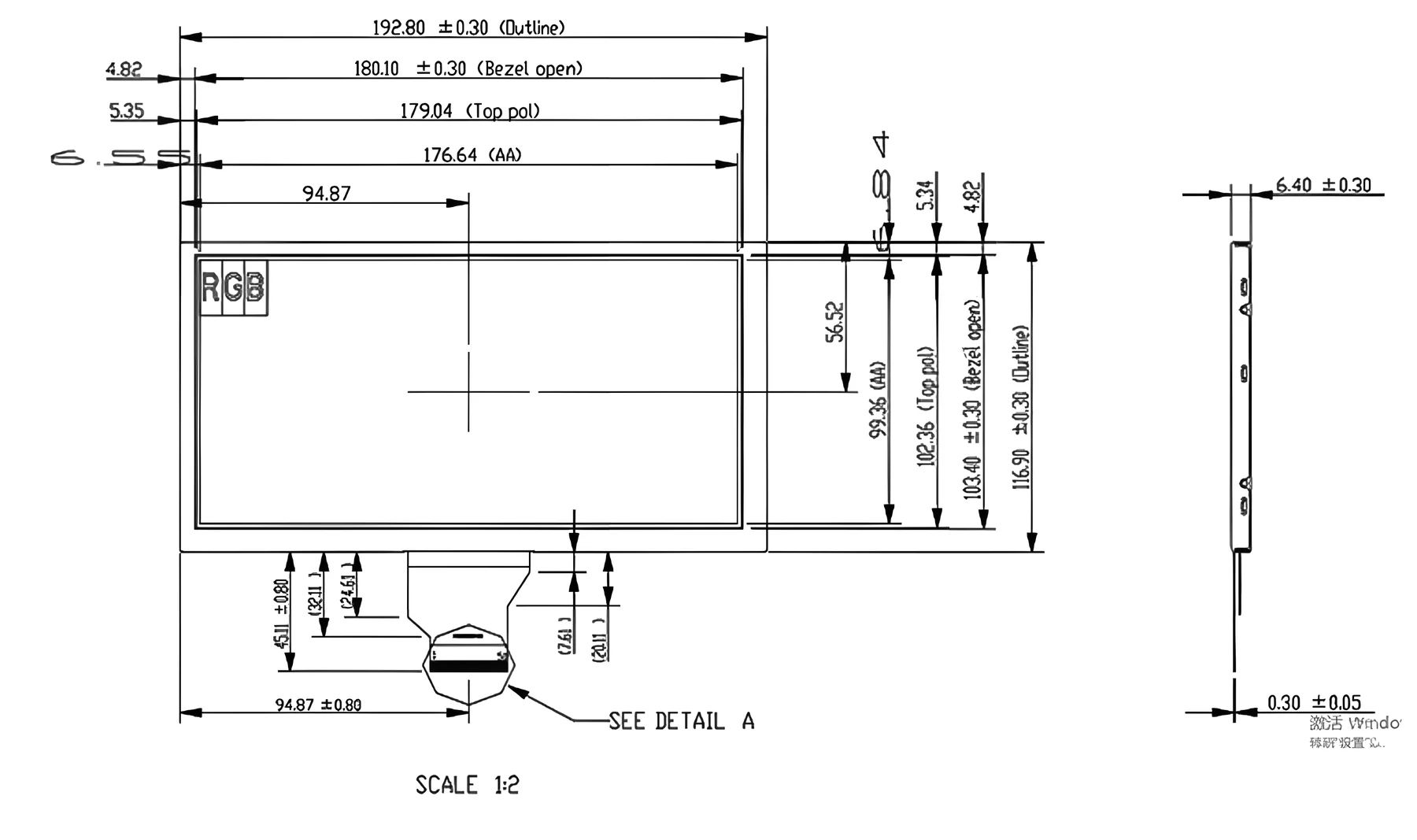

Mechanical Drawings
Pin Definition (50-pin FPC)
50-pin plug-in FPC tail. Pins 1-2 are V_LED+ (backlight anode, 8.4-10.2 V). Pins 3-4 are V_LED- (cathode). Pin 5 is GND. Pin 6 is V_COM. Pin 7 is DV_DD (3.0-3.5 V digital). Pin 8 is MODE (DE/SYNC select). Pin 9 is DE. Pin 10 is VS. Pin 11 is HS. Pins 12-19 are B7-B0 (blue, 8 bits, MSB to LSB). Pins 20-27 are G7-G0 (green, 8 bits). Pins 28-35 are R7-R0 (red, 8 bits). Pin 36 is GND. Pin 37 is DCLK (pixel clock). Pin 38 is GND. Pin 39 is L/R (horizontal mirror). Pin 40 is U/D (vertical mirror). Pin 41 is V_GH. Pin 42 is V_GL. Pin 43 is AV_DD. Pin 44 is active-low RESET. Pin 45 is NC. Pin 46 is V_COM. Pin 47 is DITHB. Pin 48 is GND. Pins 49-50 are NC.
| Pin No. | Symbol | I/O | Description |
|---|---|---|---|
| 1 | V_LED+ | Power for LED backlight (Anode), 8.4 ~ 10.2 V | — |
| 2 | V_LED+ | Power for LED backlight (Anode), 8.4 ~ 10.2 V | — |
| 3 | V_LED- | Power for LED backlight (Cathode) | — |
| 4 | V_LED- | Power for LED backlight (Cathode) | — |
| 5 | GND | Power ground | — |
| 6 | V_COM | Common voltage | — |
| 7 | DV_DD | Power for Digital Circuit (3.0 ~ 3.5 V) | — |
| 8 | MODE | DE / SYNC mode select (Note 1) | — |
| 9 | DE | Data Input Enable (DE mode) | — |
| 10 | VS | Vertical Sync Input (SYNC mode) | — |
| 11 | HS | Horizontal Sync Input (SYNC mode) | — |
| 12 | B7 | Blue data MSB (most significant bit) | — |
| 13 | B6 | Blue data | — |
| 14 | B5 | Blue data | — |
| 15 | B4 | Blue data | — |
| 16 | B3 | Blue data | — |
| 17 | B2 | Blue data | — |
| 18 | B1 | Blue data (Note 2: GND internally in 6-bit mode) | — |
| 19 | B0 | Blue data LSB (least significant bit) (Note 2: GND internally in 6-bit mode) | — |
| 20 | G7 | Green data MSB | — |
| 21 | G6 | Green data | — |
| 22 | G5 | Green data | — |
| 23 | G4 | Green data | — |
| 24 | G3 | Green data | — |
| 25 | G2 | Green data | — |
| 26 | G1 | Green data (Note 2: GND internally in 6-bit mode) | — |
| 27 | G0 | Green data LSB (Note 2: GND internally in 6-bit mode) | — |
| 28 | R7 | Red data MSB | — |
| 29 | R6 | Red data | — |
| 30 | R5 | Red data | — |
| 31 | R4 | Red data | — |
| 32 | R3 | Red data | — |
| 33 | R2 | Red data | — |
| 34 | R1 | Red data (Note 2: GND internally in 6-bit mode) | — |
| 35 | R0 | Red data LSB (Note 2: GND internally in 6-bit mode) | — |
| 36 | GND | Power ground | — |
| 37 | DCLK | Sample clock / pixel clock (Note 3) | — |
| 38 | GND | Power ground | — |
| 39 | L/R | Left / right selection — horizontal mirror (Note 4.5) | — |
| 40 | U/D | Up / down selection — vertical mirror (Note 4.5) | — |
| 41 | V_GH | Gate ON Voltage | — |
| 42 | V_GL | Gate OFF Voltage | — |
| 43 | AV_DD | Power for Analog Circuit | — |
| 44 | RESET | Global reset pin (active low, Note 6) | — |
| 45 | NC | No connection | — |
| 46 | V_COM | Common Voltage (second VCOM pin) | — |
| 47 | DITHB | Dithering function enable (Note 7) | — |
| 48 | GND | Power ground | — |
| 49 | NC | No connection | — |
| 50 | NC | No connection | — |
DE / SYNC Mode, 6/8-bit Select & Dithering
MODE (Pin 8) selects between two timing modes: DE mode (Data Enable) or SYNC mode (with both HS and VS sync). In 8-bit color depth mode, all 24 RGB data bits are active (B0-B7, G0-G7, R0-R7). In 6-bit mode (Note 2), the LSB of each color channel (B0/B1, G0/G1, R0/R1) is internally grounded, so the host only needs to drive the upper 6 bits of each channel — useful for older video controllers. DITHB (Pin 47) enables dithering to recover perceived color depth on a 6-bit host. The module also includes VCOM (Pin 6/46), VGH (Pin 41), VGL (Pin 42), AVDD (Pin 43) and DVDD (Pin 7) rails, plus a high-voltage 8.4-10.2 V LED backlight input (Pin 1-2) with integrated backlight driver on the module.
Typical Applications
- Industrial HMI, machine control and instrumentation panel
- Medical equipment display (patient monitor, ultrasound, diagnostic device)
- Test & measurement equipment front-panel display
- EV charging station status display and parking guidance sign
- POS terminal, self-service kiosk and information display
- Digital signage and advertising display (5:3 format)
- Vehicle infotainment and rear-seat entertainment display
- Embedded Linux / RTOS single-board computer display (Raspberry Pi, STM32, ESP32)
Frequently Asked Questions
What are the size and resolution of FZ800X480C50?
FZ800X480C50 is a 8 inch (diagonal, WVGA 5:3 landscape) display with 800x480 (800 RGB x 480 Dots).
Which interface and connector does FZ800X480C50 use?
The supplied product brief specifies RGB 24-bit parallel (8-bit R/G/B, TTL CMOS, full 24 lines pinned out) with 50 (plug-in FPC). Confirm the quoted connector revision before design-in.
Which controller or driver is used on FZ800X480C50?
The supplied record identifies TBD (RGB TTL standard controller — see driver datasheet). Initialization and timing data should be confirmed against the approved revision.
What are the outline and viewing characteristics of FZ800X480C50?
The published module outline is 192.8 (W) x 116.9 (H) x 6.4 (D) mm — module incl. CTP, and the viewing specification is Wide View (宽视角).
What operating temperature is specified for FZ800X480C50?
The supplied product brief lists an operating temperature of -20 ~ +70 °C. OEM/ODM options should be confirmed during quotation.
