Product images and mechanical references for this assembly. Confirm the selected model and drawing revision before design-in.
Model no.FZ80008C31
8 inch 800x1280 IPS MIPI TFT-LCD with CTP — FZ80008C31 (GT911 Touch, 31-pin)
8 inch 800x1280 IPS portrait MIPI TFT-LCD with capacitive touch (GT911). MIPI DSI 4-lane interface, 31-pin FPC, 16.7M colors, 21 white LEDs. Industrial / POS / medical / smart home. Factory price, OEM/ODM.
- a-Si TFT IPS (TFT / Transmissive)
- MIPI DSI 4-lane
- Yes — CTP with Goodix GT911 driver (I2C interface, separate FPC)
- 8 inch a-Si TFT-LCD, 800x1280 portrait (10:16), 16.7M colors
- MIPI DSI 4-lane high-speed serial interface — up to 1 Gbps/lane
- IPS panel with All O'Clock (full) viewing angle
- Integrated CTP with Goodix GT911 multi-touch controller (I2C)
- 21 white-LED backlight for high luminance
- Screen Size
- 8 inch
- Resolution
- 800 × 1280
- Technology
- IPS TFT
- Interface
- MIPI DSI 4-lane
- Touch
- Capacitive touch
- Viewing Direction
- IPS — All O'Clock (full viewing angle)
Product Overview
The FZ80008C31 is an 8″ portrait-format IPS TFT-LCD module with 800x1280 (10:16 aspect) resolution and a compact 114.6 (H) x 184.1 (V) x 2.65 (D) mm outline. It uses a MIPI DSI 4-lane interface on a 31-pin plug-in FPC and supports 16.7M (RGB 24-bit) colors for vivid, true-to-life image rendering. The integrated CTP (Capacitive Touch Panel) controlled by Goodix GT911 provides accurate multi-touch input over an I2C interface. With 21 white-LED backlight for high luminance, the module is ideal for industrial HMI, medical equipment, smart-home control panels, POS terminals, vehicle infotainment and other portrait-format applications.
Key Features
- 8 inch a-Si TFT-LCD, 800x1280 portrait (10:16), 16.7M colors
- MIPI DSI 4-lane high-speed serial interface — up to 1 Gbps/lane
- IPS panel with All O'Clock (full) viewing angle
- Integrated CTP with Goodix GT911 multi-touch controller (I2C)
- 21 white-LED backlight for high luminance
- Compact 114.6 x 184.1 x 2.65 mm outline — slim bezel for embedded designs
- Dual power rails: VDD 3.3 V analog, VDDIO 1.8 V digital logic
- Operating temperature -20 ~ +70 °C, storage -30 ~ +80 °C

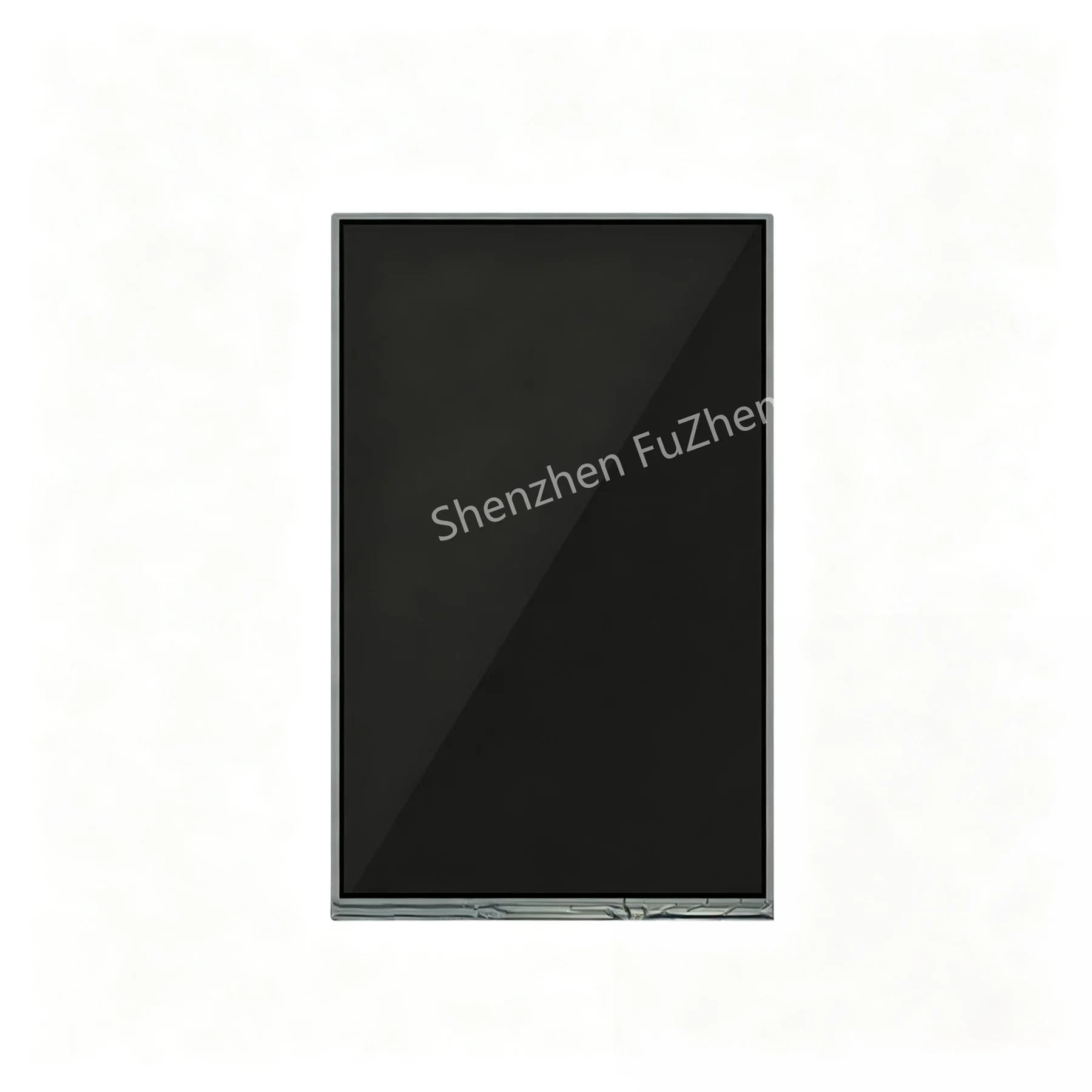

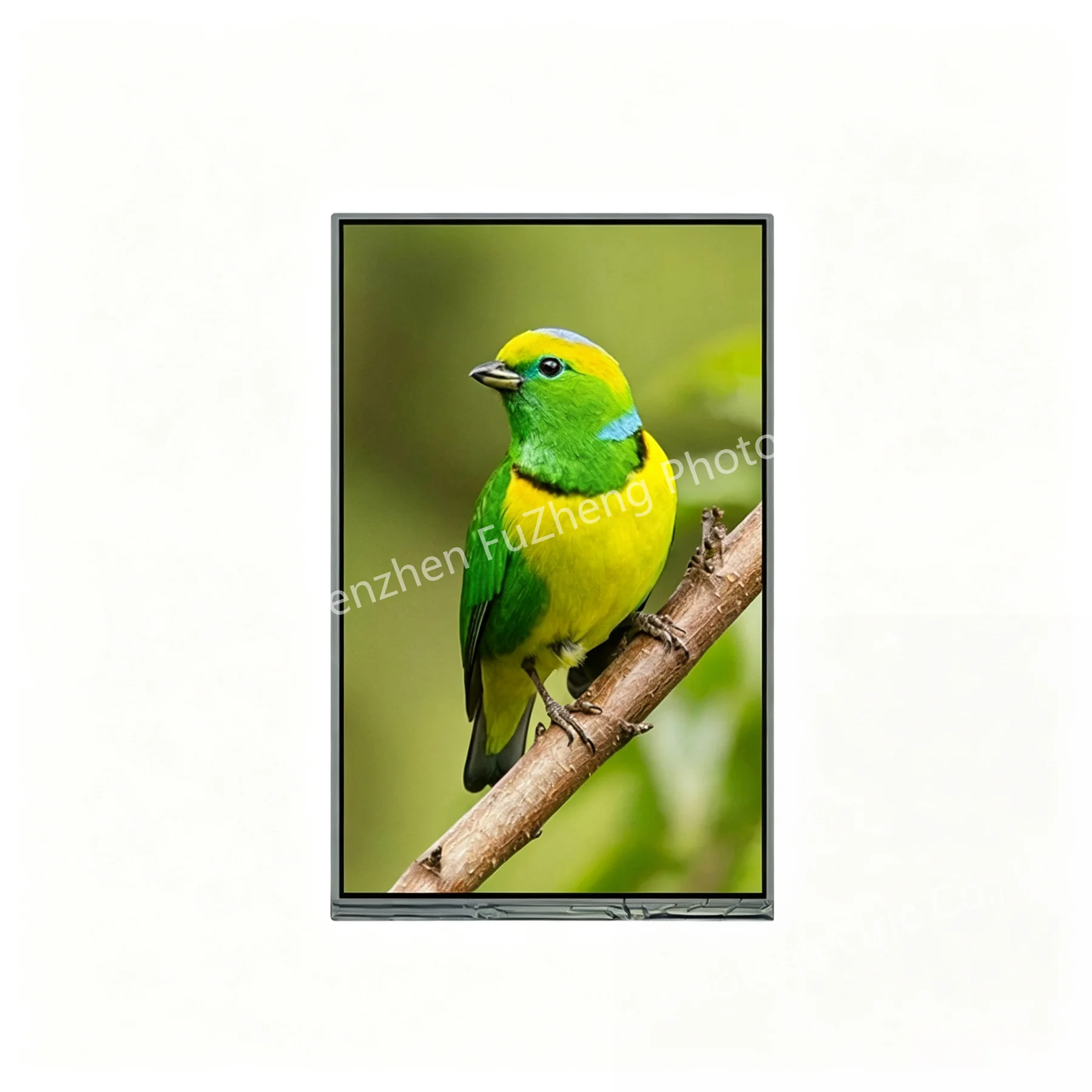

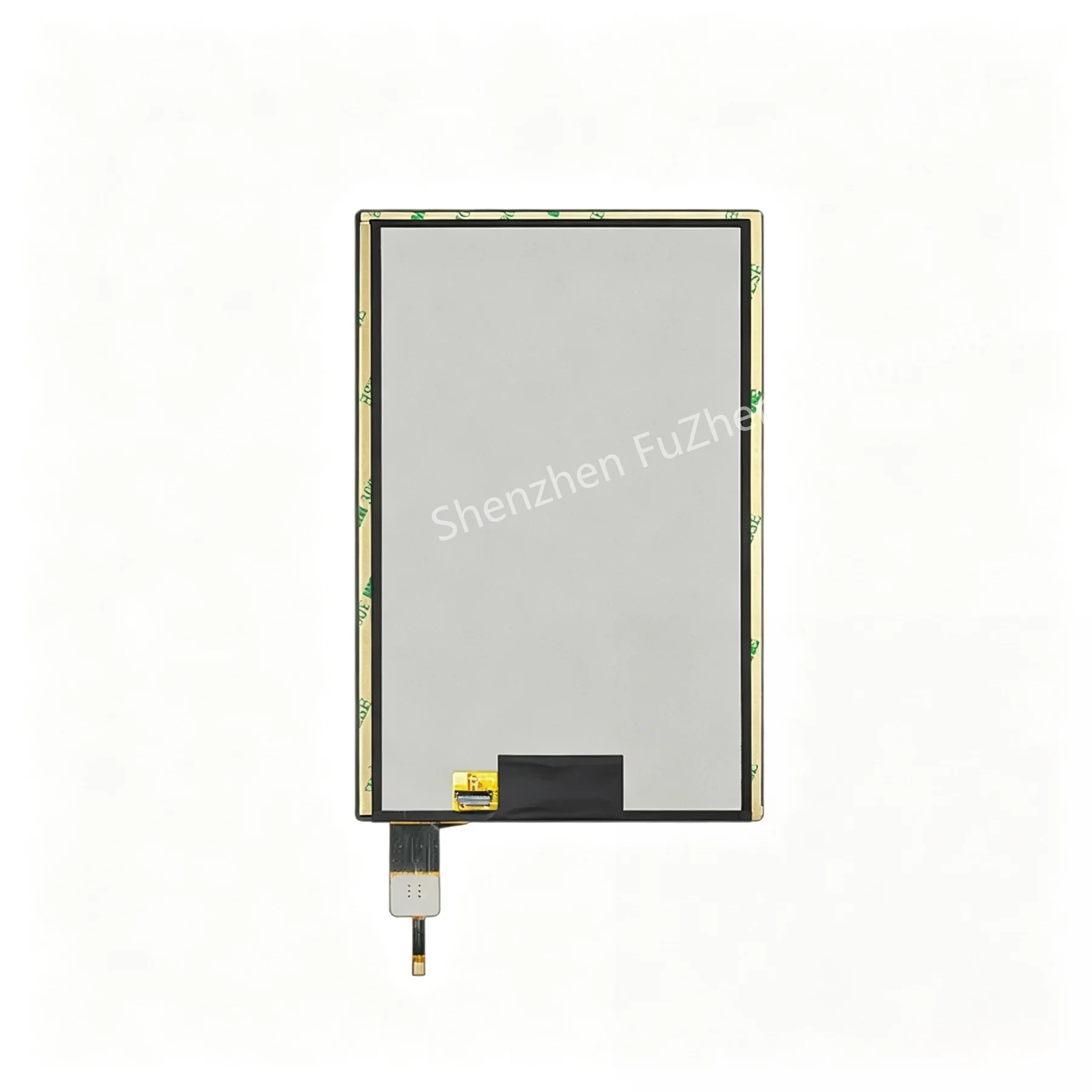

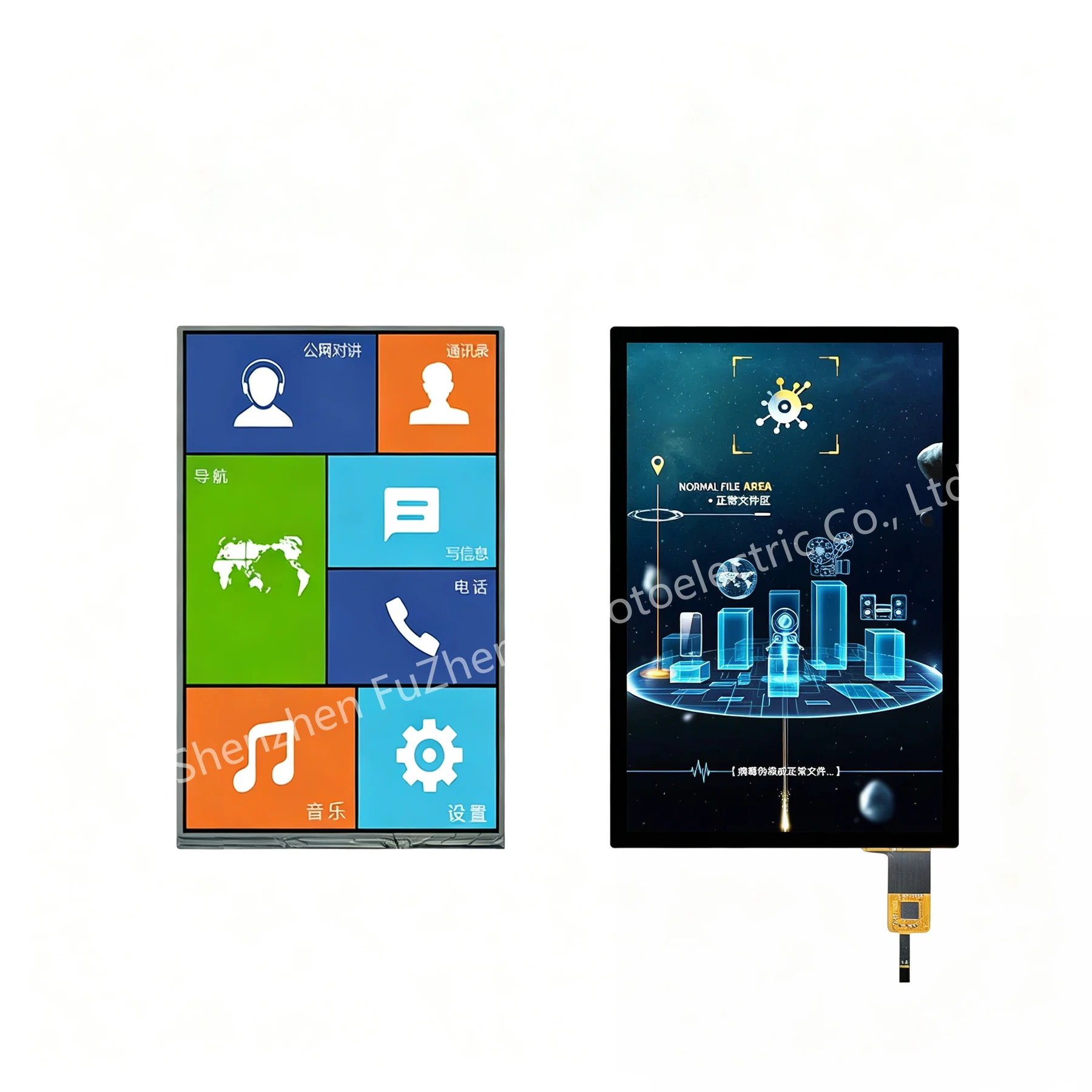

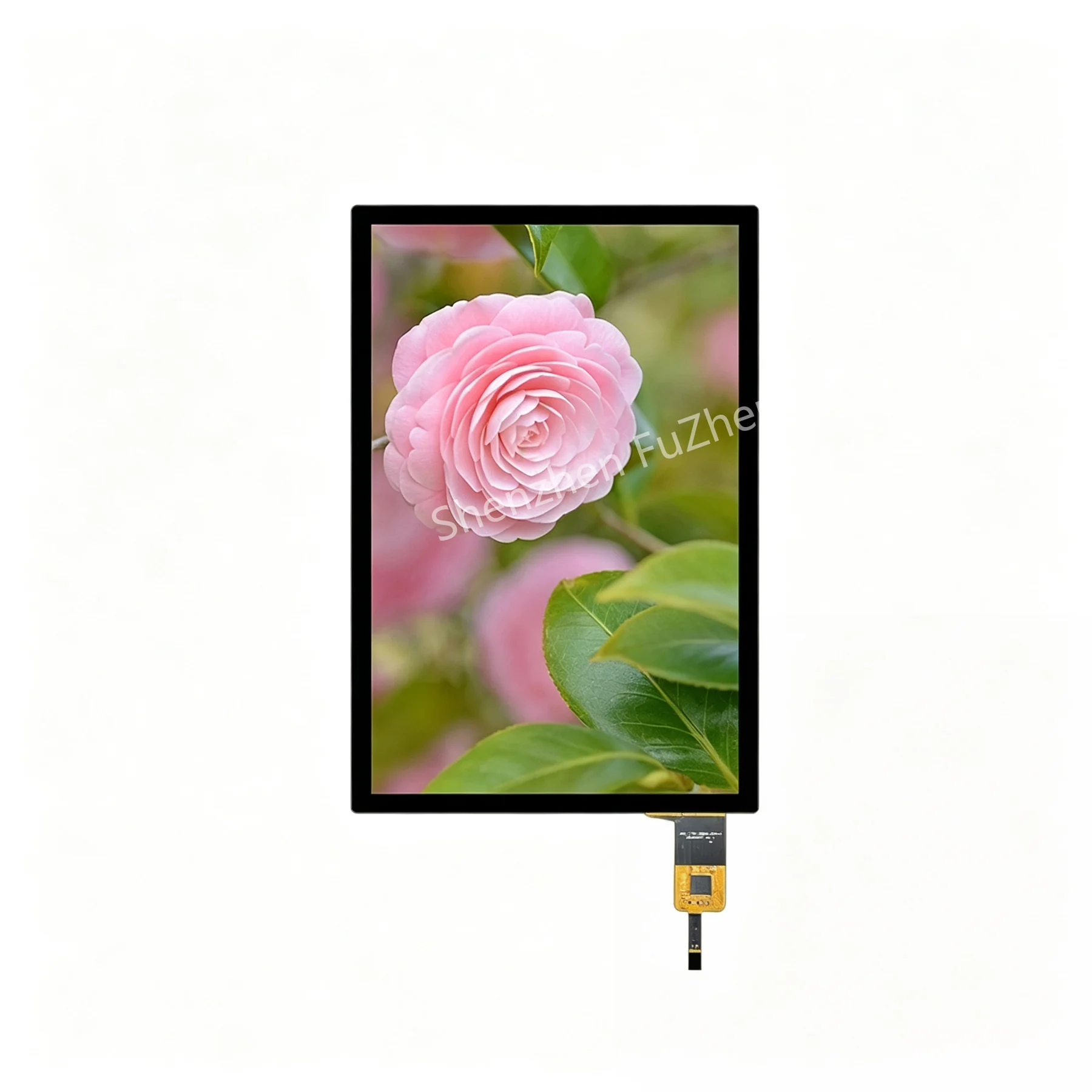

Product Images
Basic Parameters
| Display Type | a-Si TFT IPS (TFT / Transmissive) |
|---|---|
| Model Number | FZ80008C31 |
| Screen Size | 8 inch (diagonal, portrait, 10:16 aspect) |
| Resolution | 800x1280 (800 RGB x 1280 Dots) |
| Display Colors | 16.7M (RGB 24-bit) |
| Viewing Direction | IPS — All O'Clock (full viewing angle) |
| Active Area | 107.64 (W) x 172.22 (H) mm |
| LCM Outline Size | 114.6 (H) x 184.1 (V) x 2.65 (D) mm |
| Backlight | 21 white LEDs |
| Data Interface | MIPI DSI 4-lane |
| Pin Count (Display FPC) | 31 (plug-in FPC) |
| Controller / Driver IC | TBD (MIPI DSI standard controller — see driver datasheet) |
| Touch Panel | Yes — CTP with Goodix GT911 driver (I2C interface, separate FPC) |
| Touch Driver IC | Goodix GT911 (I2C, multi-touch, on separate FPC) |
| Power Supply — VDD (Pin 30-31) | 3.3 V (logic power, Pin 30-31) |
| Power Supply — VDDIO (Pin 26/29) | 1.8 V (IO logic, Pin 26/29) |
| Operating Temperature | -20 ~ +70 °C |
| Storage Temperature | -30 ~ +80 °C |
| Manufacturer | Shenzhen FuZheng Photoelectric Co., Ltd |
Mechanical Drawing
The approved, revision-matched mechanical drawing is available with the quotation. Confirm the exact module suffix and connector orientation before enclosure release.
Pin Definition (31-pin FPC)
31-pin plug-in FPC tail. Pins 1-3 are LED+ (back-light anodes). Pin 4 is NC. Pins 5-8 are LED- (back-light cathodes). Pins 9-10 are GND. Pins 11-12 are MIPI Lane 2 differential pair (D2P/D2N). Pin 13 is GND. Pins 14-15 are Lane 1 differential pair (D1P/D1N). Pin 16 is GND. Pins 17-18 are MIPI Clock pair (CLKP/CLKN). Pin 19 is GND. Pins 20-21 are Lane 0 differential pair (D0P/D0N). Pin 22 is GND. Pins 23-24 are Lane 3 differential pair (D3P/D3N). Pin 25 is GND. Pin 26 is VDDIO (1.8 V IO supply). Pin 27 is active-low RESET. Pin 28 is GND. Pin 29 is VDDIO (1.8 V). Pins 30-31 are VDD (3.3 V analog supply). Each MIPI differential pair is GND-shielded to minimize EMI.
| Pin No. | Symbol | Function |
|---|---|---|
| 1 | LED+ | Power supply for LED [Anode] |
| 2 | LED+ | Power supply for LED [Anode] |
| 3 | LED+ | Power supply for LED [Anode] |
| 4 | NC | No Connect |
| 5 | LED- | Power supply for LED [Cathode] |
| 6 | LED- | Power supply for LED [Cathode] |
| 7 | LED- | Power supply for LED [Cathode] |
| 8 | LED- | Power supply for LED [Cathode] |
| 9 | GND | Ground |
| 10 | GND | Ground |
| 11 | MIPI_2P | MIPI data positive signal (Lane 2 P) |
| 12 | MIPI_2N | MIPI data negative signal (Lane 2 N) |
| 13 | GND | Ground |
| 14 | MIPI_1P | MIPI data positive signal (Lane 1 P) |
| 15 | MIPI_1N | MIPI data positive signal (Lane 1 N) |
| 16 | GND | Ground |
| 17 | MIPI_CLKP | MIPI CLK positive signal (Clock P) |
| 18 | MIPI_CLKN | MIPI CLK positive signal (Clock N) |
| 19 | GND | Ground |
| 20 | MIPI_0P | MIPI data positive signal (Lane 0 P) |
| 21 | MIPI_0N | MIPI data positive signal (Lane 0 N) |
| 22 | GND | Ground |
| 23 | MIPI_3P | MIPI data positive signal (Lane 3 P) |
| 24 | MIPI_3N | MIPI data positive signal (Lane 3 N) |
| 25 | GND | Ground |
| 26 | VDDIO | Logic power 1.8 V (IO supply) |
| 27 | RESET | Reset Pin (active low) |
| 28 | GND | Ground |
| 29 | VDDIO | Logic power 1.8 V (IO supply) |
| 30 | VDD | Logic power 3.3 V (analog supply) |
| 31 | VDD | Logic power 3.3 V (analog supply) |
Touch Panel (GT911 CTP)
The module integrates a CTP (Capacitive Touch Panel) controlled by Goodix GT911. The touch controller communicates with the host MCU via I2C (typically on a separate touch FPC — pins are not part of the 31-pin display FPC). Typical GT911 I2C pins: SDA / SCL / INT / RESET / VCC 3.3 V. The touch FPC pinout should be requested from the manufacturer when ordering.
Typical Applications
- Industrial HMI, machine control and instrumentation panel
- Medical equipment display (patient monitor, diagnostic device, ultrasound)
- Smart home control panel, access-control terminal, intercom
- POS terminal, self-service kiosk and information display
- Vehicle infotainment, dashcam rear-screen and EV charging station display
- Smart appliance and white-goods touch interface
- Educational tablet and e-learning device
- Door access control, attendance terminal and queue management
Frequently Asked Questions
What are the size and resolution of FZ80008C31?
FZ80008C31 is a 8 inch (diagonal, portrait, 10:16 aspect) display with 800x1280 (800 RGB x 1280 Dots).
Which interface and connector does FZ80008C31 use?
The supplied product brief specifies MIPI DSI 4-lane with . Confirm the quoted connector revision before design-in.
Which controller or driver is used on FZ80008C31?
The supplied record identifies TBD (MIPI DSI standard controller — see driver datasheet). Initialization and timing data should be confirmed against the approved revision.
What are the outline and viewing characteristics of FZ80008C31?
The published module outline is 114.6 (H) x 184.1 (V) x 2.65 (D) mm, and the viewing specification is IPS — All O'Clock (full viewing angle).
What operating temperature is specified for FZ80008C31?
The supplied product brief lists an operating temperature of -20 ~ +70 °C. OEM/ODM options should be confirmed during quotation.
