Standard TFT LCD Displays Model FZ7001R50

7 inch RGB TFT-LCD Display 1024x600

This 7 inch TFT record brings together the product identity, source-matched imagery and published technical values currently available for engineering review.

  • TFT
  • RGB
  • CTP (capacitive touch panel)
Screen Size
7 inch
Resolution
1024*600
Technology
TFT
Interface
RGB
Touch
CTP (capacitive touch panel)
Brightness
400
Request a Quote Request a Sample
WhatsApp an Engineer

Specifications and media are retained from the current source record. Unpublished fields are not inferred.

Buyer advantages

Exact-record review
Source-matched media and published values remain attached to this product record.
Integration context
Format, interface, touch, optical and mechanical review points are organized around the published data.
Product-specific inquiry
Quotation, sample and WhatsApp actions carry this display name into the engineering discussion.
Product details

Review the module around published evidence.

This 7 inch TFT record brings together the product identity, source-matched imagery and published technical values currently available for engineering review.

The current record identifies 1024*600 resolution, RGB interface, CTP (capacitive touch panel) touch information, 400 brightness. Use these values to narrow the shortlist, then confirm the electrical, optical and mechanical requirements against the host product.

Standard-format TFT LCD modules represented in the current catalog, covering compact embedded displays through larger landscape panels. Final suitability depends on the approved drawing, sample evaluation and the host system requirements.

Product views

Inspect the module from the available source imagery.

Images stay contained and uncropped so the display, flex cable, connector and visible assembly details remain available for review.

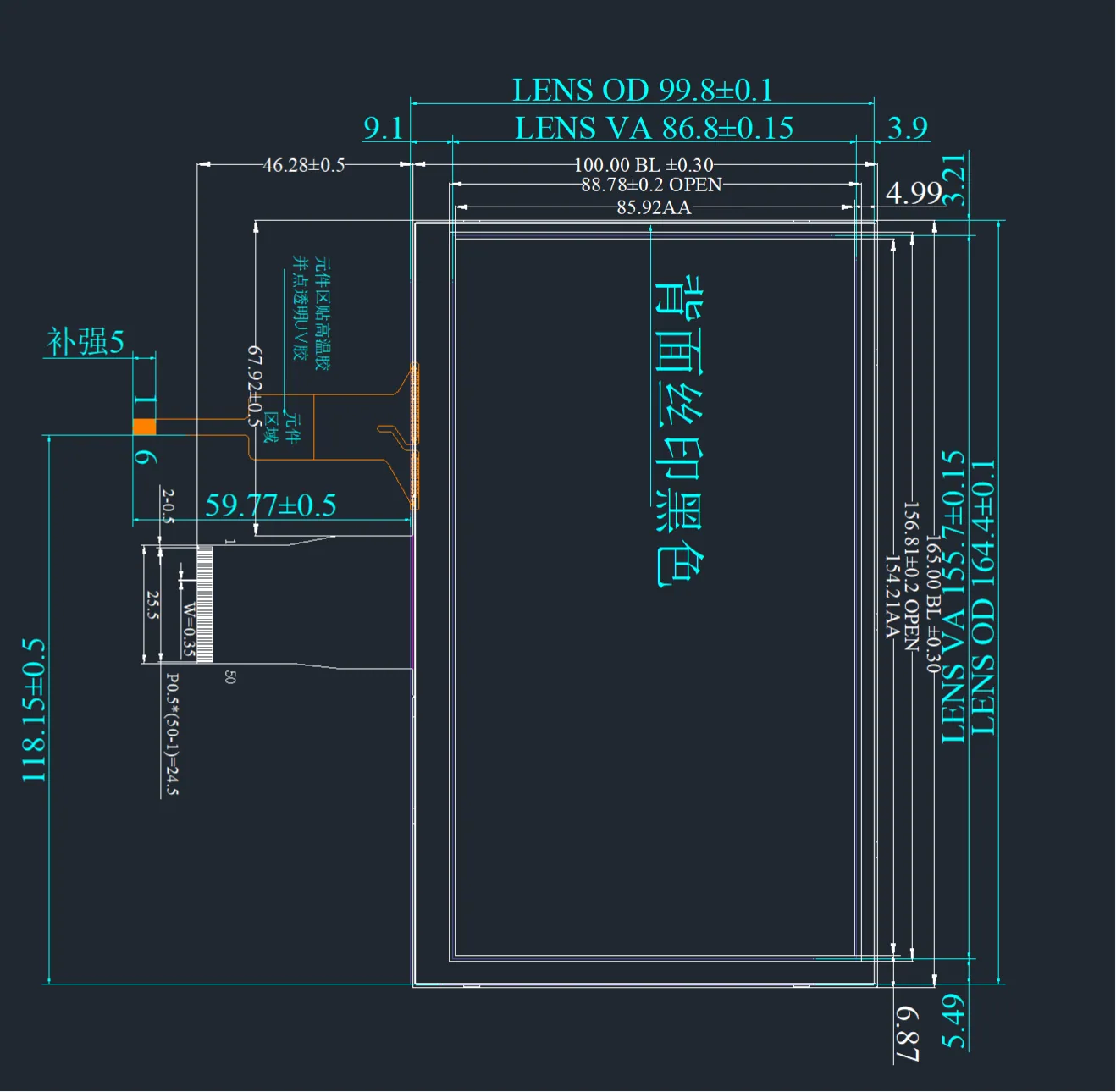

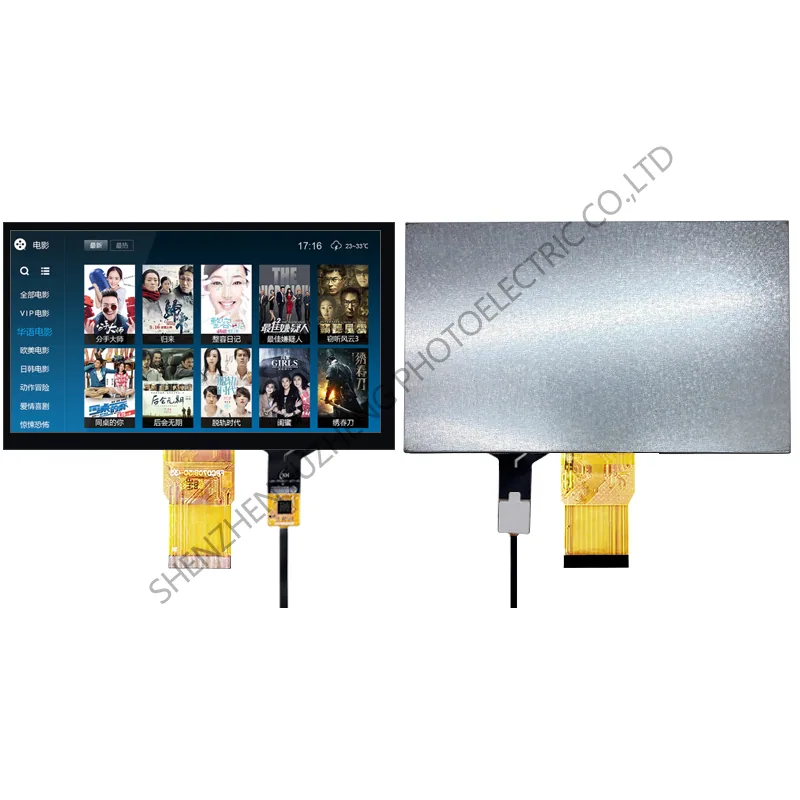

7 inch RGB TFT Display 1024*600 product image
7 inch RGB TFT-LCD Display 1024x600 · product view 01

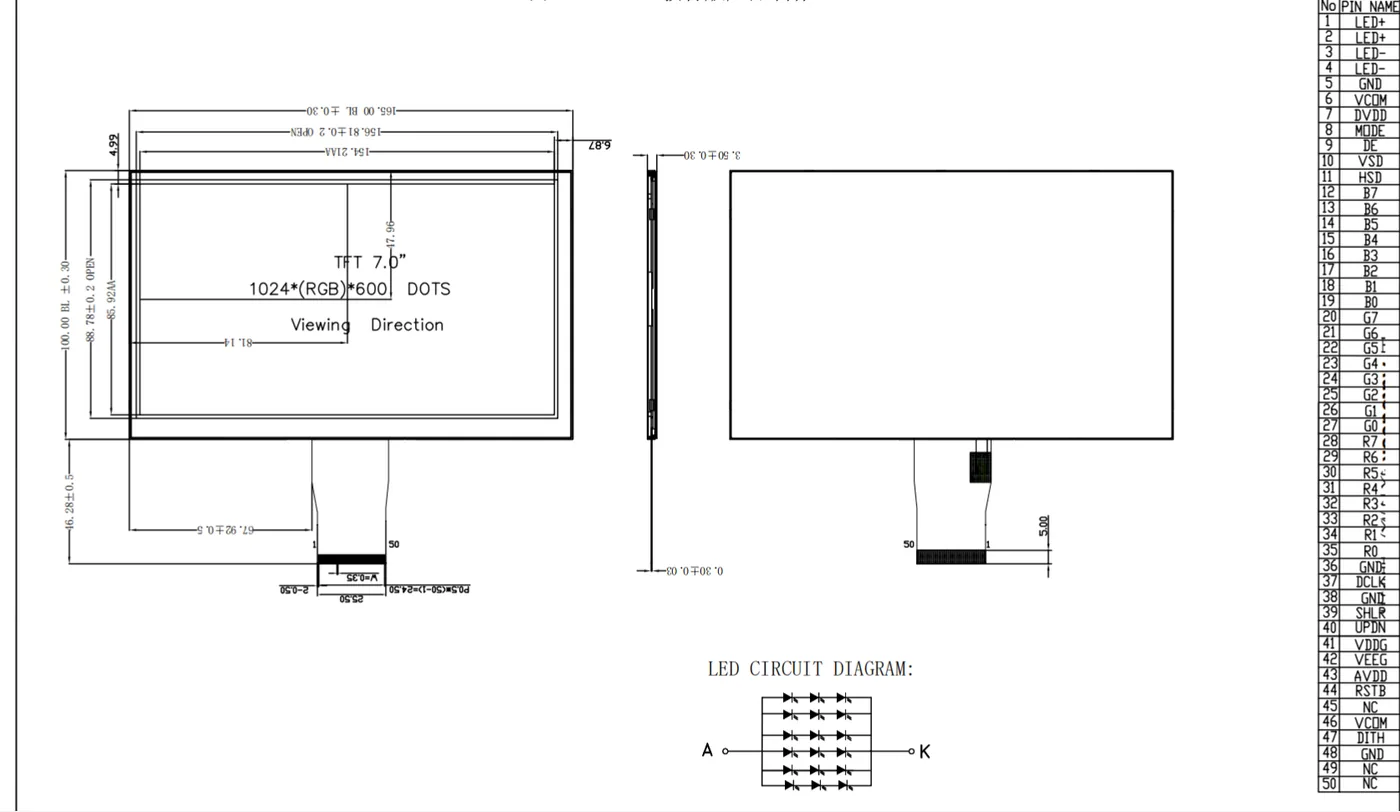

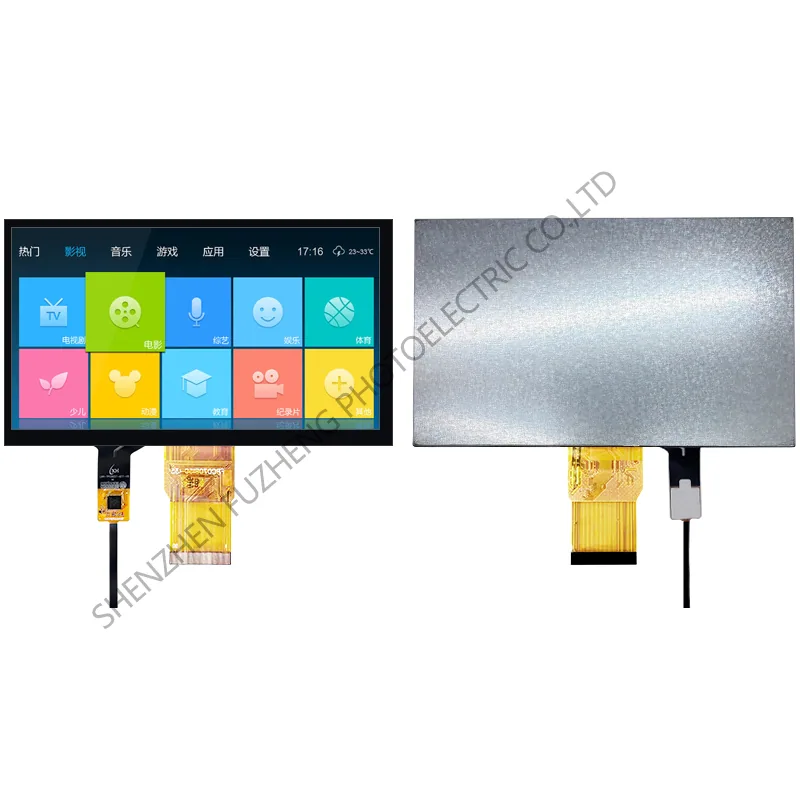

7 inch RGB TFT Display 1024*600 product image
7 inch RGB TFT-LCD Display 1024x600 · product view 02

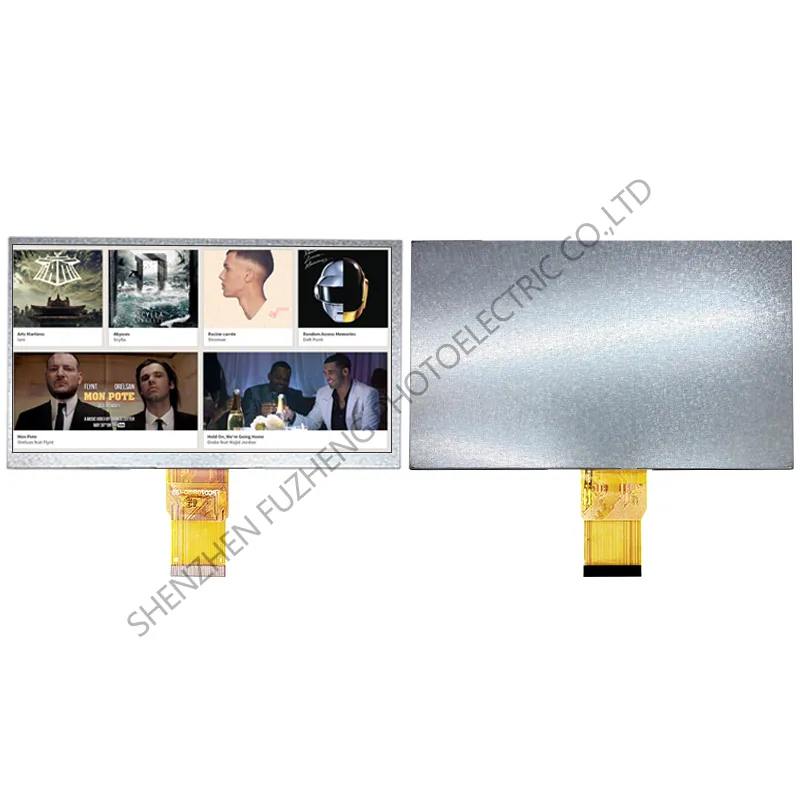

7 inch RGB TFT Display 1024*600 product image
7 inch RGB TFT-LCD Display 1024x600 · product view 03
7 inch RGB TFT Display 1024*600 product image
7 inch RGB TFT-LCD Display 1024x600 · product view 04
Published product data

Specifications in one consistent format.

Values are normalized from the current product record; no missing parameter is estimated.

Published specifications for 7 inch RGB TFT-LCD Display 1024x600
SpecificationPublished valueReview status
Screen Size 7 inch Current source record
Resolution 1024*600 Current source record
Technology TFT Current source record
Interface RGB Current source record
Touch CTP (capacitive touch panel) Current source record
Brightness 400 Current source record
Viewing Angle ALL Current source record
Driver IC HX8282/HX8696 Current source record
Backlight 3*6 chips white LEDS Current source record
Module Dimensions 165(H) ×100(V) × 3.5(T) Current source record
Active Area 154.2144(H) *85.92(V) Current source record
Input Voltage 3.3 / VDD Multiple source values — confirm
Operating Temperature -20 -- 70 °C Current source record
Storage Temperature -30 -- 80 °C Current source record
Model FZ7001R50 Current source record
LED Life span 25000 Current source record
Analog supply voltage AVDD Current source record
TFT Gate ON Voltage VGH Current source record

Published technical data

Published technical data for 7 inch RGB TFT-LCD Display 1024x600
ItemContentsUnit
ModelFZ7001R50—
LCD TypeTFT/
Viewing directionALLO' Clock
Size7 inchinch
Module outline (W x HxD)165(H) ×100(V) × 3.5(T)mm
Active area (WxH)154.2144(H) *85.92(V)mm
Resolution (pixels)1024*600/
Interface TypeRGB/
Input voltage3.3V
Luminance400cd/m2
Backlight type and color:3*6 chips white LEDS—
Controller IC:HX8282/HX8696—
Touch type:CTP (capacitive touch panel)—
LED Life span:25000hour
Operating temperature range:-20 -- 70 °C—
Storage temperature range:-30 -- 80 °C—

Published technical data

Published technical data for 7 inch RGB TFT-LCD Display 1024x600
P arameterSymbolValuesUnitRemarkColumn 6
Min.Typ.Max.———
Digital supply voltageVDD33.33.6V
Analog supply voltageAVDD-9.6-V
TFT Gate ON VoltageVGH-18-V
TFT Gate OFF VoltageVGL--6-V
TFT Common Electrode VoltageVCOM-3.2-V

Published technical data

Published technical data for 7 inch RGB TFT-LCD Display 1024x600
ItemSymbolValuesUnitRemarkColumn 6
Min.Typ.Max.———
Current for DriverIGH-0.5010mA
IGL-0.5010mA—
IVDD-35140mA—
IAVDD-3570mA—

Published technical data

Published technical data for 7 inch RGB TFT-LCD Display 1024x600
ItemSymbolMinTypMaxUnitCondition
Forward voltageVf-9-VIf= 1 2 0 mA
LuminanceLv-400-cd/m2If= 1 2 0 mA
Number of LED--18Piece--——
Connection modeP3*6 chips serial----——
Design-in review

Move from a catalog match to a controlled sample evaluation.

Format and image area

Published screen size: 7 inch. Resolution: 1024*600. Module dimensions: 165(H) ×100(V) × 3.5(T). Active area: 154.2144(H) *85.92(V).

Electrical connection

Published interface: RGB. Driver IC: HX8282/HX8696. Backlight: 3*6 chips white LEDS.

Optical and front assembly

Published touch information: CTP (capacitive touch panel). Brightness: 400. Viewing angle: ALL. Operating temperature: -20 -- 70 °C.

Configuration discussion

Define the requirements that the catalog record cannot decide alone.

Use the published values as a starting point, then document the host electronics, enclosure, user interface and operating environment before requesting a sample.
