Model no.FZ7001M30-TP

7 inch MIPI TFT-LCD Display 1024x600

FZ7001M30-TP is a color active matrix LCD module incorporating amorphous silicon TFT (Thin Film Transistor). It is composed of a color TFT-LCD panel, driver IC, FPC and a back light unit. The module display area contains 1024x 600pixels. This product accords with RoHS environmental criterion.

  • TFT
  • 4 LANE MIPI
  • CTP (capacitive touch panel)
Screen Size
7 inch
Resolution
1024*600
Technology
TFT
Interface
4 LANE MIPI
Touch
Capacitive touch
Viewing Direction
ALL
Discuss this module with our team

Review the listed module configuration and confirm the matching specification and drawing revision with your inquiry.

Product overview

FZ7001M30-TP is a color active matrix LCD module incorporating amorphous silicon TFT (Thin Film Transistor). It is composed of a color TFT-LCD panel, driver IC, FPC and a back light unit. The module display area contains 1024x 600pixels. This product accords with RoHS environmental criterion.

Note1:If users use the product out off the environmemtal operation range(temperature and humidity),it will have visual quality concerns.

Note3:DVDD setting should match the signals output voltage(refer to Note4)of customer's system board.

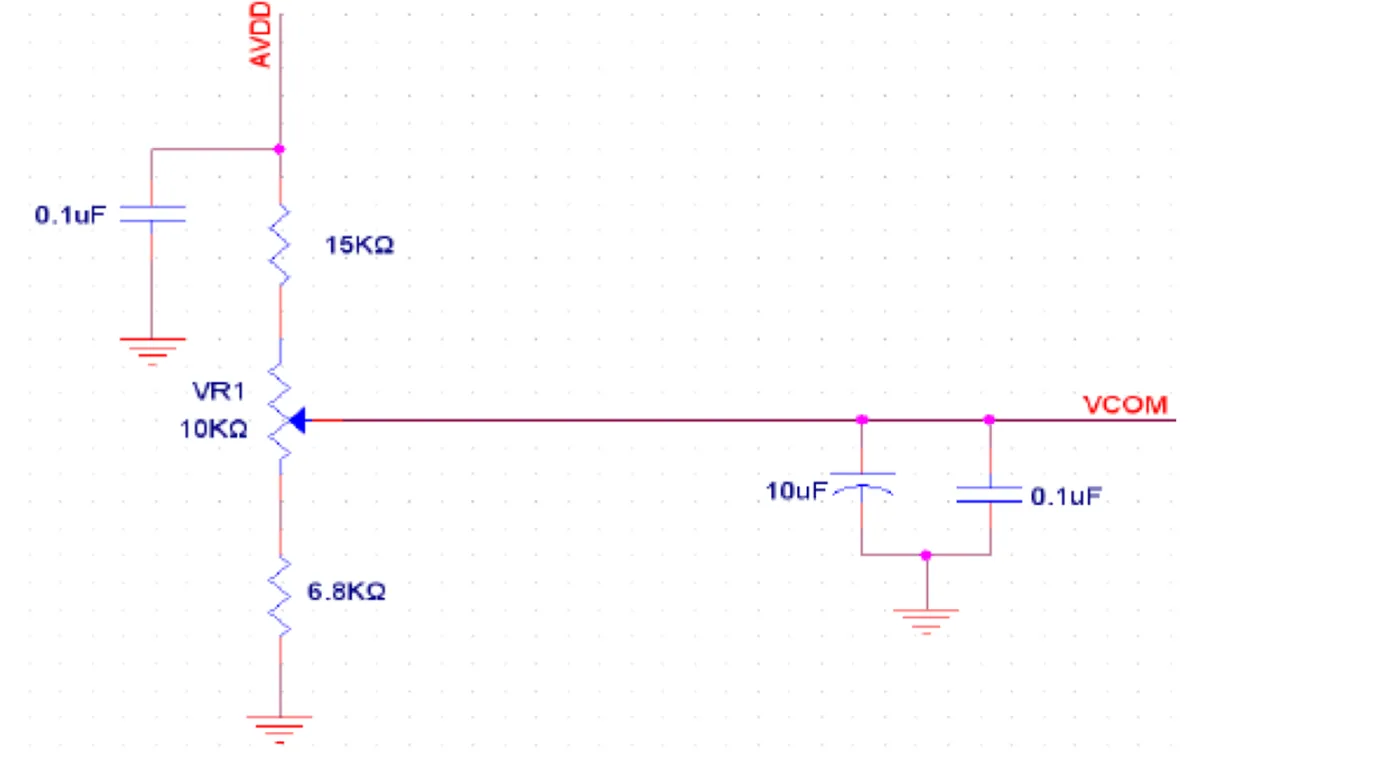

Note5:Typical VCOM is only a reference value,it must be optimized according to each LCM. Please ues VR and base on below application circuit.

Confirm the FZ7001M30-TP assembly against the latest specification and drawing revision before design-in.

Product highlights

    Technical specifications

    Values are normalized from the current product record; no missing parameter is estimated.

    Published specifications for 7 inch MIPI TFT-LCD Display 1024x600
    SpecificationPublished value
    Screen Size 7 inch
    Resolution 1024*600
    Technology TFT
    Interface 4 LANE MIPI
    Touch CTP (capacitive touch panel)
    Brightness 400
    Viewing Direction ALL
    Driver IC HX8282/HX8696
    Backlight 3*6 chips white LEDS
    Module Dimensions 165(H) ×100(V) × 3.5(T)
    Active Area 154.2144(H) *85.92(V)
    Input Voltage 3.3
    Operating Temperature -20 -- 70 °C
    Storage Temperature -30 -- 80 °C
    Model FZ7001M30-TP
    LED Life span 25000
    Power Voltage DVDD
    AVDD 8.8

    Mechanical fit

    Screen Size
    7 inch
    Module Dimensions
    165(H) ×100(V) × 3.5(T)
    Active Area
    154.2144(H) *85.92(V)

    Allow space for the FPC, connector, cover lens and mounting. Use an approved, version-matched drawing before fixing the enclosure.

    Review drawing availability →

    Published technical data

    Published technical data for 7 inch MIPI TFT-LCD Display 1024x600
    ItemContentsUnit
    ModelFZ7001M30-TP—
    LCD TypeTFT/
    Viewing directionALLO' Clock
    Size7 inchinch
    Module outline (W x HxD)165(H) ×100(V) × 3.5(T)mm
    Active area (WxH)154.2144(H) *85.92(V)mm
    Resolution(pixels)1024*600/
    Interface Type4 LANE MIPI/
    Input voltage3.3V
    Luminance400cd/m2
    Backlight type and color3*6 chips white LEDS—
    Controller IC:HX8282/HX8696—
    Touch type:CTP (capacitive touch panel)—
    LED Life span:25000hour
    Operating temperature range:-20 -- 70 °C—
    Storage temperature range:-30 -- 80 °C—

    Published technical data

    Published technical data for 7 inch MIPI TFT-LCD Display 1024x600
    ItemSymbolValuesUnitRemarkColumn 6
    Min.Typ.Max.———
    Power VoltageDVDD3.03.33.6V
    AVDD8.899.4V—
    VGH181920V—
    VGL-6-7-8V—
    Input signal voltageVCOM3.53.63.8V
    Input logic high voltageVIH0.7VDD-DVDDV
    Input logic low voltageVIL0-0.3DVDDV

    Published technical data

    Published technical data for 7 inch MIPI TFT-LCD Display 1024x600
    ItemSymbolValuesUnitRemarkColumn 6Column 7
    Min.Typ.Max.————
    Current for DriverIGH-0.501mAVGH=18.0V
    IGL-0.501mAVGL=-6.0V—
    IVDD-815mAVDD=3.3V—
    IAVDD-3040mAAVDD=9.6V—

    Published technical data

    Published technical data for 7 inch MIPI TFT-LCD Display 1024x600
    ItemSymbolMinTypMaxUnitCondition
    Forward voltageVf-9.0-VIf= 180 mA
    LuminanceLv-400-cd/m2If= 180 mA
    Number of LED--27Piece--——
    Connection modeP3chips serial *9----——

    Interface & integration

    Connection information for FZ7001M30-TP
    ParameterSource value
    Interface4 LANE MIPI
    TouchCTP (capacitive touch panel)
    Driver ICHX8282/HX8696
    Backlight3*6 chips white LEDS
    Input Voltage3.3

    Confirm pin numbering, supply levels, controller revision and initialization before connecting power. Source tables are references, not a substitute for an approved electrical specification.

    Format and image area

    Published screen size: 7 inch. Resolution: 1024*600. Module dimensions: 165(H) ×100(V) × 3.5(T). Active area: 154.2144(H) *85.92(V).

    Electrical connection

    Published interface: 4 LANE MIPI. Driver IC: HX8282/HX8696. Backlight: 3*6 chips white LEDS.

    Optical and front assembly

    Published touch information: CTP (capacitive touch panel). Brightness: 400. Viewing direction: ALL. Operating temperature: -20 -- 70 °C.

    Drawings & technical documents

    Reference files from this product record, retained at their available source resolution.

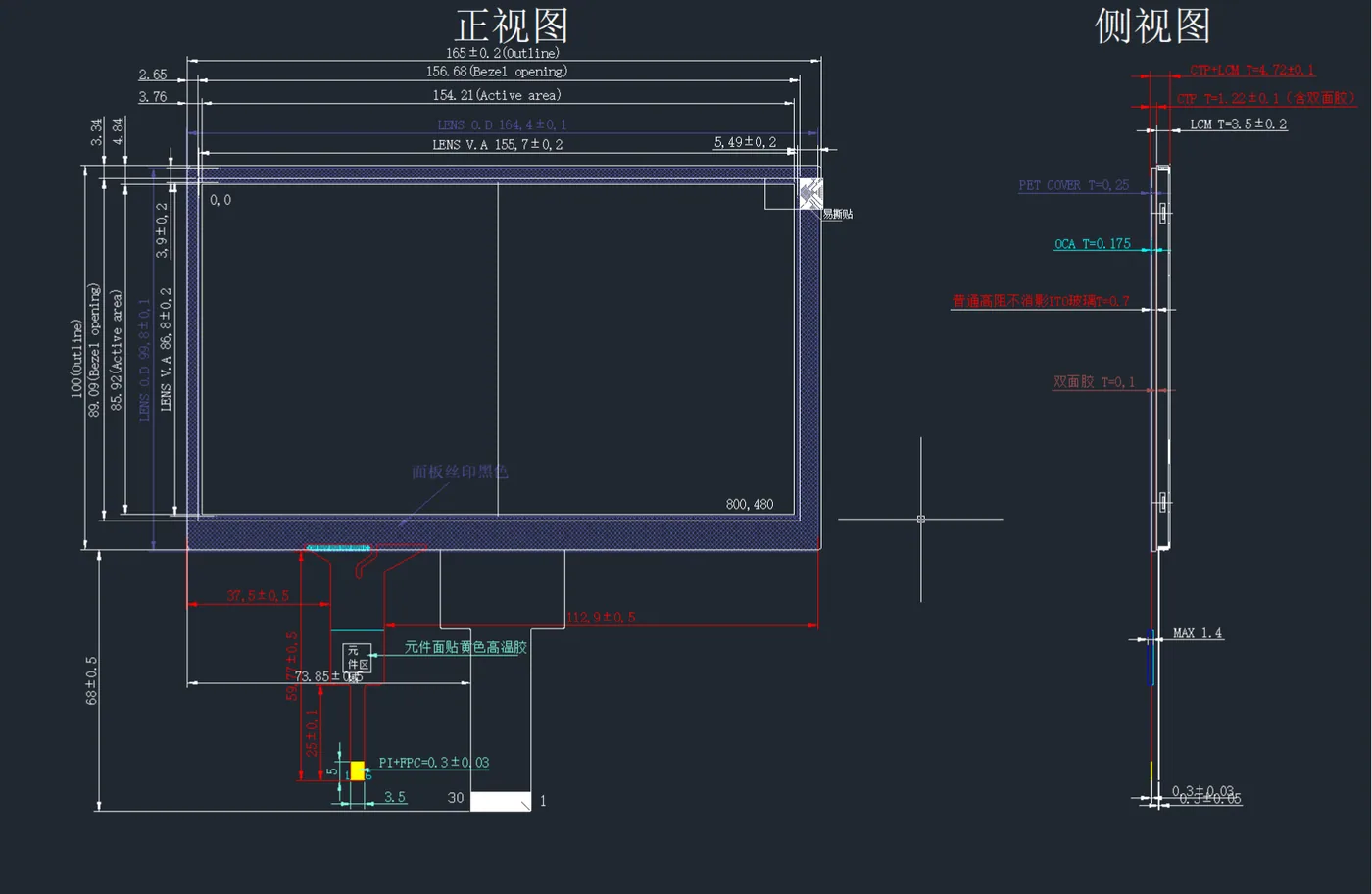

    FZ7001M30-TP reference drawing 1Inspect drawing 1 ↗

    Reference drawing 1

    Confirm the model suffix, dimensional tolerances and assembly revision with the quoted sample.

    Download source drawing ↓

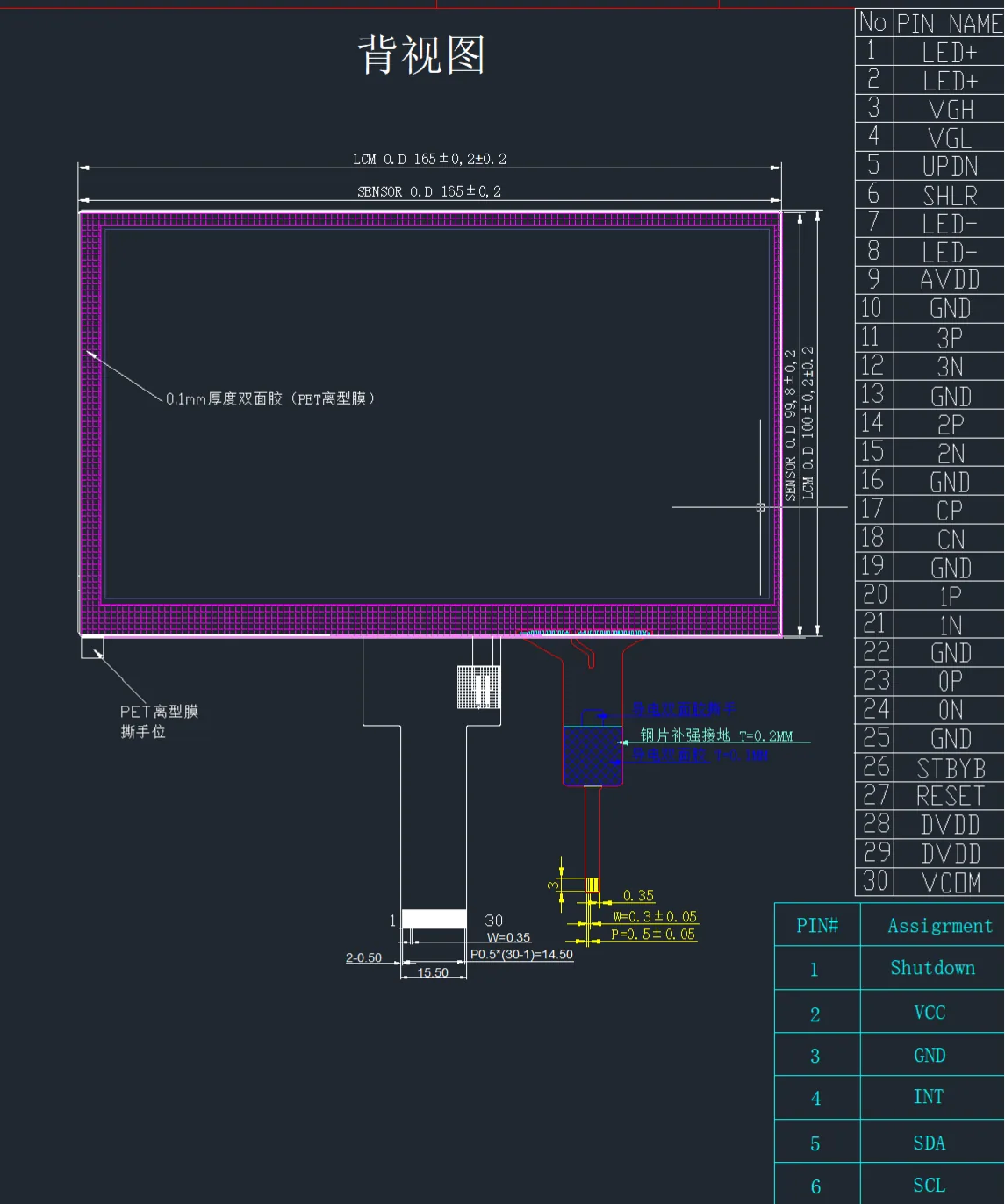

    FZ7001M30-TP reference drawing 2Inspect drawing 2 ↗

    Reference drawing 2

    Confirm the model suffix, dimensional tolerances and assembly revision with the quoted sample.

    Download source drawing ↓

    Additional electrical references

    Match the module to your application

    Use the published values as a starting point, then document the host electronics, enclosure, user interface and operating environment before requesting a sample.

    Send product requirements
    • Review interface, connector and FPC alignment against the host electronics.
    • Discuss touch panel and cover lens requirements where the product design needs a front assembly.
    • Confirm outline, active area, mounting constraints and environmental requirements before sample approval.

    Product questions

    Specifications, documents and sample planning for FZ7001M30-TP.

    What are the published specifications for FZ7001M30-TP?

    FZ7001M30-TP currently publishes Screen Size: 7 inch; Resolution: 1024*600; Technology: TFT; Interface: 4 LANE MIPI; Touch: Capacitive touch; Viewing Direction: ALL. Confirm the final drawing and pin assignment against the supplied sample before design-in.

    What should I include in an inquiry for this display?

    Include the product name or model, target size and resolution, host interface, touch and cover-lens requirements, brightness and environment, quantity and current project stage.

    Can I request a sample for evaluation?

    Use the sample request action and share the intended electrical and mechanical integration requirements so the evaluation scope can be discussed around this exact record.

    Can interface, touch or mechanical requirements be discussed?

    Yes. Send the host interface, connector or FPC constraints, touch and cover-lens needs, outline limits and environmental targets for an engineering review. No unpublished capability is assumed on this page.

    Discuss this display with our team

    FZ7001M30-TP

    Share the required interface, assembly, quantity and project timing. Request the matching specification and drawing revision with your quote.

    Shenzhen FuZheng Photoelectric Co., Ltd. · Company information
    Victory.Wang@szfuzheng.com · WhatsApp +86 159 8944 5783

    Start a product inquiry →

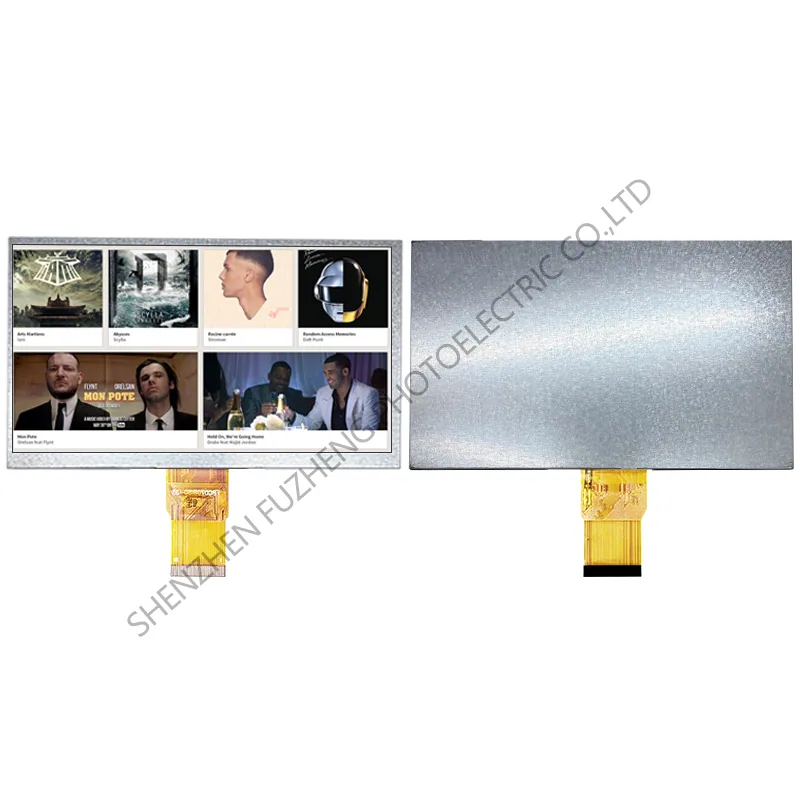

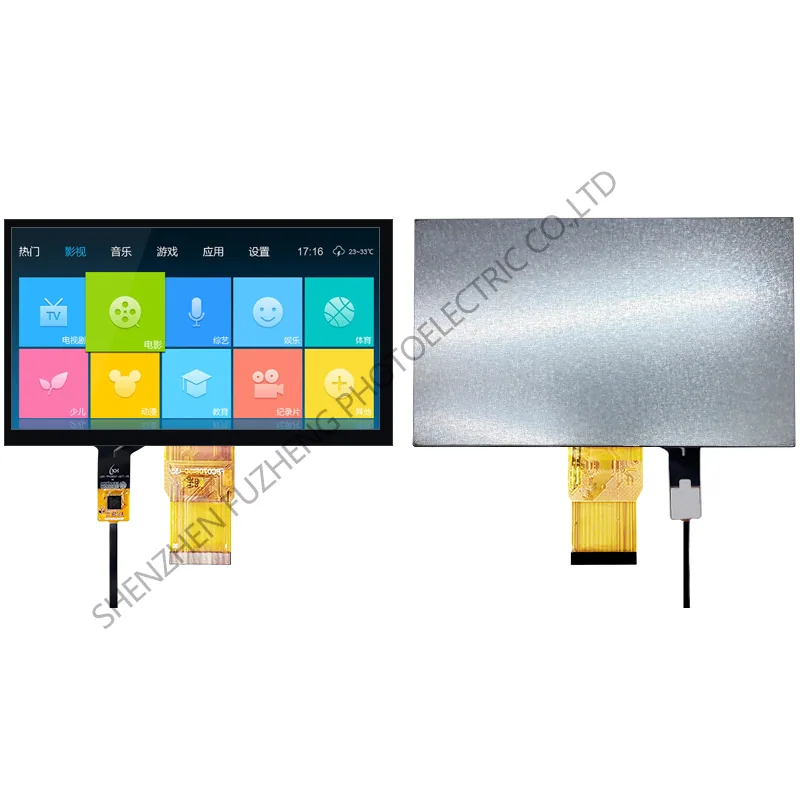

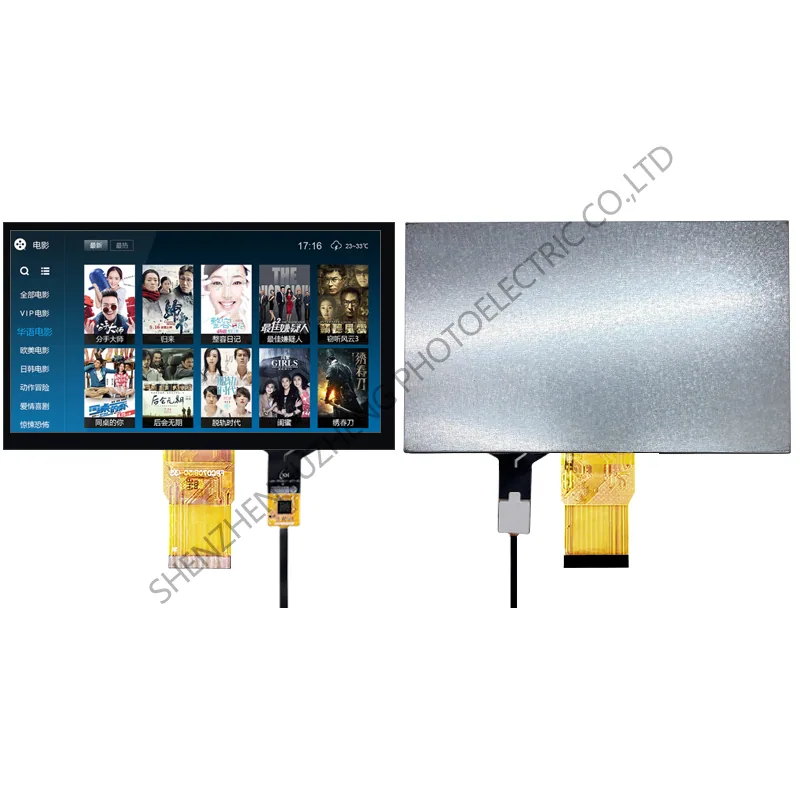

    7 inch MIPI TFT Display 1024*600 product image
